DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case
SKU: DZO-X1828C

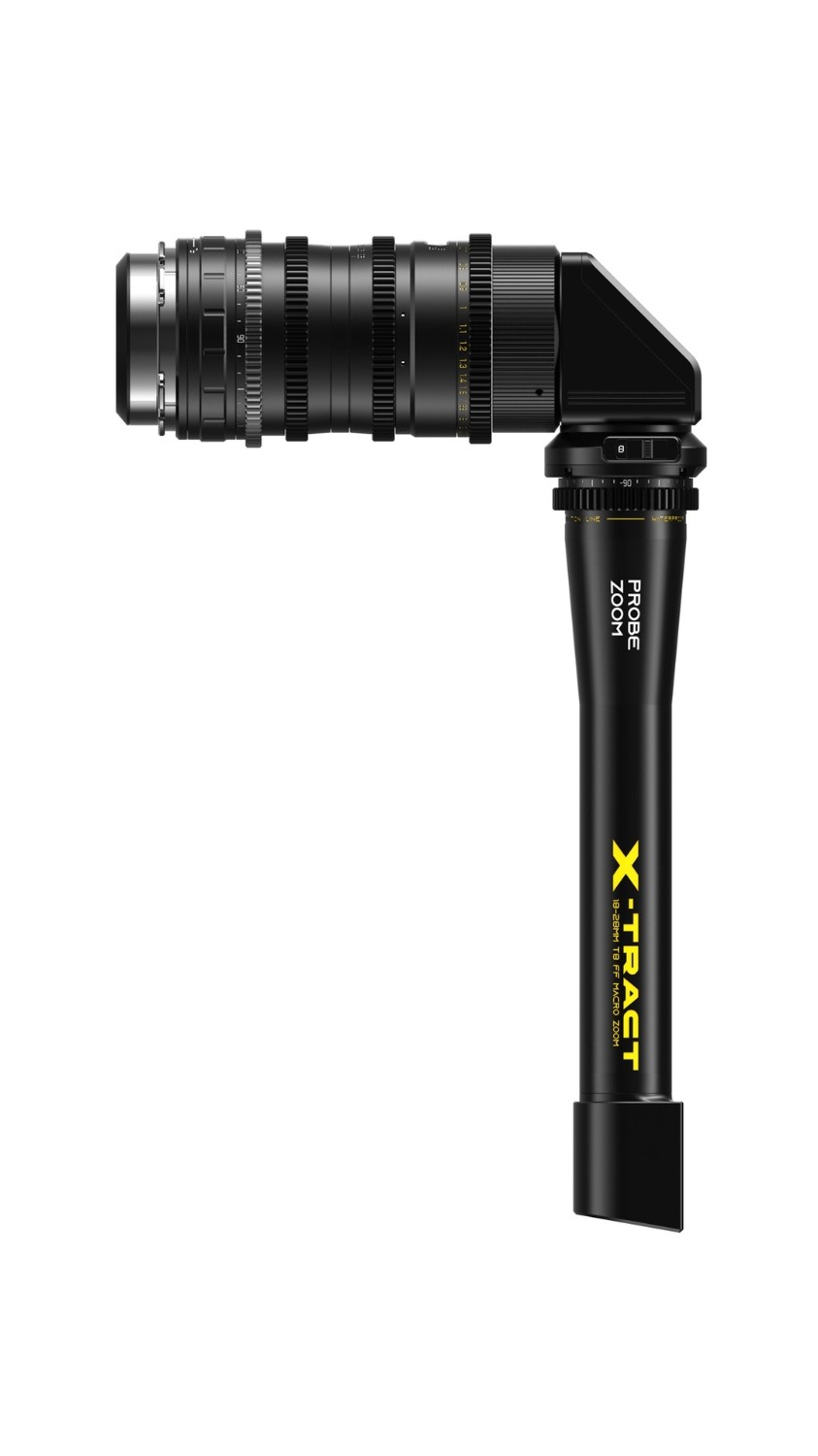

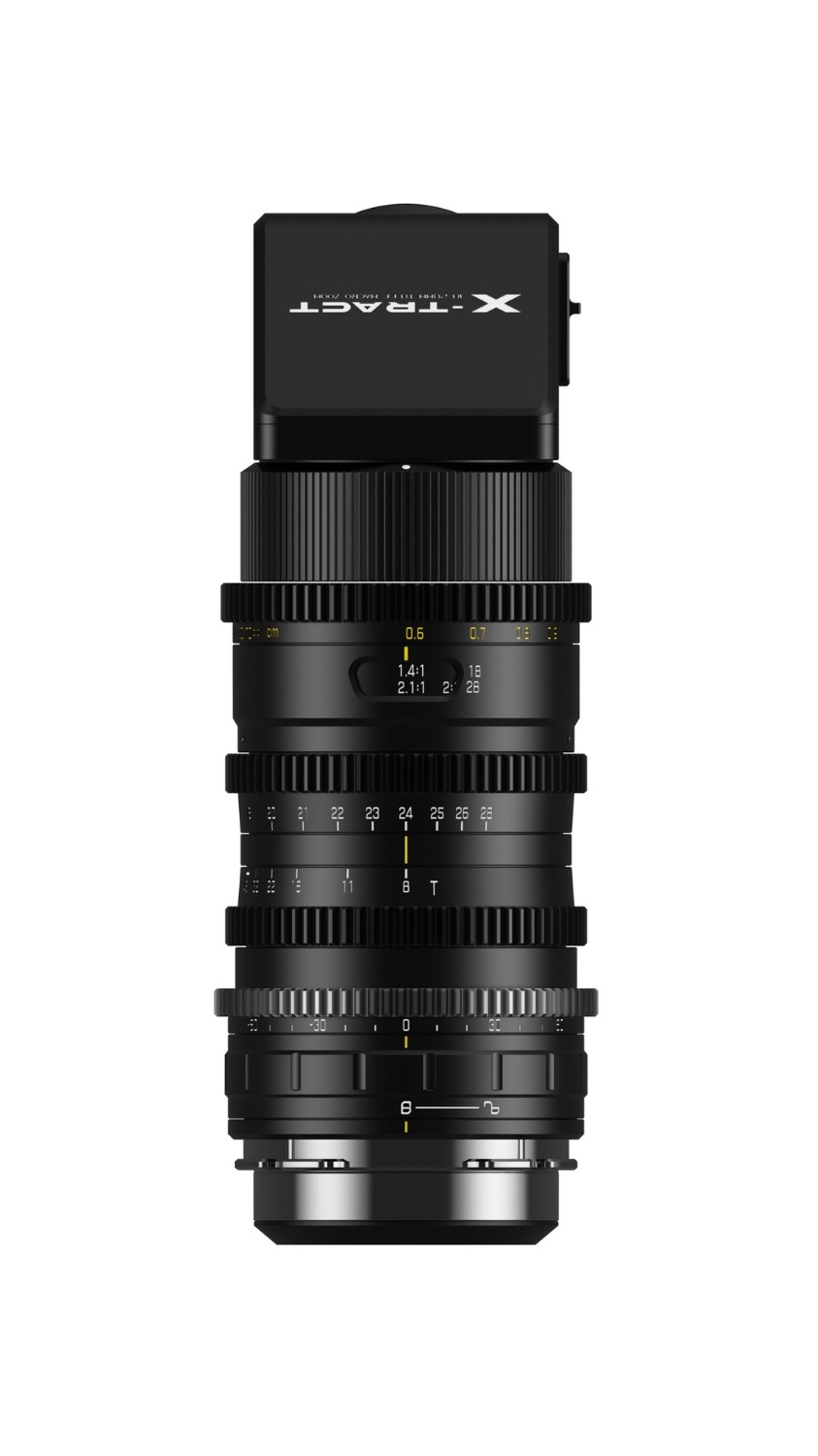

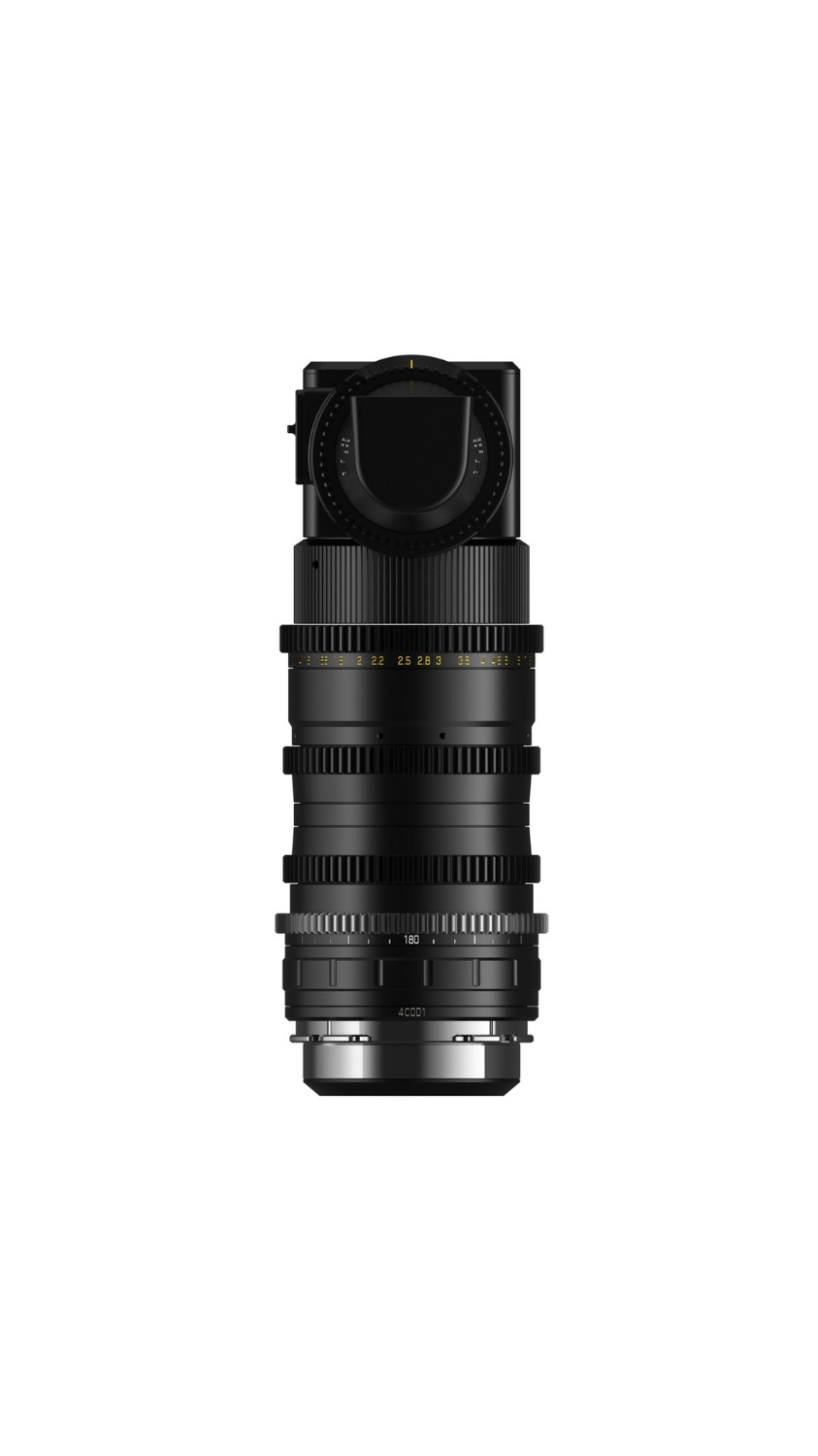

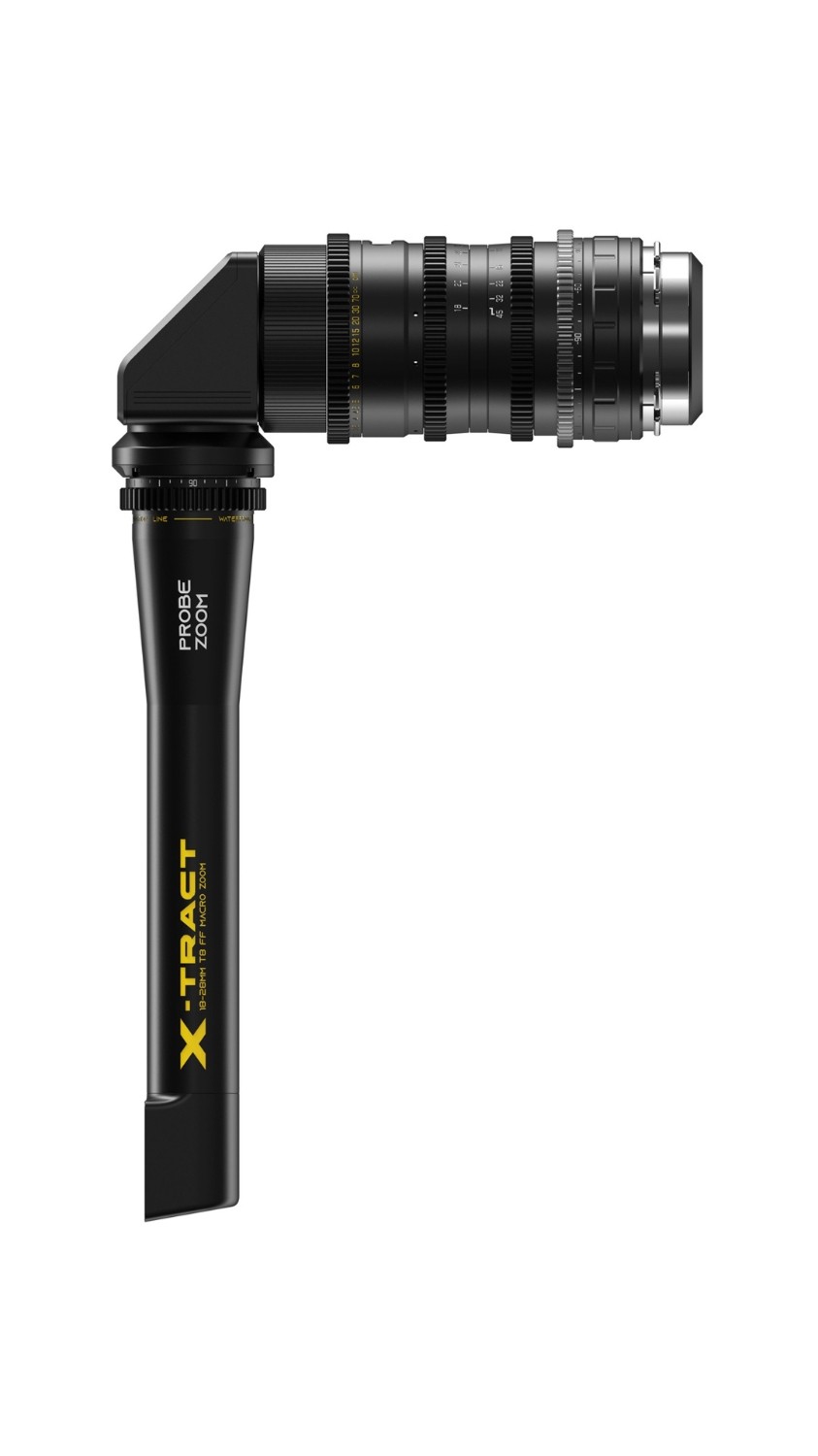

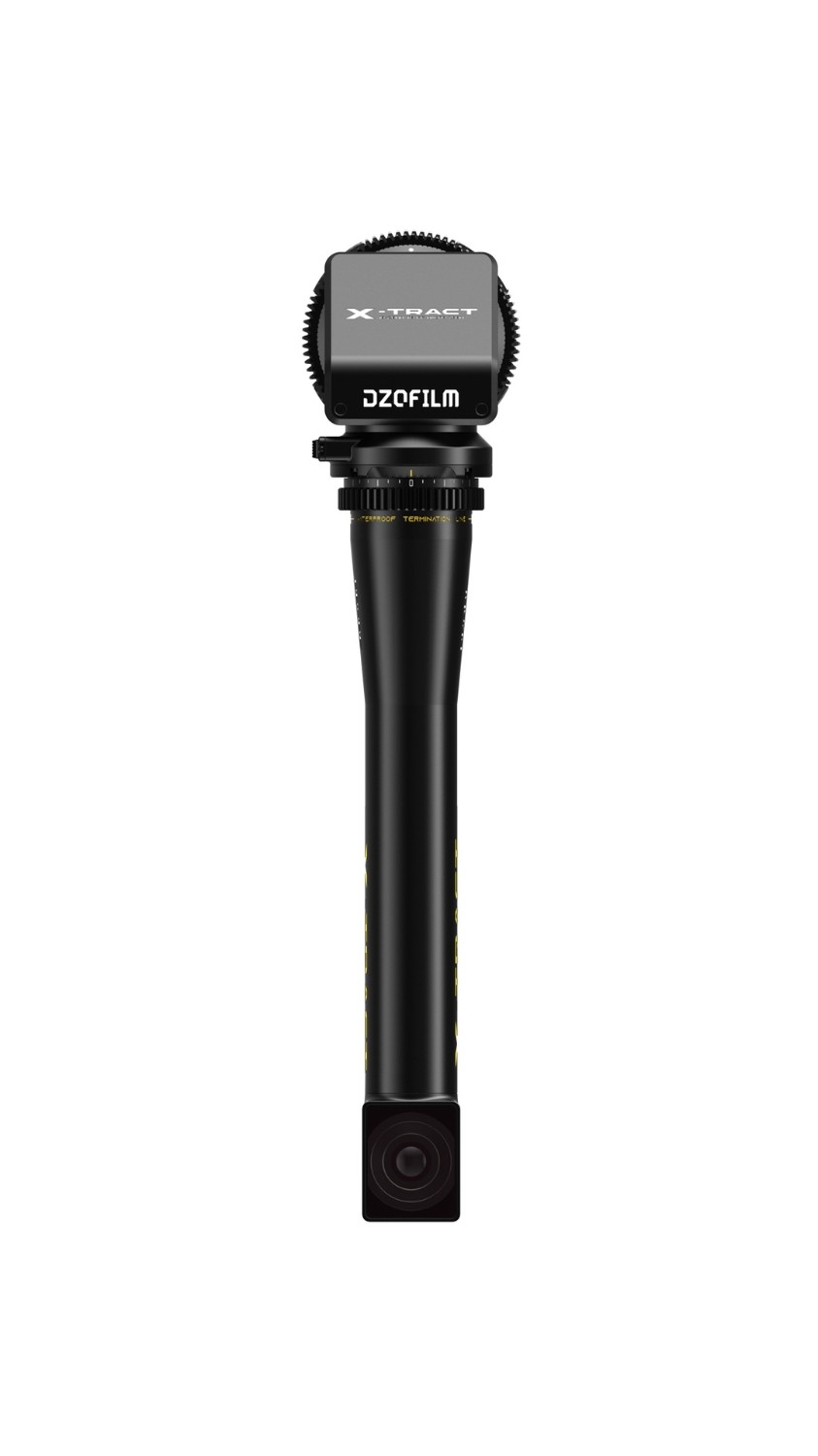

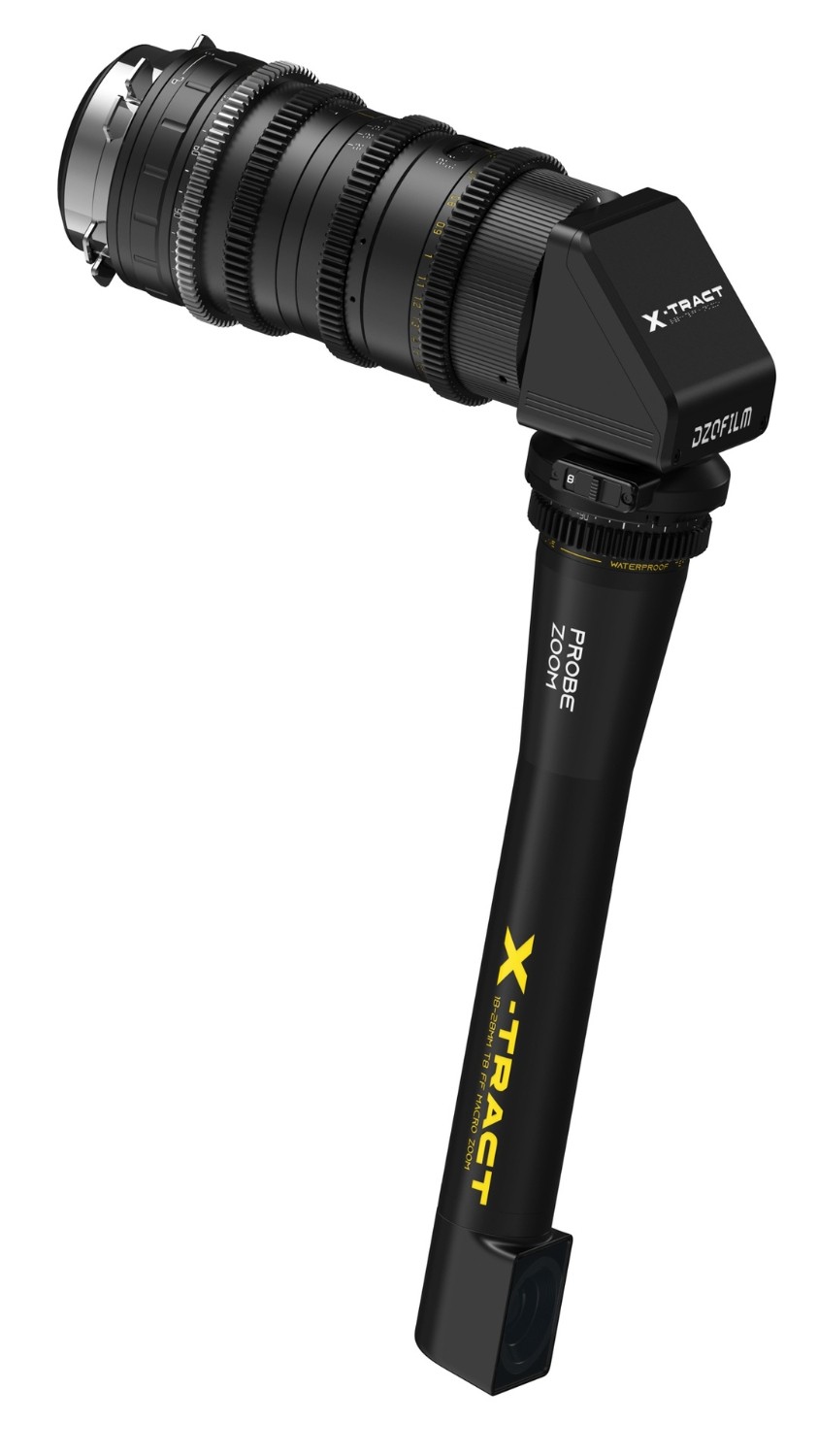

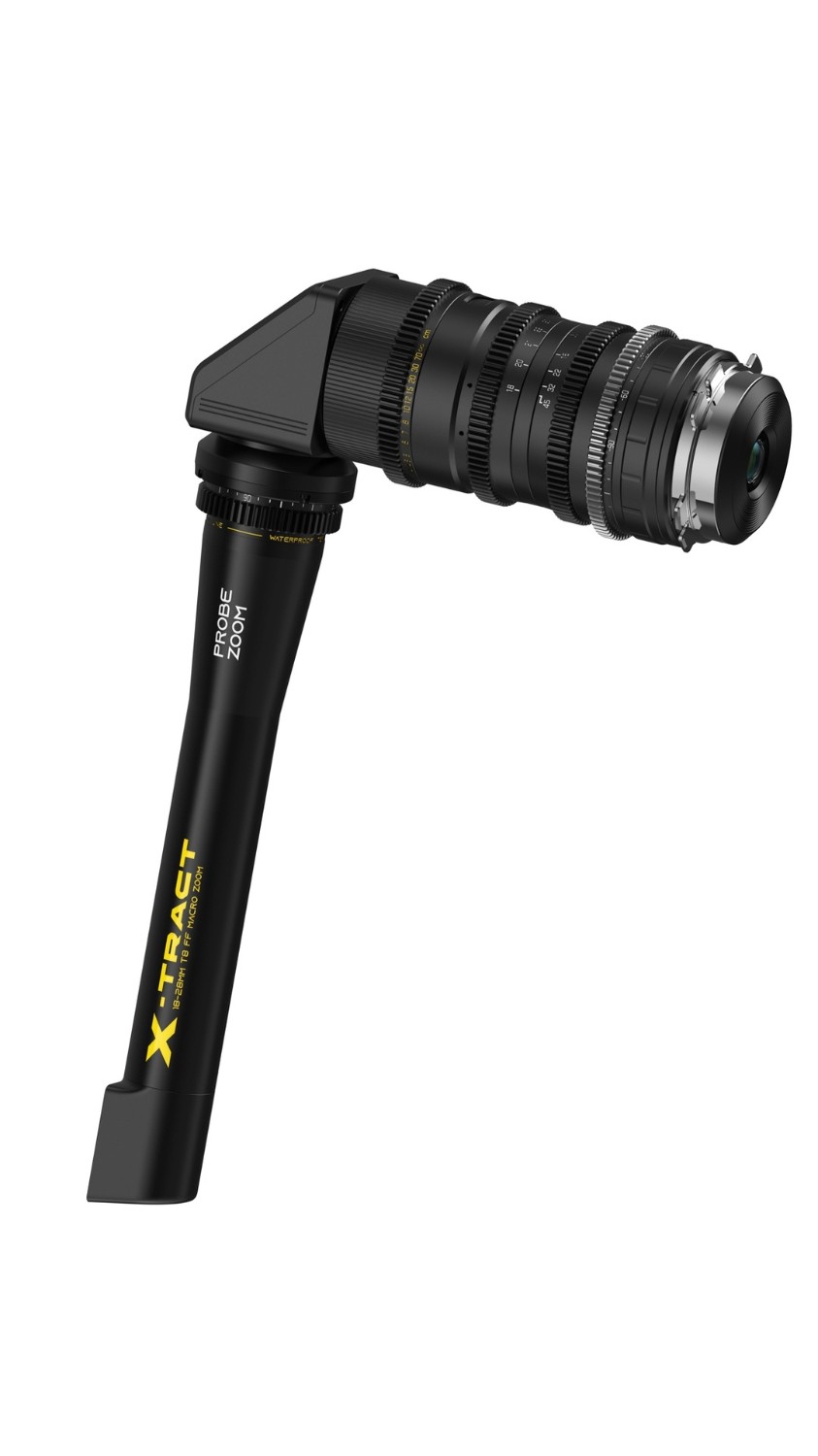

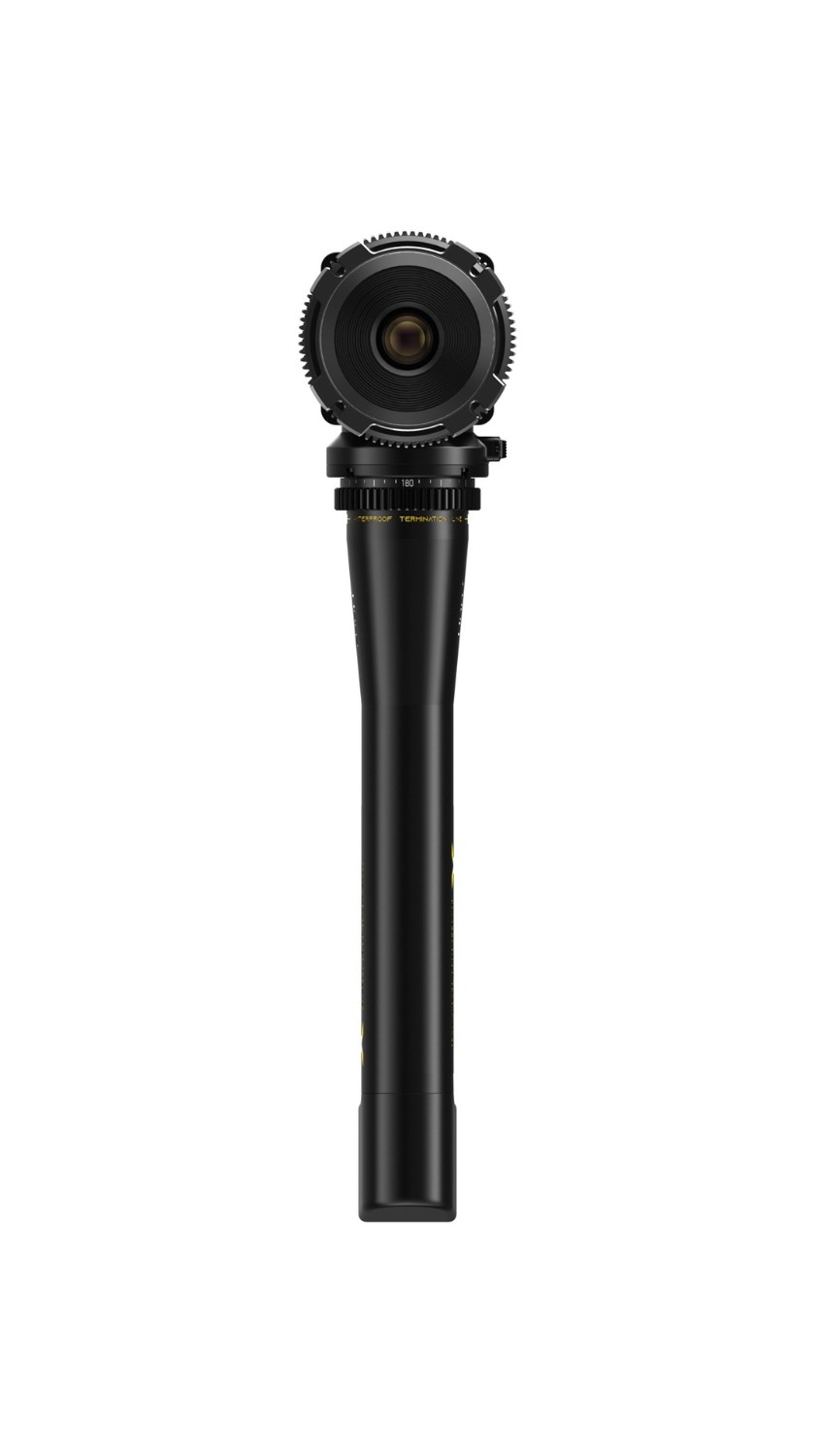

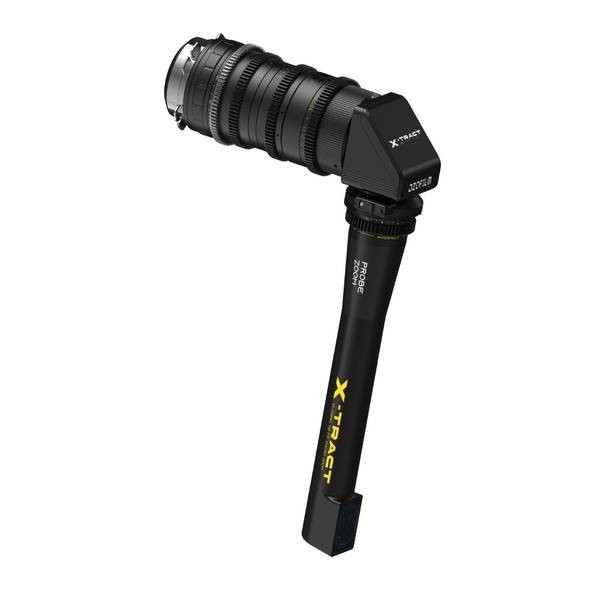

The DZOFILM X-tract 18–28 mm T8 360° is a full-frame parfocal macro zoom lens with a 360° rotating periscope for working in tight spaces, product photography, and creative macro perspectives. It covers 18–28 mm at T8–T45, focuses from 0.47 m from the sensor plane, and offers up to 2.1× magnification at 28 mm.
4 359 € with VAT
3 602.48 € without VAT
Availability
on request
DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case
3 999 €without VAT 3 304.96 €
DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case
In stock 2 pcs3 899 €without VAT 3 222.31 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case
7 049 €without VAT 5 825.62 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case
10 099 €without VAT 8 346.28 €
DZOFILM X‑tract 18–28mm T8 – 0°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €
DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €Top accessories for DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case
K&F Concept Microfibre Cleaning Cloth Set 15 × 15 cm, White, 3 pcs
A set of 3 white K&F Concept cloths made of optical microfibre, each 15 × 15 cm.
6.2 €
In stock > 5 pcs
K&F Concept 23-in-1 Lens and Full Frame Sensor Cleaning Kit with Storage Bag
A 23-in-1 cleaning kit for lenses, filters and full-frame sensors in a storage bag.
55 €
In stock > 5 pcs
K&F Concept 4-in-1 Lens Cleaning Kit: Air Blower, Cleaning Pen, Fluid and Cloths
The K&F Concept 4-in-1 lens cleaning kit has everything a photographer needs for
27 €
In stock 3 pcs
DZOFILM Octopus Adapter PL → Sony E
The DZOFILM Octopus Adapter PL → Sony E is a mechanical adapter for mounting PL lenses
290 €
In stock > 5 pcs
K&F Concept Air Blower with Long Nozzle for Lenses and Sensors
The K&F Concept rubber air blower with a long orange nozzle blows dust off lenses,
7.7 €
Backordered > 5 pcs
DZOFILM EF Mount for X‑tract (DZO‑MFEF)
The DZO EF Mount for X‑Tract (DZO‑MFEF) is the official Canon EF mount adapter for
108 €
In stock 1 pcs
DZOFILM Octopus Adapter PL → Canon RF
The DZOFILM Octopus Adapter PL → Canon RF is a mechanical adapter for mounting PL
290 €
In stock 2 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The DZOFILM X-tract 18–28 mm T8 360° is a full-frame parfocal macro zoom lens with a 360° rotating periscope for working in tight spaces, product photography, and creative macro perspectives. It covers 18–28 mm at T8–T45, focuses from 0.47 m from the sensor plane, and offers up to 2.1× magnification at 28 mm.
X‑tract · full-frame macro zoom
A 360° periscope for moving macro shots
The fixed 360° X‑tract combines a parfocal 18–28 mm T8 zoom with a rotating periscope. It changes angle, horizon and frame orientation in confined spaces without repositioning the complete camera.
PL18–28 mm · T8up to 2.1×
6 mm from the subject
A 6 mm minimum working distance and magnification up to 2.1:1 at 28 mm reveal the structure of very small subjects.
Cine control
Parfocal operation, a 300° focus throw, 100° zoom throw and 0.8 MOD gears make precise moves repeatable.
Rotate without losing the composition

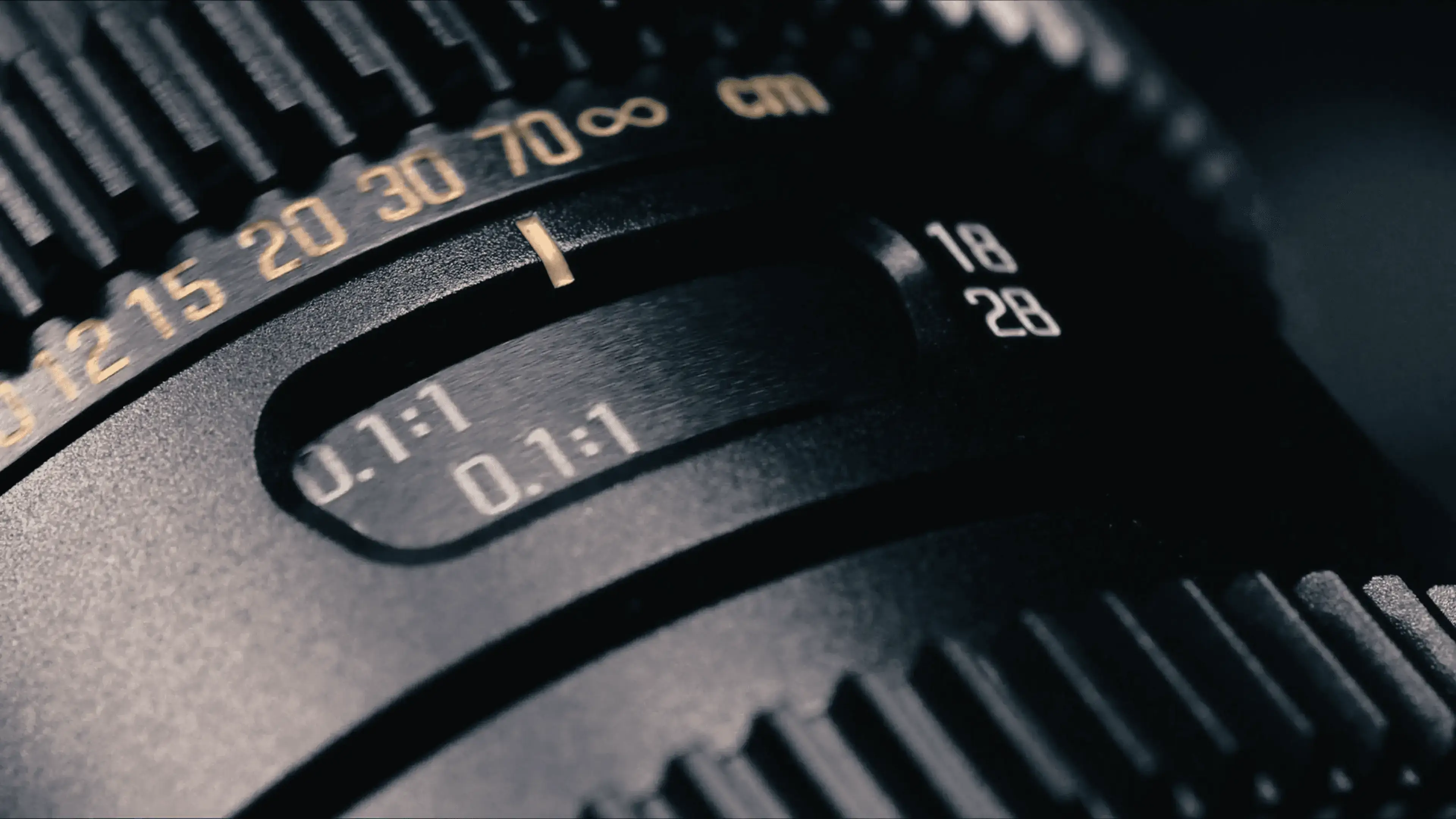

The 360° version's dual rotating rings set both the periscope direction and horizon. Rotation, magnification and waterproof reference markings help crews reproduce a shot accurately.
This SKU is the fixed version: it cannot be disassembled and its front section is not interchangeable with detachable kits.

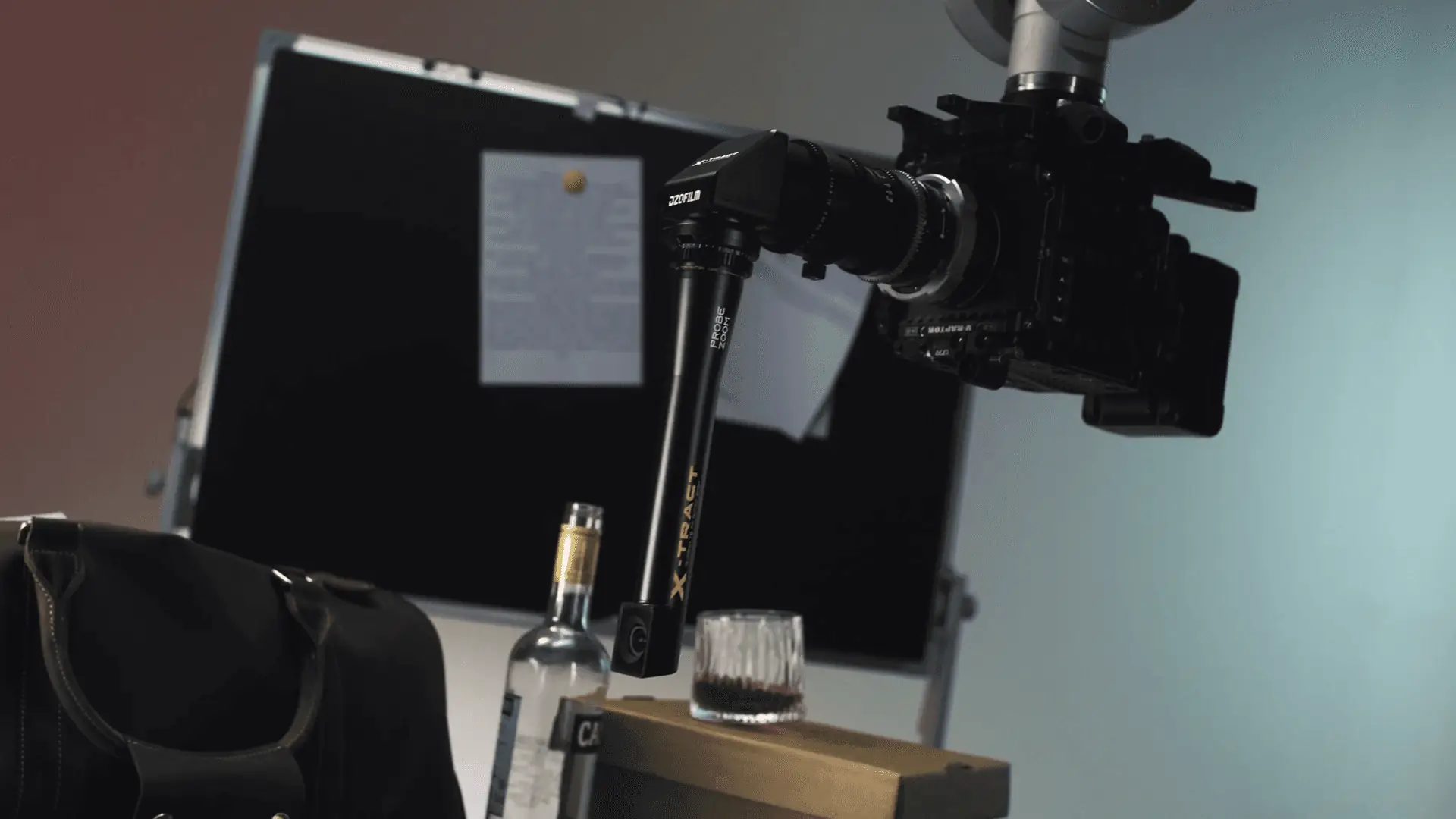

Reach a confined set without a bulky camera move
The slender periscope places the front element between products, miniatures or mechanical parts while the centre of gravity and geared controls remain close to the camera body. Its native PL mount can be used with suitable PL–E and PL–RF adapters.
For longer moves the rig can run on a slider or robotic arm; the rear-biased balance helps reduce unwanted shake.
Zoom instead of changing the lens
The 18–28 mm range changes subject size and perspective in a tight space without withdrawing the probe from the set. Focus remains locked while zooming, with the highest magnification available at 28 mm.
Sample frame shot on the X-tract.
Built for demanding shots
The aluminium body is rated IP57, tested from −30 to 70 °C and uses a hydrophobic coating on the front optical element. The probe can be submerged to a depth of up to 28 cm; always follow the procedures and limits in the manual before use.
PACKAGE CONTENT
- 1× DZOFILM X‑tract 18–28 mm T8 360°, PL, metric markings
- 1× hard transport case
SPECIFICATIONS
- Type: fixed 360° periscope macro zoom probe
- Format: Full Frame, 43.2 mm image circle
- Focal length: 18–28 mm
- Mount: native PL
- Aperture: T8–T45
- Iris blades: 10
- Optical construction: 27 elements in 20 groups
- Flange focal distance: 52 mm
- Minimum focus: 0.47 m from the sensor plane
- Minimum working distance: 6 mm from the front
- Zoom ratio: 1.55×
- Maximum magnification: 2.1× at 28 mm
- Iris / focus / zoom rotation: 72.1° / 300° / 100°
- Gearing: 0.8 MOD
- Installed periscope dimensions: 161 mm horizontal / 302 mm vertical
- Front filter: rectangular, 37.7 × 30.58 mm
- Material: aluminium alloy
- Protection: IP57
- Weight: 1,141 g
Parameters
Parameters
| Manufacturer: | DZO Optics |
| Category: | Lenses |
Main parameters
| Minimum Focusing Distance | 470mm |
| Maximum magnification | 2.1x |
| Number of aperture blades | 10 |
| Bayonet | PL |
| Tilt Shift | No |
| Lens color | Black |
| Lens type | Zoom |
| Extender | No |
| Lens suitable for | Full frame |
| Focal length | 18mm |
| Minimal focal length | 18mm |
| Maximum focal length | 28mm |
| Optical stabilisation | No |
| Auto focus | No |
| Zoom | Yes |
| Anamorphic | No |
| Macro | Yes |
| Weight | 1141g |
