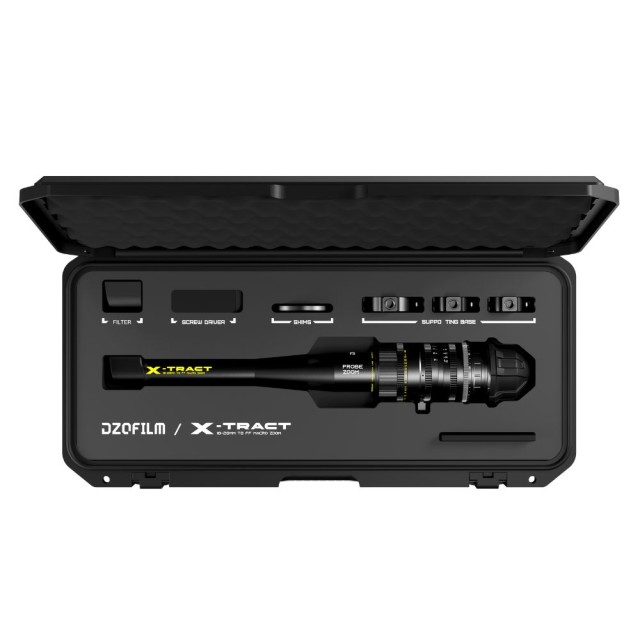

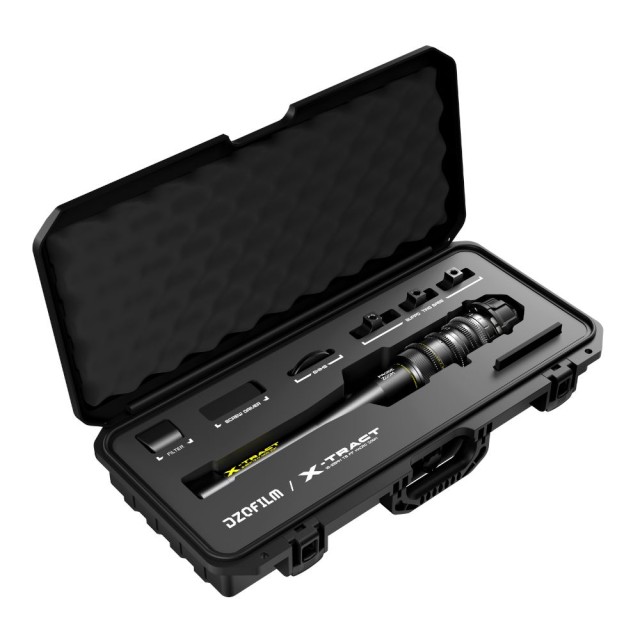

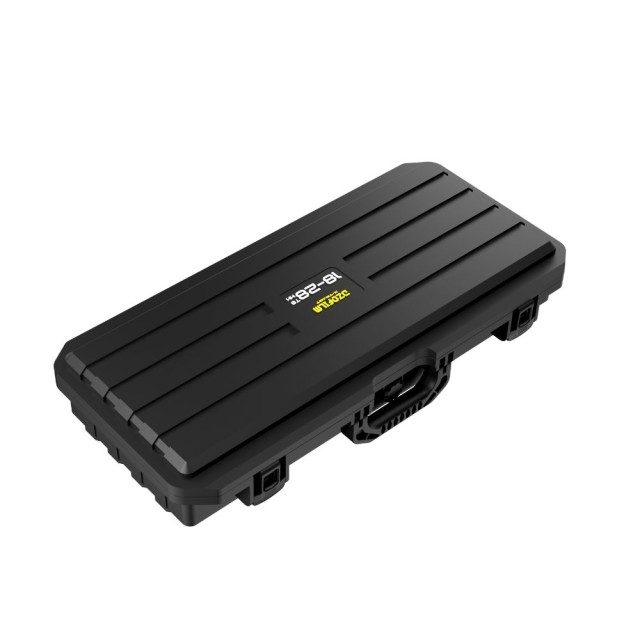

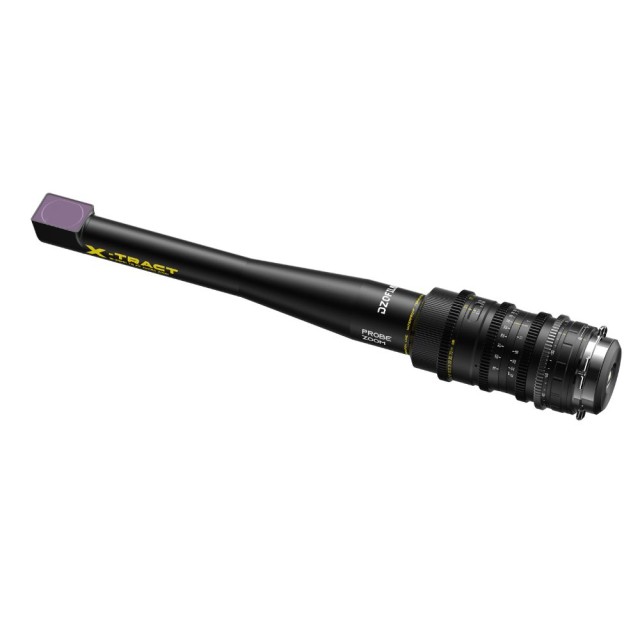

DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case
SKU: DZO-X1828B

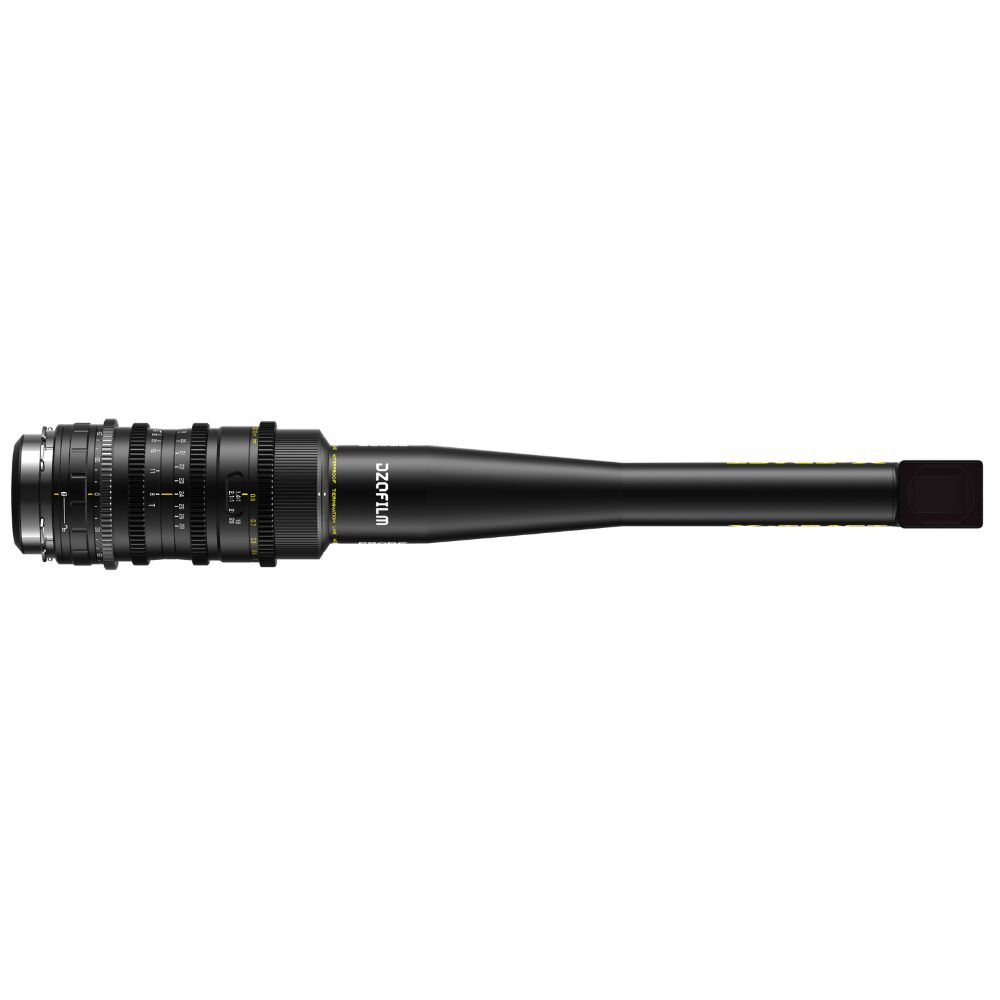

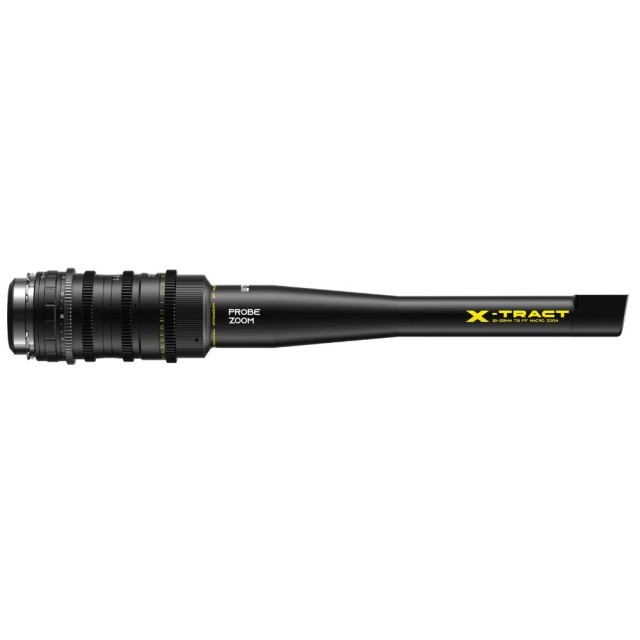

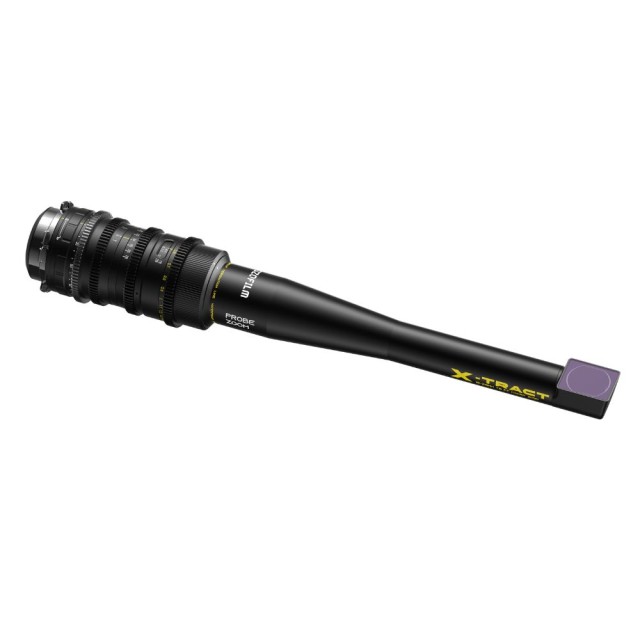

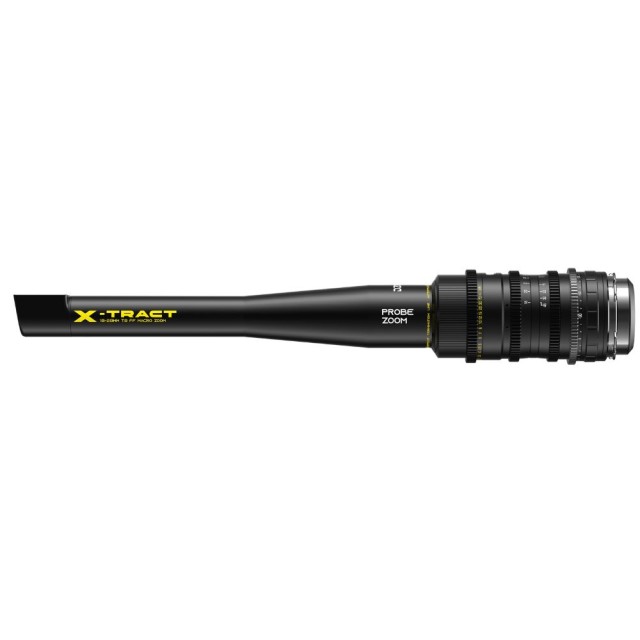

The DZOFILM X-tract 18–28 mm T8 90° is a full-frame parfocal macro zoom probe with a right-angle periscope for shooting just above surfaces, inside objects, and in places where a straight probe cannot fit. It offers a focal length range of 18–28 mm at T8–T45, focusing from 0.47 m from the sensor plane, and up to 2.1× magnification at 28 mm.
3 899 € with VAT
3 222.31 € without VAT
Personal pickup: 29. 09. from 09:00
Shipment day: 29. 09.
Shipment day: 29. 09.
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
DZOFILM X‑tract 18–28 mm T8 0° – PL, Metric, Hard Case
3 999 €without VAT 3 304.96 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° Kit, 1× R‑Unit, PL, Metric, Black Case
7 049 €without VAT 5 825.62 €
DZOFILM X‑tract 18–28mm T8 – 0°/90°/360° 3-Lens Set, PL, Metric, Black Case
10 099 €without VAT 8 346.28 €
DZOFILM X‑tract 18–28mm T8 360° – PL, metric markings, hard case
4 359 €without VAT 3 602.48 €
DZOFILM X‑tract 18–28mm T8 – 0°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €
DZOFILM X‑tract 18–28mm T8 – 90°/360° kit, 1× R‑Unit, PL, metric, black case
5 689 €without VAT 4 701.65 €Top accessories for DZOFILM X‑tract 18–28 mm T8 90° – PL, Metric, Hard Case
DZOFILM EF Mount for X‑tract (DZO‑MFEF)
The DZO EF Mount for X‑Tract (DZO‑MFEF) is the official Canon EF mount adapter for
108 €
In stock 1 pcs
DZOFILM Octopus Adapter II PL → L-Mount
The DZOFILM Octopus Adapter II PL → L-Mount is the second generation of the mechanical
204 €
Backordered > 5 pcs
DZOFILM Octopus Adapter II PL → Canon RF
The DZOFILM Octopus Adapter II PL → Canon RF is the second generation of the mechanical
204 €
Backordered > 5 pcs
DZOFILM Octopus Adapter II PL → Sony E
The DZOFILM Octopus Adapter II PL → Sony E is the second generation of the mechanical
204 €
Backordered > 5 pcs
Product description
ARTICLES
SPECIFICATIONS
Product description
The DZOFILM X-tract 18–28 mm T8 90° is a full-frame parfocal macro zoom probe with a right-angle periscope for shooting just above surfaces, inside objects, and in places where a straight probe cannot fit. It offers a focal length range of 18–28 mm at T8–T45, focusing from 0.47 m from the sensor plane, and up to 2.1× magnification at 28 mm.
A Right-Angle View for Impossible Shots

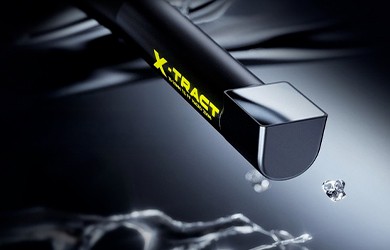

The X-tract 18–28 mm T8 90° offers a right-angle periscope perspective that can be rotated for precise composition alignment. It’s ideal for product shots, tabletop photography, and macro shots in tight spaces, under edges, or just above the water’s surface.
The parfocal design maintains sharpness when zooming; the 300° focus travel and standard 0.8 MOD gear ratio integrate seamlessly into a cine workflow.
Full-frame image
18–28 mm, 43.2 mm image circle, and constant T8–T45.
Close-up macro
Focusing from 0.47 m from the sensor plane, working distance from the front element of 6 mm, and 2.1× magnification at 28 mm.
For shooting around the subject
The 90° version uses 26 elements in 19 groups and a square front filter measuring 37.7 × 30.58 mm. The prism design and rotation expand the possibilities for guiding the probe around the subject without changing the camera settings.
Images from the 90° version require a mirror flip. Magnification markings, waterproof lines, and a rotation scale facilitate repeatable setup.
SPECIFICATIONS
- Type: 90° periscope macro zoom probe
- Focal length: 18–28 mm
- Mount: PL
- Aperture: T8–T45, 10 blades
- Image circle: 43.2 mm
- Optical design: 26 elements / 19 groups
- Minimum focus distance: 0.47 m from the sensor plane; 6 mm from the front element
- Zoom / magnification: 1.55×; up to 2.1× at 28 mm
- Aperture / focus / zoom control: 72° / 300° / 100°
- Front filter: 37.7 × 30.58 mm
- Length: 421 mm
- Tooth pitch: 0.8 MOD
- Material / Weight: Aluminum alloy / approximately 1,132 g
ARTICLES
Parameters
![]()
Parameters
| Manufacturer: | DZO Optics |
| Category: | Lenses |
Main parameters
| Minimum Focusing Distance | 470mm |
| Maximum magnification | 2.1x |
| Number of aperture blades | 10 |
| Lens Length | 421mm |
| Bayonet | PL |
| Lens color | Black |
| Lens Type | Zoom |
| Lens suitable for | Full frame |
| Minimal focal length | 18mm |
| Maximum focal length | 28mm |
| Optical stabilisation | No |
| Auto focus | No |
| Zoom | Yes |
| Anamorphic | No |
| Macro | Yes |
| Weight | 1132g |
