Blackmagic Design ATEM Micro Panel

SKU: SWPANELAA1ME10

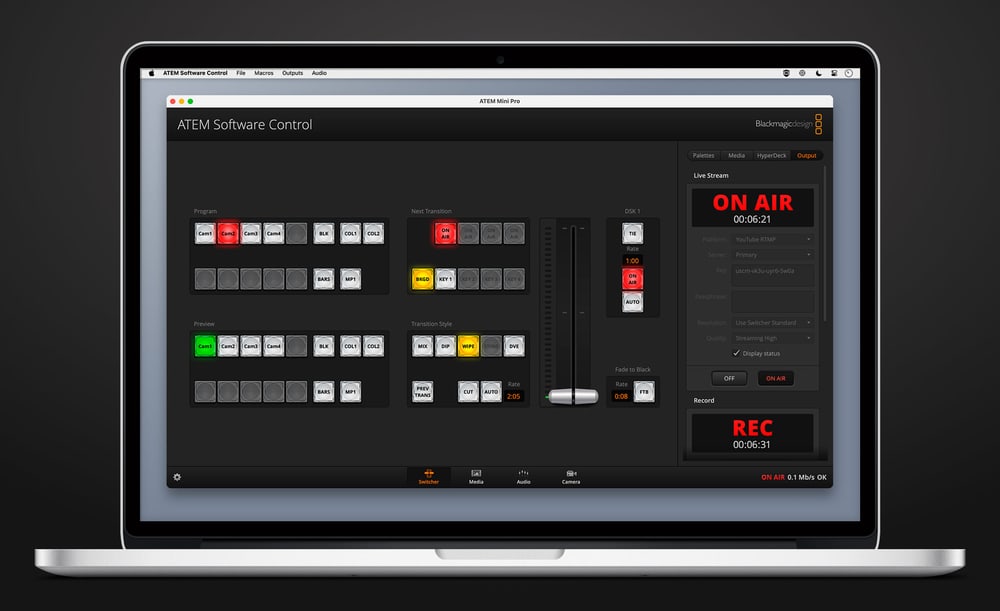

Low cost control panel designed to work with ATEM Software Control. Includes buttons for program and preview, keyers, transitions, macros and fader control. Connects via Bluetooth or USB-C.

More information

749 € with VAT 619.01 € without VAT
Add to Compare Price history
Personal pickup: 03. 08. from 09:00
Shipment day: 03. 08.
In stock > 5 pcs
Praha > 5 pcs
SKU:
SWPANELAA1ME10
Add to Compare Price history

Blackmagic Design ATEM 1 M/E Advanced Panel 10

3 529 €without VAT 2 916.53 €

Blackmagic Design ATEM 2 M/E Advanced Panel 20

6 899 €without VAT 5 701.65 €

Blackmagic Design ATEM 2 M/E Advanced Panel 30

8 229 €without VAT 6 800.83 €

Blackmagic Design ATEM 2 M/E Advanced Panel 40

10 529 €without VAT 8 701.65 €

Blackmagic Design ATEM 1 M/E Advanced Panel 20

4 199 €without VAT 3 470.25 €

Blackmagic Design ATEM 1 M/E Advanced Panel 30

6 049 €without VAT 4 999.17 €

Top accessories for Blackmagic Design ATEM Micro Panel

Blackmagic Design ATEM Mini Pro

  • Top product
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted
352 €
In stock 2 pcs

Blackmagic Design ATEM Mini Pro ISO

  • -3 %
  • LAST PIECE
Promotion: -3%
The new ATEM Mini makes it easy to create professional multi camera productions for
558.34 €
578.38 €
In stock 1 pcs

Blackmagic Design ATEM Mini Extreme ISO G2

  • Free transport
  • LAST PIECE
The Blackmagic Design ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher
2 179 €
In stock 1 pcs

Blackmagic Design ATEM SDI Pro ISO

  • -4 %
  • LAST PIECE
Promotion: -4%
This model includes the features of ATEM SDI plus it adds built in streaming and
850.04 €
882.09 €
In stock 1 pcs

Blackmagic Design ATEM Mini Extreme

  • -12 %
  • Free transport
  • LAST PIECE
Promotion: -12%
Blackmagic Design ATEM Mini Extreme is a new massively larger model of the ATEM Mini
1 062.04 €
1 208.79 €
In stock 1 pcs

Blackmagic Design ATEM SDI Extreme ISO

  • -13 %
  • Free transport
  • LAST PIECE
Promotion: -13%
This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs
1 433.44 €
1 652.86 €
In stock 1 pcs

Blackmagic Design ATEM 1 M/E Constellation HD

  • Free transport
ATEM 1 M/E Constellation HD is a professional 1 M/E live production switcher with
1 169 €
To be sent 1 pcs

Blackmagic Design ATEM 2 M/E Constellation HD

  • Free transport
  • LAST PIECE
ATEM 2 M/E Constellation HD is a professional 2 M/E live production switcher with
1 989 €
In stock 1 pcs

Blackmagic Design ATEM Television Studio 4K8

  • New
  • Free transport
The Blackmagic Design ATEM Television Studio 4K8 is a professional all-in-one live
5 499 €
Backordered 1 pcs

Blackmagic Design ATEM 2 M/E Constellation 4K

  • Free transport
ATEM 2 M/E Constellation 4K is a professional 2 M/E live production switcher with
4 839 €
on request

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Low cost control panel designed to work with ATEM Software Control. Includes buttons for program and preview, keyers, transitions, macros and fader control. Connects via Bluetooth or USB-C.

Blackmagic Design ATEM Micro Panel

Hands-on switching, wherever the production goes

ATEM Micro Panel brings the speed and confidence of a dedicated broadcast panel to ATEM Software Control. Its low-profile body is easy to carry, while professional backlit controls keep live switching clear and immediate.

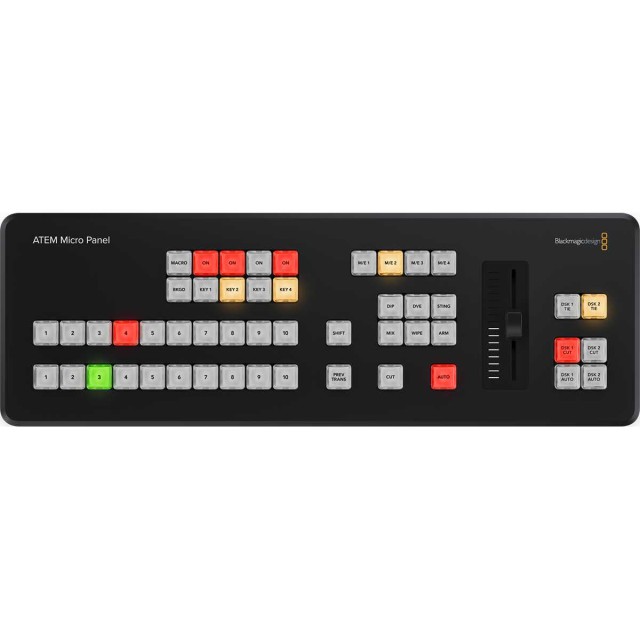

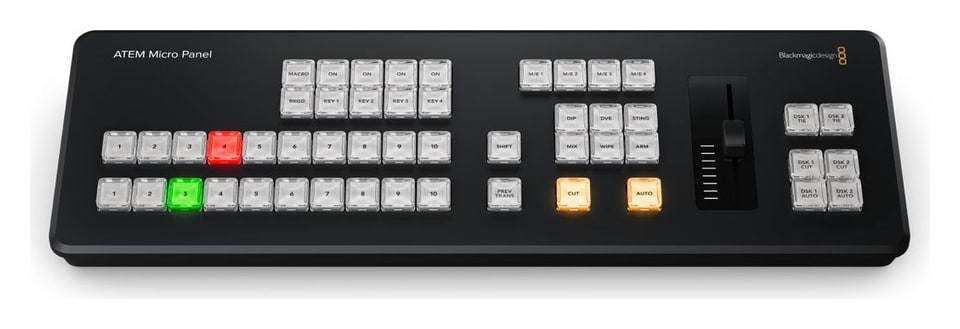

Top view of ATEM Micro Panel controls

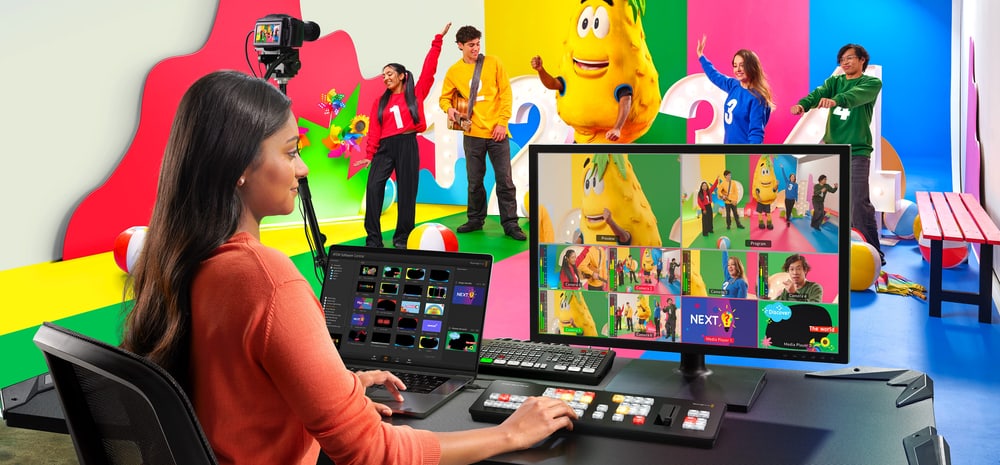

Direct control of up to 20 sources

Two rows of ten illuminated buttons provide immediate access to program and preview. The SHIFT key expands selection to as many as 20 sources without making the panel larger.

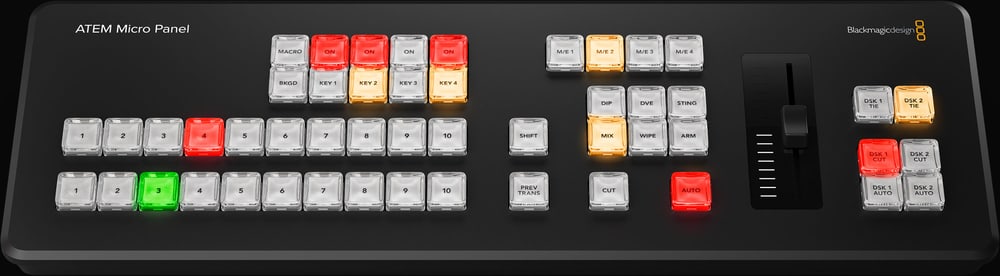

Dedicated controls cover CUT and AUTO switching, five transition types, preview transition, macros, four upstream and two downstream keyers, plus four M/E selections.

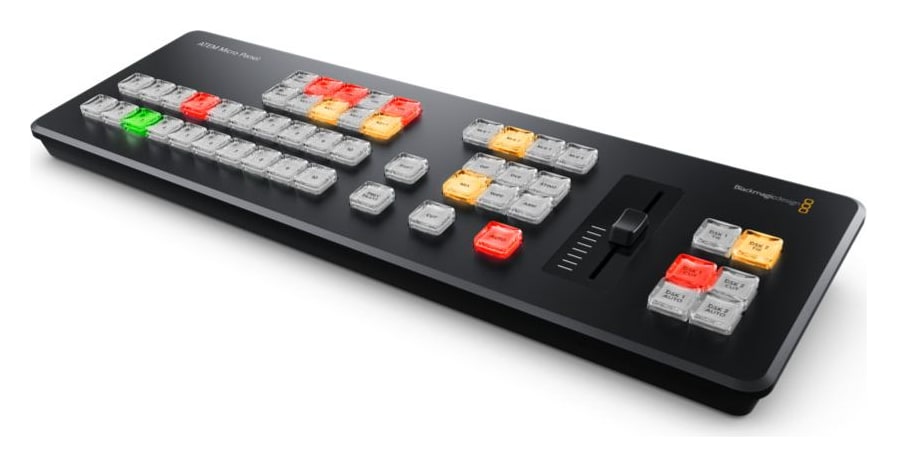

Cable-free control with a full-size feel

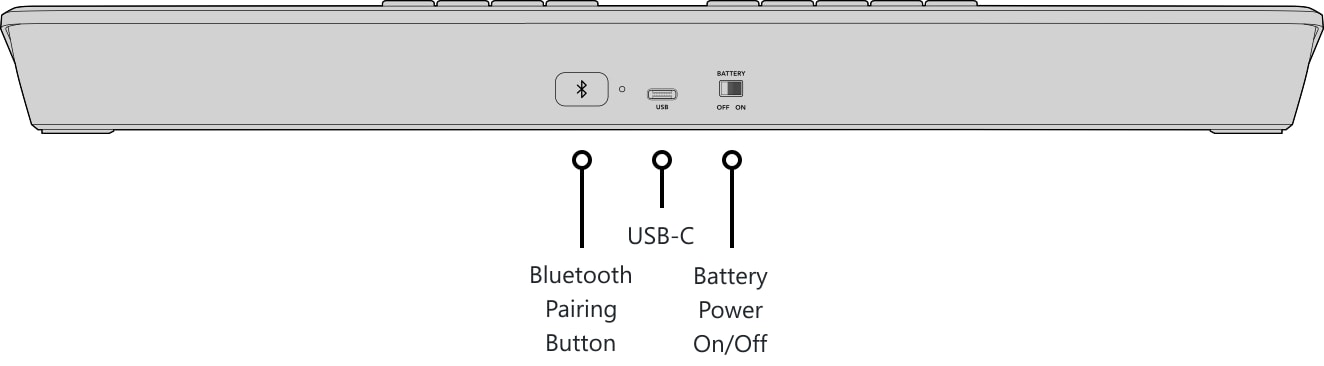

Connect to the computer running ATEM Software Control by Bluetooth 5.1 LE, or use USB-C for a wired connection, external power and battery charging.

The internal battery is rated for at least 6 hours of normal use. A low-profile manual transition fader delivers smooth, tactile control while keeping the panel portable.

ATEM Micro Panel controls
10 + 10program and preview buttons
20sources with SHIFT
6+ hoursminimum battery life
3 Wmaximum power use

PACKAGE CONTENT

  • ATEM Micro Panel
  • Welcome wallet with QR code for software download

SPECIFICATIONS

  • Computer interface: USB Type-C
  • Wireless connection: Bluetooth 5.1 LE
  • Mix effects rows: 1
  • Direct / shifted crosspoints: 10 / 20
  • Crosspoint buttons: tri-color LED
  • Switching buttons: CUT, AUTO
  • Transition types: DIP, DVE, STINGER, MIX, WIPE
  • M/E selections: 4
  • Upstream / downstream key controls: 4 / 2 with ON/OFF
  • Transition fader: 1
  • Power: internal battery; USB-C for external power and charging
  • Maximum power use: 3 W
  • Battery life: minimum 6 hours under normal use
  • Operating temperature: 5 to 40 °C
  • Storage temperature: -20 to 45 °C
  • Relative humidity: 0 to 90%, non-condensing
  • Warranty: 1-year limited manufacturer warranty

ARTICLES

WE RECOMMEND

The ATEM Micro Panel is a compact controller for ATEM production switcher systems that enables precise physical control of switching and effects via USB-C or Bluetooth. To fully utilize its potential, it must be paired with compatible cameras that support remote control and signal distribution devices within the production workflow.

Cameras with ATEM Control support - These cameras can be fully controlled (aperture, color, tally) directly from the production switcher operated by this panel.

Signal Converters - Essential accessories for connecting cameras to the control room and ensuring the return transmission of control data.

Software and Control - Tools for recording, post-production, and integrating the panel into a professional studio.

Parameters

Parameters

Manufacturer: Blackmagic Design
Category: Control panels

Main parameters

Displaybez displeje
InterfacesUSB
ControlsT-bar
PowerUSB-C
