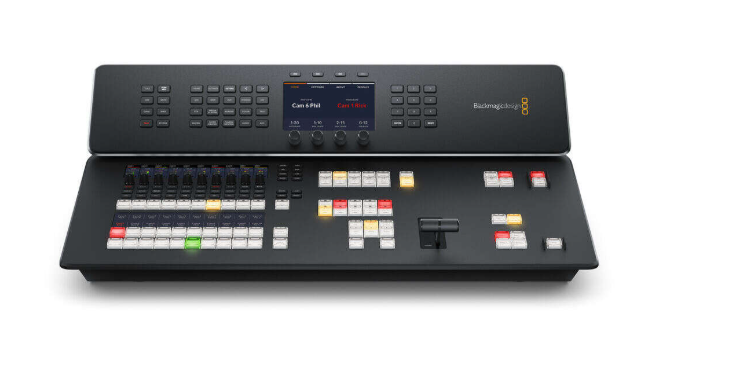

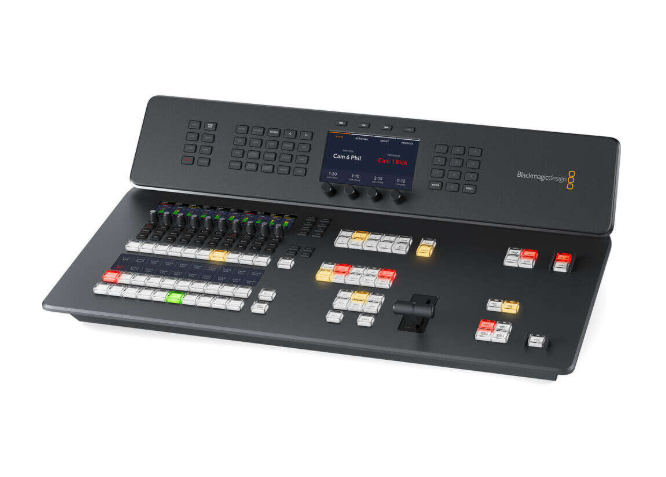

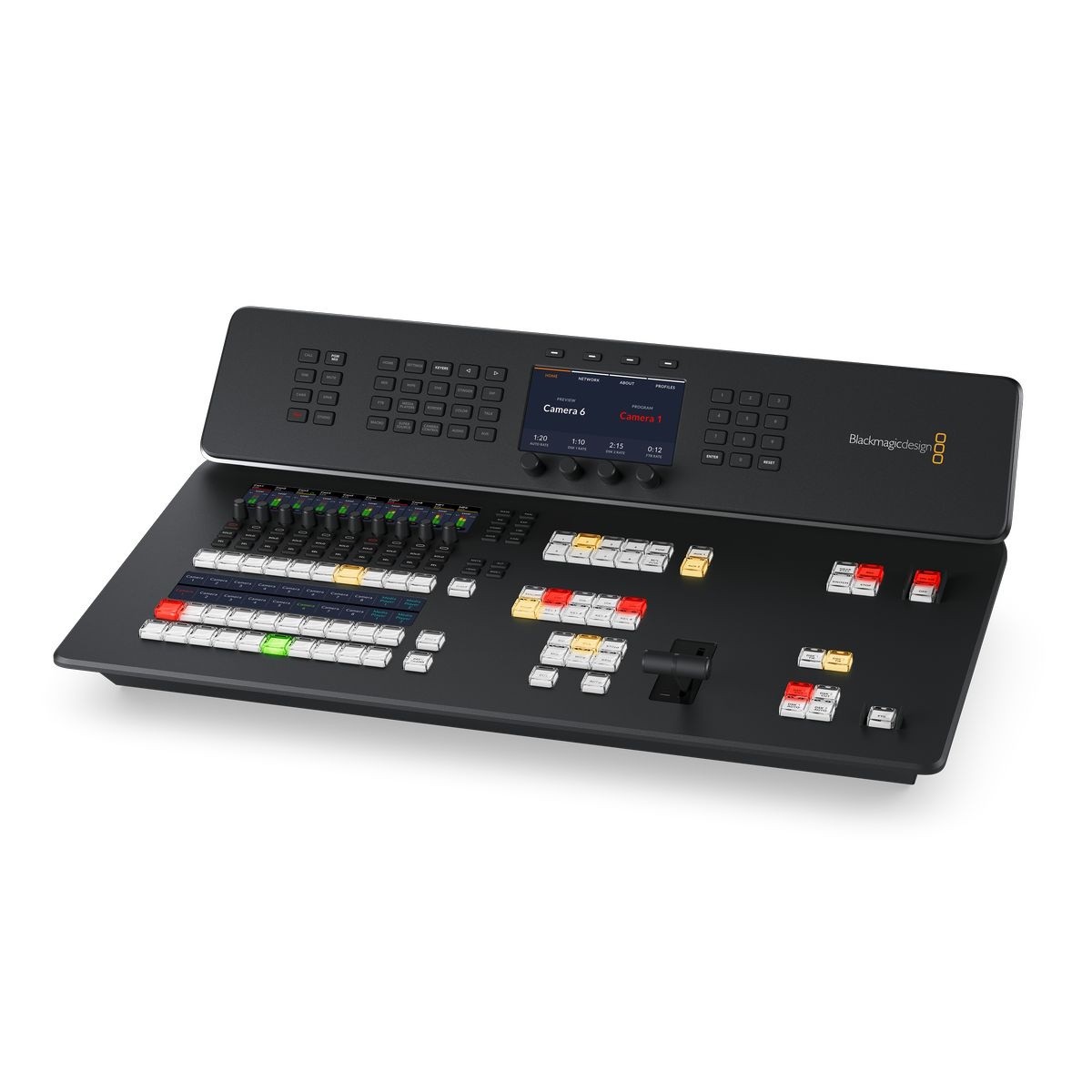

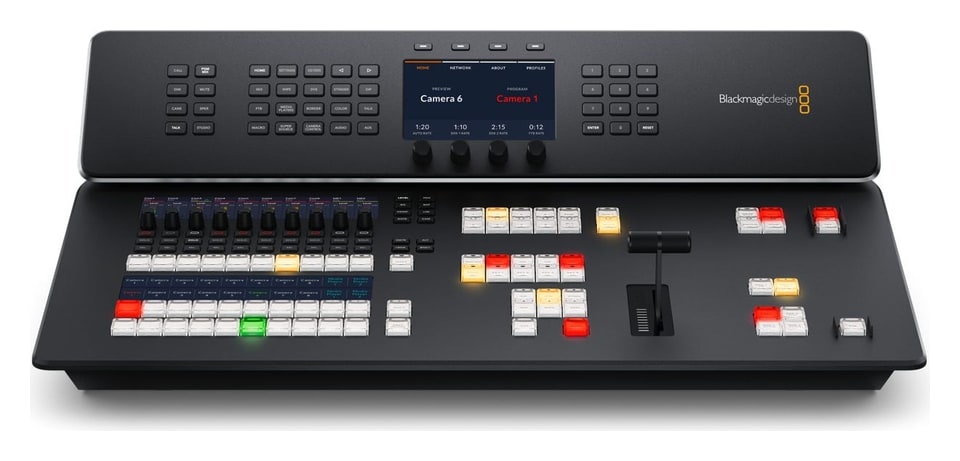

Blackmagic Design ATEM Television Studio HD8
SKU: SWATEMTVSTA/HD08/0
ATEM Television Studio HD8 is a live production switcher with a built-in broadcast control panel – a whole television studio in one portable desk for halls, clubs, schools and compact broadcast vans. It offers eight standards-converted 3G-SDI inputs, two aux outputs and eight program outputs for cameras, hardware streaming, recording of the program to USB…
2 969 € with VAT
2 453.72 € without VAT
Availability
on request
Blackmagic Design ATEM Television Studio HD8 2TB
4 359 €without VAT 3 602.48 €
Blackmagic Design ATEM Television Studio HD8 ISO 2TB
5 489 €without VAT 4 536.36 €
Blackmagic Design ATEM Television Studio 4K8 2TB
7 629 €without VAT 6 304.96 €
Blackmagic Design ATEM Television Studio 4K8
5 499 €without VAT 4 544.63 €
Blackmagic Design ATEM Television Studio HD8 ISO
3 309 €without VAT 2 734.71 €Top accessories for Blackmagic Design ATEM Television Studio HD8
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 5m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
31 €
To be sent > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
Backordered 2 pcs
Blackmagic Design ATEM Micro Camera Panel
ATEM Micro Camera Panel is a portable camera control panel (CCU) with high-end broadcast
669 €
To be sent 2 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 3,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
9.3 €
To be sent 2 pcs
Blackmagic Design ATEM Microphone Converter
Promotion: -3%
ATEM Microphone Converter adds four studio microphone or line inputs to the MADI
426.86 €
438.02 €
on request
Blackmagic Design HyperDeck Studio HD Mini
This miniaturized professional video recorder records SD and HD video (up to 1080p60)
639 €
on request
Blackmagic Design GPI and Tally Interface
Add tally to your ATEM switcher with the Blackmagic Design GPI and Tally Interface.
539 €
on request
Blackmagic Design Studio Camera 4K Pro G2
Blackmagic Studio Camera 4K Pro G2 is an upgraded studio camera model with built-in
2 059 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
ATEM Television Studio HD8 is a live production switcher with a built-in broadcast control panel – a whole television studio in one portable desk for halls, clubs, schools and compact broadcast vans. It offers eight standards-converted 3G-SDI inputs, two aux outputs and eight program outputs for cameras, hardware streaming, recording of the program to USB disks, multiview, a 58-channel audio mixer, four ATEM Advanced Chroma Key, talkback and Blackmagic Cloud support.
Eight cameras, broadcast panel and streaming in one desk
ATEM Television Studio HD8 combines a switcher, a broadcast control panel with T-bar, an audio mixer, multiview, streaming and recording in one unit that fits even where there is no room for racks.
8× 3G-SDI inputHD 1080p6012× SDI output4× ATEM Advanced Chroma KeyHardware streamingTalkback
A whole television studio in one unit
Switcher, control panel, audio mixer, talkback, multiview, streaming encoder and recorder in one chassis with built-in 100–240 V AC mains power and a backup 12 V DC input.
No racks or broadcast van needed
The desk fits into small clubs, halls and compact broadcast vans; for stability it can even be mounted inset into a desk.
Free ATEM Software Control
The Mac and Windows app gives access to every switcher feature; over Ethernet several computers can connect at the same time.

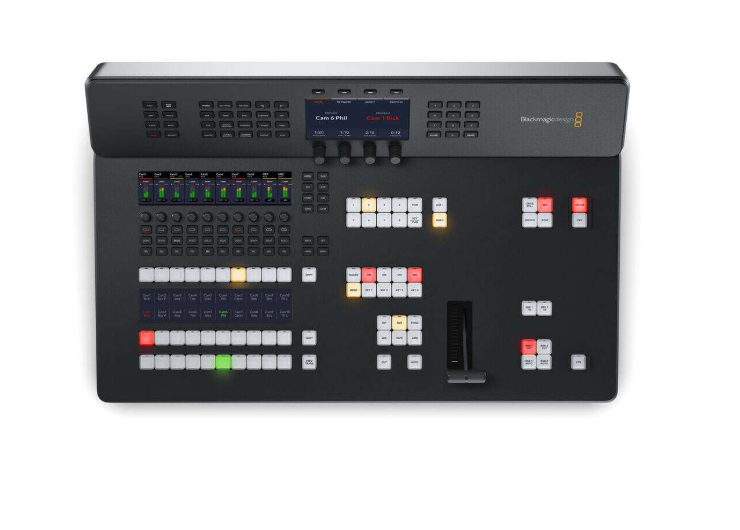

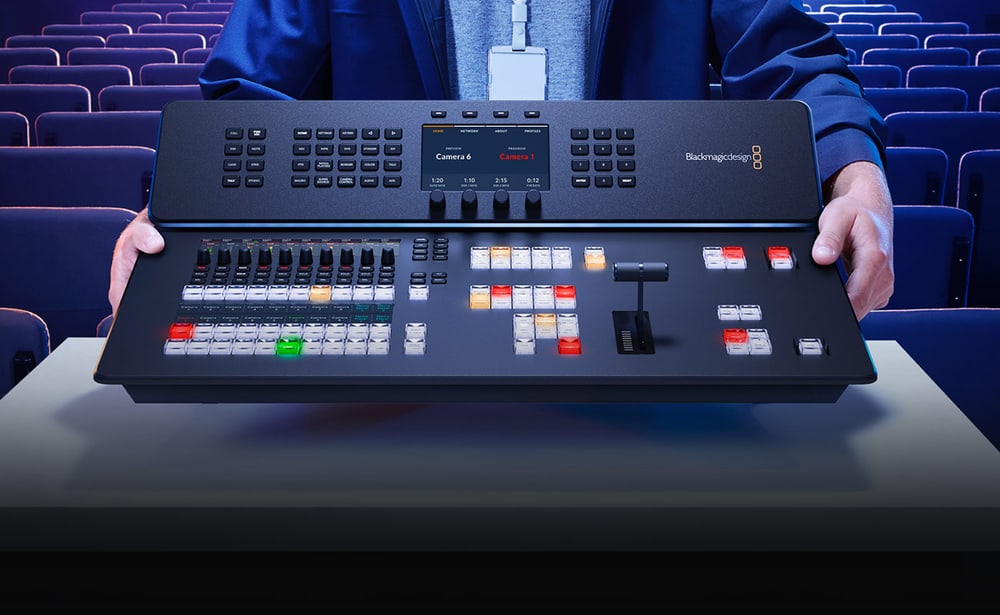

Broadcast panel with T-bar
The front panel uses the same buttons as large broadcast switchers: program and preview rows with LCD labels, a select bus for keyer and DVE sources, ten macro buttons, a T-bar for manual transitions, record and stream buttons and direct switching of two aux outputs. Audio control has its own LCD with level metering and rotary knobs.

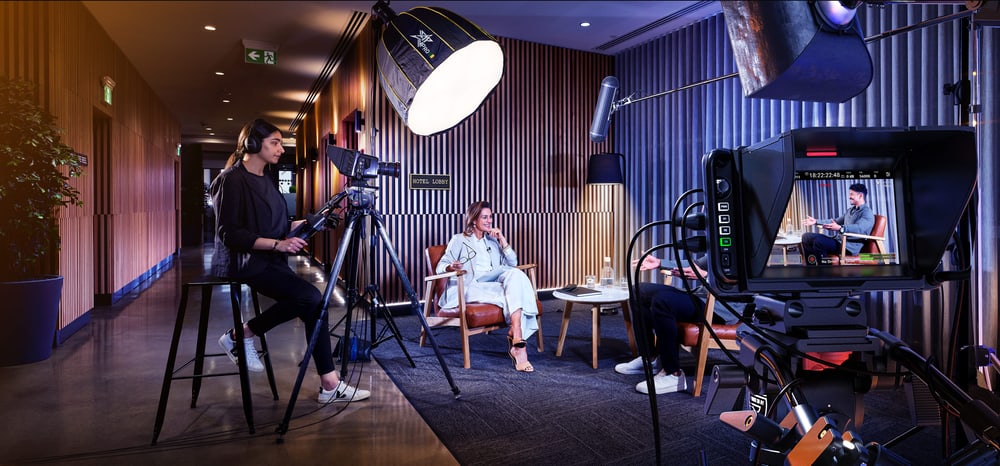

Eight cameras without external sync
Each of the eight 3G-SDI inputs has its own standards converter and re-sync, so 720p, 1080i and 1080p sources can be mixed. Connect cameras with SDI outputs such as Blackmagic Studio Camera or Blackmagic URSA Broadcast G2, as well as recorders and other sources.

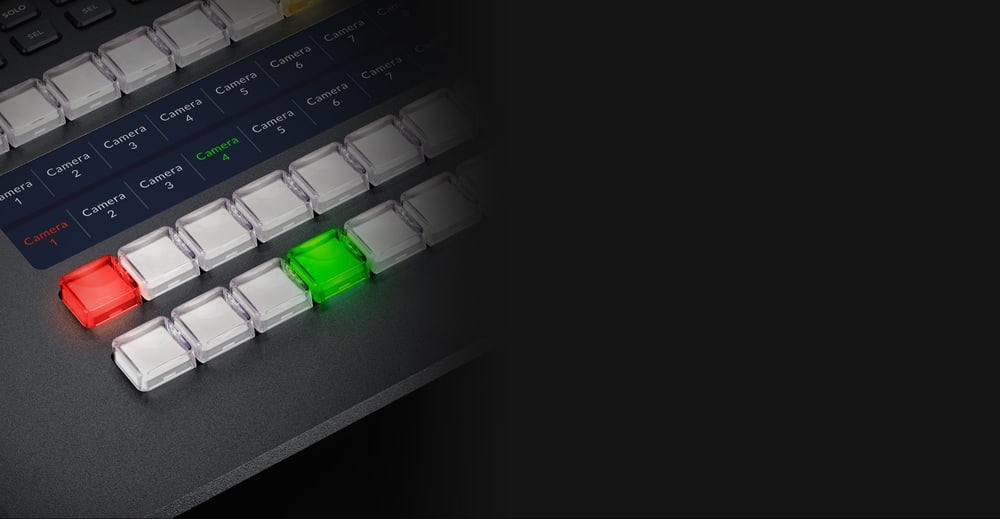

Program and preview like a large studio
A source is set up on the preview row and goes to air only with the CUT or AUTO button, so mistakes are caught before viewers see them; for volunteers a simpler A/B mode can be selected. Transitions include mix, dip to color, SMPTE wipes, DVE squeeze and push, graphic wipe and stinger.

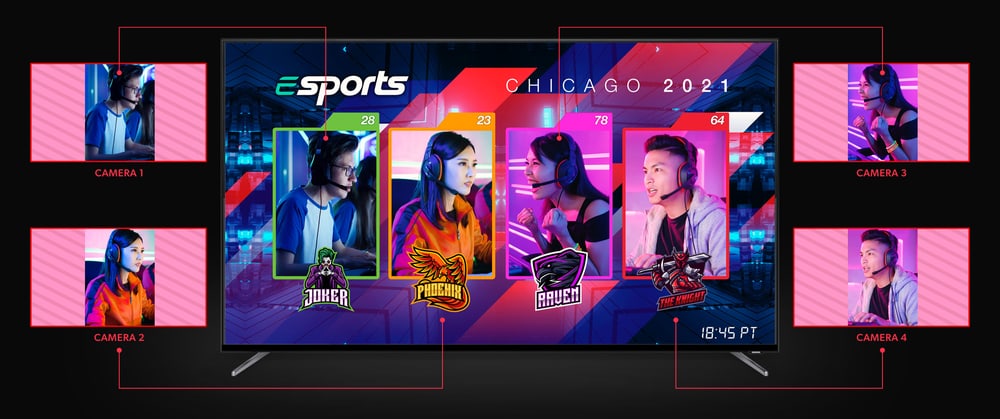

DVE and SuperSource
The DVE creates picture in picture with borders, shadows and lighting in real time. SuperSource layers four extra DVEs over a media pool or live background into a separate input – perfect for interviews with several guests within one graphic.
Four ATEM Advanced Chroma Key and media pool
The ATEM Advanced Chroma Key keyers remove green or blue backgrounds; a color picker sets the parameters automatically and foreground correction matches the layers. Two media players with fill and key draw on a pool of 20 stills and clips of up to 400 frames in 720p or 200 in 1080p for animations and stingers.
Audio mixer, MADI and talkback
The 58-channel mixer has separate channels for every SDI input and for the XLR, RCA and MADI inputs; each offers a 6-band parametric EQ, compressor, limiter, expander and noise gate and is controlled from the panel or ATEM Software Control. Talkback accepts a 5-pin headset and connects via RJ45 to systems such as ClearCom or RTS; MADI adds microphones with ATEM Microphone Converter.

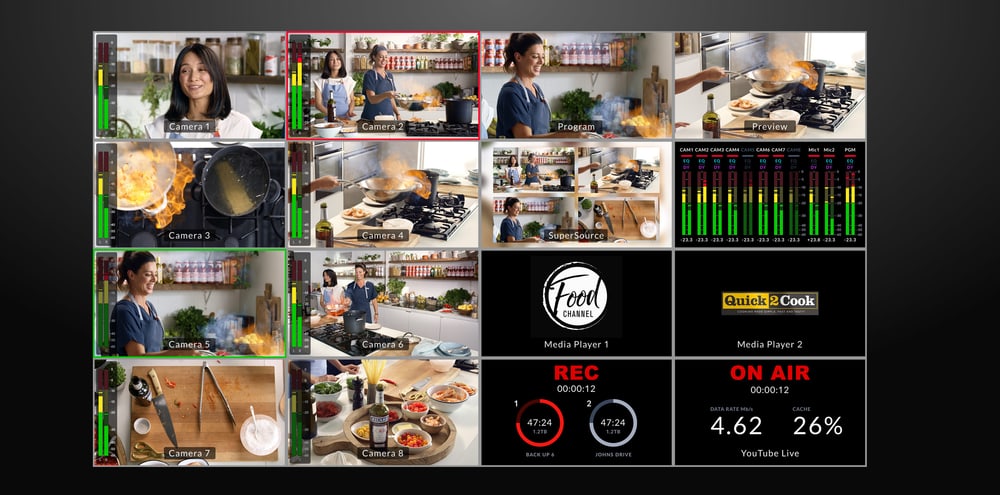

16 sources on one monitor
The multiview on the SDI and HDMI outputs shows up to 16 windows in 16, 13, 10, 7 or 4 layouts – inputs, program, preview, media players and SuperSource with tally, labels and audio meters. Status views track recording, streaming and the mixer.

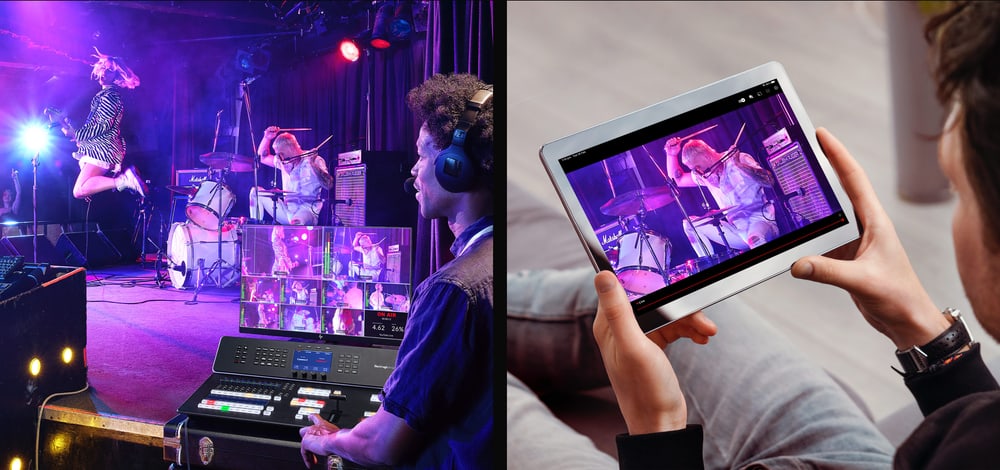

Streaming and webcam
The built-in hardware encoder streams via RTMP to YouTube, Facebook or Twitch over Ethernet or through a 4G/5G phone connected to USB. USB-C appears to a computer as a 1080p webcam, so the program goes straight into Zoom, Teams or OBS.

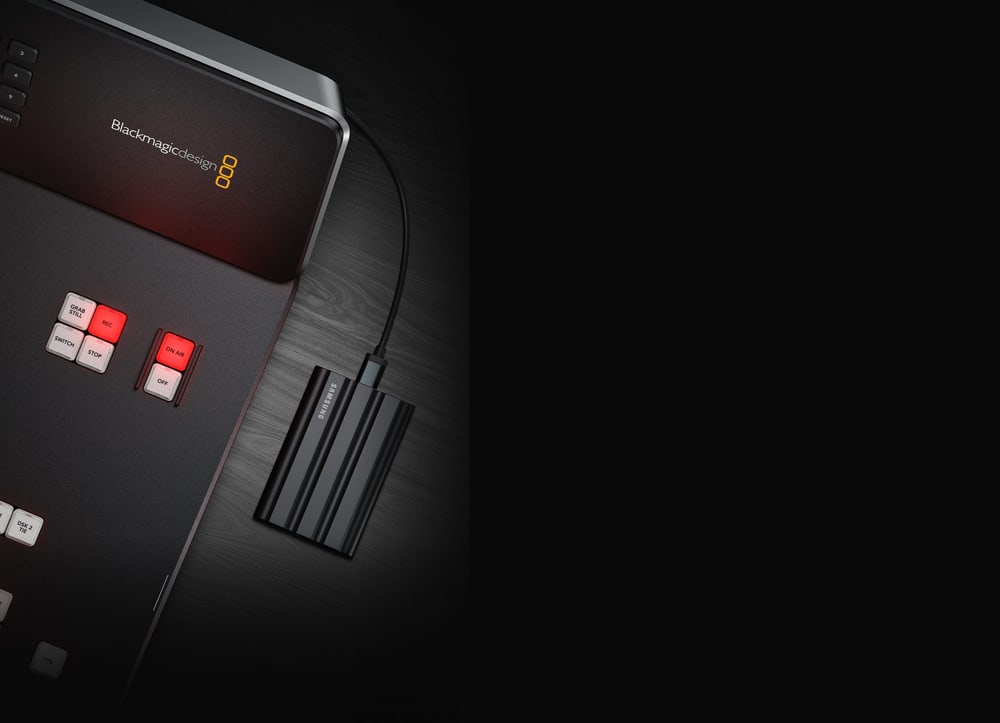

Recording to USB disks
The program is recorded as H.264 MP4 with AAC audio to USB disks on the two USB-C ports or to optional internal M.2 memory; when one disk is full, recording continues on the next. It is started with buttons on the panel, its status shows in the multiview and recordings can sync via Blackmagic Cloud.

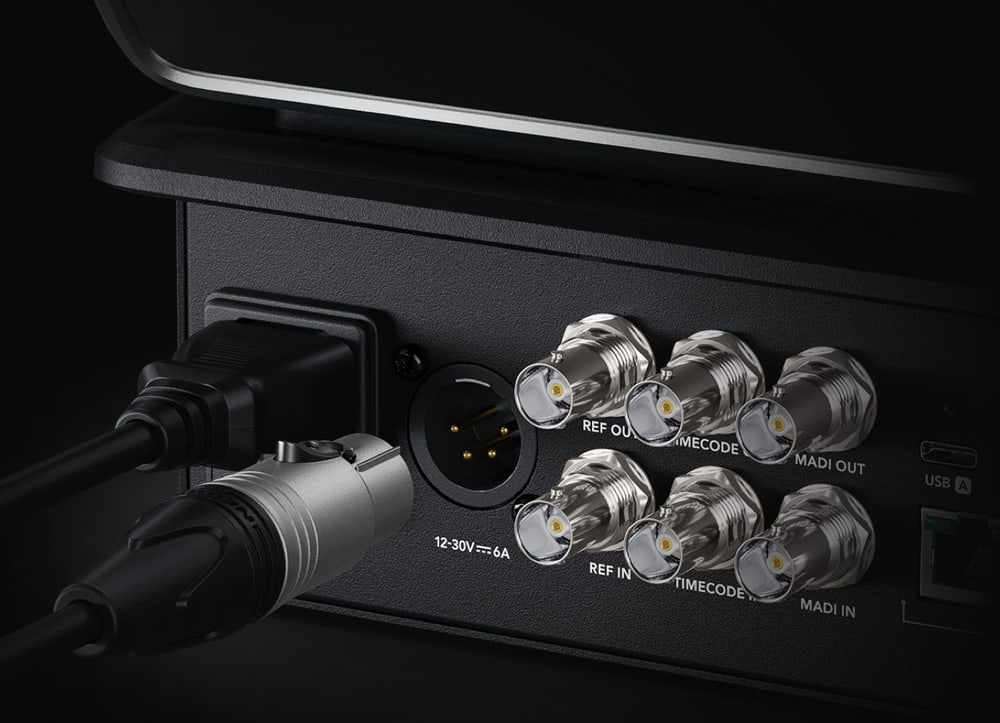

Built-in mains power and 12 V backup
The 100–240 V AC mains supply is built into the unit, so there is no external adapter to carry; the 4-pin XLR 12 V DC input serves as backup or for running from batteries. The electronics are modular – a technician can swap the connector board after removing the bottom cover.

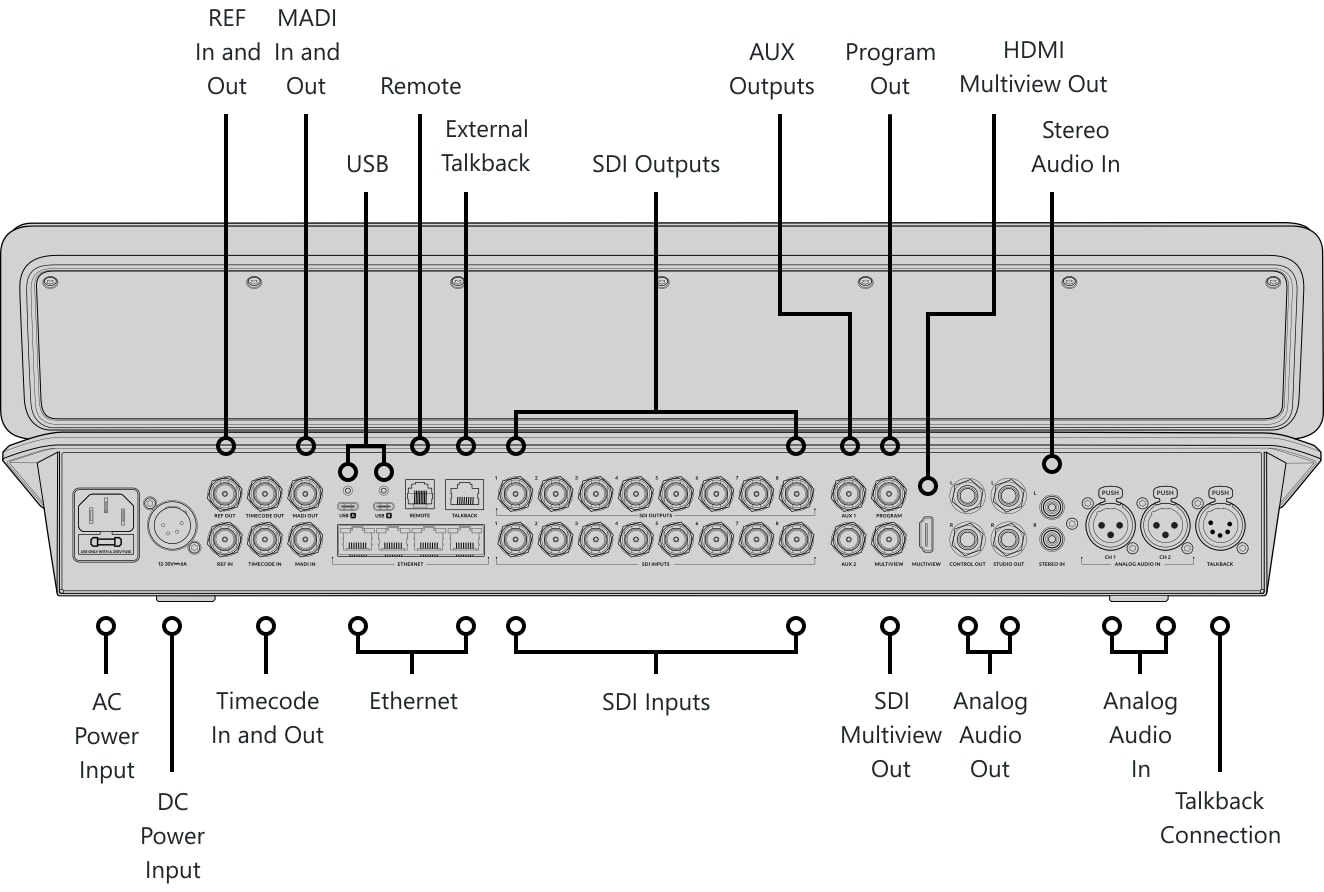

Rear connections
The rear carries AC and 12 V DC power, reference, timecode and MADI on BNC, two USB-C ports, RS-422 remote control, RJ45 for external talkback, a 4-port Ethernet switch, eight 3G-SDI inputs, twelve SDI outputs including two aux, program and multiview, HDMI multiview, analog audio outputs, an RCA stereo input, two XLR inputs and 5-pin talkback.

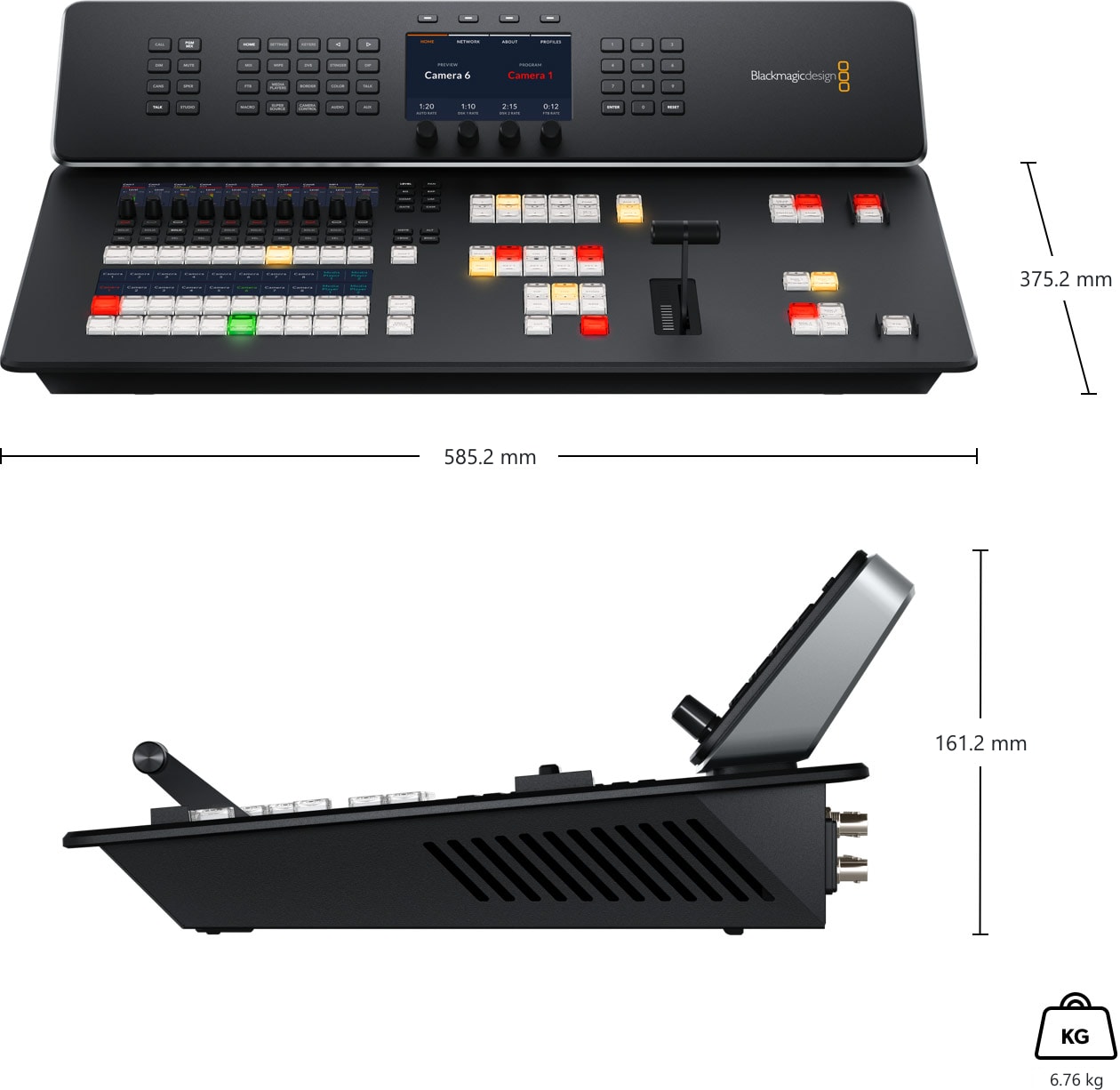

Dimensions and weight
The desk measures 585.2 × 375.2 × 161.2 mm and weighs 6.76 kg; it can stand on a desk or be mounted inset into the desk top.
More information
The Blackmagic Design ATEM Television Studio HD8 is a powerful professional live production switcher designed for broadcasting, live streaming, studio production, and multicamera event coverage. Combining advanced switching capabilities, audio processing, streaming, graphics handling, and camera control into a compact all-in-one solution, it provides everything needed for modern live productions.
Equipped with eight independent 3G-SDI inputs supporting up to 1080p60 video, the HD8 allows connection of multiple cameras and video sources simultaneously. Each SDI input includes its own standards converter, enabling sources with different HD formats to operate together seamlessly without requiring external conversion equipment.
The ATEM Television Studio HD8 includes advanced broadcast features such as ATEM Advanced Chroma Keyers, DVE effects, transitions, picture-in-picture support, media players, and graphics storage. The integrated media pool supports broadcast-quality graphics with alpha channels for layered effects and transparent overlays.
A built-in Fairlight 58-channel professional audio mixer delivers extensive audio control and routing capabilities. Embedded SDI audio channels can be manually assigned to program and auxiliary outputs, while MADI audio output support enables direct integration with external professional audio systems.
The redesigned front panel features professional broadcast-style controls, source selection buttons, dedicated recording and streaming controls, an LCD display with live audio metering, and a built-in T-bar for manual transitions. Additional advanced configuration and media management are available using the included ATEM Software Control software for macOS and Windows.
The built-in hardware streaming engine allows direct streaming to online platforms such as YouTube without requiring additional streaming hardware or software. USB webcam output also enables easy integration with conferencing applications and streaming platforms.
The ATEM Television Studio HD8 is compatible with Blackmagic Cloud, allowing media and recordings to be shared remotely for collaborative workflows across production teams.
Key Features
- Professional all-in-one live production switcher
- 8 independent 3G-SDI inputs with standards converters
- Supports HD video up to 1080p60
- Built-in hardware live streaming engine
- USB webcam output support
- Fairlight 58-channel professional audio mixer
- ATEM Advanced Chroma Keyers and DVE effects
- Professional transitions and picture-in-picture effects
- Built-in media pool and media players
- Blackmagic Cloud integration
- Front panel with LCD audio monitoring and T-bar control
- 3G-SDI outputs with 16-channel embedded audio
- Dedicated multiview HDMI and SDI outputs
- MADI digital audio output support
- Compatible with macOS and Windows ATEM Software Control
PACKAGE CONTENT
- ATEM Television Studio HD8
- Welcome wallet with QR code for software download
SPECIFICATIONS
- Video inputs: 8× 3G-SDI (1.5G/3G), standards conversion and re-sync on all inputs, 4-channel embedded audio
- Video outputs: 12× 3G-SDI: 1 main program, 8 program outputs for cameras, 2 aux, 1 multiview; 1× HDMI multiview
- SDI embedded audio: 2 channels on all outputs
- Audio inputs: 2× balanced analog XLR, 2× RCA stereo, 1× MADI (BNC, 32 channels), 1× 5-pin XLR talkback
- Audio outputs: 4× 1/4 inch analog jack (control room and studio), 1× MADI (BNC, 64 channels, up to 50 active), 1× 5-pin XLR talkback; RJ45 for third-party talkback
- Reference and timecode: reference BNC in and out (tri-sync or black burst), timecode BNC in and out, internal timecode generator
- Remote control and tally: RJ12 with RS-422; tally via Ethernet with Blackmagic GPI and Tally Interface (not included)
- Ethernet: 4× RJ45 with switch, 10/100/1000BASE-T; panel and network connection
- Computer interface: 2× USB-C (USB 3.0) for disk recording, 720p/1080p webcam, control and updates
- Video standards: HD 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
- SDI compliance: SMPTE 292M, 296M, 424M, 425M level A and B
- Sampling and color: 4:2:2, 10-bit, Rec. 709
- Mixing and crosspoints: 1 M/E, 10 direct crosspoints (20 with shift), tri-color LED, LCD labels 6 rows × 24 characters
- Panel controls: T-bar, 10 macro buttons (+10 with shift), 5 transition type buttons, 8 key buttons, 12 aux buttons, 2 record buttons, 2 stream buttons, 6 DSK transition selectors, FTB, system LCD, numeric keypad
- Keyers and effects: 4 upstream, 2 downstream, 4 ATEM Advanced Chroma Key, 7 linear/luma, 2 DVE, 1 SuperSource; transition keyer 1 stinger and 1 DVE; 8 layers, 7 pattern generators, 2 color generators
- Multiview: 1 multiview via SDI and HDMI, 16/13/10/7/4 windows, labels, tally and audio meters, HD; minimum display resolution 1366 × 768
- Media pool: 2 players (fill and key), 20 stills (PNG, TGA, BMP, GIF, JPEG, TIFF), 2 clips up to 1080p60: 400 frames 720p, 200 frames 1080p; video as TGA sequence, audio WAV, MP3, AIFF
- Audio mixer: 58 channels, On/Off/Audio-Follow-Video, level and peak metering, master gain, 6-band parametric EQ, expander, noise gate, compressor, limiter
- Camera control: focus, iris and zoom of compatible lenses, gain, white balance, tint, shutter, ND filter, color corrector, tally, record start and stop (most Blackmagic Design cameras)
- Streaming: RTMP over Ethernet or a shared phone connection over USB-C
- Recording: program as H.264 MP4 with AAC audio; USB-C disks or optional internal M.2 memory
- Media format: exFAT (Windows/Mac), APFS or HFS+ (Mac)
- Blackmagic Cloud: sync of recordings and media
- Processing delay: less than 10 lines when genlocked and in the same format as the switcher
- Software: free ATEM Software Control and ATEM Setup Utility; macOS 14 Sonoma, 15 Sequoia or later, Windows 10 and 11
- Power: internal 100–240 V AC, 50/60 Hz (IEC C14); 4-pin XLR 12 V DC for external power or battery
- Power consumption: 100 W max.
- Installation: desktop or in-desk mount
- Dimensions: 585.2 × 375.2 × 161.2 mm
- Weight: 6.76 kg
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Relative humidity: 0 to 90 % non-condensing
- Warranty: 1 year (manufacturer warranty)
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Switchers |
Main parameters
| Encoder video input | 8 × 3G-SDI |
| Number of inputs | 8 |
| Streaming services | YouTube Live · Facebook Live |
| Switcher inputs | 3G-SDI |
| Streaming services | RTMP · Twitch |
| Switcher outputs | HDMI · 3G SDI · USB |
| Internal recording | Yes |
| Scaler on inputs | Yes |
| Resolution | HD |
| Features | Virtual studio · Recording · DSK · AUX · Chroma Key · Built-in display · PTZ camera control · Streaming via Ethernet · Audio mixing · Media player · Multiviewer |
| Control panel | Yes |
