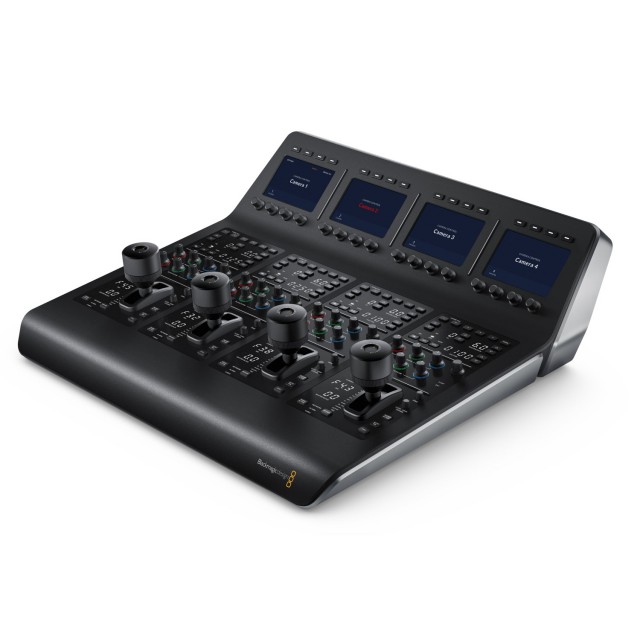

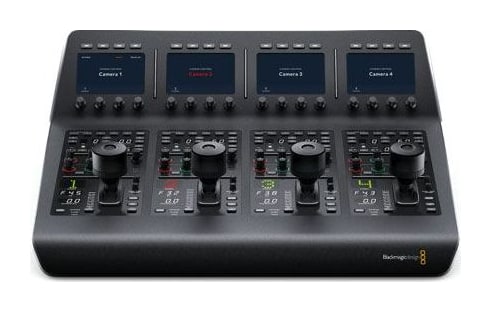

Blackmagic Design ATEM Camera Control Panel
SKU: SWPANELCCU4
ATEM Camera Control Panel is a broadcast camera control unit (CCU) for ATEM switchers that remotely controls up to four Blackmagic URSA Mini, URSA Broadcast, Blackmagic Studio Camera or Micro Studio Camera models. One operator adjusts iris, shutter speed, white balance, master gain, black level and RGB correction while the camera operators concentrate on framing.…
3 269 € with VAT
2 701.65 € without VAT
Availability
on request
Top accessories for Blackmagic Design ATEM Camera Control Panel
Blackmagic Design ATEM Mini Pro
ATEM Mini Pro offers everything of the popular ATEM Mini and adds features for recording,
439 €
To be sent 1 pcs
Blackmagic Design ATEM Mini Pro ISO
Promotion: -3%
ATEM Mini Pro ISO is a switcher for four HDMI cameras that records up to five video
558.34 €
578.38 €
To be sent 1 pcs
Blackmagic Design ATEM 4 M/E Constellation 4K
ATEM 4 M/E Constellation 4K is a professional 4 M/E live production switcher for
10 469 €
In stock 2 pcs
Blackmagic Design ATEM SDI Pro ISO
Promotion: -4%
ATEM SDI Pro ISO is the 3G-SDI version of the popular ATEM Mini HD switchers with
850.04 €
882.09 €
To be sent 1 pcs
Blackmagic Design URSA Broadcast G2
Blackmagic URSA Broadcast G2 is a broadcast camera for news, live production and
4 599 €
Backordered 1 pcs
Blackmagic Design ATEM 2 M/E Constellation HD
ATEM 2 M/E Constellation HD is a professional 2 M/E live production switcher for
1 989 €
In stock 1 pcs
Blackmagic Design ATEM 1 M/E Constellation HD
ATEM 1 M/E Constellation HD is a professional 1 M/E live production switcher for
1 169 €
To be sent 1 pcs
Blackmagic Design ATEM SDI
Promotion: -5%
ATEM SDI is the 3G-SDI version of the popular ATEM Mini HD switchers. Its four SDI
361.14 €
381.15 €
To be sent 1 pcs
Blackmagic Design Studio Camera 4K Pro G2
Blackmagic Studio Camera 4K Pro G2 is an upgraded studio camera model with built-in
2 059 €
on request
Blackmagic Design ATEM Television Studio HD8 ISO
ATEM Television Studio HD8 ISO is a live production switcher with a built-in broadcast
3 639 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

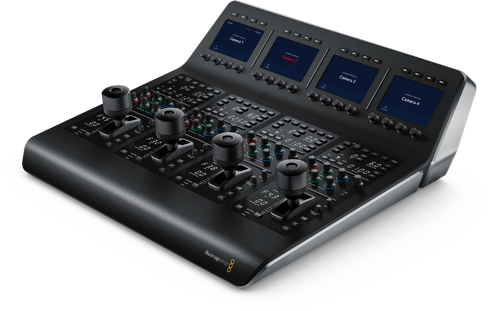

ATEM Camera Control Panel is a broadcast camera control unit (CCU) for ATEM switchers that remotely controls up to four Blackmagic URSA Mini, URSA Broadcast, Blackmagic Studio Camera or Micro Studio Camera models. One operator adjusts iris, shutter speed, white balance, master gain, black level and RGB correction while the camera operators concentrate on framing. It works with all ATEM switcher models.
Broadcast control of four cameras from one panel
Four independent camera controllers with the same layout as broadcast CCUs: scenes and camera settings at the top, RGB white and black correction in the middle, and at the bottom a joystick for iris and master black plus a large camera number that turns red on air.
4 camera controllers4× LCD4× 3-axis joystickWhite and black balance2× EthernetAC + DC 12–30 V
Cameras matched to one look
When cutting between cameras, all of them must keep the same color rendition. Separate RGB controls for white and black, scene presets and the Panel Active lock help match the cameras and protect the settings from accidental changes.
Control over SDI
Commands travel to the camera from a switcher aux output to the camera program SDI input – over a single SDI cable, including tally.
AC and DC power
An internal 100–240 V supply and a 12–30 V DC input provide redundant power, and two Ethernet ports with loop through connect further panels.

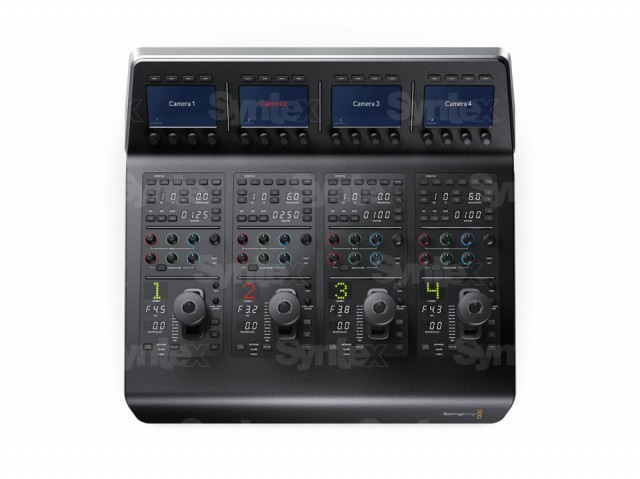

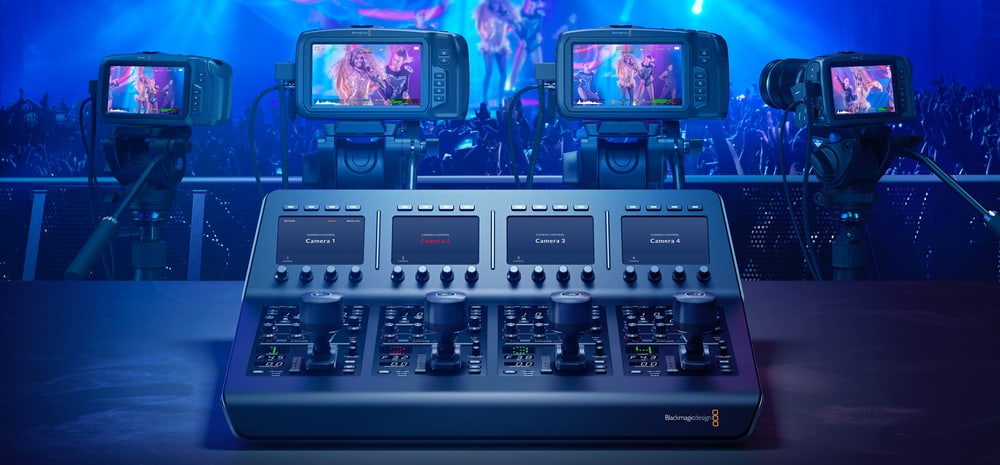

Up to four cameras from one panel
Each of the four controllers has its own LCD with buttons and knobs. With more cameras, the camera assigned to a controller is changed quickly and the panel always shows a clear status of each camera.

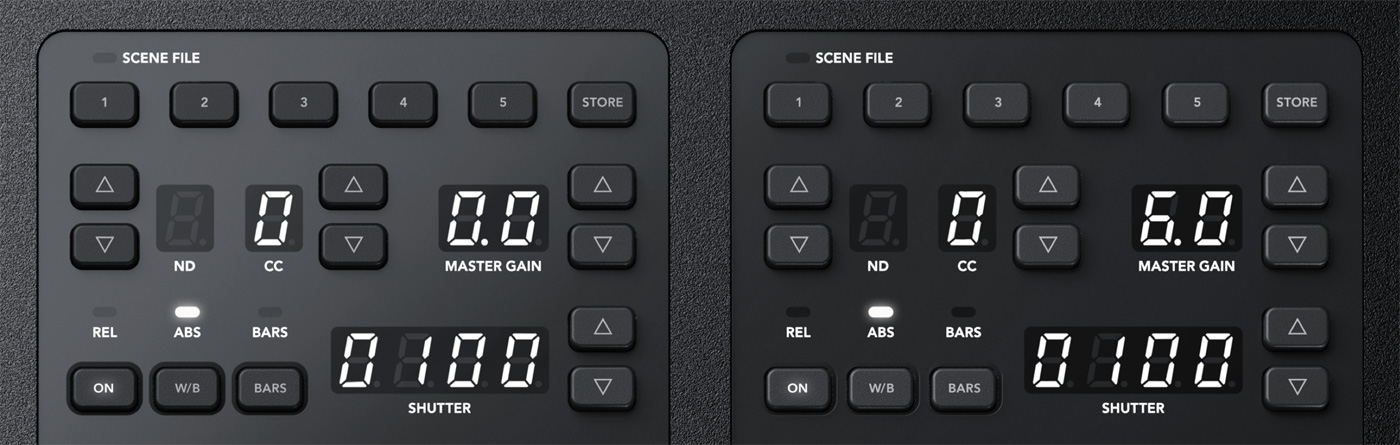

Scenes and camera settings
The top section of each controller offers master gain, ND filters, white balance, shutter speed, color bars and saving and recalling scene presets – ideal when the light changes during a job.

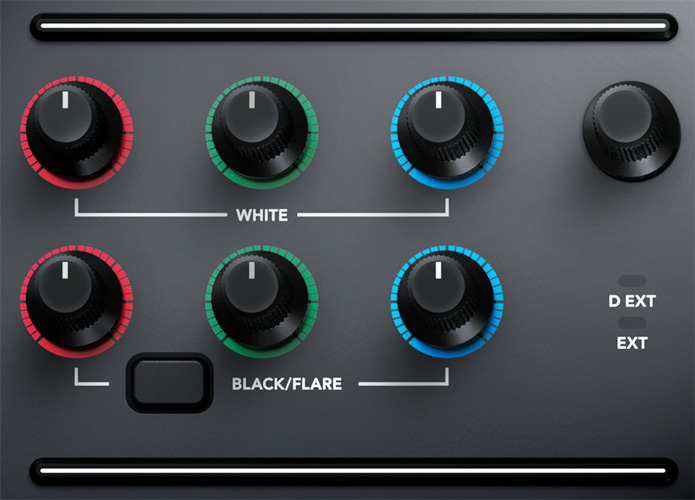

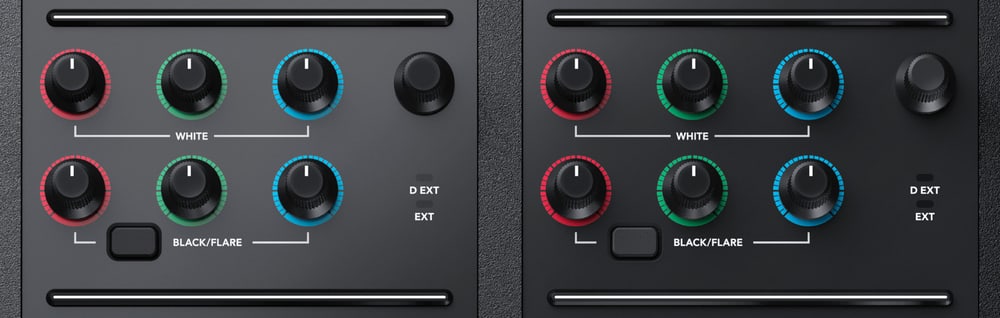

RGB white and black correction
The center section has separate red, green and blue controls for the white and black parts of the image. Blackmagic cameras with studio features have a built-in DaVinci Resolve primary color corrector, so several cameras can be matched accurately.

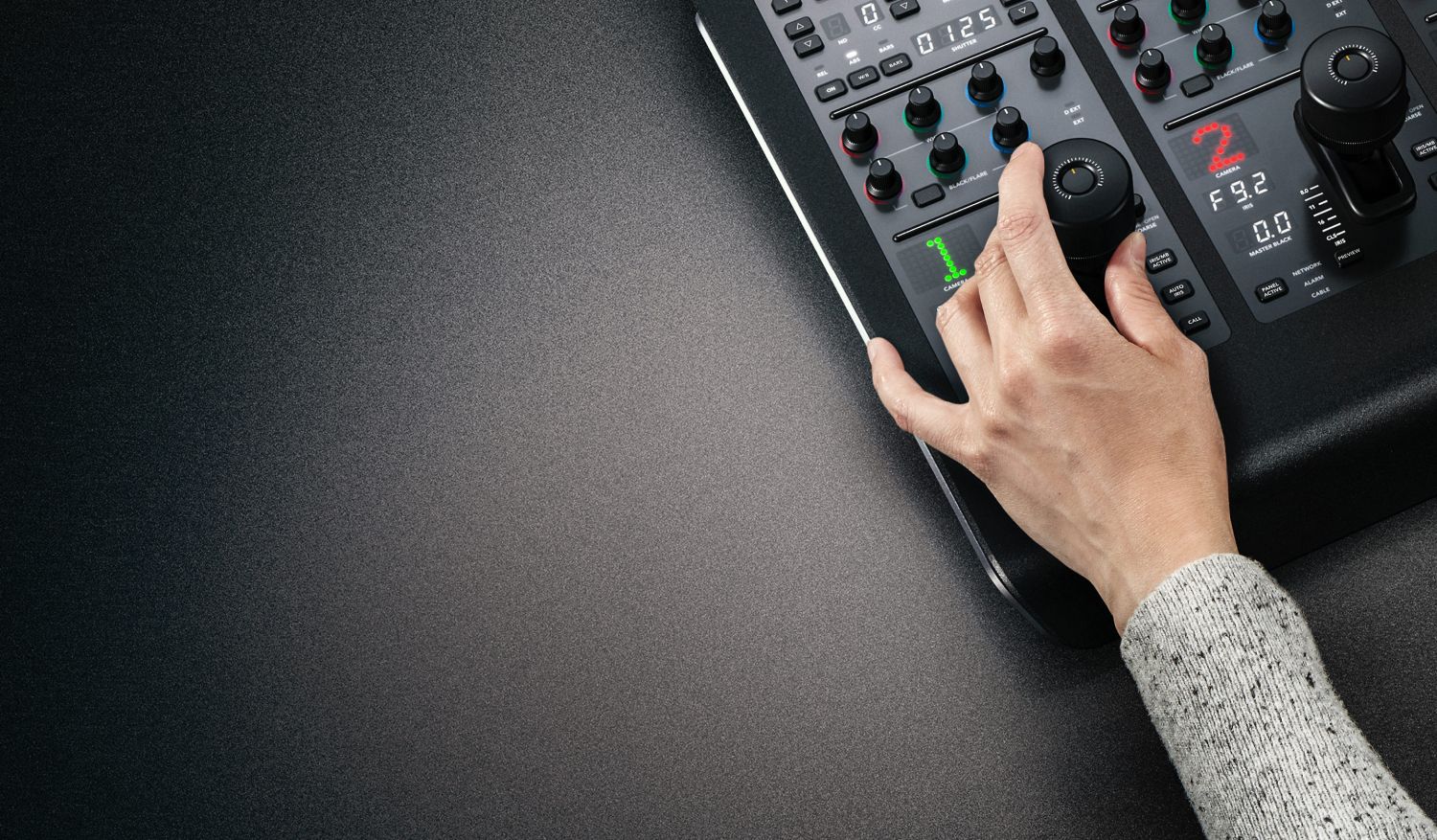

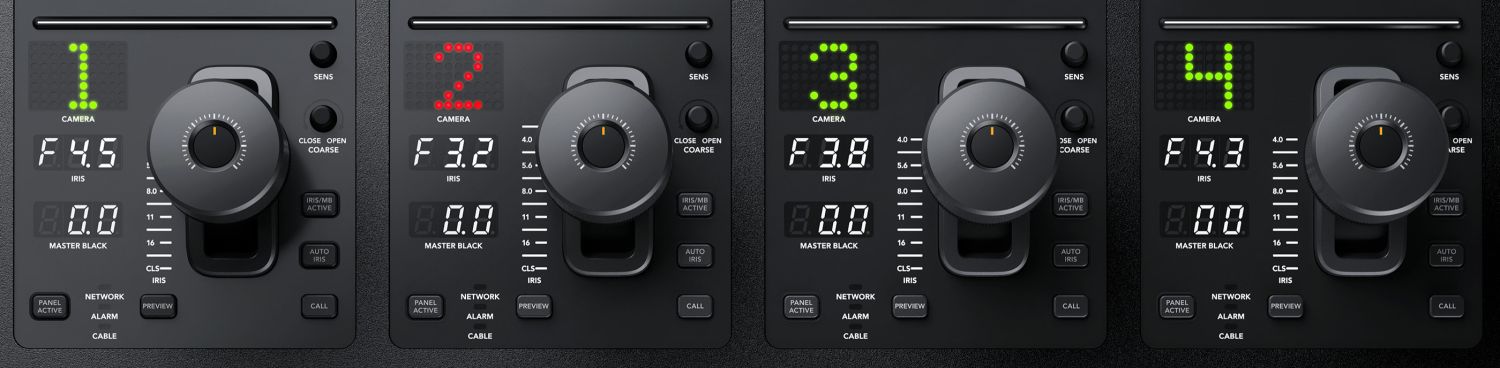

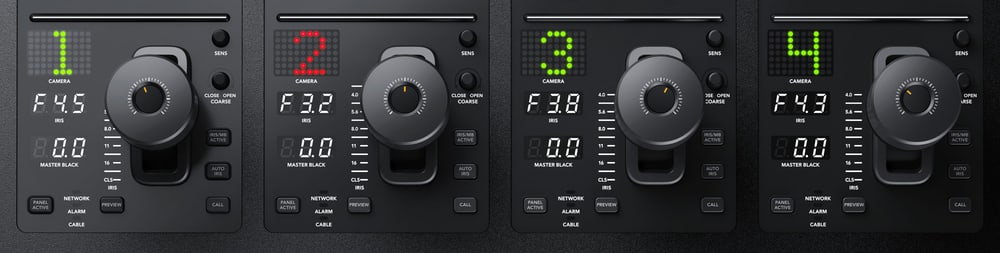

Joystick for iris and master black
Moving the joystick up and down adjusts the iris, rotating it sets master black and pushing it switches the camera to preview. Coarse control reduces the iris range for different lenses and the lock prevents accidental adjustment.

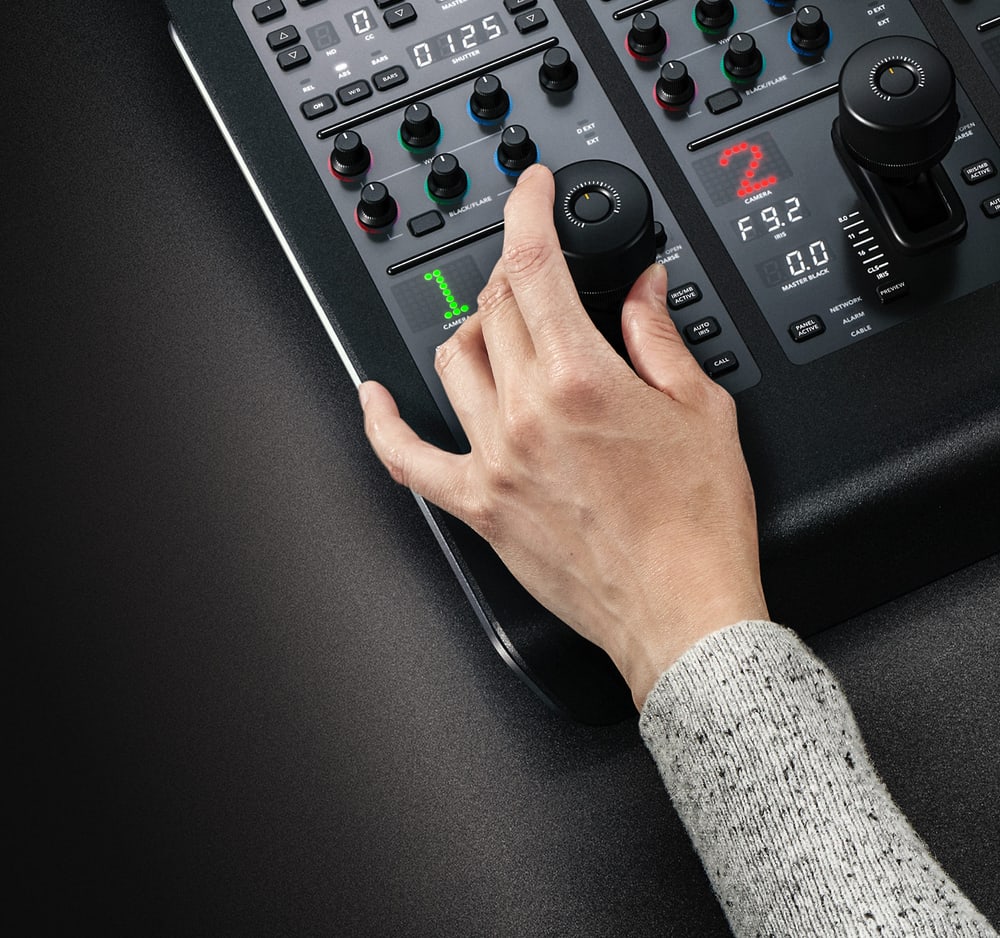

Layout like broadcast CCUs
The bottom section carries a large camera number that turns red on air, a Call button that flashes the tally light to alert the camera operator, a preview button for switching the camera to an aux output and network and power indicators.

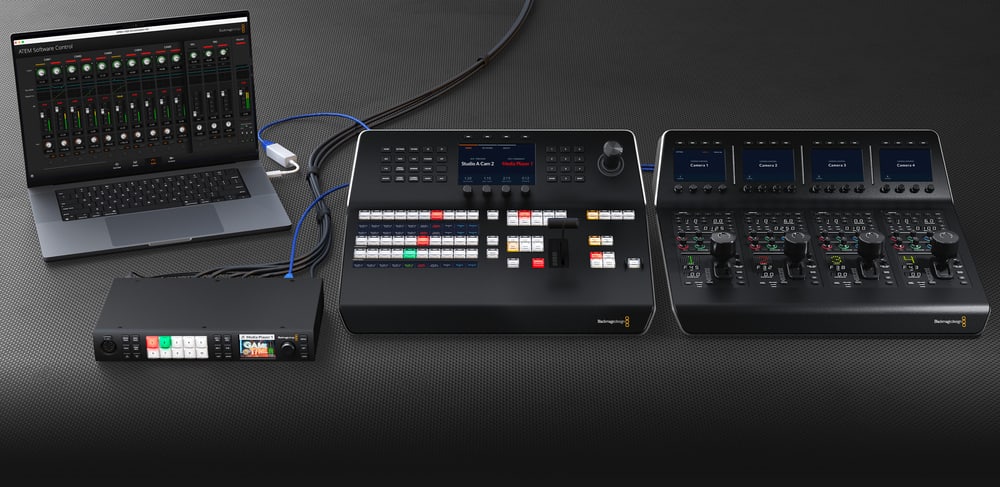

Easy expansion

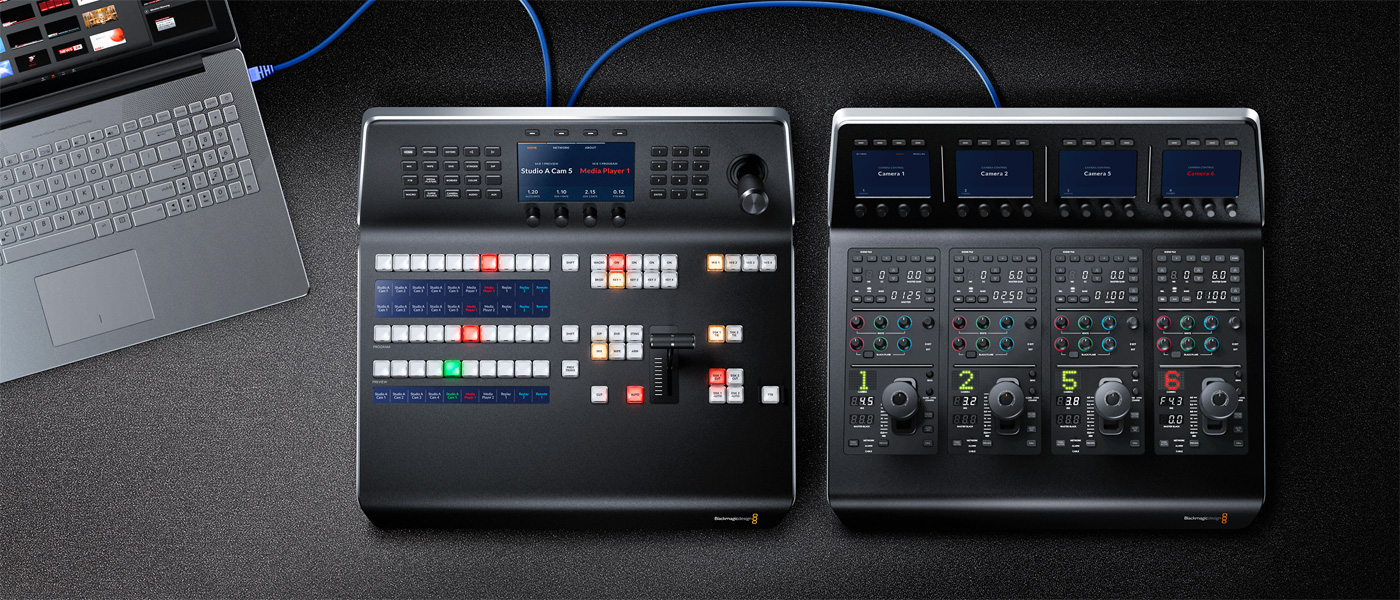

Network settings are preassigned: the panel connects directly to the switcher Ethernet port and further panels loop through. Several ATEM Camera Control Panels can be combined with ATEM Advanced Panels and moved between ATEM switchers.

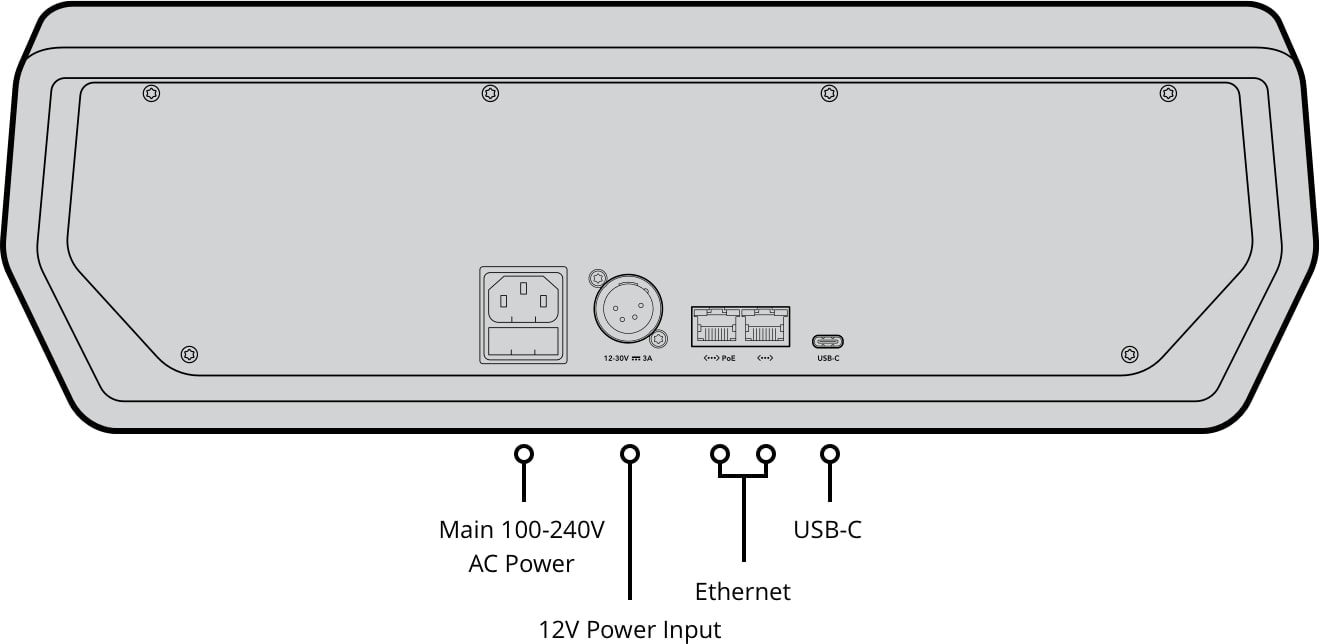

Rear side and connectors
The rear side has a 100–240 V power input, a 12–30 V DC input, two Ethernet ports with loop through and USB-C for firmware updates.

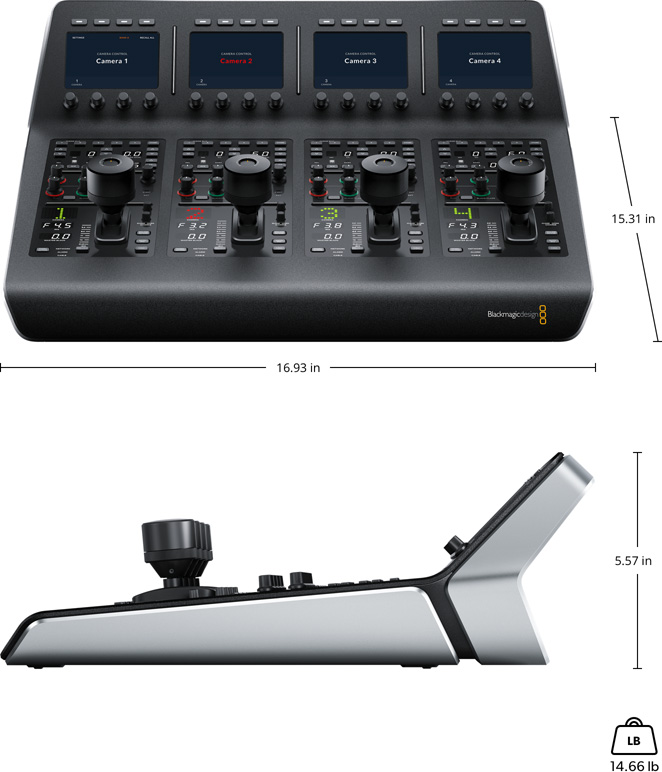

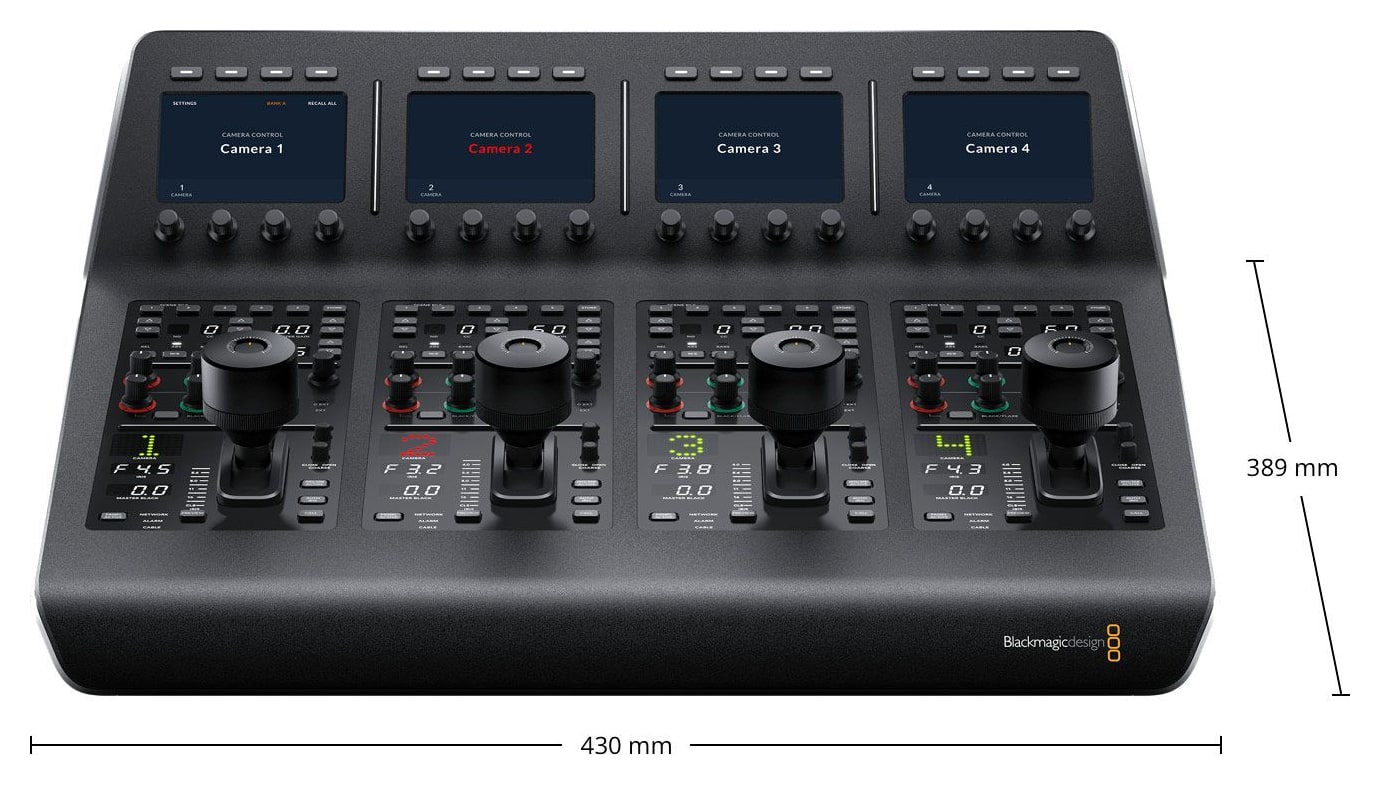

Dimensions
Width 430 mm, depth 389 mm.
More information
Precisely match up to four cameras
The panel remotely controls up to four URSA Broadcast, URSA Mini, Blackmagic Studio Camera or Micro Studio Camera units. One operator gets direct access to iris, shutter speed, white balance, master gain, pedestal and RGB corrections.
Large LCDs, high quality three-axis joysticks and logically arranged buttons make it possible to adjust technical parameters while camera operators stay focused on composition. The panel works with compatible ATEM switchers and connects to the control network through loop-through Ethernet.
PACKAGE CONTENT
- ATEM Camera Control Panel
SPECIFICATIONS
- Camera controllers: 4
- LCDs: 4
- 3-axis joystick: 4 (iris, master black, preview)
- Preview button: 4
- Camera number: green off air, red on air
- Setup: white and black balance
- Iris: auto iris, coarse control
- Panel Active: protects settings
- Compatible cameras: Blackmagic URSA Mini, URSA Broadcast, Blackmagic Studio Camera, Micro Studio Camera
- Ethernet: 2× 10/100/1000 BASE-T with loop through for further panels or computers
- Updates: USB-C
- Software: ATEM Software Control (macOS 14 Sonoma, macOS 15 Sequoia or later, Windows 10 and 11)
- Power: 1× internal 100–240 V AC supply and 12–30 V DC, 3 A (redundant)
- Power usage: 30 W
- Dimensions: 430 × 389 mm (width × depth)
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Relative humidity: up to 95 %
- Warranty: 1 year limited manufacturer warranty
WE RECOMMEND
The ATEM Camera Control Panel remotely controls up to four Blackmagic cameras from a single position. It needs compatible cameras, an ATEM switcher whose aux outputs carry the commands over SDI, and a network connection.
Compatible cameras - Blackmagic cameras with an SDI program input that the panel controls, including tally.
- Blackmagic Design URSA Broadcast G2
- Blackmagic Design URSA Mini Pro G2
- Blackmagic Design Studio Camera 6K Pro
- Blackmagic Design Studio Camera 4K Pro G2
- Blackmagic Design Studio Camera 4K Plus G2
- Blackmagic Design Micro Studio Camera 4K G2
ATEM switchers - Commands reach the cameras from the switcher aux outputs over SDI; the panel connects to the switcher via Ethernet.
- Blackmagic Design ATEM 1 M/E Constellation HD
- Blackmagic Design ATEM 1 M/E Constellation 4K
- Blackmagic Design ATEM Television Studio HD8
- Blackmagic Design ATEM Television Studio 4K8
Connections and converters - An SDI cable to the camera program input, a Cat6 patch cable to the switcher and fiber converters for cameras at long distances.
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Control panels |
Main parameters
| Interface | LAN · USB |
| Controls | programmable buttons |
| Power | 12 V DC |
| Display | LCD |
| Camera capacity | 4 |
