Air Fly for ATEM w/Blue Pill Inside

  • Free transport
SKU: AIR-FLY-4ATEM-V1B

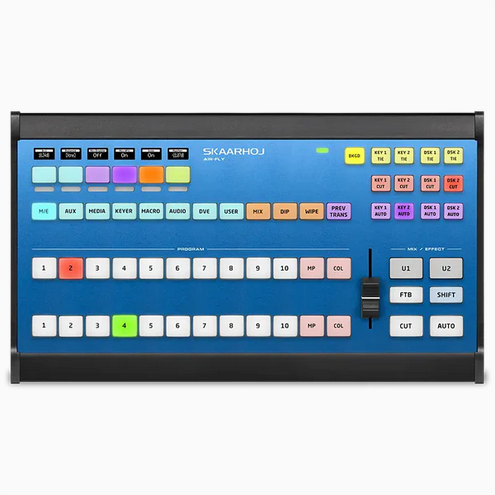

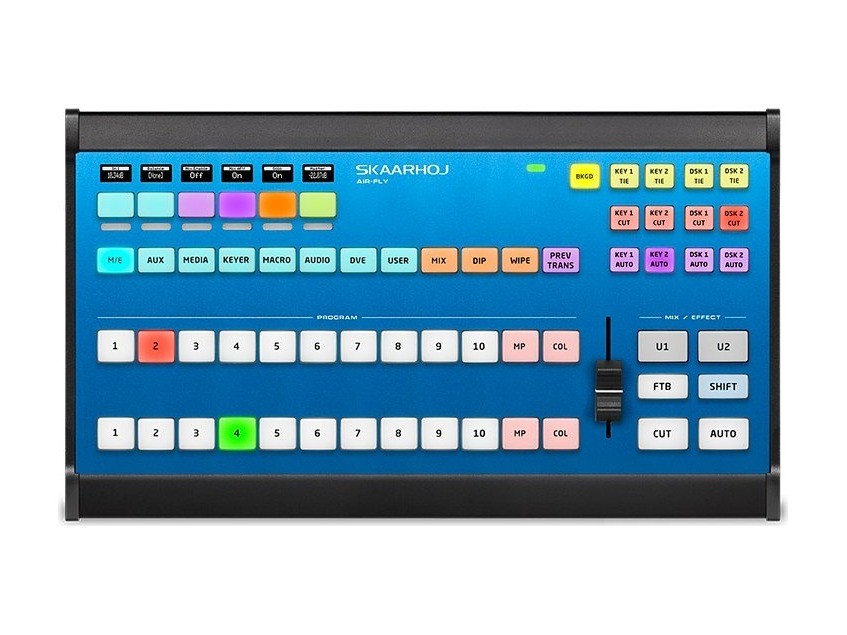

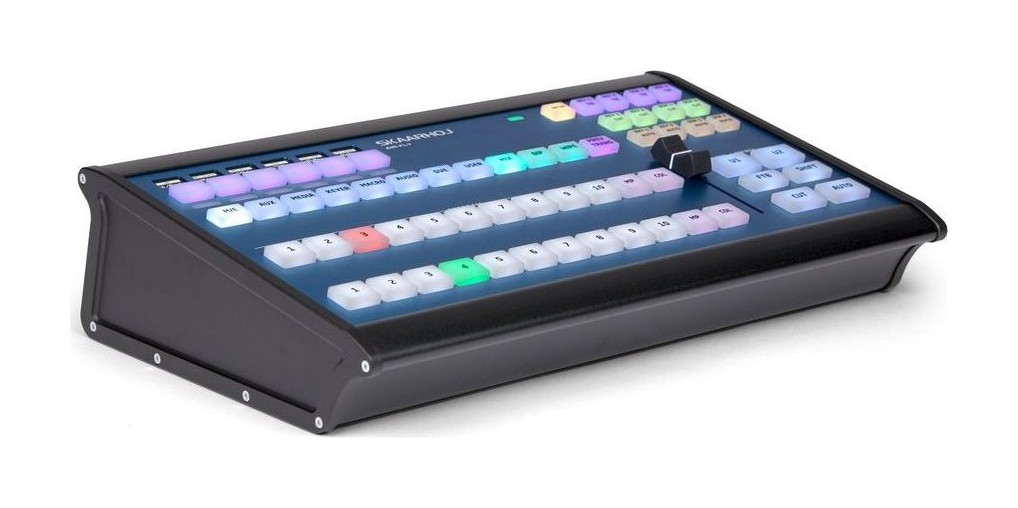

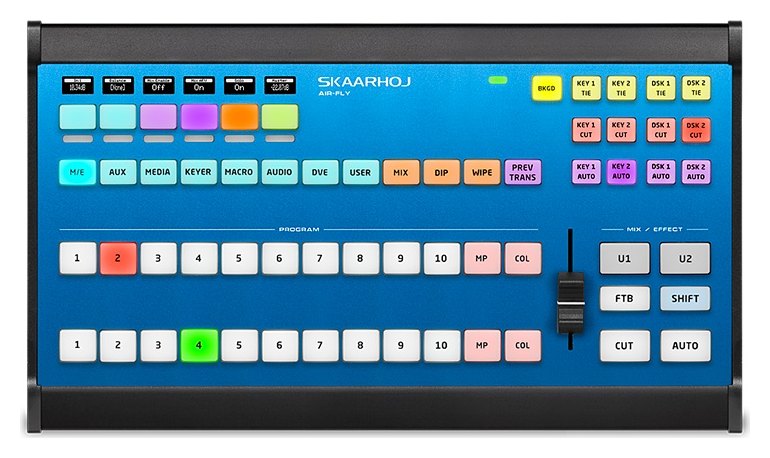

Air Fly for ATEM is a compact switching controller with 12-button Program/Preview rows, 6 four-way buttons with OLED screens, a keyer section and a transition fader. ATEM-specific labels, Blue Pill Inside and PoE.

More information

2 199 € with VAT 1 817.36 € without VAT
Add to Compare Price history
Availability
on request
SKU:
AIR-FLY-4ATEM-V1B
Add to Compare Price history

Air Fly for vMix w/Blue Pill Inside

2 199 €without VAT 1 817.36 €

Skaarhoj Air Fly - vMix

1 939 €without VAT 1 602.48 €

SKAARHOJ Air Fly for TriCaster w/Blue Pill Inside

2 199 €without VAT 1 817.36 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Air Fly for ATEM is a compact switching controller with 12-button Program/Preview rows, 6 four-way buttons with OLED screens, a keyer section and a transition fader. ATEM-specific labels, Blue Pill Inside and PoE.

SKAARHOJ Air Fly for ATEM is a compact switching controller for situations where cost matters but SKAARHOJ quality must be preserved. It offers dedicated Program and Preview rows, clearly labelled menu and ancillary buttons and a durable transition fader. The button labels use ATEM-specific naming, and the built-in Blue Pill can control other supported devices as well.

A controller made for ATEM

12 + 12 Program/Preview buttons, 12 menu selection buttons, a keyer section and a low-profile fader in the smallest SKAARHOJ switching panel.

12-channel PGM/PVWATEM labels6 OLED buttonsBlue Pill InsidePoE powered

ATEM labels

The buttons carry printed labels with function names taken straight from ATEM, so you can find your way even in advanced menus. There is also space for labelling tape if you want to name your channels.

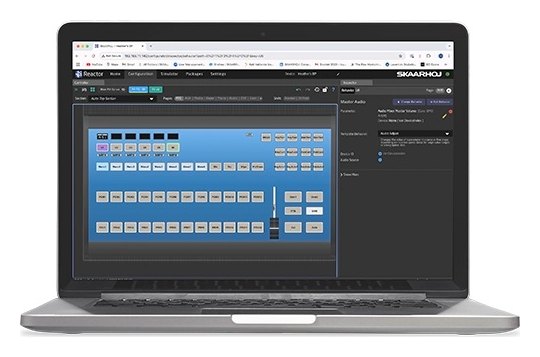

Configured in Reactor

Each of the six four-way buttons with OLED screens in the top row can hold up to four functions. Adjust the assignments in the Reactor web interface and map buttons to other devices from devices.skaarhoj.com.

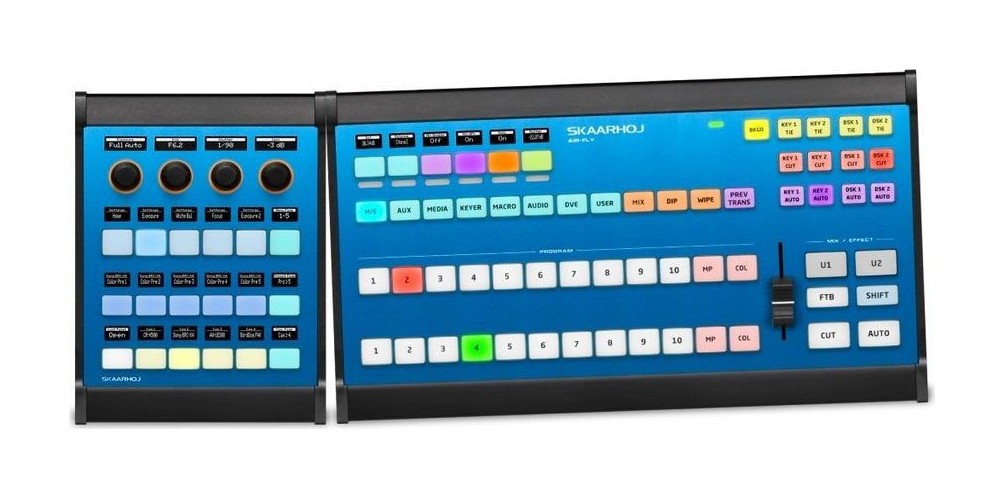

Modular setup

Need PTZ control, audio faders or more buttons? Other SKAARHOJ panels snap magnetically to the Air Fly and form one large, seamless control surface.

Colour-code your panel

All buttons are backlit with RGB LEDs that can be set to any colour and dimmed as you wish. Six multi-level LEDs can be used for metering or additional labelling.

For ATEM

Layout and labels match the parameter names used in ATEM.

Durable fader

A low-profile transition fader for reliable, smooth transitions.

One cable

Power and data over 1G Ethernet with PoE (IEEE 802.3af/at), with a 12 V DC input as an alternative.

Made in Denmark

Durable build, time-tested by professionals worldwide.

PACKAGE CONTENT

  • SKAARHOJ Air Fly for ATEM w/Blue Pill Inside ×1
  • 12 V power adapter ×1

SPECIFICATIONS

  • Brand: SKAARHOJ
  • Model: Air Fly for ATEM w/Blue Pill Inside, AIR-FLY-4ATEM-V1B
  • Type: live switching controller
  • System: ATEM (button labels), other devices via Blue Pill
  • Program/Preview: 12 + 12 buttons
  • Other controls: 12 menu selection buttons, keyer section, shift and user keys in the ME section
  • OLED: 6 programmable four-way buttons with OLED screens
  • Buttons: 61, dimmable RGB backlighting
  • Fader: low-profile, 45 mm
  • Indicators: 6 multi-level LEDs
  • Processor: Blue Pill Inside (Reactor, Device Cores, skaarOS)
  • Connections: 1G Ethernet with PoE, Micro-USB for IP setup, USB-A 2.0 for Stream Deck or X-keys
  • Power: PoE (IEEE 802.3af/at) or 12 V DC
  • Dimensions: 310 × 178 mm, height 46–72 mm
  • Weight: 1.38 kg
  • Made in: Denmark

WE RECOMMEND

The Skaarhoj Air Fly with an integrated Blue Pill system is a powerful control panel for ATEM production switcher, which, thanks to its IP connectivity, allows for easy expansion with additional modules. For professional workflows, it is ideal to supplement it with specialized RCP panels for remote camera control, tally systems, and converters for integration with SDI or B4 interfaces.

Camera Control and RCP - These modules enable precise remote adjustment of camera parameters, such as aperture, color, and gain, directly from the operator’s workstation.

Network Interfaces and Converters - Key components for converting Ethernet commands from Air Fly into physical protocols for controlling cameras and lenses.

Tally and signaling - Accessories for integrating tally lights and GPI triggers into the production chain via SDI or Ethernet.

Additional Control Panels - Modular extensions that add additional programmable buttons and controls for more complex productions.
