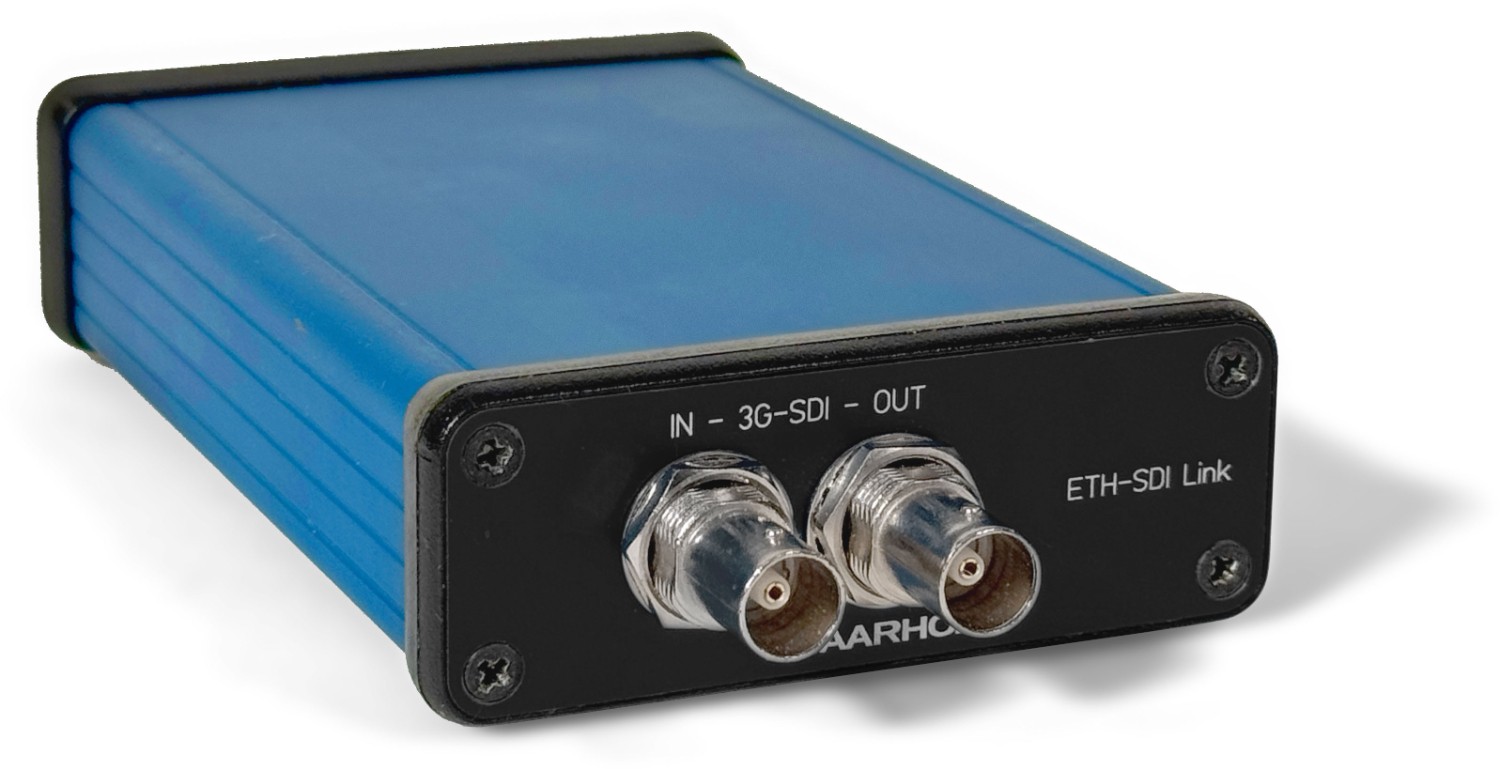

Skaarhoj ETH-SDI Link
SKU: ETH-SDI-LINK-V2
The Skaarhoj ETH-SDI Link is a powerful interface designed to streamline the connection between Ethernet-based control systems and embedded SDI workflows. It receives UDP camera control information over Ethernet and forwards it to the SDI output, facilitating smooth integration and control of broadcast equipment such as Blackmagic Design cameras. …
1 149 € with VAT
949.59 € without VAT
Availability
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Skaarhoj ETH-SDI Link is a powerful interface designed to streamline the connection between Ethernet-based control systems and embedded SDI workflows. It receives UDP camera control information over Ethernet and forwards it to the SDI output, facilitating smooth integration and control of broadcast equipment such as Blackmagic Design cameras.
Benefits
- Allows SDI control of Blackmagic cameras without ATEM switchers
- Facilitates seamless integration into existing setups
- Supports a wide range of camera control commands
- Enhances flexibility in camera setup and control
- Promotes efficient workflow in live production settings
Features
- Receives UDP camera control information over Ethernet
- Forwards control signals to SDI output
- Merges network data from multiple RCPs onto a single SDI wire
- SDI Input for return video signals
- Ethernet connectivity with Power over Ethernet (PoE) support
- Durable build for professional broadcast environments
- Designed and manufactured in Denmark
PACKAGE CONTENT
- Skaarhoj ETH-SDI Link
- 12V Power Supply: Manufacturer: PHIHONG, Model Name: PSA15R-120P, Output: 12V/1.25A, Cable Length: 1.5m, Adapter type: EU, GB, US, AU depending on shipping country, DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive
- Micro USB Cable
- Getting Started Guide
SPECIFICATIONS
| Connectivity | |
| Networking | 100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af) |
| Power Supply | 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t |
| Service Port | Micro USB for updating firmwares and setting manual IP |
| Peripherals | 3G SDI in/out for Black Magic Design cameras |
| Software | |
| Platform | Link IO |
| Licenses | N/A |
| Physical and Shipping | |
| Product Weight | 256 g |
| Shipping Box Weight | 608 g |
| Country of Origin | Denmark |
| EAN Code | 5714074003724 |
