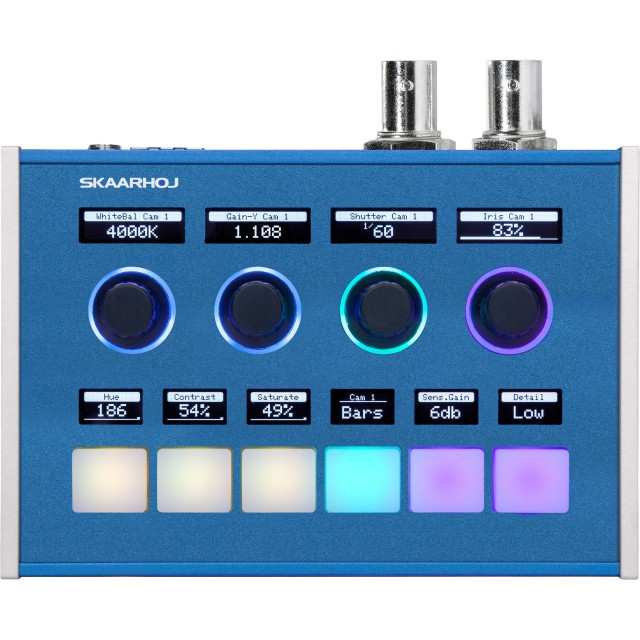

Skaarhoj Inline 10 Modular Controller with SDI I/O

Easily adjust camera parameters with the Inline 10 Modular Controller with SDI I/O from SKAARHOJ. Targeted at shading Blackmagic Design cameras, this version of the Inline 10 comes with SDI in/out connections for Blackmagic Design camera control protocol signals. The controller can be used either standalone or as a module that connects to other SKAARHOJ panels to create custom setups. It is equipped with six programmable four-way buttons, four encoder knobs, and a dedicated OLED display for each of the buttons and knobs. The Inline 10 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

More information

1 091.49 € with VAT 902.06 € without VAT
-+
Availability
Prague 1 pcs
Manufacturer
Free transport When purchasing this product
SKU:
Inline-10-S-V1
Add to Compare
Product description

Product description

Easily adjust camera parameters with the Inline 10 Modular Controller with SDI I/O from SKAARHOJ. Targeted at shading Blackmagic Design cameras, this version of the Inline 10 comes with SDI in/out connections for Blackmagic Design camera control protocol signals. The controller can be used either standalone or as a module that connects to other SKAARHOJ panels to create custom setups. It is equipped with six programmable four-way buttons, four encoder knobs, and a dedicated OLED display for each of the buttons and knobs. The Inline 10 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

  • Six programmable four-way buttons with OLED displays
  • Four backlit encoder knobs with OLED displays
  • Ethernet with PoE IEEE802.3af
  • UniSketch operating system
  • Comes with software
  • Works with a wide variety of devices including AJA RovoCam, IO Industries Flare 4K, Blackmagic Design ATEM & CamCtrl, Ensemble NXT 950, NewTek TriCaster, and vMix systems

PACKAGE CONTENT

  • SKAARHOJ Inline 10 Modular Controller with SDI I/O
  • 12V Power Supply
  • Micro-USB Programming Cable
  • Networking Cable

SPECIFICATIONS

  • Connectors 1 x SDI Input, 1 x SDI Output, 1 x RJ45, Ethernet, 1 x Micro-USB, Programming, 1 x DC Power Input
  • Controls and Indicators 6 x 4-Way Programmable Buttons with OLED Displays, 4 x Backlit Encoder Knobs with OLED Displays
  • Operating System UniSketch
  • Power Source PoE IEEE802.3af, DC
  • Dimensions 12.6 x 5.9 x 2.6" / 32 x 15 x 7 cm
  • Weight 40.2 oz / 1140 g
Parameters

Parameters

Manufacturer: Skaarhoj
Category: Other
