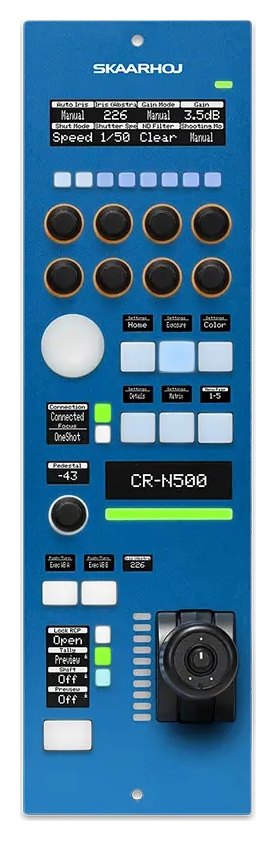

Skaarhoj RCPv2 Joystick

RCPv2 Joystick is a universal camera shading panel with a classic iris joystick, 8 RGB-backlit encoders and OLED displays. A camera ID display with an RGB tally bar, a preview button and Ethernet with PoE complete the package.

SKAARHOJ RCPv2 Joystick is a universal camera shading panel that fits into your existing rack or sits console style on a table top. Iris is controlled by a classic joystick with its own display and LED bar, while master black has a dedicated encoder with an OLED display. Use it regardless of which camera brand you shade.

The classic iris joystick

A camera shading panel with 8 backlit encoders and OLED displays for control rooms, OB vans and studios.

Iris joystick8 RGB encodersOLED displaysRGB tally barEthernet with PoE

The joystick you know

The classic RCP joystick with display and LED bar controls iris, and master black is set on a separate encoder with its own OLED display. Operators used to broadcast RCPs feel at home straight away.

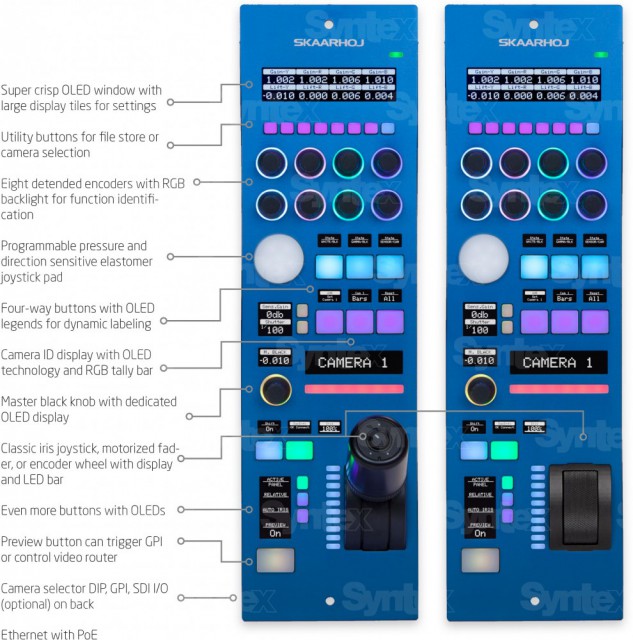

Everything on OLED displays

A crisp OLED window with large display tiles shows your settings, and the four-way buttons carry OLED legends. Eight detented encoders identify their functions by RGB backlight colour.

Preview, GPI and joystick pad

The preview button can trigger a GPI or control a video router, and the programmable elastomer joystick pad is pressure and direction sensitive. The rear panel holds a DIP camera selector and GPI.

One RCP for different cameras

RCPv2 is designed as a universal panel regardless of the camera brand you shade. That lets you unify control in one control room, with operators always working on the same interface.

Rack or desk

The 102 mm wide RCP form factor fits existing racks, or use it on its own as a console.

Camera ID and tally

An OLED camera name display and an RGB tally bar show what is on air.

Utility buttons

Store setting files or select a camera with a single press.

Ethernet with PoE

Power and control over one network cable, with a power adapter as an alternative.
