Skaarhoj RCP (v2)

RCPv2 is a universal camera shading panel for the rack or the desk. Iris is driven by a joystick, motorized fader or roller wheel, joined by 8 RGB-backlit encoders, OLED displays, a tally bar and Ethernet with PoE for many camera brands.

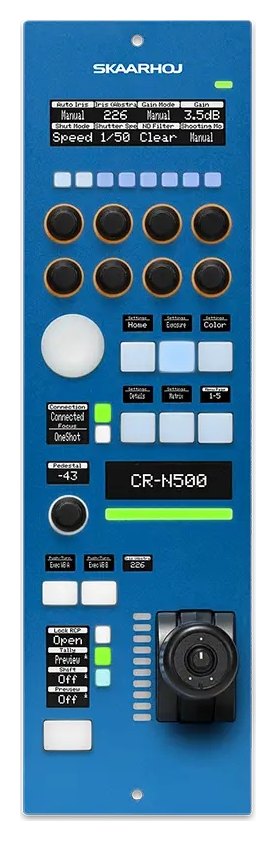

SKAARHOJ RCP (v2) is a universal camera shading panel that fits into your existing rack or sits console style on a table top. Depending on the version, iris is controlled by a classic joystick, a motorized fader or a roller wheel, and the panel works with cameras from Blackmagic Design (ATEM/SDI), Panasonic, Marshall, JVC, ARRI, Dream Chip, NewTek and more.

A universal RCP for any camera

A camera shading panel with 8 backlit encoders and OLED displays for control rooms, OB vans and studios.

Joystick, fader or wheel8 RGB encodersOLED displaysRGB tally barSDI in and out

Iris control the way you like it

RCPv2 comes with a classic joystick, a motorized fader or an encoder wheel, each with a display and LED bar. Master black has its own encoder with an OLED display.

Everything on OLED displays

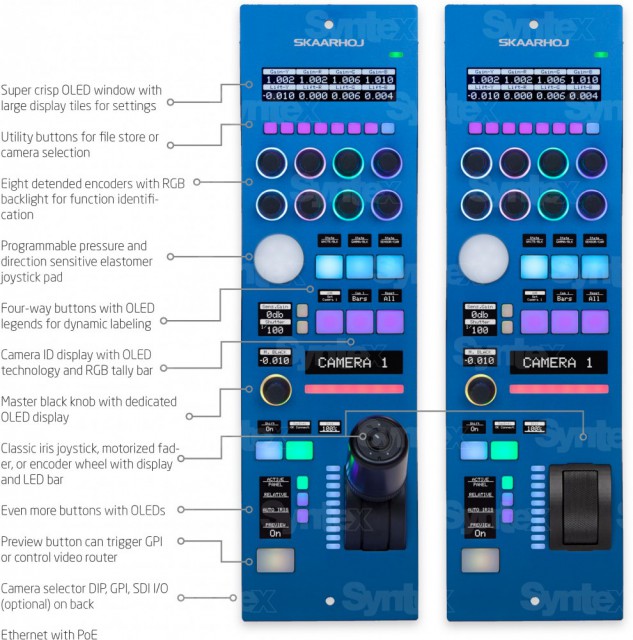

A crisp OLED window with large display tiles shows your settings, and the four-way buttons carry OLED legends. Eight detented encoders identify their functions by RGB backlight colour.

SDI for Blackmagic cameras

SDI in and out on the back read and write camera control data for Blackmagic Design cameras. The rear panel also holds a DIP camera selector and GPI.

One RCP for different cameras

RCPv2 is designed as a universal panel regardless of the camera brand you shade. That lets you unify control in one control room, with operators always working on the same interface.

Rack or desk

The 102 mm wide RCP form factor fits existing racks, or use it on its own as a console.

Camera ID and tally

An OLED camera name display and an RGB tally bar show what is on air.

Utility buttons

Store setting files or select a camera with a single press.

Ethernet with PoE

Power and control over one network cable, with a power adapter as an alternative.
