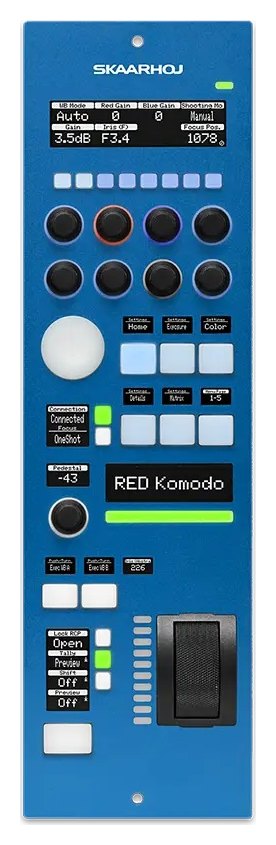

Skaarhoj RCPv2 w/Roller Wheel and SDI

RCPv2 with Roller Wheel is a universal camera shading panel with an iris wheel, 8 RGB-backlit encoders and OLED displays. SDI in and out for Blackmagic cameras, a preview button and Ethernet with PoE are on board.

SKAARHOJ RCPv2 w/Roller Wheel and SDI is a universal camera shading panel that fits into your existing rack or sits console style on a table top. Iris is controlled by an encoder wheel with its own display and LED bar, while master black has a dedicated encoder with an OLED display. SDI in and out on the back are used to control Blackmagic Design cameras.

An RCP with SDI for Blackmagic

A camera shading panel with 8 backlit encoders and OLED displays for control rooms, OB vans and studios.

Iris roller wheel8 RGB encodersOLED displaysRGB tally barSDI in and out

Iris on a wheel

The encoder wheel with display and LED bar controls iris, and master black is set on a separate encoder with its own OLED display. You change both values independently and precisely.

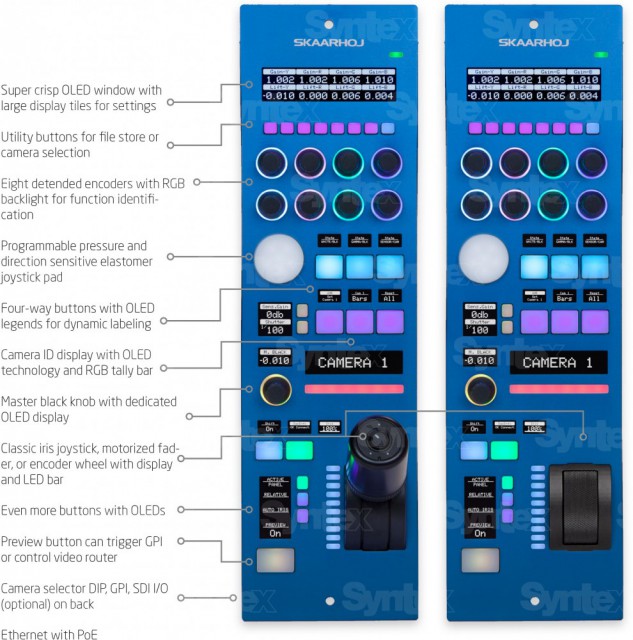

Everything on OLED displays

A crisp OLED window with large display tiles shows your settings, and the four-way buttons carry OLED legends. Eight detented encoders identify their functions by RGB backlight colour.

SDI for Blackmagic cameras

SDI in and out on the back read and write camera control data for Blackmagic Design cameras. The rear panel also holds a DIP camera selector and GPI.

One RCP for different cameras

RCPv2 is designed as a universal panel regardless of the camera brand you shade. That lets you unify control in one control room, with operators always working on the same interface.

Rack or desk

The 102 mm wide RCP form factor fits existing racks, or use it on its own as a console.

Camera ID and tally

An OLED camera name display and an RGB tally bar show what is on air.

Utility buttons

Store setting files or select a camera with a single press.

Ethernet with PoE

Power and control over one network cable, with a power adapter as an alternative.
