Skaarhoj E21-TVS

SKU: KAT-3048

E21-TVS is a compact SKAARHOJ control panel built for the ATEM Television Studio. It offers 2 rows of 6 input select buttons, Cut and Auto buttons, 2 user buttons and a transition slider, and works with all ATEM switchers.

More information

Call us for pricing information
Add to Compare Price history
Availability
3-5 days
SKU:
KAT-3048
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

E21-TVS is a compact SKAARHOJ control panel built for the ATEM Television Studio. It offers 2 rows of 6 input select buttons, Cut and Auto buttons, 2 user buttons and a transition slider, and works with all ATEM switchers.

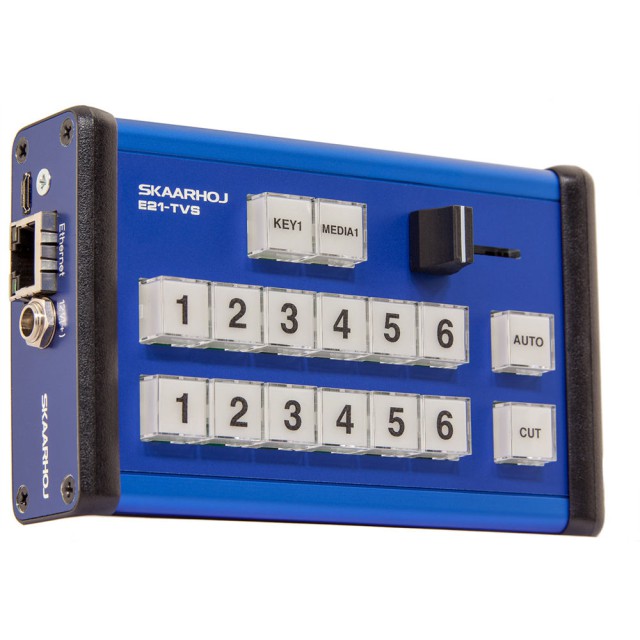

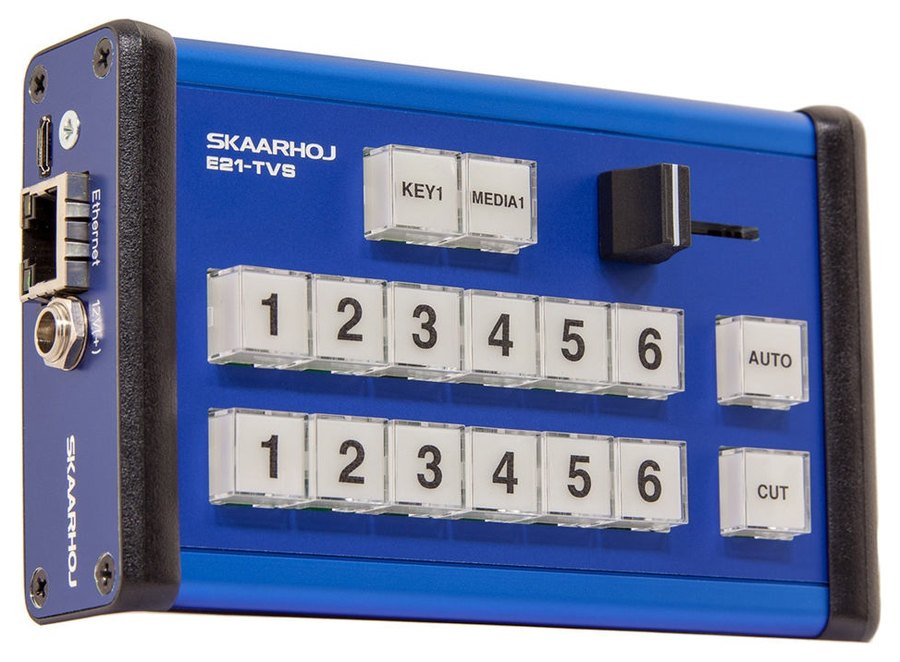

SKAARHOJ E21-TVS is a small but feature-packed control console designed specifically for the Blackmagic Design ATEM Television Studio switcher and the most affordable hardware controller for it. Sixteen broadcast-quality backlit buttons and a transition slider give the operator fast, confident control that a mouse and keyboard cannot match. The unit is fully standalone, with an Arduino Ethernet or Arduino Mega inside.

Hardware control for ATEM

A compact panel with 16 buttons and a transition slider for Blackmagic Design ATEM switchers.

For ATEM TVS16 buttonsTransition sliderStandalone unitOpen source

Everything at your fingertips

Two rows of six buttons select the inputs, next to Cut and Auto and two user buttons. Transitions are controlled smoothly with the slider.

Standalone and connected

The panel talks to the switcher over Ethernet and needs no computer. An optional 2 × 8-channel Blackmagic Design compatible DB-25 connector provides tally and GPI outputs.

Buttons for a lifetime

Japanese broadcast-quality buttons light up red, green or amber and offer a nearly endless lifetime. Transparent caps let you insert custom labels.

The most affordable ATEM TVS controller

E21-TVS brings physical buttons and a slider to ATEM switchers for a fraction of the price of large panels, ideal for studios, streaming and smaller galleries.

Fully programmable

Every button can be programmed to suit your needs.

ATEM compatibility

Television Studio, 1 M/E and 2 M/E Production Switcher and Production Studio 4K.

Rugged housing

Robust enclosure with black or blue anodised aluminium plates.

Open design

100 % open-source design (CC-BY-SA or GNU/GPL).

PACKAGE CONTENT

  • SKAARHOJ E21-TVS ×1

SPECIFICATIONS

  • Brand: SKAARHOJ
  • Model: E21-TVS
  • Type: control panel for ATEM switchers
  • Buttons: 16 backlit buttons (2 × 6 inputs, Cut, Auto, 2 user), red, green or amber
  • Controls: transition slider
  • Connections: RJ45 Ethernet, DC power input, optional DB-25 (2 × 8 channels tally/GPI)
  • Electronics: Arduino Ethernet or Arduino Mega
  • Compatibility: Blackmagic Design ATEM Television Studio, 1 M/E and 2 M/E Production Switcher, Production Studio 4K, 1 M/E and 2 M/E Production Studio 4K
  • Construction: black or blue anodised aluminium plates
  • Design licence: CC-BY-SA or GNU/GPL
