Skaarhoj Micro Fly

Micro Fly is a tiny control panel with two four-way buttons, OLED displays and a multi-level LED bar for switchers, routers, monitors and cameras. UniSketch OS with Raw Panel Server mode, PoE power and a size of 87 × 57 × 26 mm.

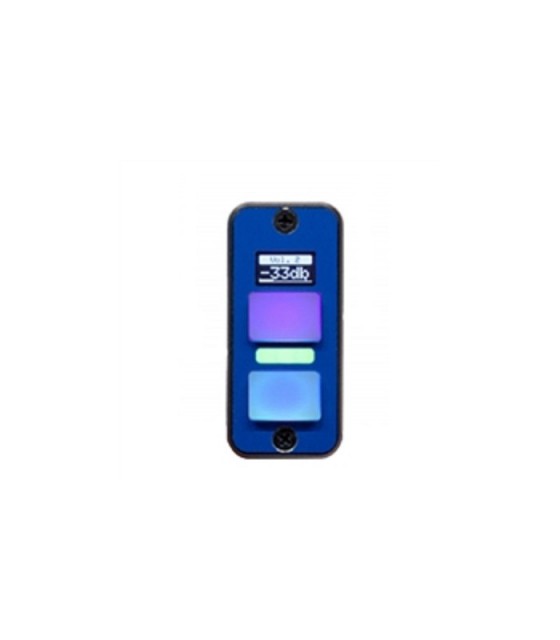

SKAARHOJ Micro Fly is a tiny control panel for when you need “just one button”. Two four-way buttons with OLED displays and a multi-level RGB LED bar control a switcher, router, monitor, camera or processor. The panel runs UniSketch OS, connects to a Blue Pill device in Raw Panel Server mode and is programmed in Reactor.

When one button is enough

Two four-way buttons, OLED displays and an LED bar for broadcast, live production and custom integrations.

2 four-way buttonsOLED displaysUniSketch OSPoE poweredOnly 104 g

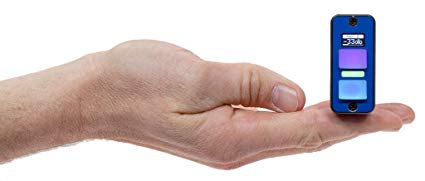

The size of a small box

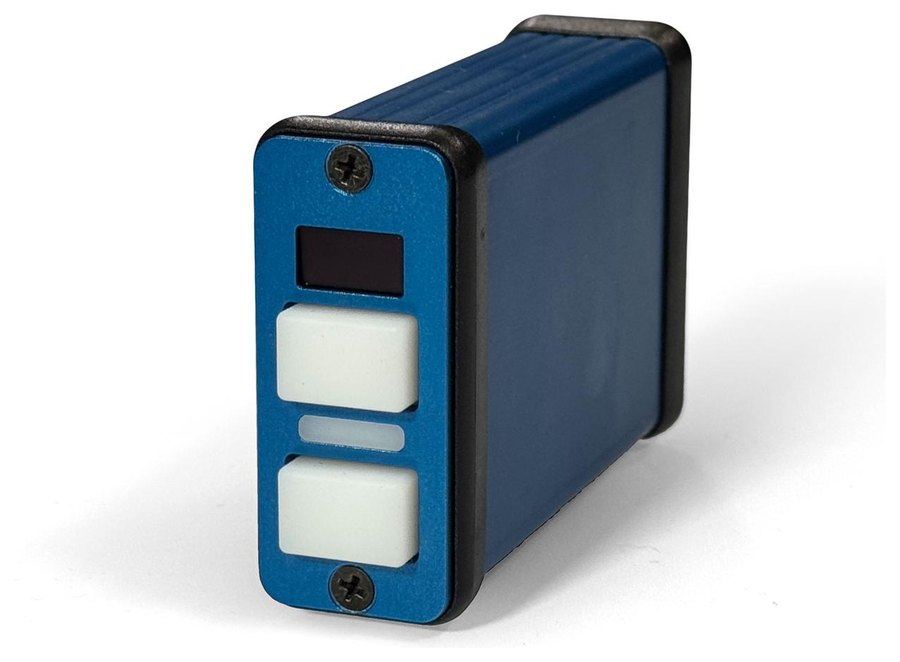

Micro Fly measures 87 × 57 × 26 mm and weighs 104 g. It fits on the edge of a desk, next to a monitor or into a mobile setup where a larger panel would be in the way.

Raw Panel for Reactor

In Raw Panel Server mode Micro Fly connects to a Blue Pill device and its buttons are programmed in Reactor. Legacy UniSketch device cores are supported too.

RGB LED bar

The multi-level LED bar shows a status or level and complements the labels on the OLED displays. The operator sees the result of each press at once.

Simple and reliable

Sometimes one well-placed button for a cut, preset or macro is all it takes. Micro Fly offers it in a durable build with clear feedback on the OLED display and LED bar.

One cable

Power and data over PoE (IEEE 802.3af), or 12 V DC.

Micro-USB service port

For firmware updates and setting a manual IP address.

For broadcast and AV

Suits broadcast, live production and custom integrations.

Made in Denmark

Durable build, time tested by professionals worldwide.
