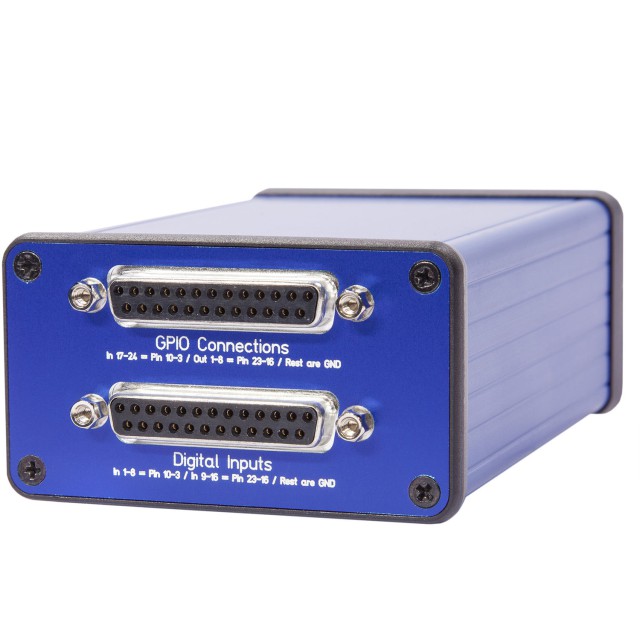

Skaarhoj GPI Triggers to SDI Tally

From the factory the box is configured to control camera IDs 1-8. When input 1-8 is closed to GND, the red tally flag for camera 1-8 respectively will be set on the SDI output from the box. Likewise input 9-16 (on the same DB25 connector) will result in green tally (preview) being set on the SDI output.

More information

Promotion: -10%
1 329.79 € 1 196.81 € with VAT 989.1 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description PACKAGE CONTENT

Product description

From the factory the box is configured to control camera IDs 1-8. When input 1-8 is closed to GND, the red tally flag for camera 1-8 respectively will be set on the SDI output from the box. Likewise input 9-16 (on the same DB25 connector) will result in green tally (preview) being set on the SDI output.

If you want tally control of camera IDs other than 1-8 or if you want just red tally for camera 1-16 for instance, you simply configure the inputs in the web interface.
The SDI input should be connected to your source for the camera return feed. This would typically be a program output and possibly enriched with CCU data via either an ATEM switcher, the SKAARHOJ RCP, or the Blackmagic Arduino Shield. The SDI Tally box passes through all CCU information and only overrides Tally information.

Camera Support
The Blackmagic 3G-SDI Arduino Shield supports the following formats: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94 and 1080p60, but the camera doesn´t have to be running the same video format as the program input, so you can use cameras in Ultra HD while the camera protocol is sent over HD signal to the camera.

PACKAGE CONTENT

  • SDI-GPI Link
  • 12V Power Supply
  • USB Programming Cable
  • Networking Cable
  • UniSketch OS
  • Manuals and Software
  • Skaarhoj 1 Year Limited Warranty
Parameters

Parameters

Manufacturer: Skaarhoj
Category: Other
