Tilta Camera Cage for BMCC 6K Basic Kit - Black

+2
SKU: TA-T64-B-B

The Tilta Basic Kit for the Blackmagic Cinema Camera 6K is the full cage plus what you miss first when shooting handheld: the silicone-padded Xeno top handle, an SSD holder for the Samsung T5, the 15mm rod holder for the battery grip and a right-angle HDMI adapter. The cage itself holds the body at three points and offers 1/4"-20 and 3/8"-16 threads,…

More information

180 € with VAT 148.76 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TA-T64-B-B
Add to Compare Price history

Tilta Full Camera Cage for BMCC 6K - Black

120 €without VAT 99.17 €

Tilta Camera Cage for BMCC 6K Advanced Kit - Black

In stock > 5 pcs489 €without VAT 404.13 €

Top accessories for Tilta Camera Cage for BMCC 6K Basic Kit - Black

Tilta L-Series/NP-F Battery Charger Kit (2 Batteries) - Green

An NP-F power set: a flat two-channel Tilta charger and two 3,500 mAh NP-F550 batteries.
59 €
In stock > 5 pcs

Tilta 15mm Aluminum Rod 200mm – Black

The Tilta R15-200-B is a 200 mm long aluminium 15 mm rod, black anodised. It fits
9.7 €
In stock 4 pcs

Tilta Tiltaing Left Side Advanced Power Handle with Run/Stop Type VI (F570 Battery) - Black

The Tilta TA-LRH6-57-B is a left-side Tiltaing Advanced Power Handle with a run/stop
113 €
In stock 5 pcs

Tilta 15mm LWS Baseplate Type VI - Black

The Tilta TA-BSP6-15-B is a 15 mm LWS baseplate for the Tilta Full Camera Cage for
144 €
In stock 5 pcs

Tilta Nucleus Nano II Wireless Lens Control System

  • SHOWROOM PRAHA
  • LAST PIECE
The Tilta Nucleus Nano II is a wireless focus system for compact cinema cameras and
326 €
In stock 1 pcs

Tilta NP-F550 Battery (3500mAh) - Green

The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera
23 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

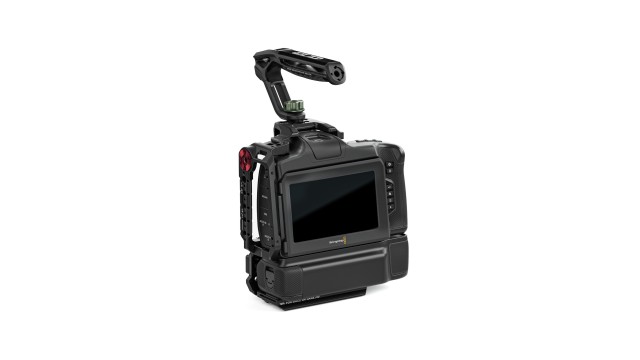

The Tilta Basic Kit for the Blackmagic Cinema Camera 6K is the full cage plus what you miss first when shooting handheld: the silicone-padded Xeno top handle, an SSD holder for the Samsung T5, the 15mm rod holder for the battery grip and a right-angle HDMI adapter. The cage itself holds the body at three points and offers 1/4"-20 and 3/8"-16 threads, cold shoe receivers, an ARRI rosette and a NATO rail.

The Basic Kit adds to the full cage the silicone-padded Xeno top handle, an SSD holder for the Samsung T5 for external recording, the 15mm rod holder for the battery grip and a right-angle HDMI adapter that spares the port in the camera body. That makes the rig ready for handheld work.

Key features

Detachable design

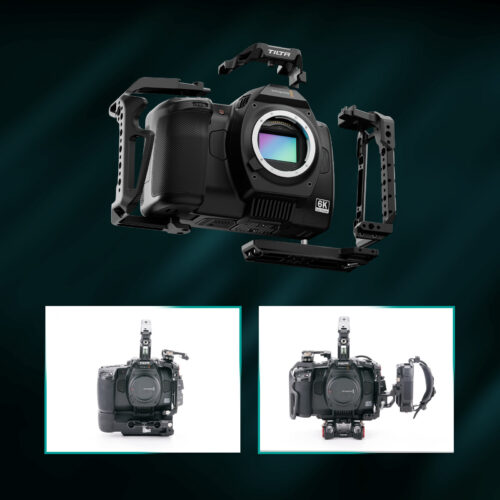

The right side arm module can be removed, turning the full cage into a half cage or a bare L-bracket. The lighter build suits a gimbal, the full cage handheld and tripod work. Two screws do it — you need not take the whole cage off the camera.

Detachable design

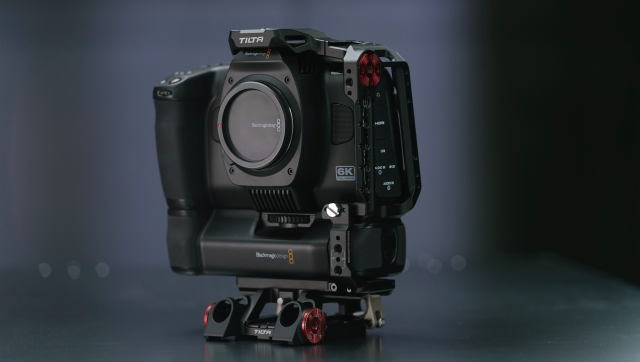

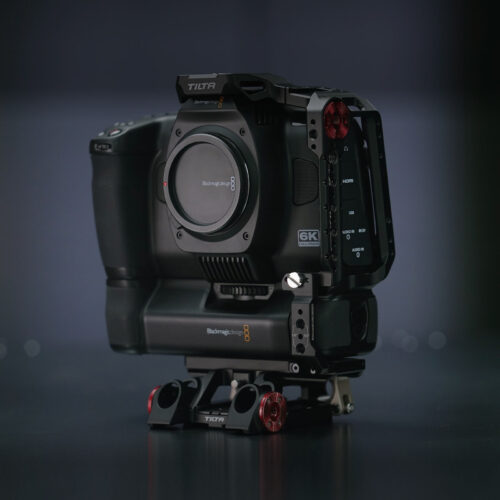

Works with the battery grip

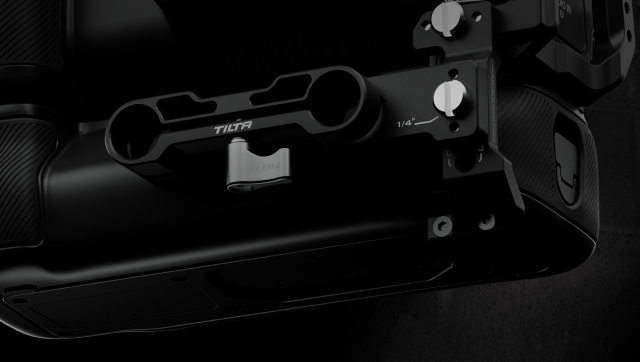

With the bottom plate removed, the cage fits the body together with the original Blackmagic battery grip. The bottom plate expansion bracket braces against the grip, so the build stays rigid and the camera does not rock even with a heavier lens.

Works with the battery grip

Three points of contact

The top plate meets the 1/4"-20 thread on top of the Full Frame body while two screws hold the cage from below. Three points of contact stop the body from twisting even with a heavy lens or a matte box hanging off the camera.

Three points of contact

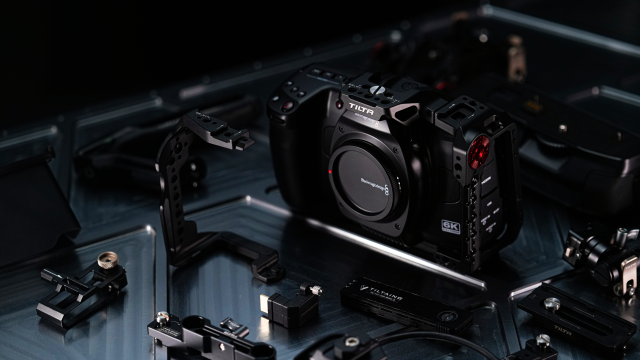

Threads wherever you look

Around the frame sit 1/4"-20 and 3/8"-16 threads with locating pins, cold shoe receivers, an ARRI-compatible rosette and a NATO rail for side handles. Accessories go exactly where you need them and will not rotate out of place.

Threads wherever you look

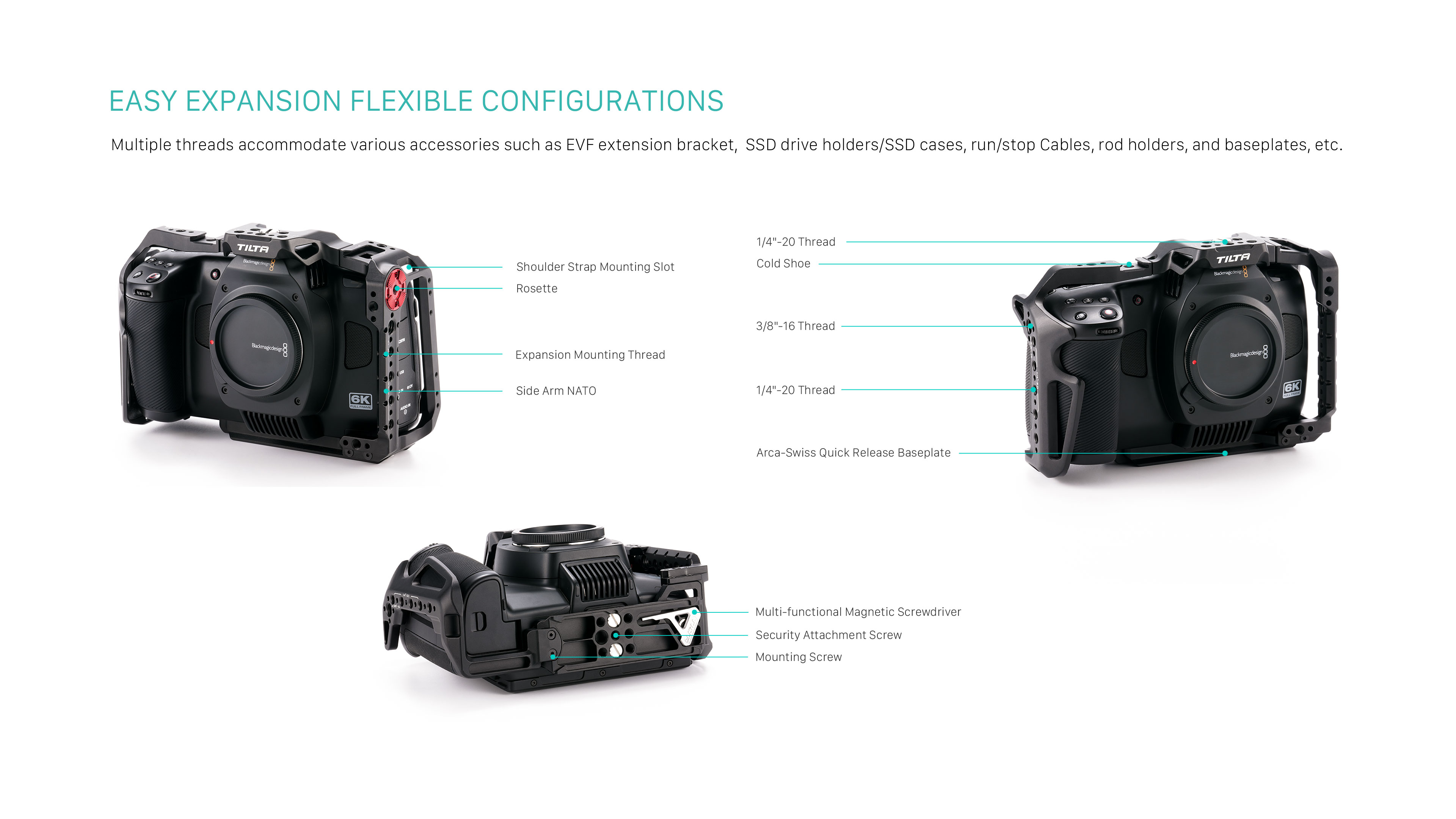

Cage interfaces: threads, cold shoe receivers, rosette and NATO rail

You build the rig to suit the job: every thread has a locating pin beside it, so an EVF bracket, an SSD case, a run/stop cable, a rod holder or a baseplate will not twist out of alignment.

The caged camera on a tripod and on a gimbal

The bottom plate carries several 1/4"-20 threads for quick release plates and an Arca-Swiss profile, so the camera drops straight into the clamp of a DJI RS 3 or RS 3 Pro gimbal — and from there onto the tripod.

Note: the BMD EVF does not fully clear the top plate of the cage. Take care when fitting and removing it so the viewfinder is not damaged.

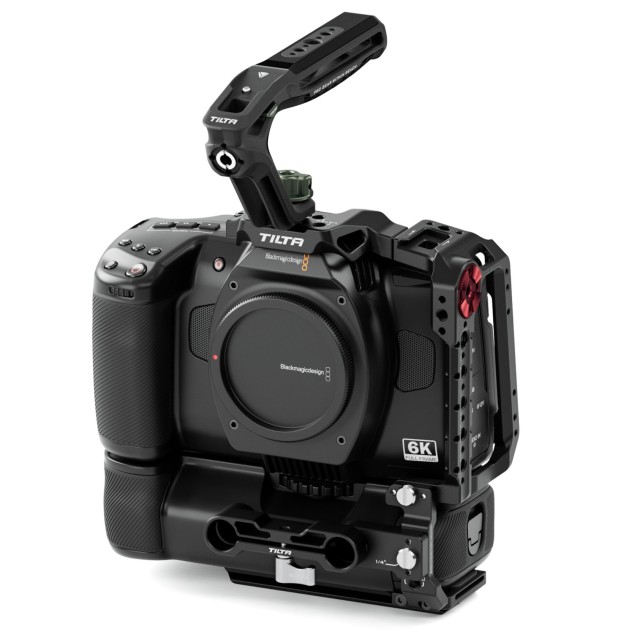

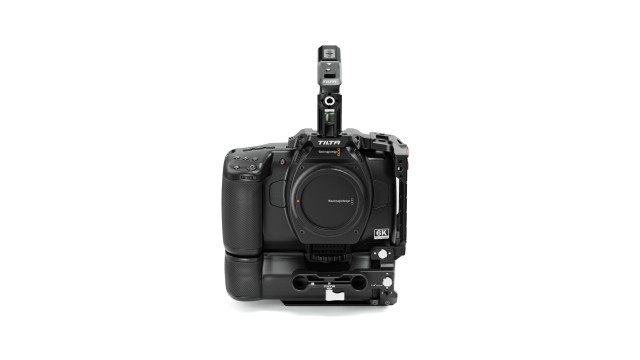

The Tilta cage on the Blackmagic Cinema Camera 6K

PACKAGE CONTENT

  • 1× Full Camera Cage for BMCC 6K – Black (TA-T64-FCC-B)
  • 1× Slotted and Allen Key
  • 1× Battery Grip Connector
  • 1× Tilta Xeno Top Handle (1/4"-20 with locating pins) – Black (TA-XTH1-B)
  • 1× Tilta SSD Drive Holder for T5 – Black (TA-SSDH-T5-B)
  • 1× 15mm Rod Holder for BMPCC 6K Pro – Black (TA-T11-RH-B)
  • 1× HDMI 90-Degree Adapter for BMPCC 4K/6K (TA-T01-HDA-90)

SPECIFICATIONS

  • Compatibility: Blackmagic Cinema Camera 6K (Full Frame)
  • Cage dimensions: 197.1 × 58 × 143.5 mm
  • Cage weight: 281 g
  • Material: aluminium alloy, stainless steel
  • Interfaces: 1/4"-20 and 3/8"-16 threads with locating pins, cold shoe receivers, ARRI-compatible rosette, NATO rail, shoulder strap mounting slot
  • Quick release: bottom plate with Arca-Swiss profile (DJI RS 3 / RS 3 Pro)
  • Configurations: full cage, half cage, L-bracket
  • Colour: black

The dimensions and weight are those of the cage alone. The manufacturer does not state the weight of the complete kit.

Parameters

Parameters

Manufacturer: Tilta
Category: Finished kits

Main parameters

ColourBlack
MaterialAluminium alloy · Stainless steel
VersionCage kit
For cameraBlackmagic Cinema Camera 6K
