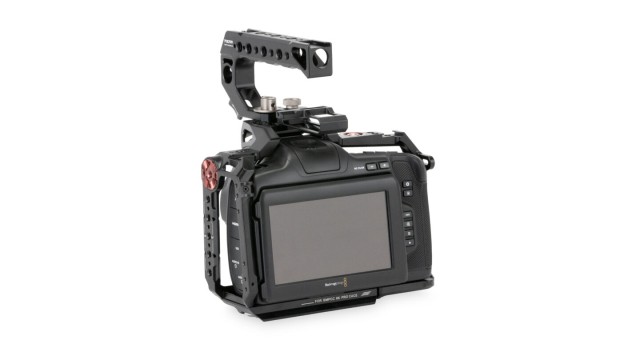

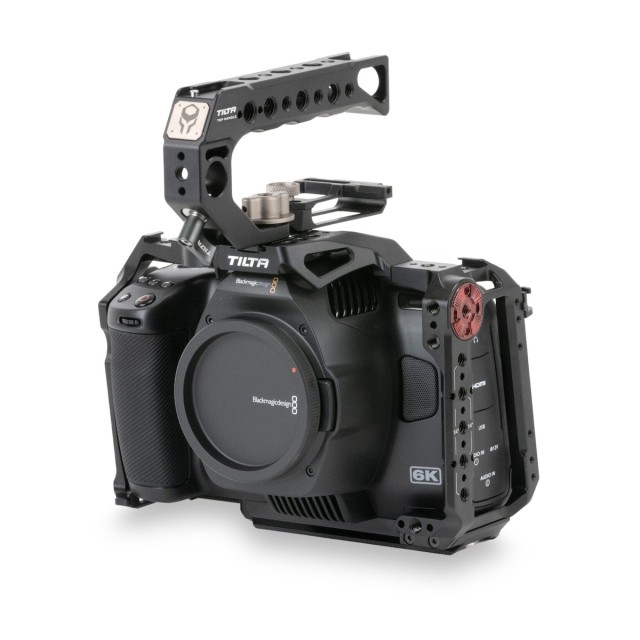

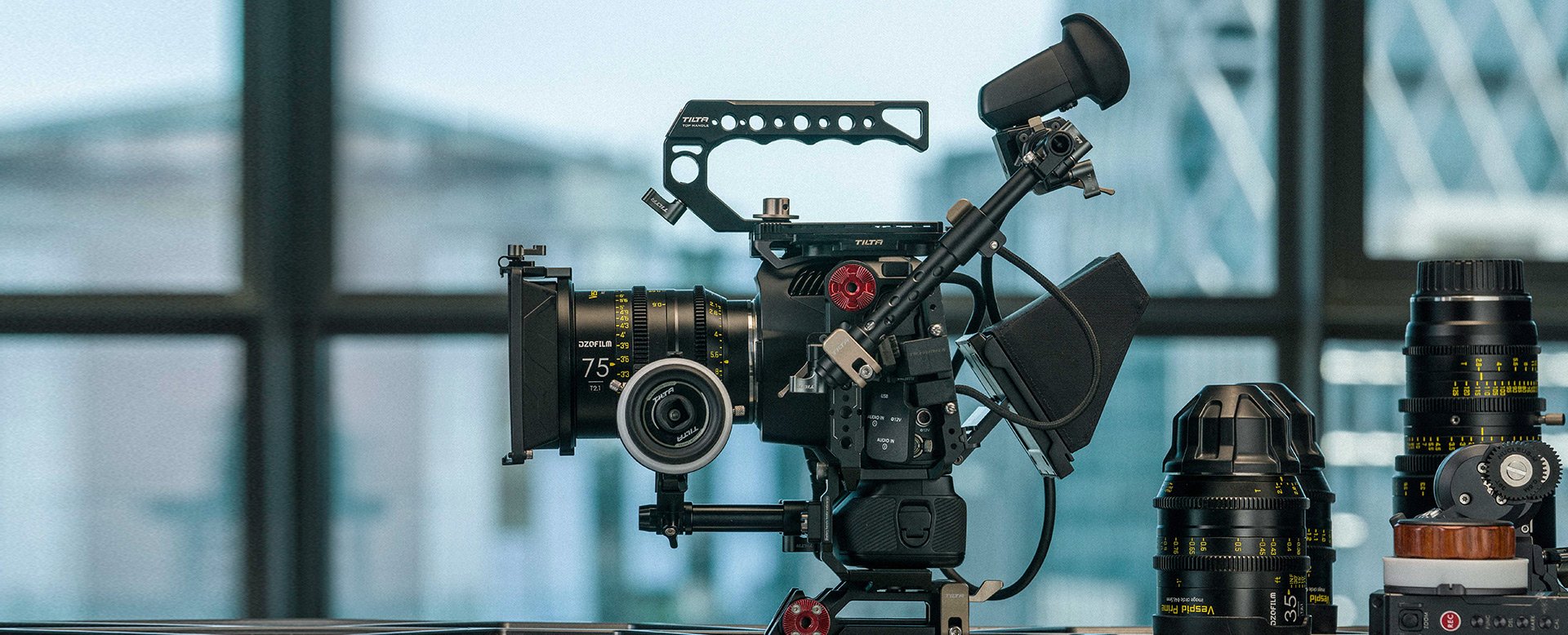

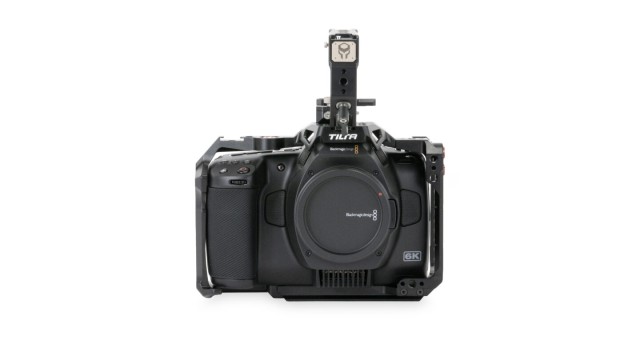

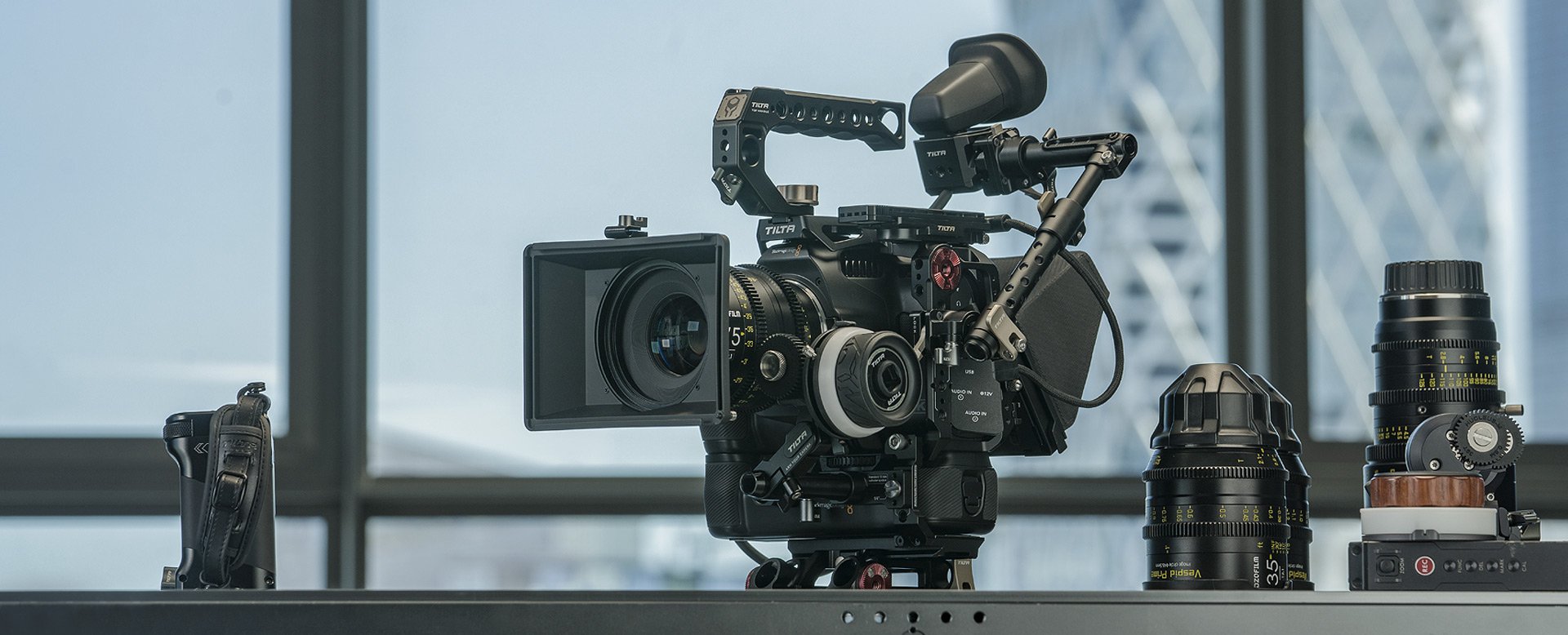

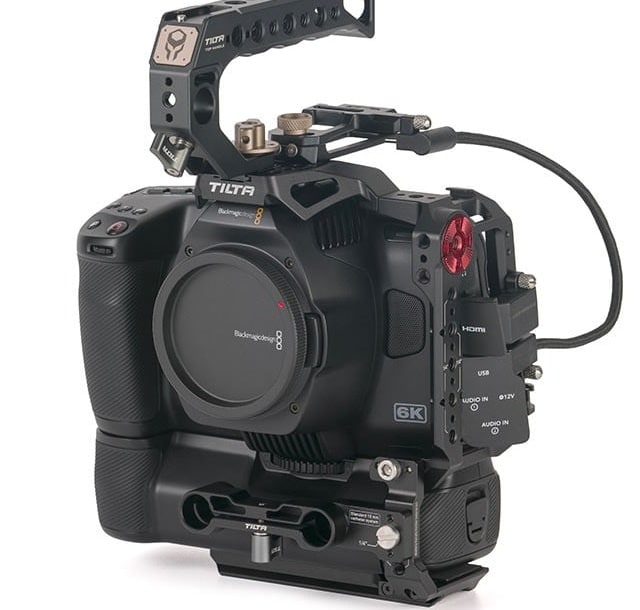

Tilta Basic kit for BMPCC 6K Pro- Black

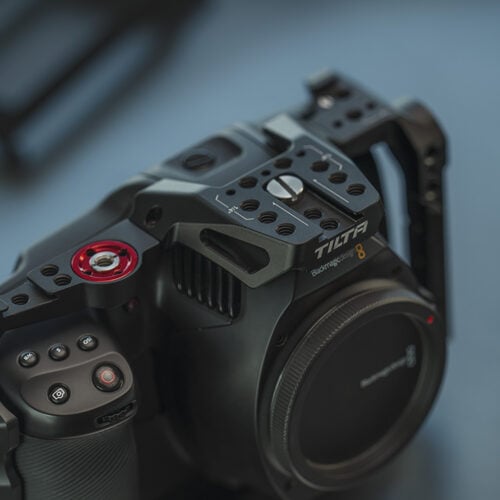

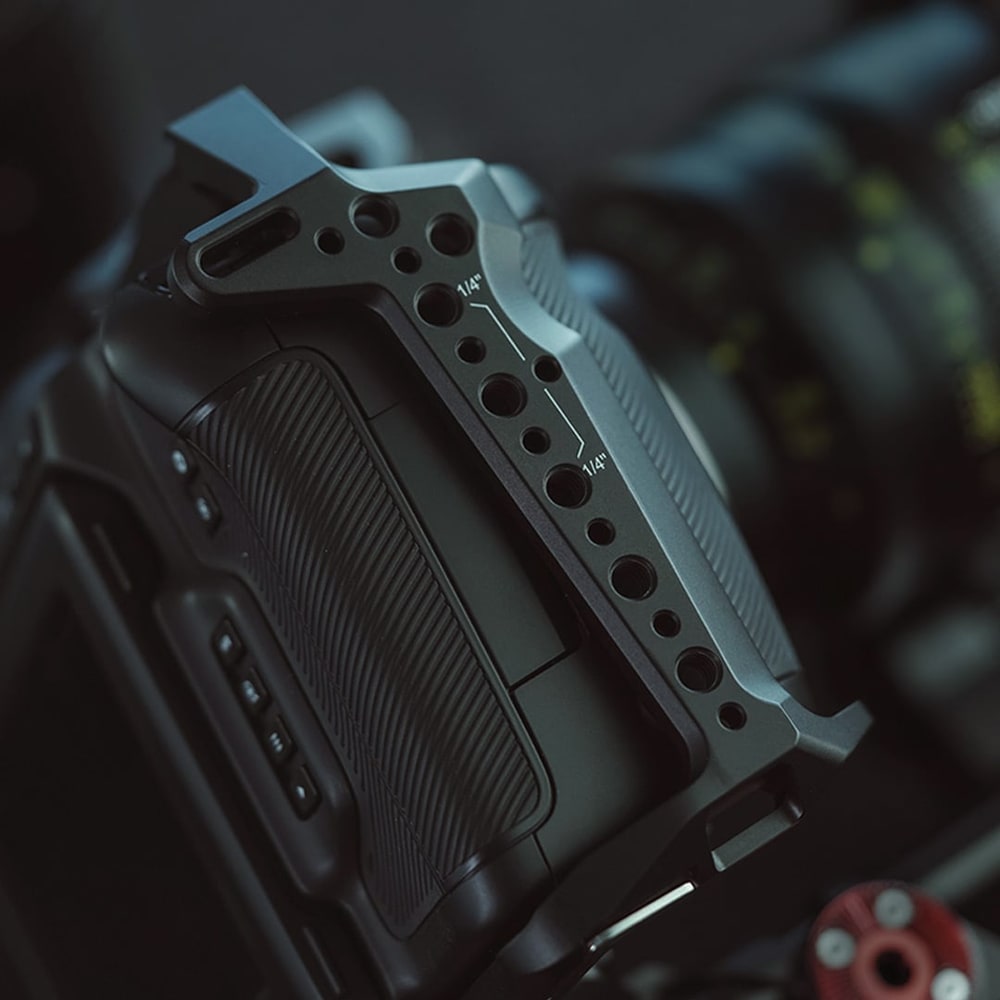

Arm your camera with the Tiltaing Camera Cage for the Blackmagic Pocket Cinema Camera 6K Pro and 6K G2. This Basic Kit for the BMPCC6K Pro/G2 provides protective armor for the camera body and includes some relevant accessories to improve functionality. The Full Cage offers several 1/4”-20 threads with locating pins, cold shoe receivers, a NATO Rail for Type IV and VI Side Handles, as well as Rod Attachment Ports for our Single Rod Holders. It also features ARRI compatible rosettes, which are specifically designed for our Adjustable Top Handle Plus for more flexible operating and handling. The right side arm module can be removed to turn this Full Cage into a Half Cage. This offers more flexibility in situations where lighter builds are required such as when using a gimbal. The Bottom Plate provides several ¼”-20 mounting points for attaching your camera to various quick release plates and is compatible with the ARCA Receiver of the RS2 Mounting Plate.

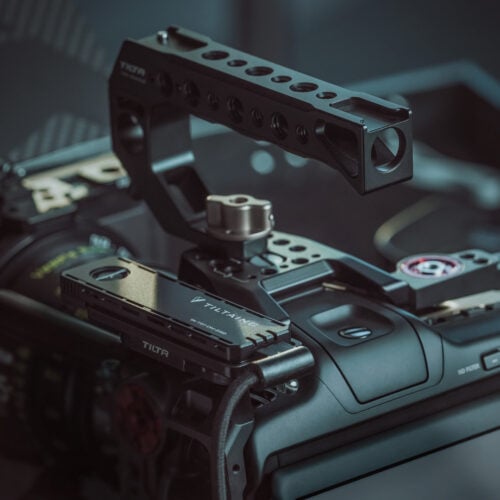

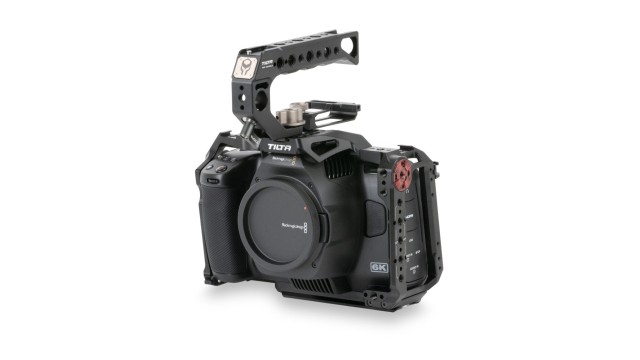

When using the Half Cage, the bottom plate can be extended to support the Black Magic Design Battery Grip. An included 15mm rod mount can be installed to support 15mm rods in front of the camera body when using the Battery Grip in the Half Cage setup. The included Quick Release Top Handle can be attached to the top of the cage via a cold shoe receiver and ¼”-20 screw. This provides an extremely secure connection to comfortably handle and operate your camera system. The Top Handle features additional ¼”-20 threads, cold shoe receivers and a horizontal 15mm rod holder for mounting external monitors or EVFs. The SSD Drive Holder attaches directly to the Cage via a 1/4″-20 screw and locating pin.

It can then clamp onto a Samsung T7 SSD drive, securing it to your camera setup and allowing you to record footage onto a separate SSD card. The included USB-C cable is able to screw into the SSD Holder and the Side Panel of the Cage near the USB-C Port. This creates an extremely secure connection between your camera and drive. The 90 Degree HDMI Adapter mounts to the cage near the camera’s HDMI port and offers a secure connection that limits wear on the port itself.

Features

Compatibility

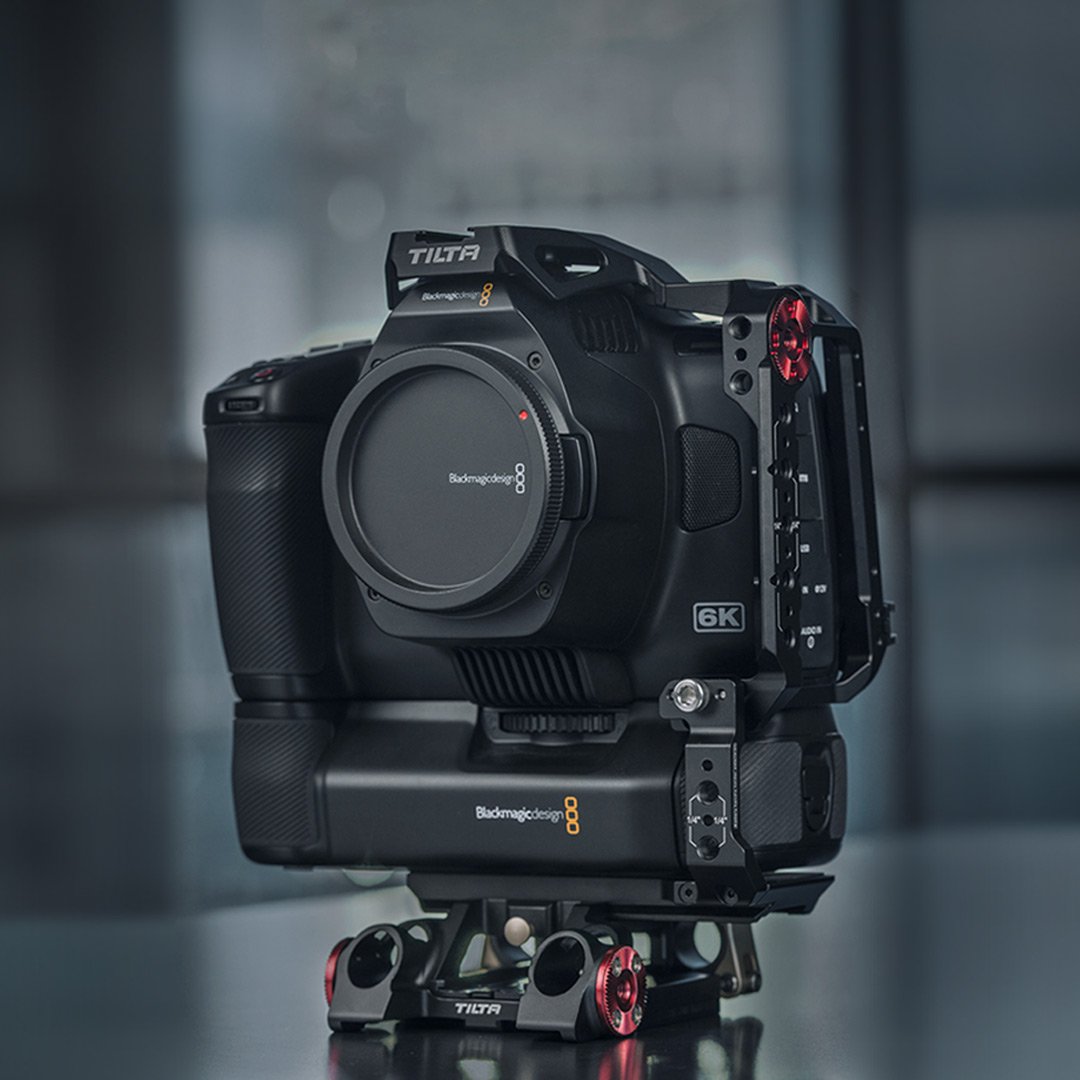

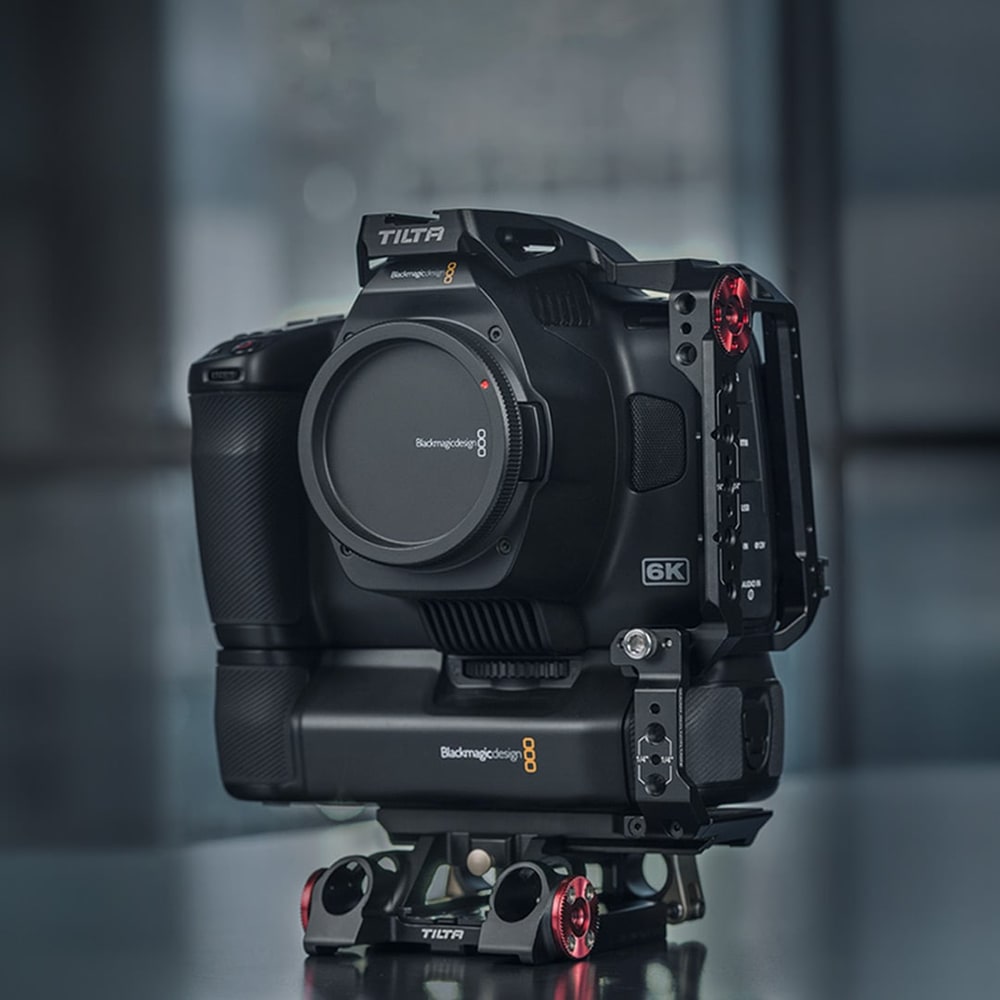

Compatible with the original battery grip from Blackmagic Design. Under the half cage setup, remove the bottom plate and secure it to the bottom of the battery grip.

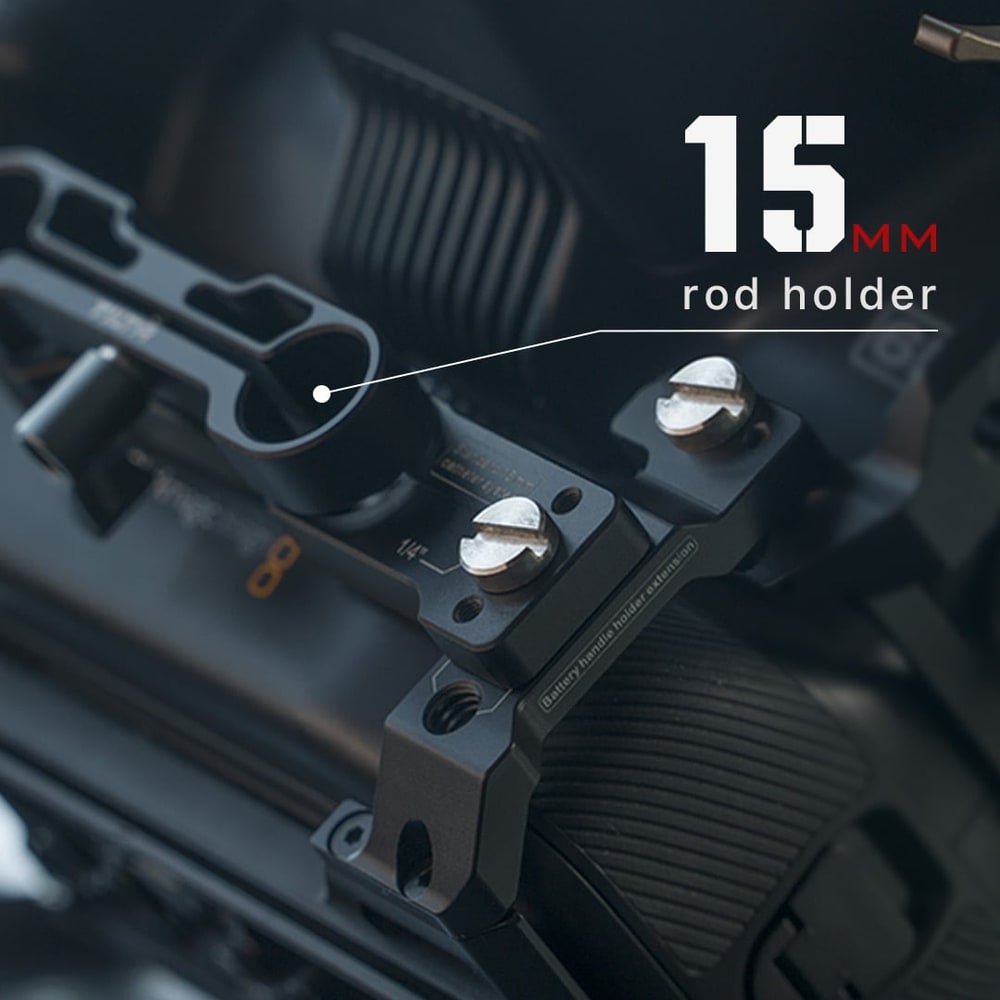

15mm Rod Holder

With the original battery grip mounted, the 15mm rod holder and 15mm rods can be installed to mount a follow focus, lens support, etc.

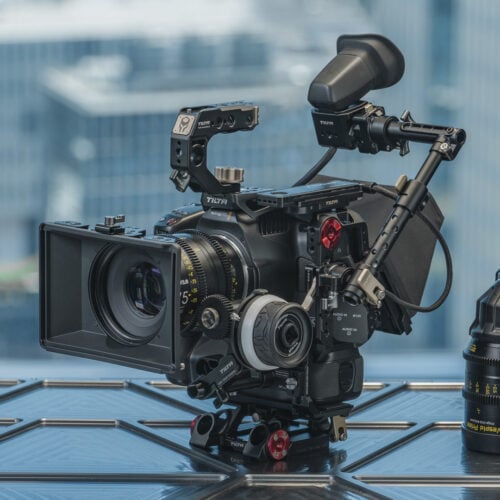

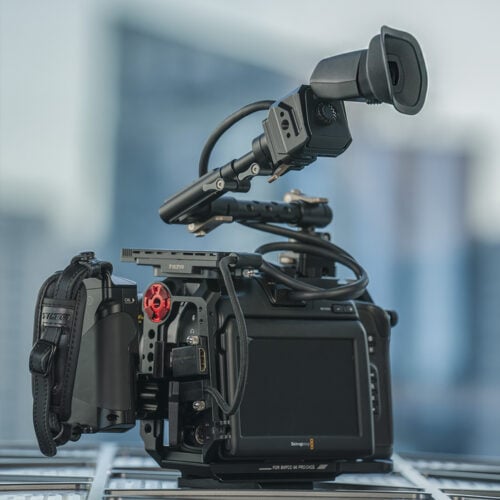

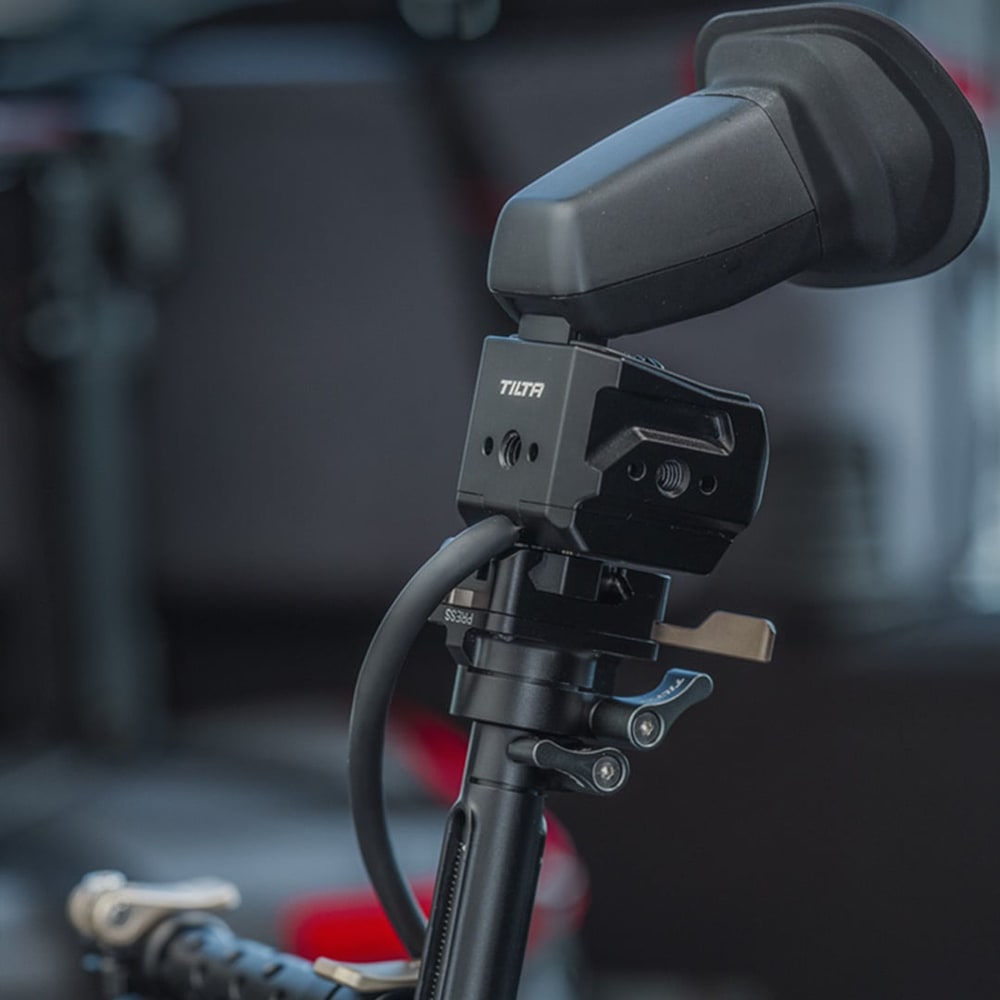

Viewfinder Extension

Newly patented viewfinder extension. Provides a fully immersive operating experience.

Adjustable For Viewing Angle

Find your best viewing angle. Easily adjustable for different user’s operating needs. Provides the best view for operating.

Easy Installation

Extremely adjustable. The connecting joint supports 360° adjustment. The support arm can be adjusted both horizontally and vertically.

Top Plate

The top plate has 3 built-in cold shoe mounts and 1/4”-20 screw holes for mounting various accessories.

Easy Mounting

Supports the new Tilta M.2 SSD case. Easily mounts onto any 1/4”-20 screw holes on the camera cage.

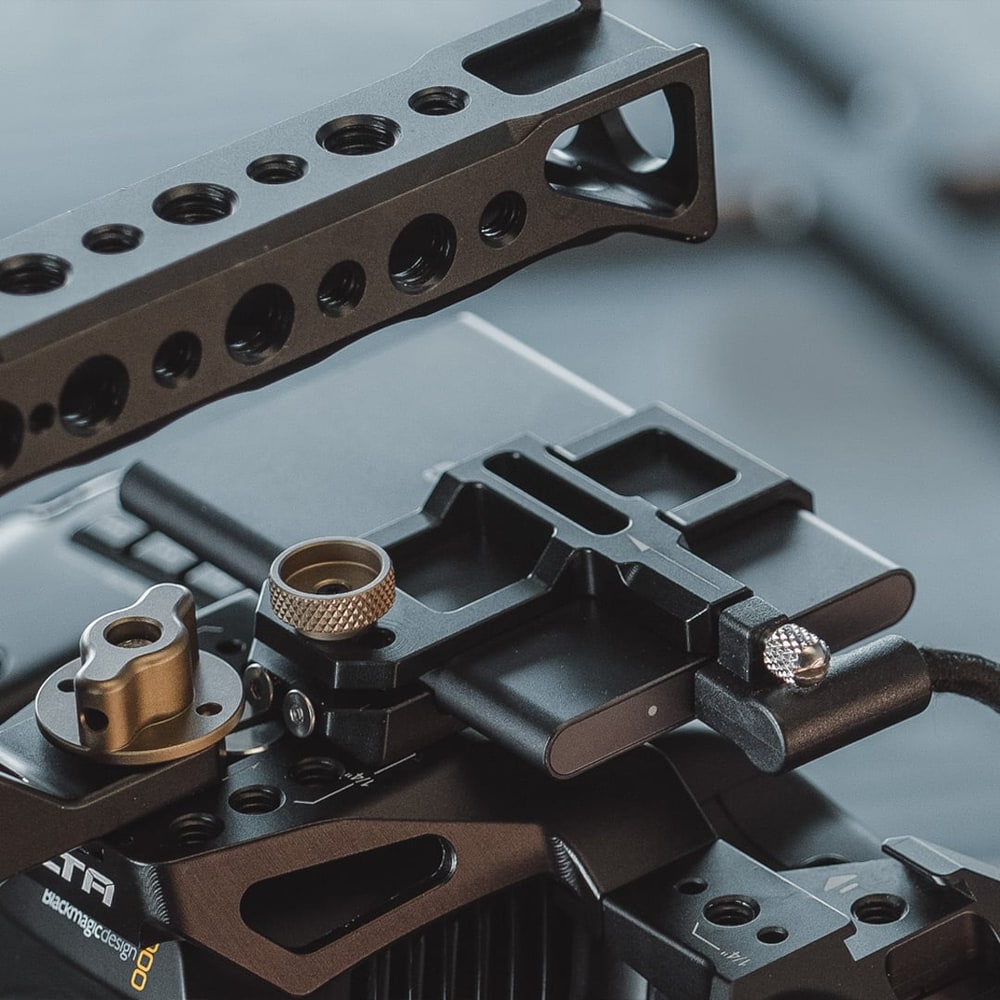

Quick Release SSD Drive Holder

Compatible with T5 and T7 SSD drives.

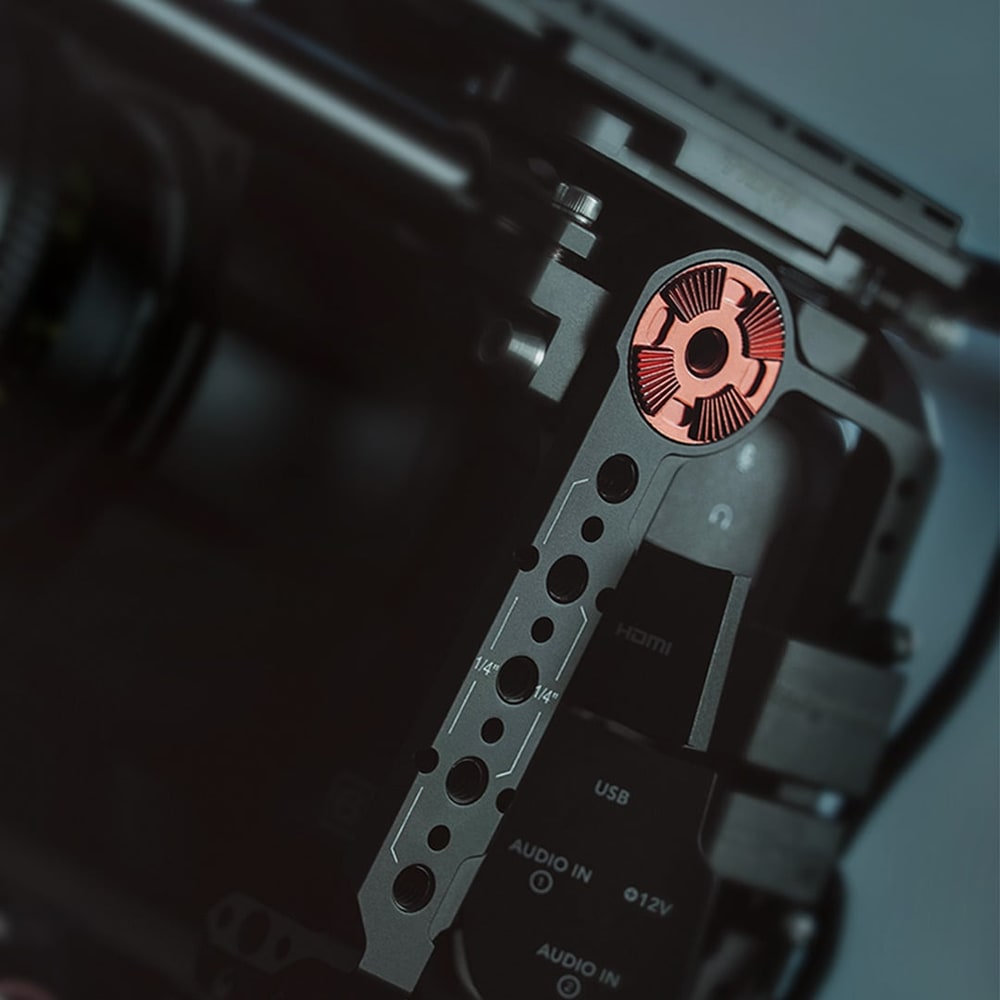

Side Arm

Includes ARRI Compatible Rosette, 1/4”-20 Screw Holes with Locating Points, and NATO Rail.

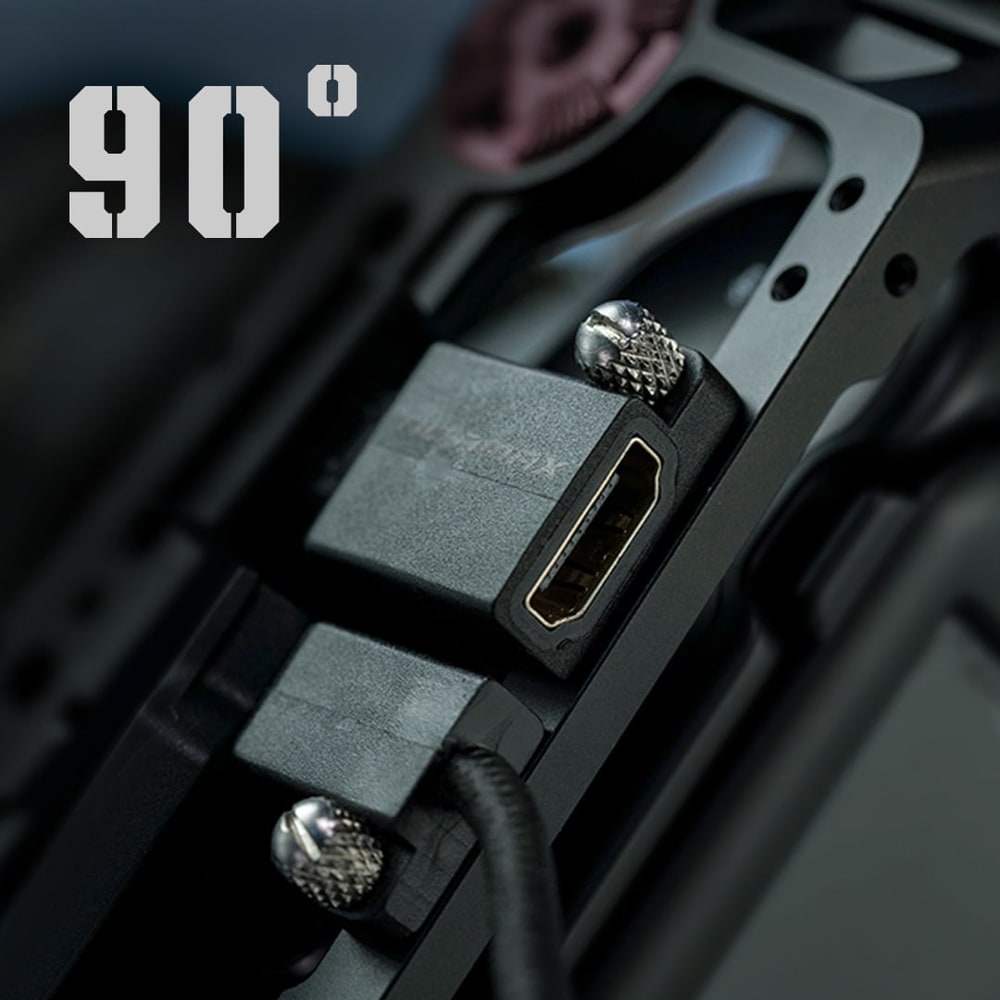

90° Angled Cable Adapter

90° angled cable adapter for more secured mounting. Provides more efficient operating and data protection.

Tactical Combat Design

With the NATO rail adapter mounted, it can be installed to any 1/4”-20 screw hole.

Reserved Space

Reserved space for securing an M.2 SSD case.

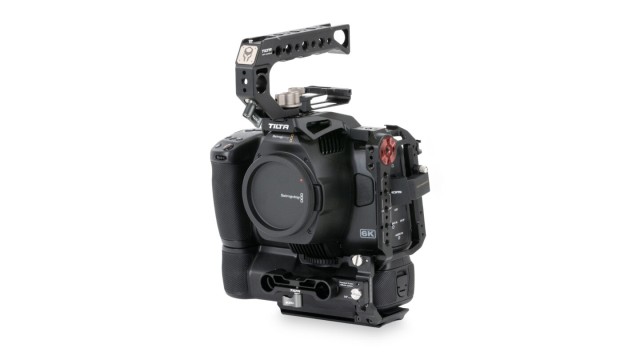

COMPATIBLE WITH ORIGINAL BATTERY GRIP

From Blackmagic Design.

PACKAGE CONTENT

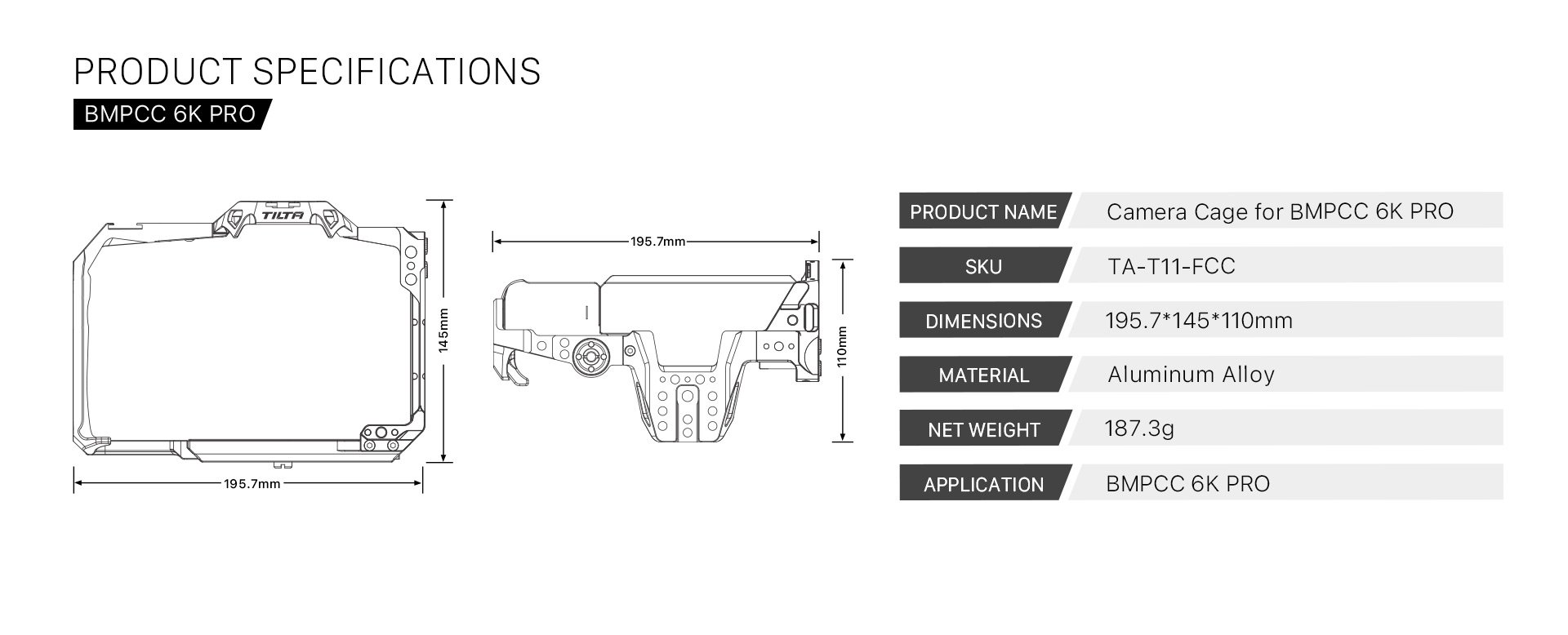

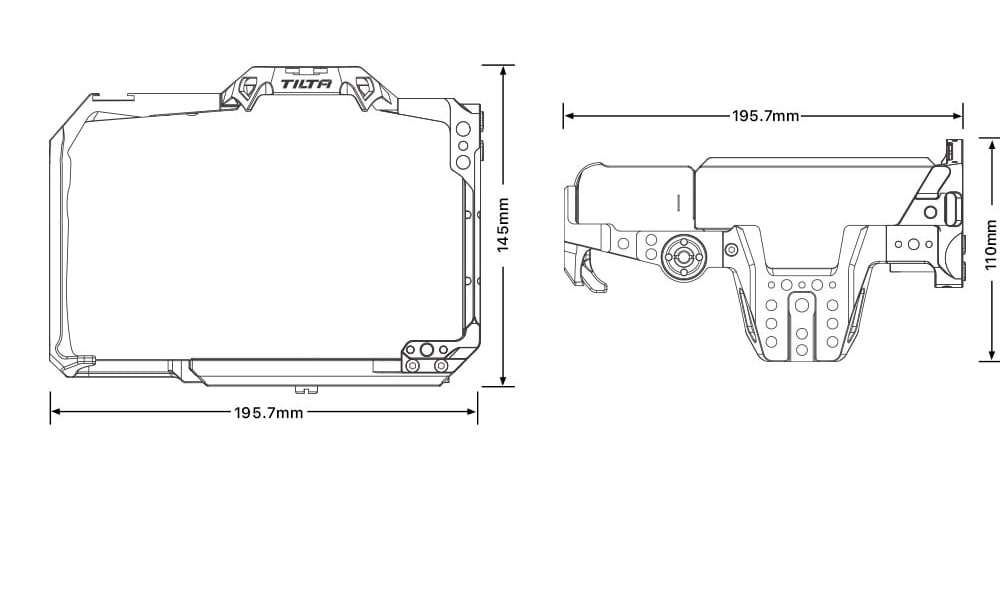

SPECIFICATIONS
