Tilta 15mm LWS Baseplate Type VI - Black

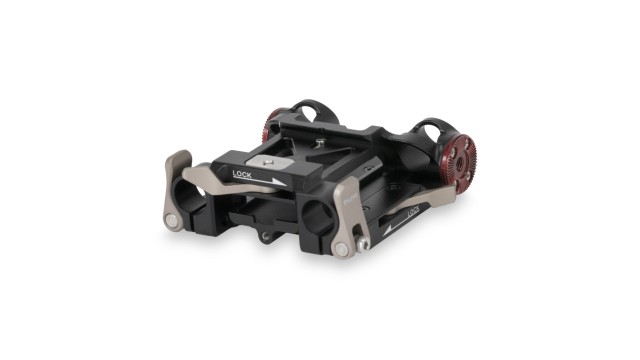

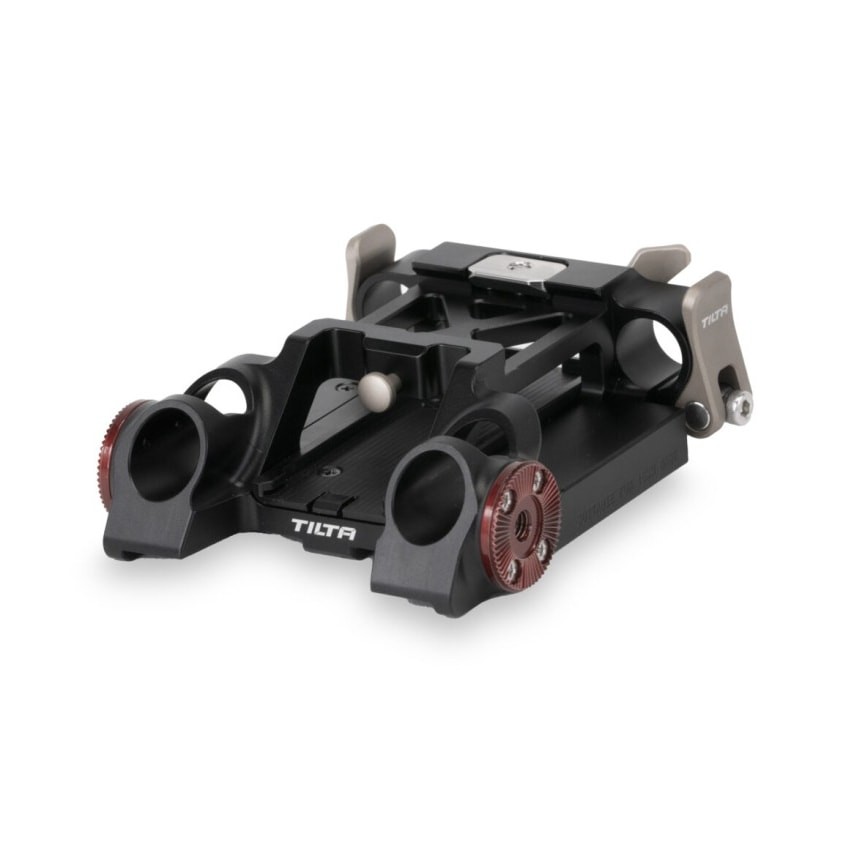

The Tilta TA-BSP6-15-B is a 15 mm LWS baseplate for the Tilta Full Camera Cage for BMPCC 6K Pro. It adds 15 mm rod holders under the cage for a matte box and follow focus, two ARRI rosettes at the sides for side handles or extender arms, and a space for the Tilta M2 SSD Case. Underneath it slides onto a Tilta Standard dovetail, and its 1/4"-20 and 3/8"-16 threads take a third-party quick release plate. Aluminium alloy and stainless steel, in black.

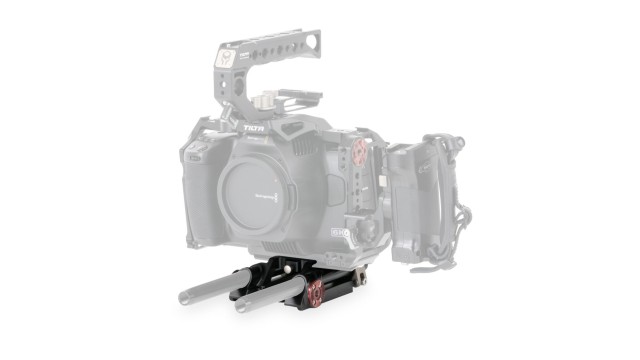

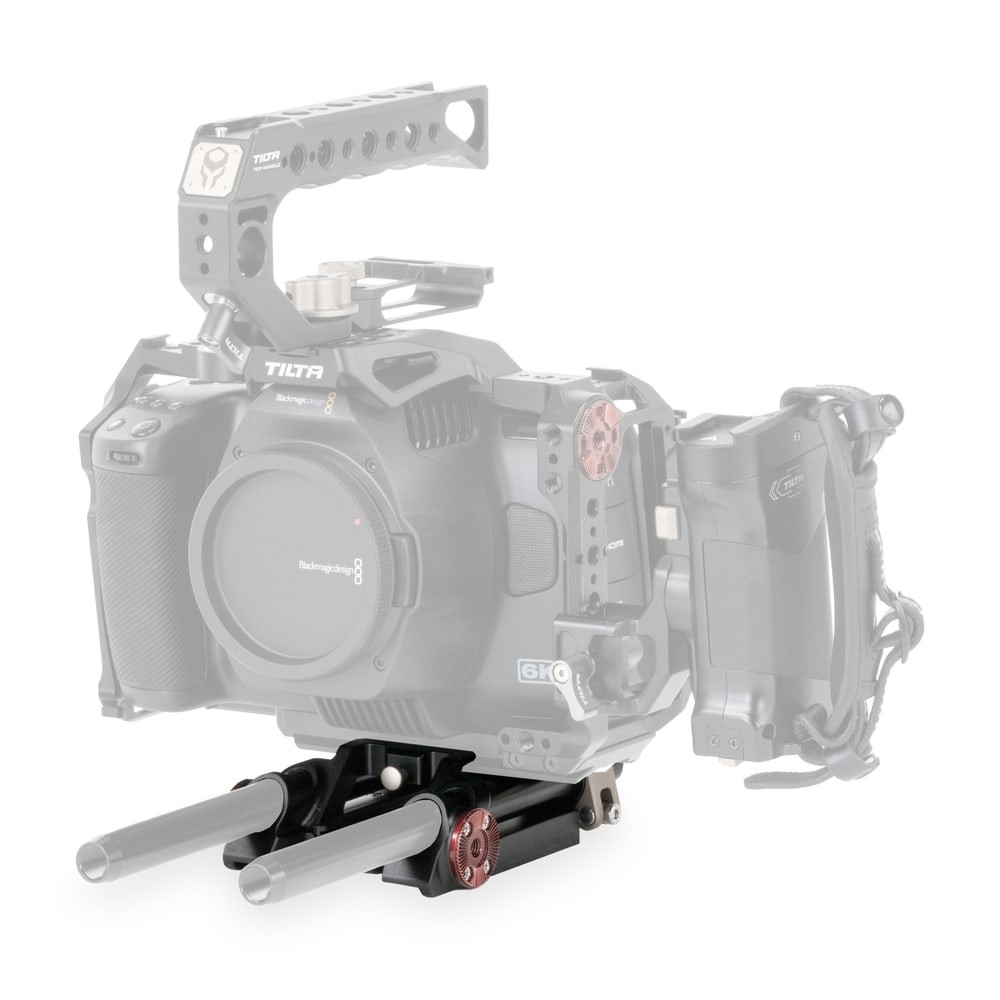

The Tilta TA-BSP6-15-B is the Type VI baseplate, designed for the Blackmagic Pocket Cinema Camera 6K Pro cage: rods, rosettes and an SSD mount on one part under the camera.

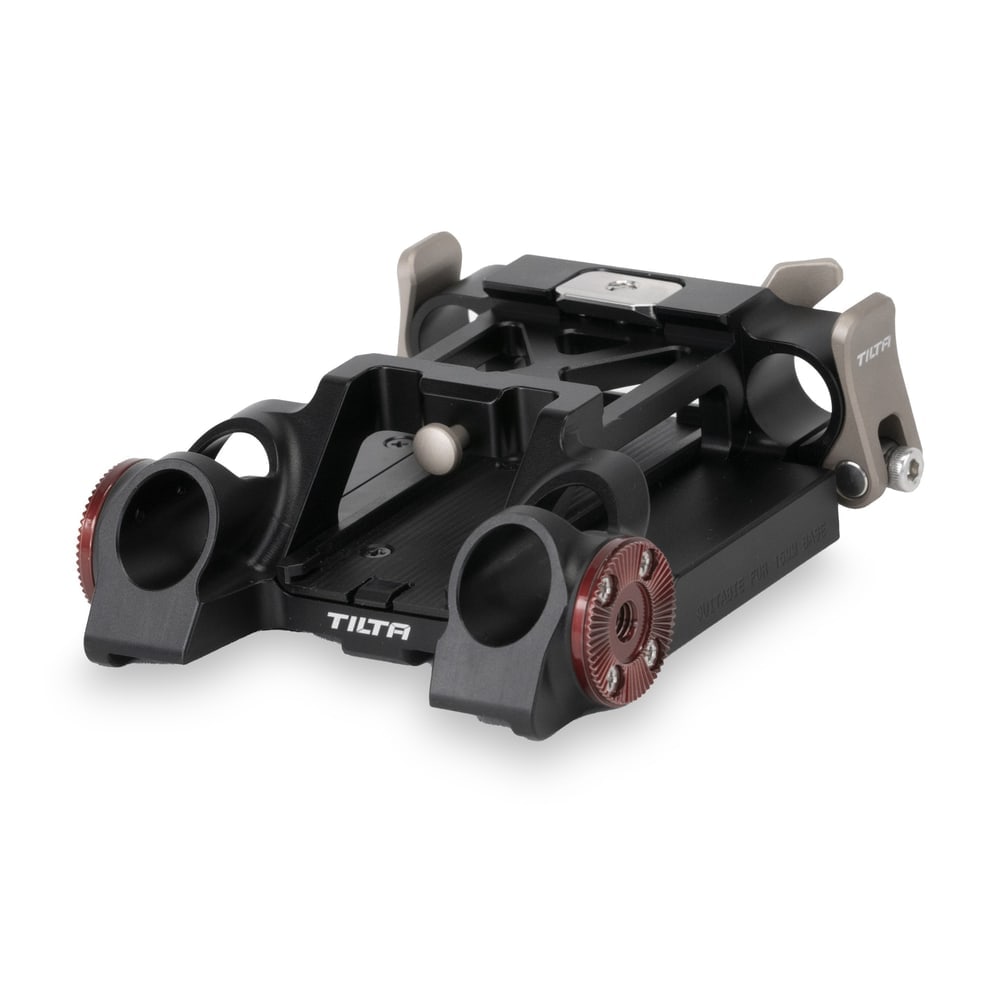

15 mm rods and two ARRI rosettes

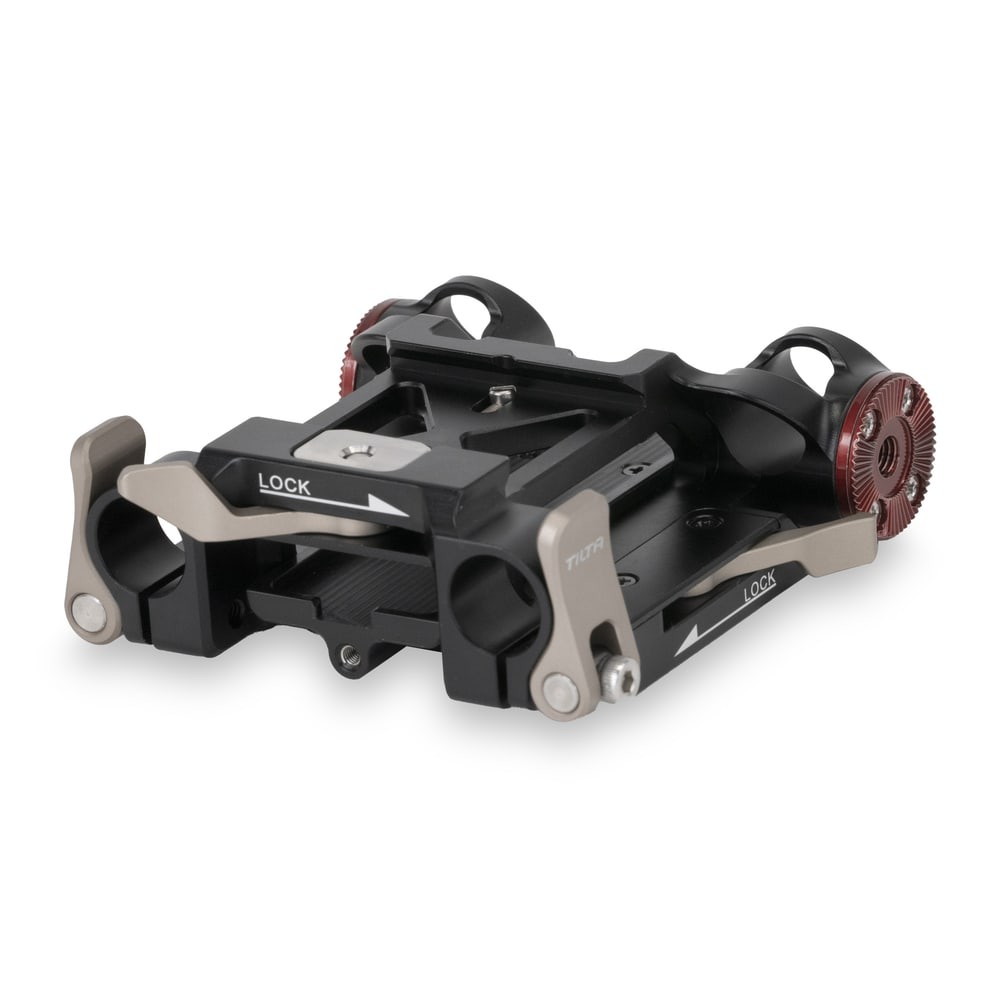

The 15 mm LWS rod holders tighten with levers and carry a matte box, a follow focus or a lens support. On each side of the plate is an ARRI rosette: it takes a Tilta Type II or Type V side handle, or the Rosette Extender Arm, which moves the handle forward for shoulder work. The plate has a reserved space for the Tilta M2 SSD Case, so recording to an external drive stays on the camera.

Tilta Standard dovetail and quick release plates

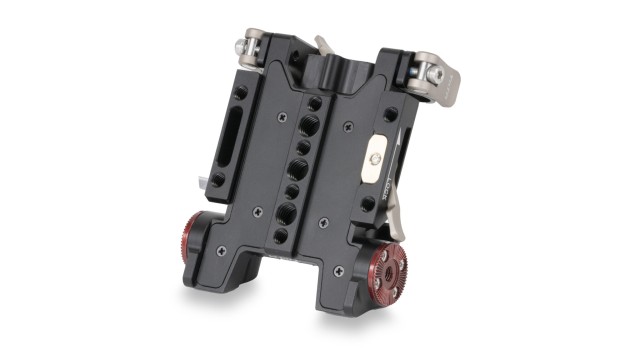

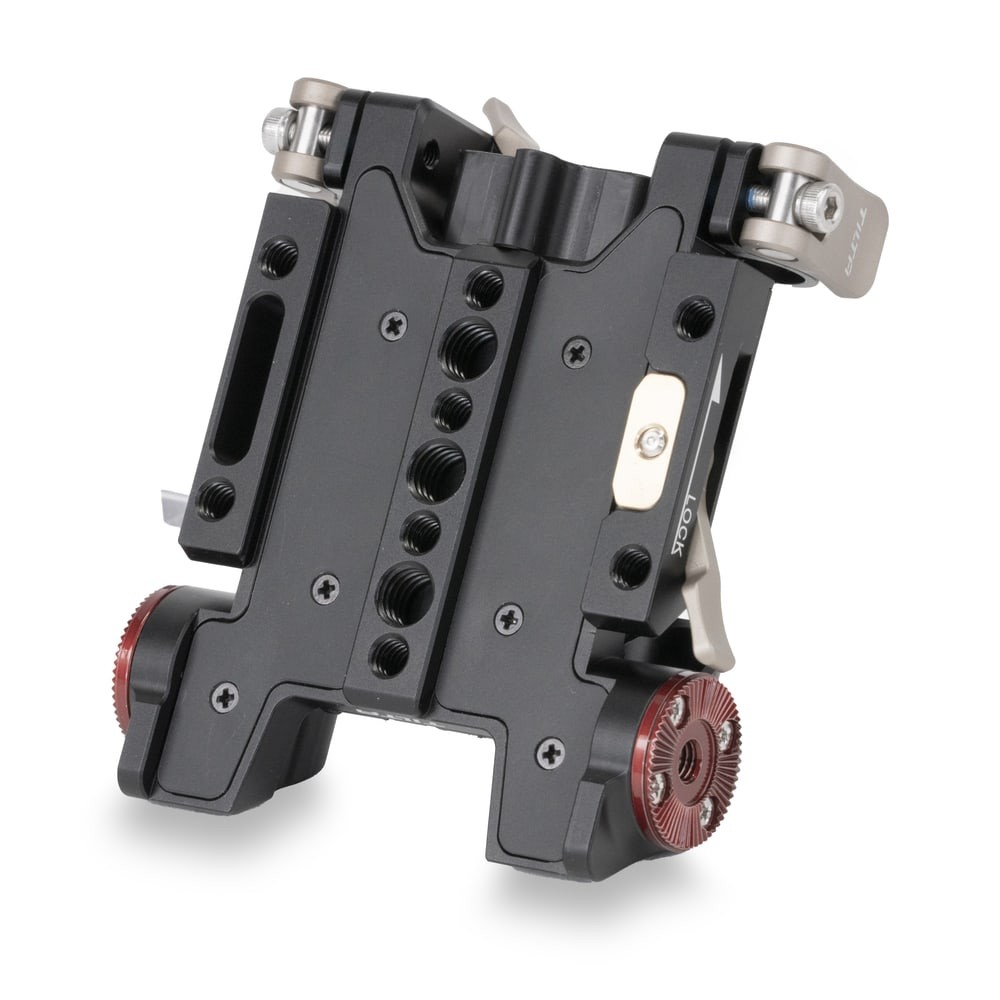

Underneath, the plate has a receiver for the Tilta Standard dovetail — slide it on and lock it. It gets onto an ARRI dovetail via the Tilta Standard to ARRI Standard Multi-Functional Baseplate. On a tripod head, the 1/4"-20 and 3/8"-16 threads take a third-party quick release plate. The plate is designed for the Tilta cage for the BMPCC 6K Pro; the body is aluminium alloy and stainless steel.

Tiltaing handles and plates

The Tiltaing range builds the rig around the cage from parts that fit together: side handles with a REC button powered by a Sony F570/F970 battery or USB-C PD, wooden and quick-release top handles, handle adapters to an ARRI rosette, 15 mm LWS baseplates with a Manfrotto or ARCA plate and battery plates with P-Tap and USB-C outputs. They share 1/4"-20 and 3/8"-16 threads with ARRI locating pins, NATO rails and ARRI rosettes. This part is one of them.
