Tilta 15mm LWS Baseplate Type V - Black

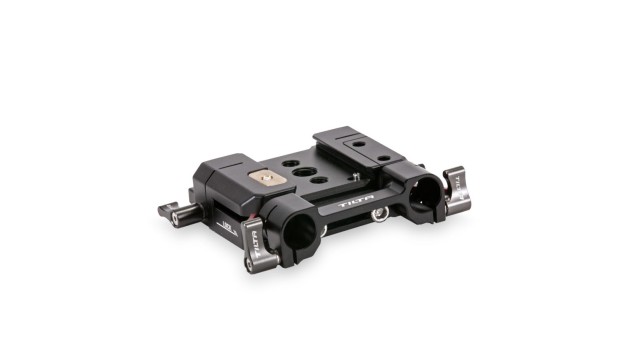

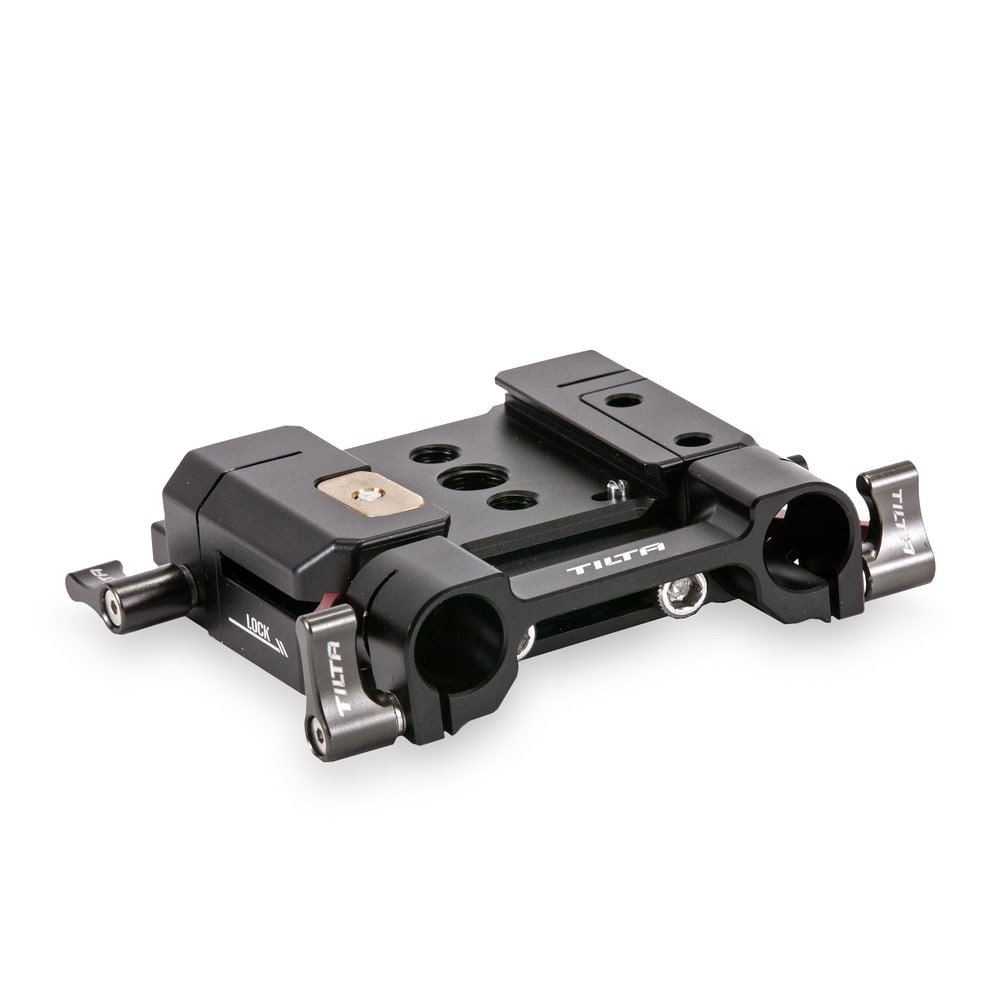

The Tilta TA-BSP5-15-B is a low-profile 15 mm LWS baseplate for the Tilta Full Camera Cage for Canon C70. It adds 15 mm rod holders under the cage for a matte box or follow focus, slides onto a Tilta Standard dovetail from below, and its 1/4"-20 and 3/8"-16 threads take a third-party quick release plate. A 15 mm single rod holder for the C70 is included. Aluminium alloy and stainless steel, in black.

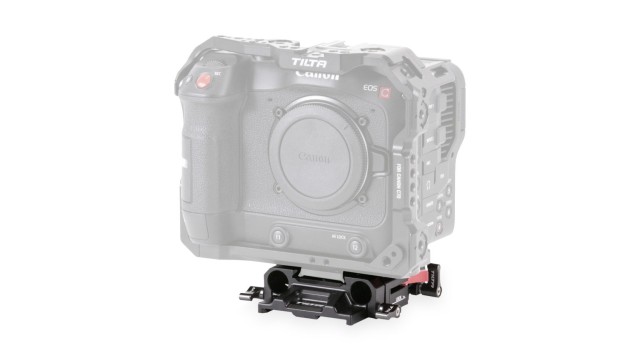

The Tilta TA-BSP5-15-B is the Type V baseplate: its low profile matches the height of the Canon C70 in the Tilta cage, so the 15 mm rods sit where the matte box and follow focus need them relative to the lens.

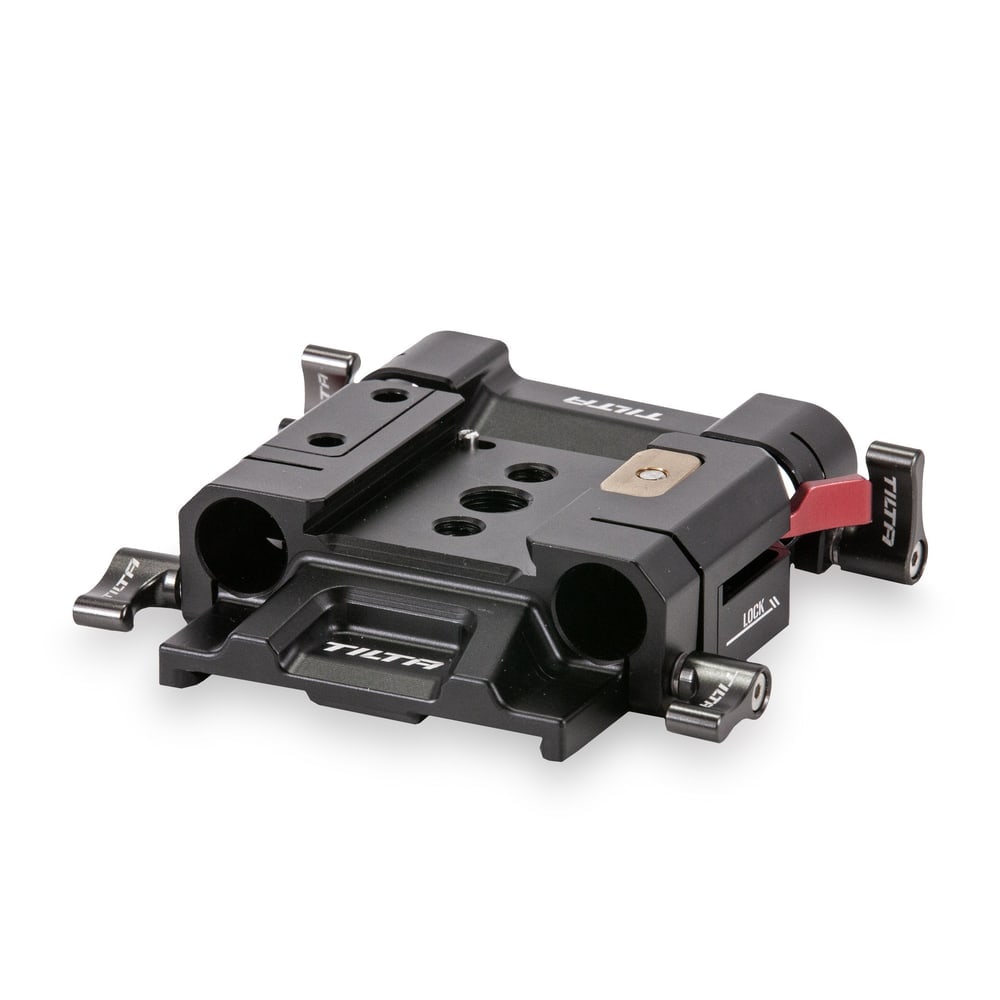

15 mm rods under the Canon C70 cage

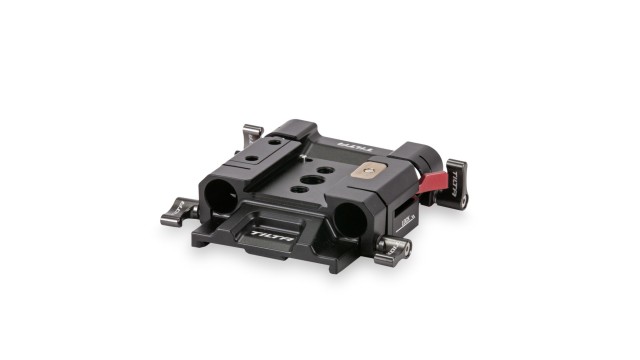

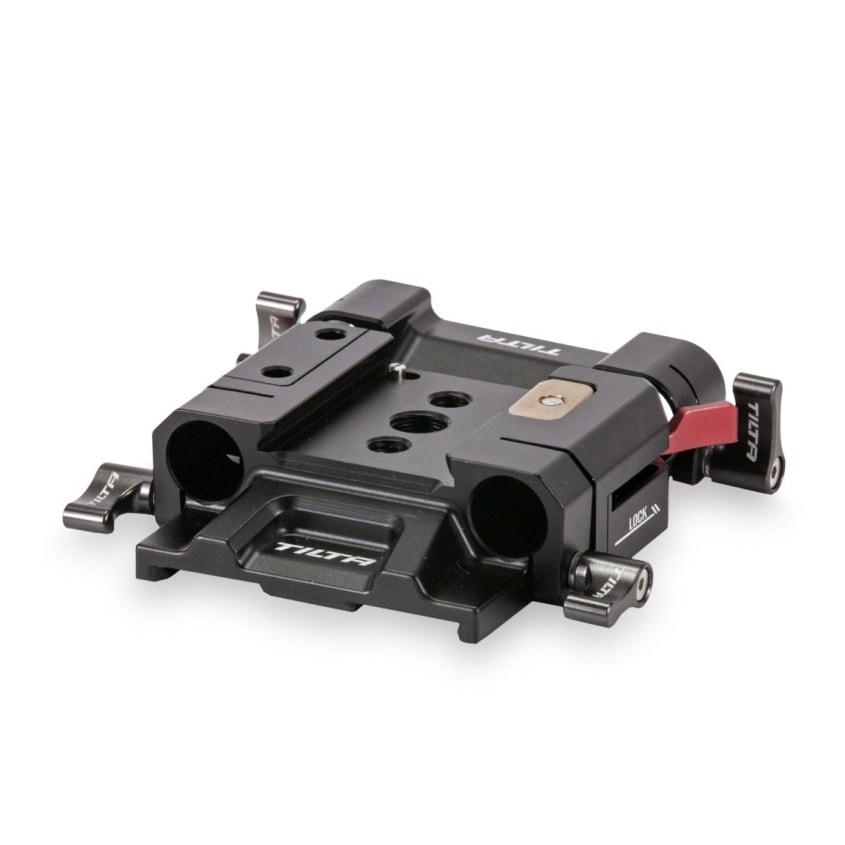

The plate carries two 15 mm LWS rod holders — the front and rear ones are separate, not joined into one block. The rods then take a matte box, a follow focus or a lens support. The profile is deliberately low: the Canon C70 stands taller than mirrorless bodies, and if the rods sat lower the matte box would not reach the lens. A 15 mm single rod holder for the C70 is also included, adding a rod at the side.

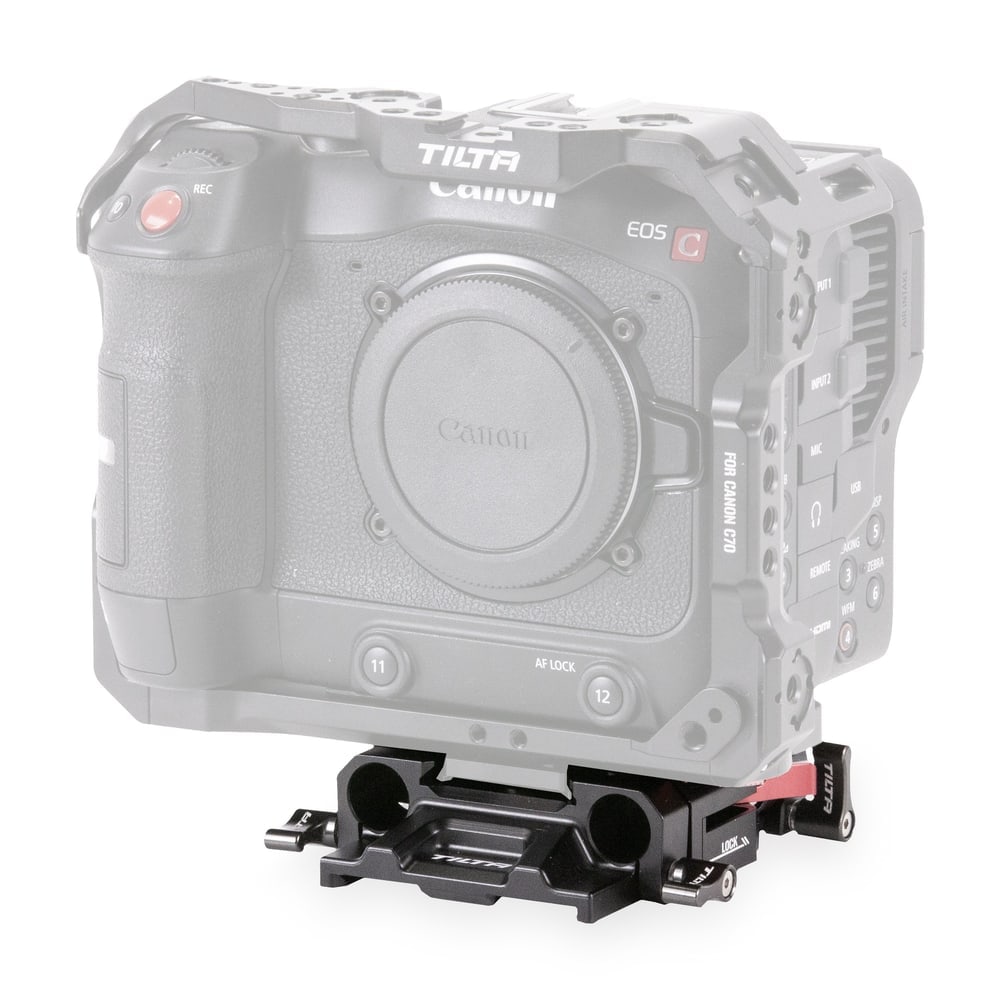

Tilta Standard dovetail and quick release plates

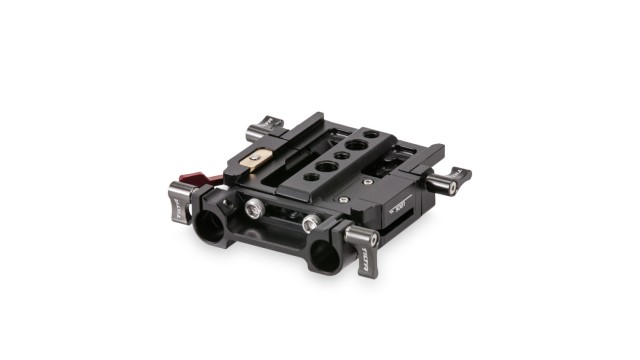

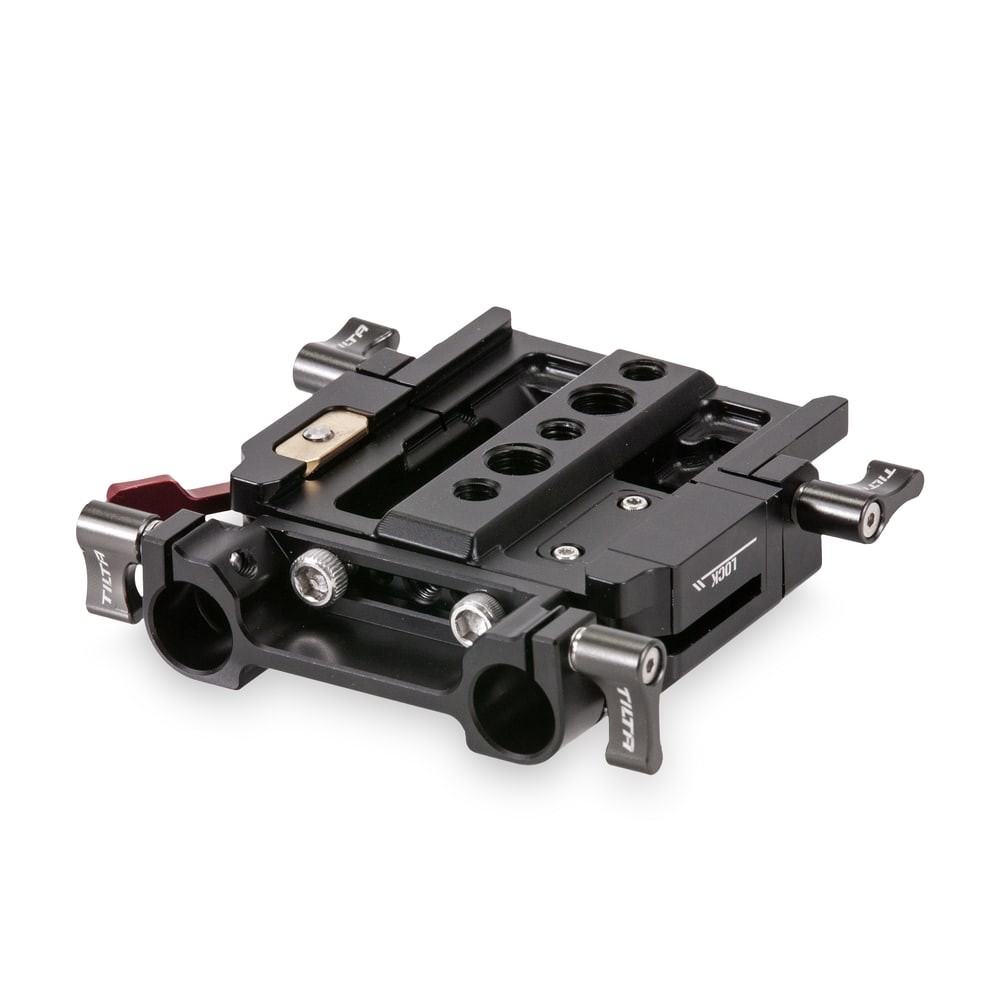

Underneath, the plate has a receiver for the Tilta Standard dovetail — slide it on and lock it. It gets onto an ARRI dovetail via the Tilta Standard to ARRI Standard Multi-Functional Baseplate. On a tripod head, the 1/4"-20 and 3/8"-16 threads take a third-party quick release plate. The top quick release receiver is for the plate supplied with the Canon C70 cage. The body is aluminium alloy and stainless steel.
