Tilta 15mm LWS Baseplate Type II - Tilta Gray

The Tilta TA-BSP2-15-G is a 15 mm LWS baseplate for the Tiltaing half and full cages for Panasonic GH, Fujifilm X-T3/X-T4, Nikon Z6/Z7, Sony a6 and Sony a7/a9. It slides onto the base of the cage and adds 15 mm rod holders for a matte box or follow focus. Underneath it sits on a Tilta Standard dovetail, on an ARRI dovetail via an adapter, and its 1/4"-20 threads take a third-party quick release plate. Aluminium alloy and stainless steel, in Tilta Gray.

The Tilta TA-BSP2-15-G is the Type II baseplate shared by the Tiltaing mirrorless cages: one plate that gives the cage 15 mm rods and a bottom interface for a dovetail or tripod head.

Slides onto the Tiltaing cage

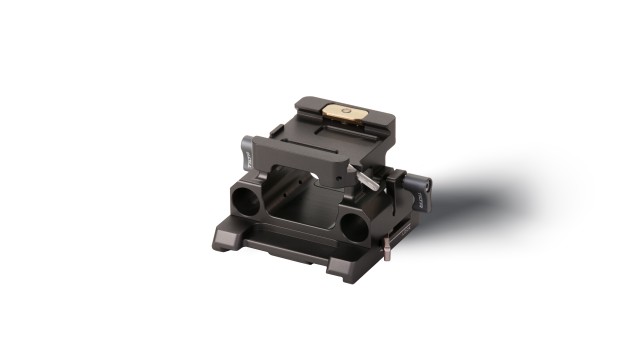

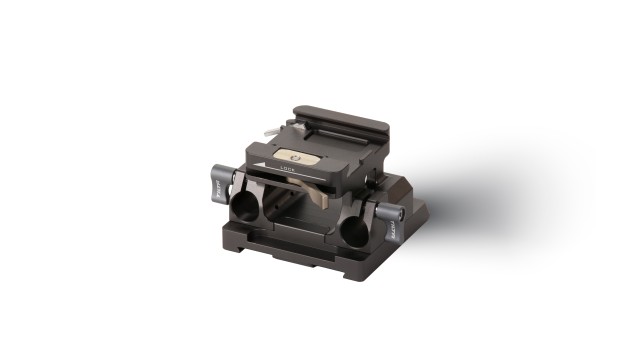

The plate slides onto the base of a Tiltaing half or full cage and locks. It fits the cages for Panasonic GH, Fujifilm X-T3/X-T4, Nikon Z6/Z7, Sony a6 and Sony a7/a9 — the camera changes, the plate stays. The 15 mm LWS rod holders then carry a matte box, a follow focus or a lens support; the rods sit on the axes those accessories expect relative to the lens.

Tilta Standard dovetail and quick release plates

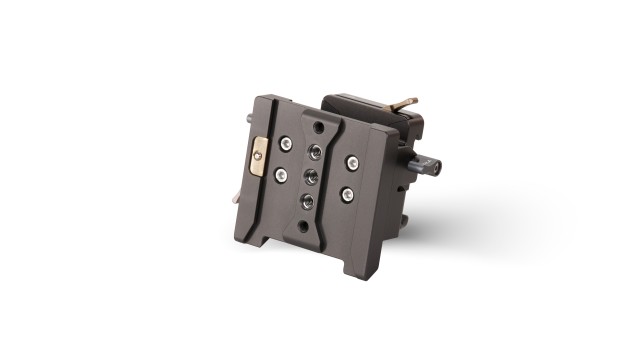

Underneath, the plate has a receiver for the Tilta Standard dovetail; it gets onto an ARRI dovetail via an adapter. On a tripod head, the 1/4"-20 threads take a third-party quick release plate. The body is aluminium alloy and stainless steel in the Tilta Gray finish that matches the grey Tiltaing cages.

Tiltaing handles and plates

The Tiltaing range builds the rig around the cage from parts that fit together: side handles with a REC button powered by a Sony F570/F970 battery or USB-C PD, wooden and quick-release top handles, handle adapters to an ARRI rosette, 15 mm LWS baseplates with a Manfrotto or ARCA plate and battery plates with P-Tap and USB-C outputs. They share 1/4"-20 and 3/8"-16 threads with ARRI locating pins, NATO rails and ARRI rosettes. This part is one of them.
