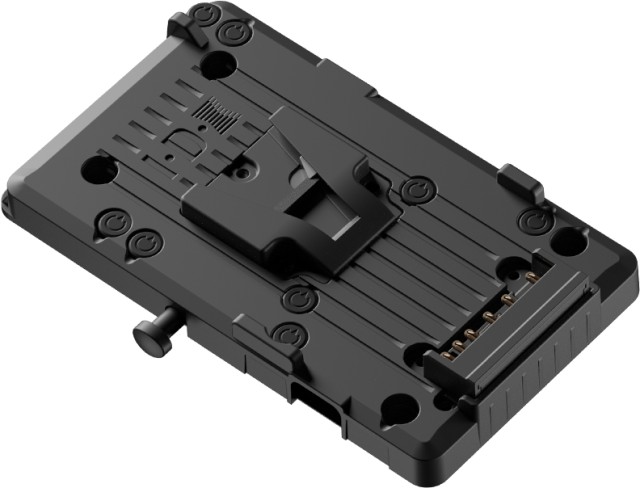

Tilta Battery Plate for Hydra Arm Mini -V Mount

The Tilta HDA-T08-BTP-V is a robust V-Mount battery plate designed exclusively for the Hydra Alien Mini Shock Absorbing Arm, letting you power the entire stabilized rig (camera, gimbal, monitor, focus motor, etc.) from a single pro-level V-Mount battery with two 14.8 V D-Tap ports, two 12 V DC barrels and one 8 V DC barrel – all in a lightweight 308 g aluminum housing.

The Tilta HDA-T08-BTP-V bolts directly onto the dedicated mounting points of the Hydra Arm Mini and provides centralized, high-capacity power distribution. A single 98–150 Wh V-Mount battery (not included) can run a full mirrorless/gimbal payload for hours while the plate’s multiple regulated outputs handle everything: 14.8 V D-Tap accessories (wireless video, lights, monitors), 12 V barrel devices (focus motors, Nucleus Nano), and 8 V barrel devices (DJI RS gimbals, etc.). CNC-machined aluminum and stainless-steel construction ensures it survives the same rough conditions as the arm itself.

Key Features

• Dedicated V-Mount battery plate for Hydra Alien Mini
• Clean, integrated mounting – no dangling plates
• 2 × 14.8 V D-Tap (P-Tap) outputs
• 2 × 12 V DC barrel outputs (2.1 mm)
• 1 × 8 V DC barrel output
• All outputs regulated and protected
• Lightweight aluminum & stainless-steel build
• Keeps rig balanced and cable-free
