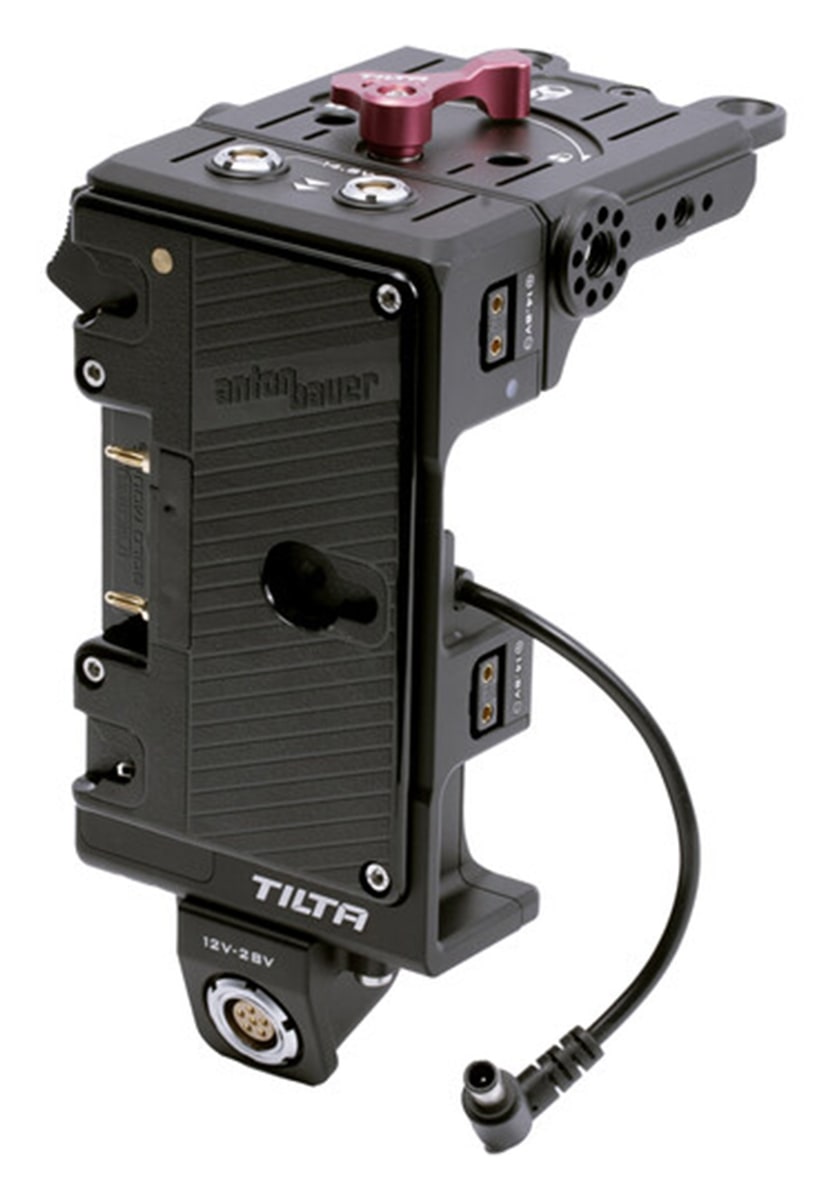

Tilta Battery Plate for Sony FX9 - Gold Mount

The Tilta ES-T18-BTP3-AB Type III Gold-Mount Battery Plate is a flush-mount, pro-grade power solution custom-designed for the Sony PXW-FX9 cage, attaching directly to the rear of the top plate and delivering clean, reliable power from a single Gold-Mount battery via three D-Tap, two 2-pin LEMO, one USB-A, and a 6-pin LEMO input for hot-swap or block-battery redundancy.

The Tilta ES-T18-BTP3-AB replaces the camera’s native V-Mount plate with a sleek, cage-integrated Gold-Mount solution that sits perfectly flush against the back of the camera. A single high-capacity Gold-Mount battery powers both the FX9 and all accessories simultaneously through an extensive array of regulated outputs: three 14.8 V D-Tap ports, two 14.8 V 2-pin LEMO outputs, one 5 V USB-A, and a 6-pin LEMO input (12–28 V) that accepts external block batteries or AC adapters for uninterrupted power.

Key Features

• Dedicated Gold-Mount plate for Tilta Sony FX9 cage (Type III)
• Mounts flush to rear of cage top plate
• 3 × D-Tap 14.8 V outputs
• 2 × 2-pin LEMO 14.8 V outputs
• 1 × USB-A 5 V output
• 1 × 6-pin LEMO DC input (12–28 V) for hot-swap/block battery
• Integrated short cable with barrel connector to camera
• No exposed wiring – clean, professional look
