SWIT MATRIX-B8 | 8ch x max 6A Top Fast Simultaneous 14V/28V Wall Charger, B-mount (PC-W461B)

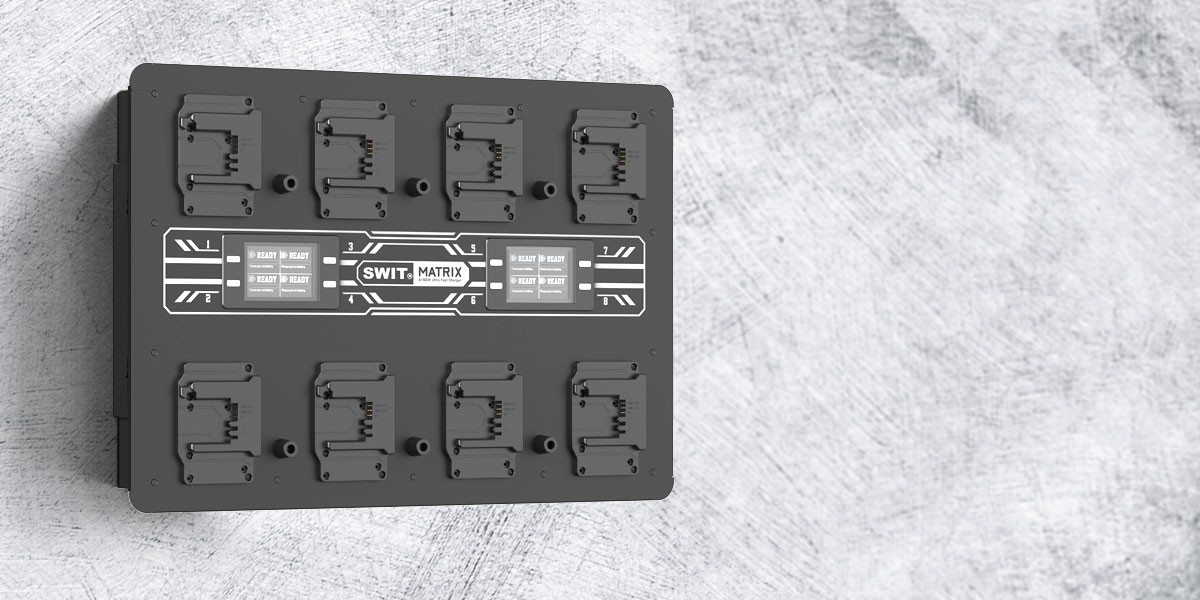

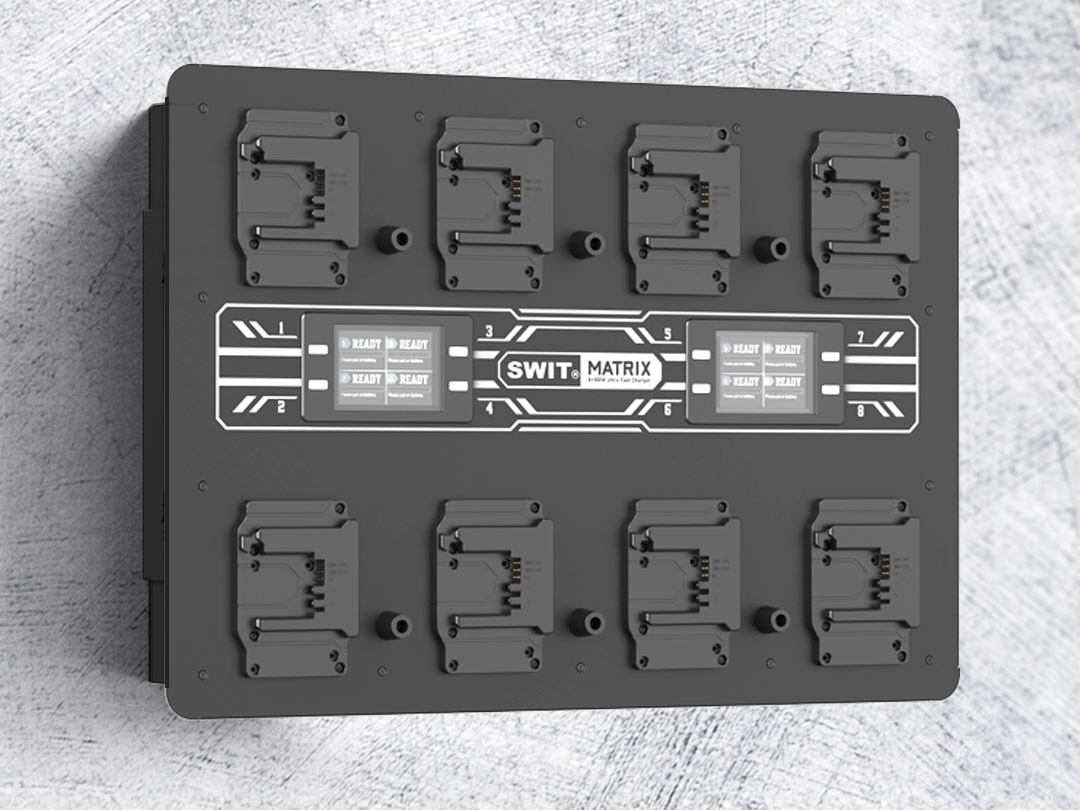

SWIT MATRIX-B8 is an 8-channel simultaneous wall charger for B-mount batteries. It delivers a top-fast 14V or 28V output with a maximum 6A per channel. Efficiently power multiple batteries at once with this advanced charging solution. Catalog number MATRIX-B8.

Technical Description of SWIT MATRIX-B8 Wall Charger

The SWIT MATRIX-B8 is a highly advanced 8-channel simultaneous charger designed specifically for B-mount batteries. It delivers ultra-fast charging capabilities with a maximum power output of 100 watts per channel. The charger supports a wide range of input voltages, accepting AC power from 100V to 240V at a frequency of 50/60Hz, making it suitable for global use.

Each channel provides a DC output of 33.6 volts with a maximum current of up to 3 amps when charging high-capacity batteries rated at 160 watt-hours or greater. For lower capacity batteries under 160 watt-hours, the charger automatically adjusts the output to 1.5 amps per channel to ensure optimal charging. This dual output current design balances fast charging and battery safety.

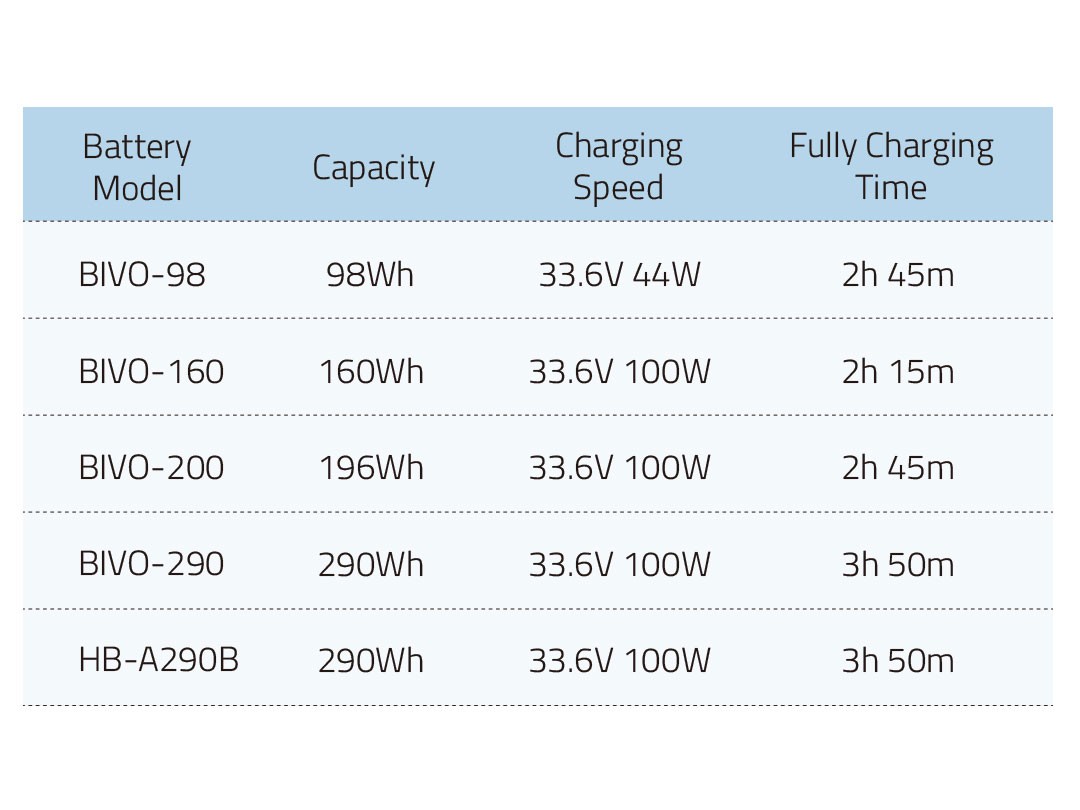

The MATRIX-B8 supports fast simultaneous charging for up to eight B-mount batteries, such as those from the SWIT HB-A290B series and BIVO series, enabling efficient workflow and minimizing downtime in professional video production environments. Its charging technology is engineered to provide stable voltage and current output to maximize battery lifespan while delivering top charging speed.

Comprehensive Technical Specifications

• Model Type: B-mount charger.
• Input Voltage: AC 100V to 240V, 50/60Hz.
• Maximum Power Consumption: 900 watts.
• Output Voltage: DC 33.6 volts.

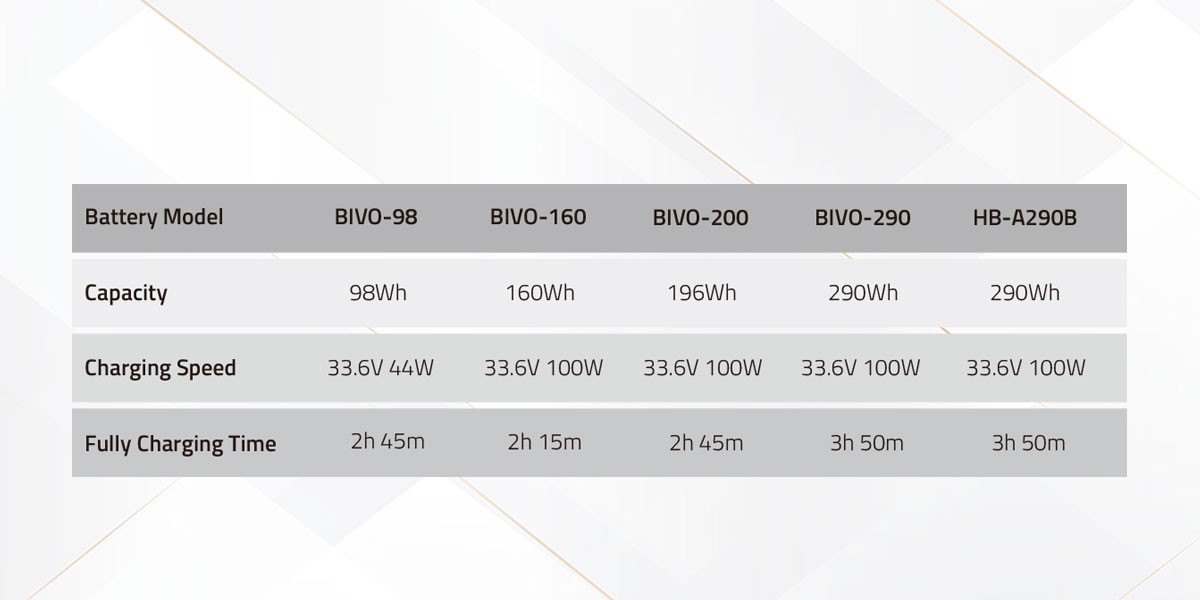

• Output Current: Up to 3 amps (100 watts) per channel for batteries ≥160Wh, 1.3 to 1.5 amps (44 to 50 watts) for batteries under 160Wh.
• Number of Charging Channels: 8 simultaneous channels.
• Compatible Batteries: B-mount, including high-capacity SWIT HB and BIVO series.
• Charging Mode: Ultra-fast charging with built-in smart power management.
• Mounting Options: Wall mount plate provided; compatible with standard 19-inch rack mounting.
• Cooling System: Internal intelligent cooling to maintain temperature during high power operation.

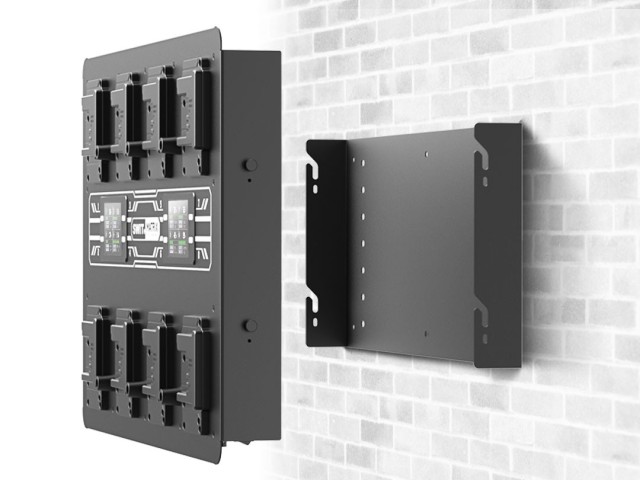

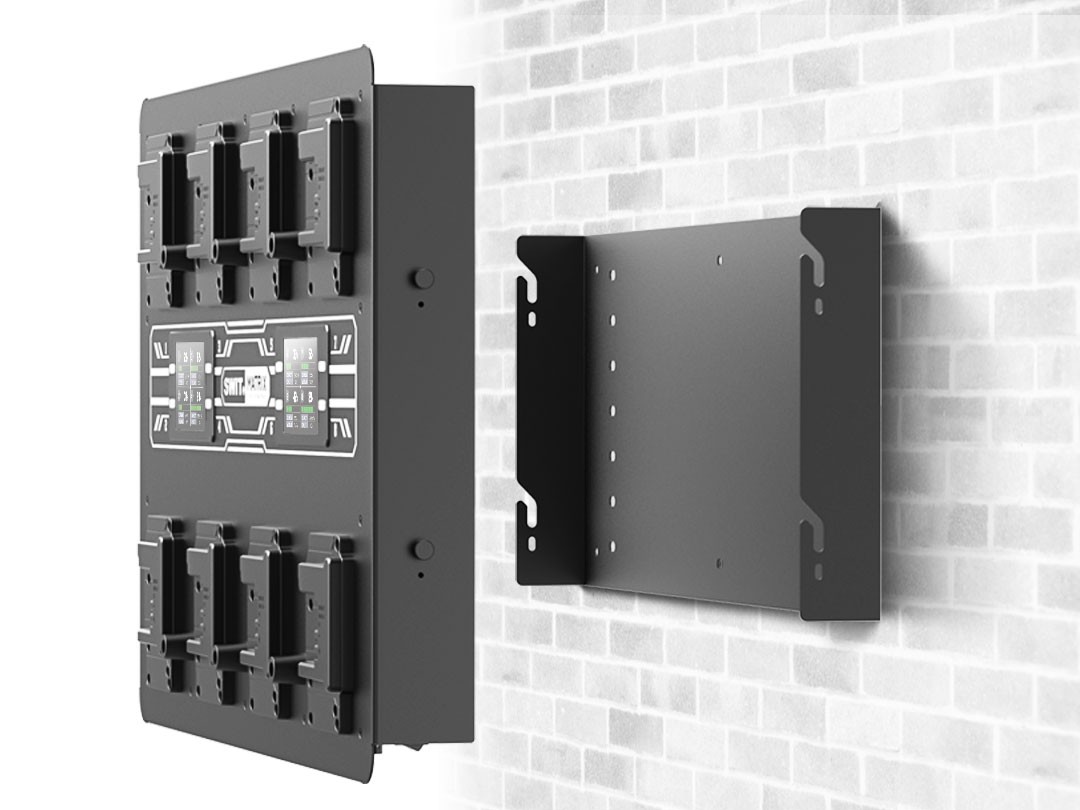

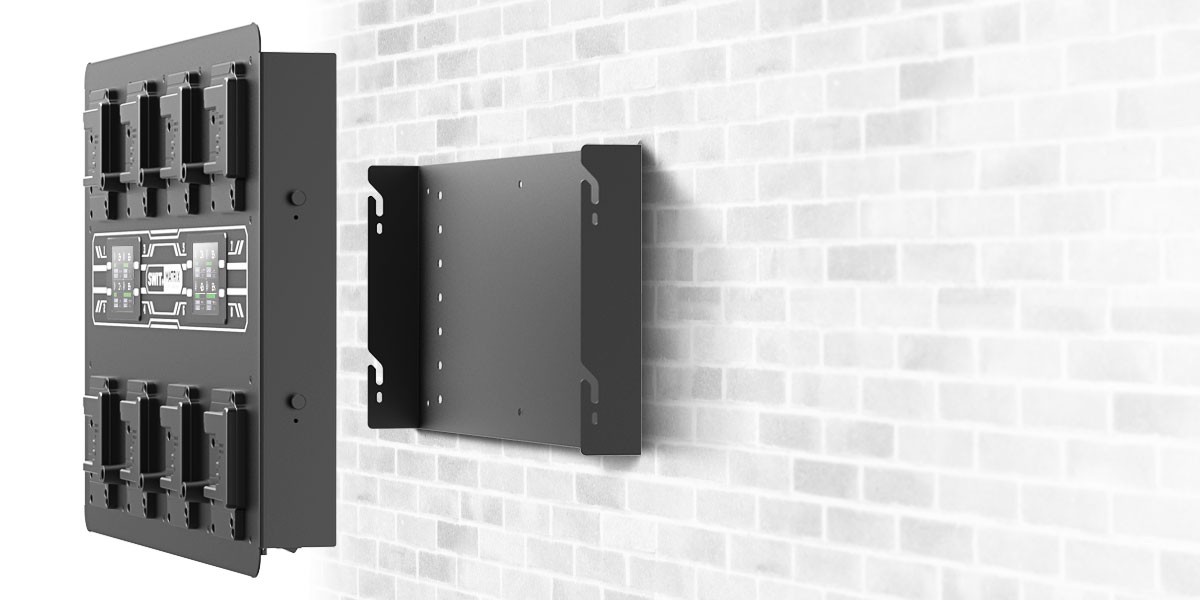

The charger’s design emphasizes both performance and practical installation. It comes equipped with a wall mounting plate for secure attachment to a vertical surface, as well as compatibility with 19-inch rack brackets, enabling flexible integration into broadcast or production setups.

Protection features include automatic voltage regulation, temperature monitoring, and current limiting to prevent overcharging and potential damage to batteries. Its sturdy construction ensures reliability in demanding environments, making it a robust solution for professional video crews requiring bulk charging of high-capacity B-mount batteries.

Overall, the MATRIX-B8 combines high charging efficiency, multi-battery simultaneous capability, and flexible installation options, positioning it as an essential tool for managing large quantities of professional battery packs with top fast charging performance.
