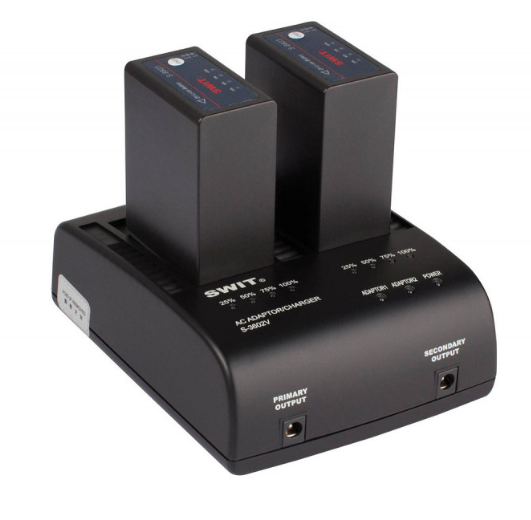

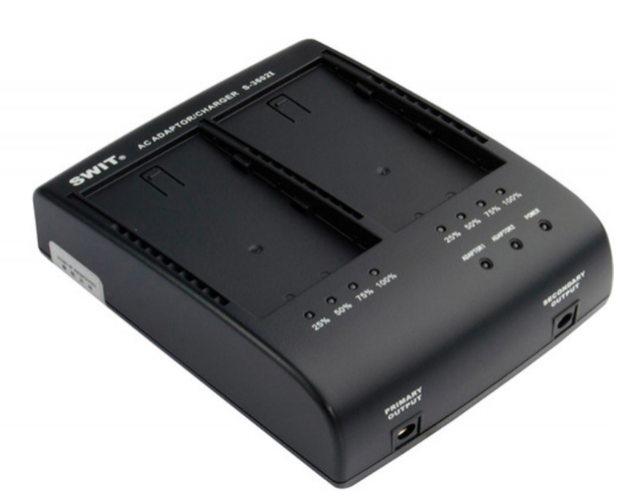

SWIT S-3602I | 2x2A DV charger compatible to JVC SSL series

The SWIT S-3602I is a dual-channel 2×2A DV charger and DC adapter compatible with JVC SSL series and SWIT S-8i50 batteries. It charges two batteries simultaneously and also provides 8.4V DC output for powering cameras and accessories.

The SWIT S-3602I 2×2A DV Charger is a versatile dual-channel charging and power solution designed for JVC SSL-JVC50 and SWIT S-8i50 batteries. Each channel delivers 7–8.4V DC at 2A, allowing you to charge two batteries simultaneously for efficient workflow in broadcast and field production environments.

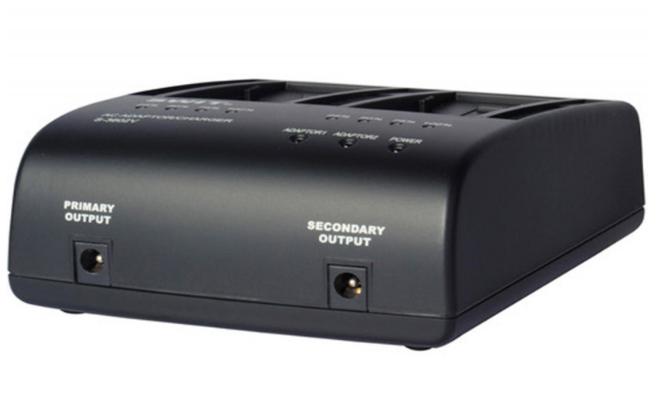

Equipped with four-level LED charge indicators per channel, the charger clearly displays the remaining battery capacity during charging. In addition to charging functionality, the S-3602I also works as a dual DC adapter, featuring two 5.5/2.1mm DC pole connectors that provide a combined 8.4V, 3.5A DC output.

Both channels can supply DC power simultaneously to connected cameras or accessories, or you can charge one battery while using the second channel to power a device. This flexible design makes the S-3602I an ideal compact power solution for studio, ENG, and on-location production use.

Key Features

• Dual-channel charger with 2×2A output

• Compatible with JVC SSL-JVC50 and SWIT S-8i50 batteries

• Charges two batteries simultaneously

• Four-level LED charge indicators per channel

• Dual 5.5/2.1mm DC output connectors

• 8.4V DC adapter output (3.5A total)

• Simultaneous charging and DC powering capability

• Compact and professional design
