SWIT MATRIX-A8 | 8ch x max 6A Top Fast Simultaneous 14V/28V Wall Charger, Gold-mount (PC-W461A)

SWIT MATRIX-A8 8-channel wall charger offers top fast simultaneous charging for up to 8 batteries with max 6A per channel. It supports 14V/28V battery systems and features a Gold-mount connection. Perfect for powering multiple devices efficiently, catalog number MATRIX-A8.

Product Overview

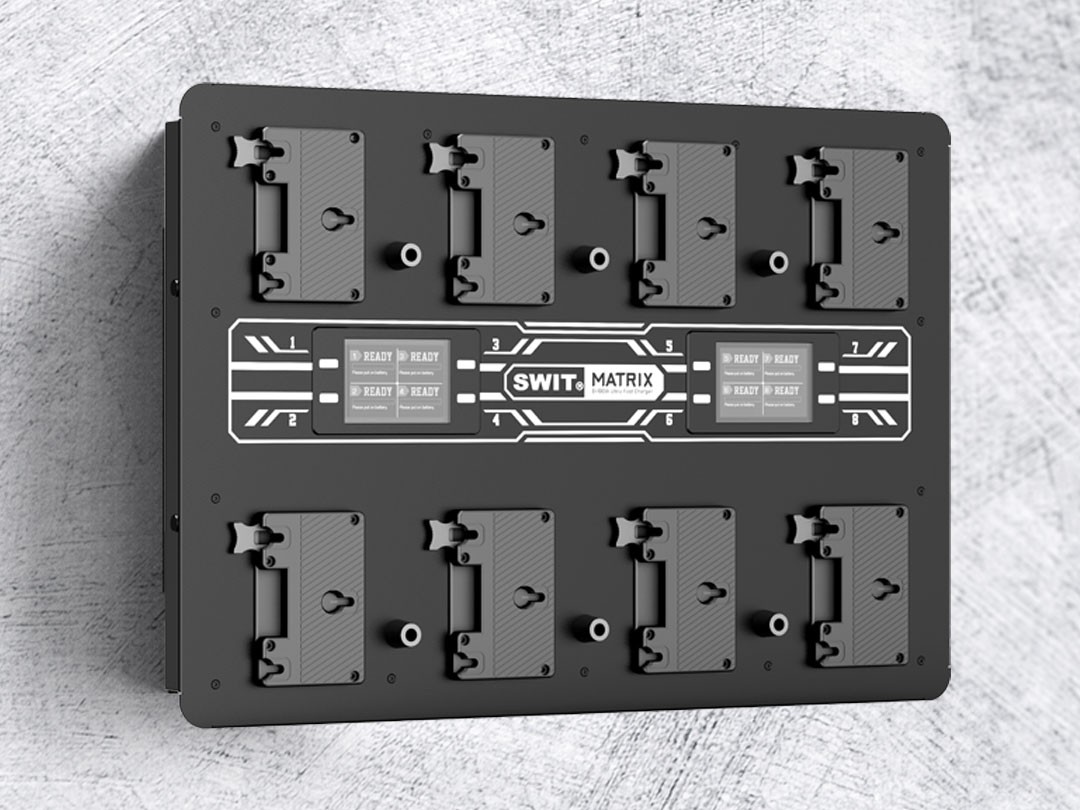

The SWIT MATRIX-A8 is a high-performance multi-channel wall charger designed specifically for professional video and broadcast batteries utilizing the Gold-mount system. It offers 8 simultaneous charging channels, each capable of delivering up to 6 amperes at 16.8 volts DC, supporting ultra-fast charging speeds of 100 watts per channel. This powerful capability allows substantial reduction in recharge times for batteries typically used in demanding production environments.

Charging Performance and Capacity

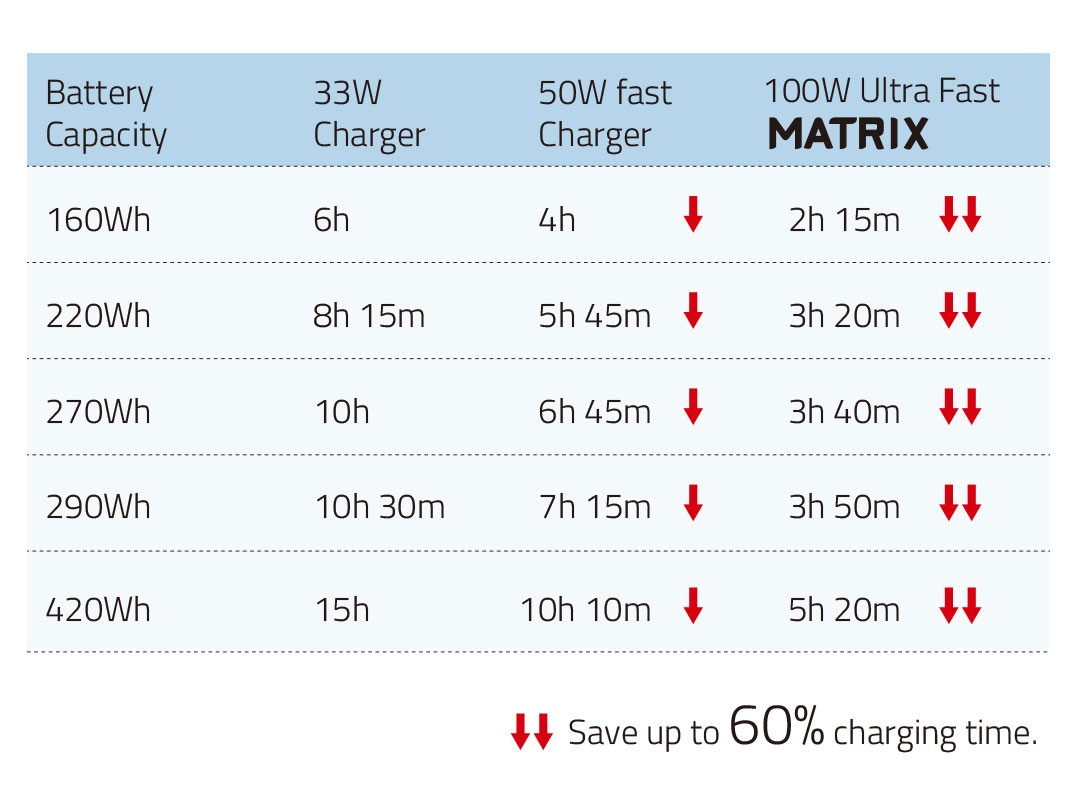

Each of the eight channels can independently provide a maximum output power of 100 watts for SWIT 14.4V batteries with capacities equal to or exceeding 160 watt-hours. For batteries with lower capacities, the output adjusts to 50 watts at 3 amperes per channel to ensure safe and efficient charging. Compared to traditional 33-watt or 50-watt chargers, this unit can reduce recharge times by up to 60 percent, making it highly effective for rapid turnaround in field workflows.

Technical Specifications

• Input Voltage: AC 100 to 240 volts, 50/60 Hz
• Maximum Power Output: 900 watts total (100 watts × 8 channels)
• Output Voltage: DC 16.8 volts nominal
• Output Current: Maximum 6 amperes per channel for ≥160 Wh batteries; 3 amperes for lower capacity batteries
• Supported Battery Type: Gold-mount batteries
• Dimension and Form Factor: Wall-mountable with a mounting plate and suitable for integration in standard 19-inch rack systems

Design and Usability Features

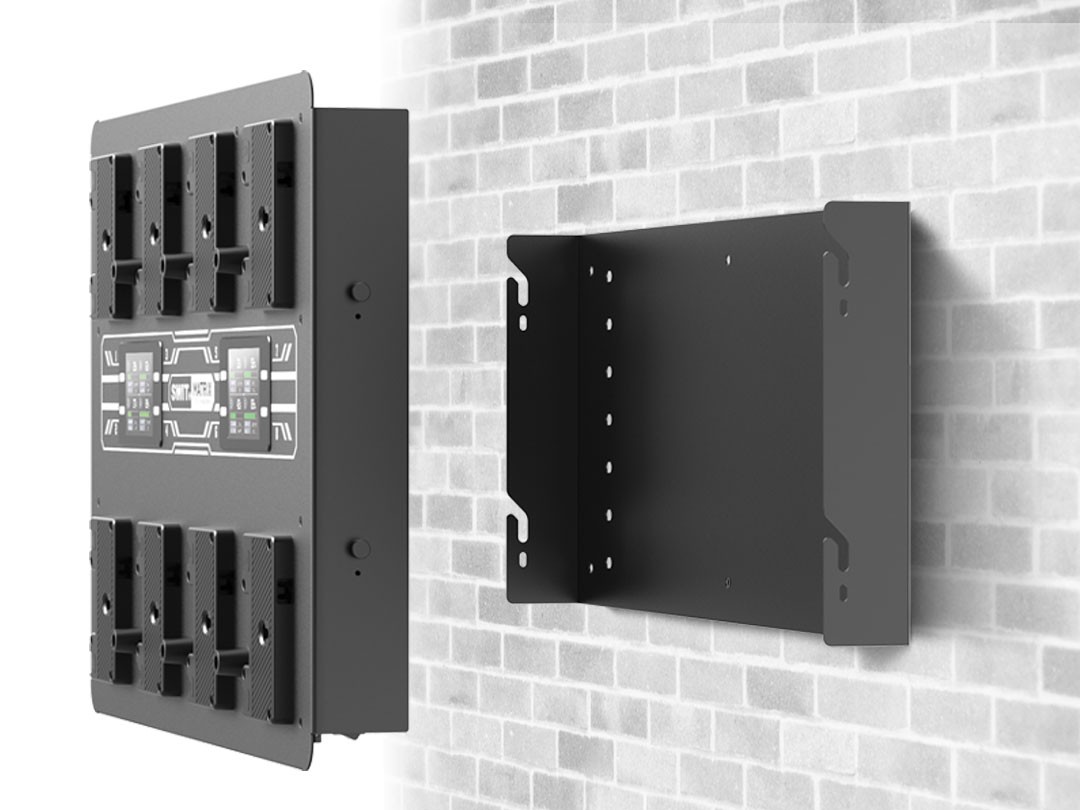

The MATRIX-A8 is engineered with a sturdy wall mounting plate mounted on the rear panel allowing convenient and secure installation on walls or broadcast racks. This feature enhances its usability in diverse operational setups ranging from studio racks to mobile production carts. It is compact enough to fit standard 19-inch racks, facilitating seamless integration into existing equipment environments.

User Interface and Monitoring

This charger incorporates two 3.5-inch color LCD screens that provide real-time detailed information on the charging status of all eight channels simultaneously. Users can monitor charging progress, voltage, current, and battery cycle counts for each connected battery. Large, bright LED indicators on the front panel further assist in quickly assessing charging status from a distance, improving operational efficiency in busy production areas.

Intelligent Charging Control

The MATRIX-A8 employs intelligent recognition technology that automatically detects whether connected batteries support fast charging. It adjusts output current accordingly to optimize battery health and charging speed. This ensures compatibility with a broad range of Gold-mount batteries, extending battery life and maximizing charger efficiency.

Safety and Reliability

Built with multiple protection mechanisms, including overvoltage, overcurrent, and temperature controls, this charger prioritizes the safety of the batteries and users. Its design maintains stable power delivery even when all eight channels are operating at full load, ensuring reliable and secure charging in demanding professional environments.

Operational Advantages

The ultra-fast simultaneous 8-channel design significantly shortens the downtime for battery recharging, enabling video production teams to maintain steady workflow with minimal interruption. This high throughput charger is ideal for facilities requiring rapid turnaround for a large number of professional video batteries. Its user-friendly interface and rugged construction further enhance its suitability for intensive, repeated use.
