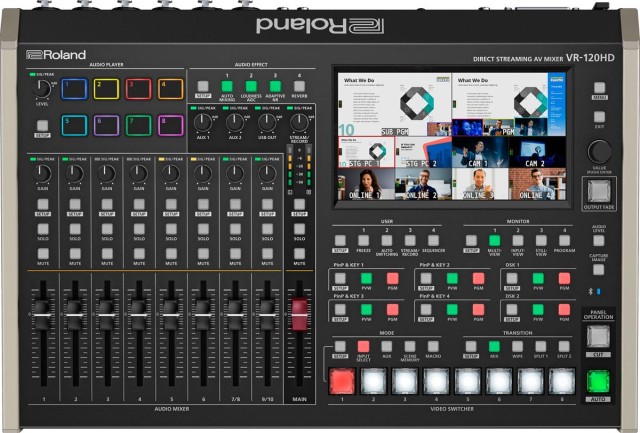

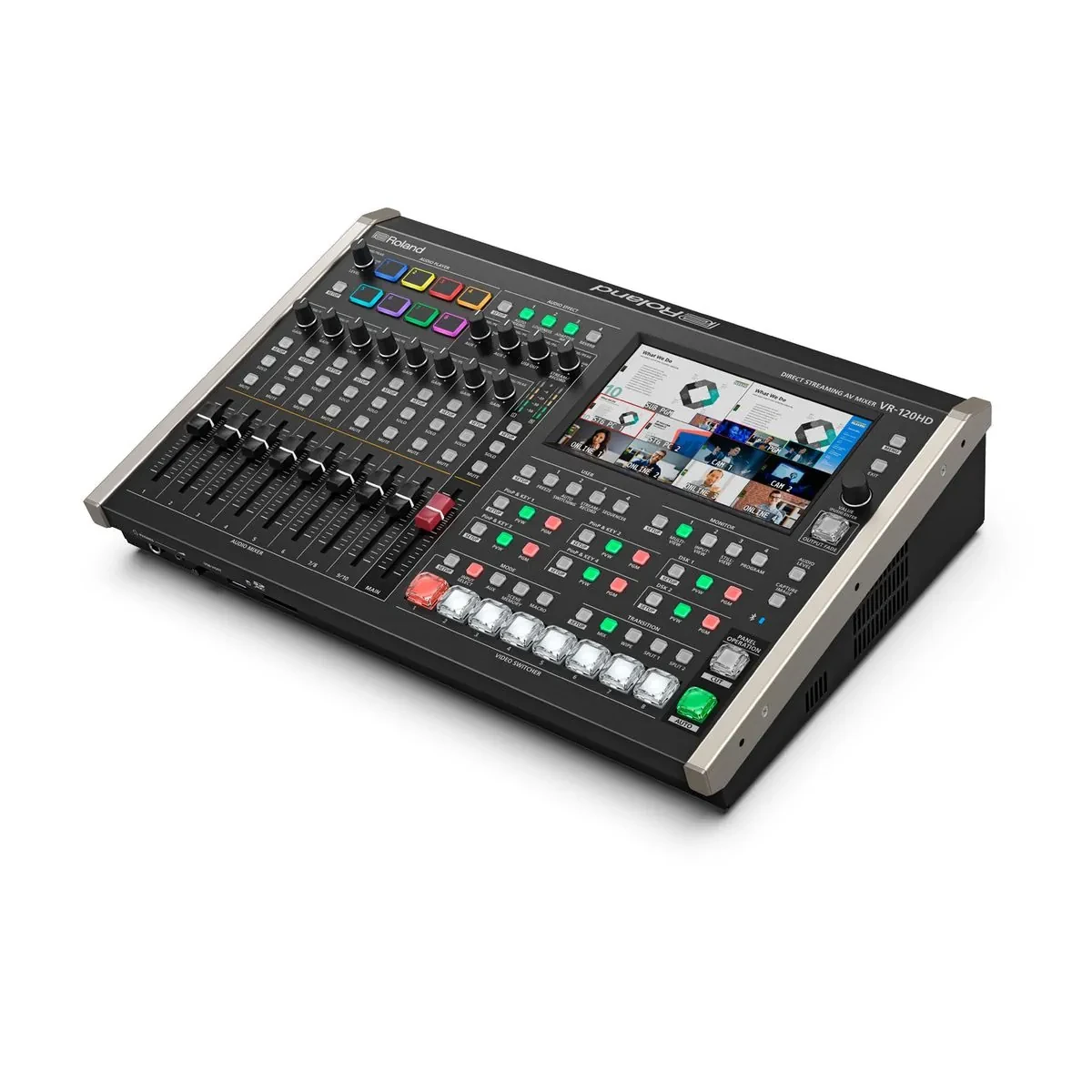

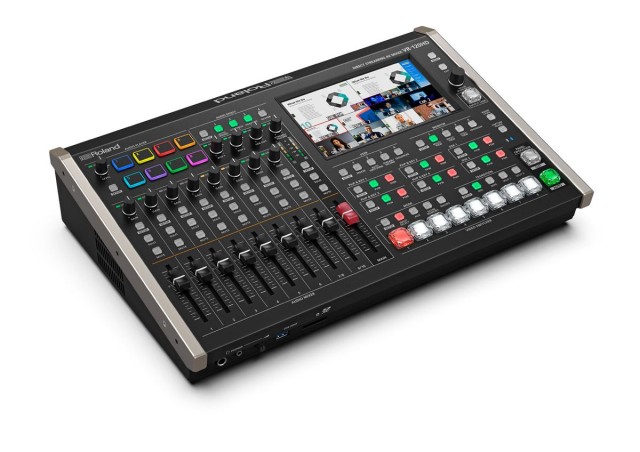

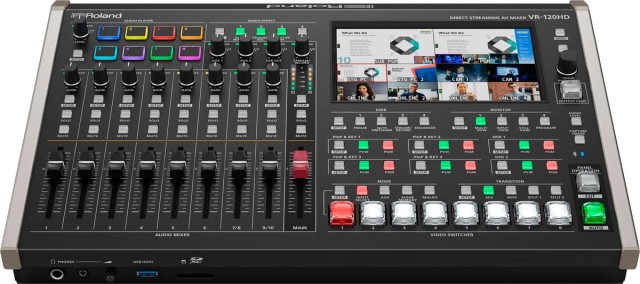

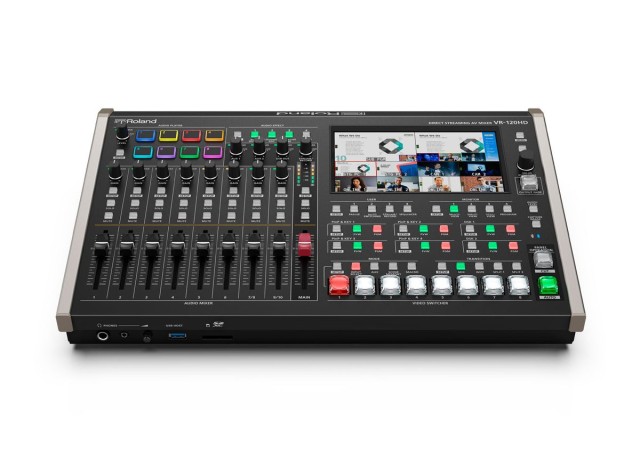

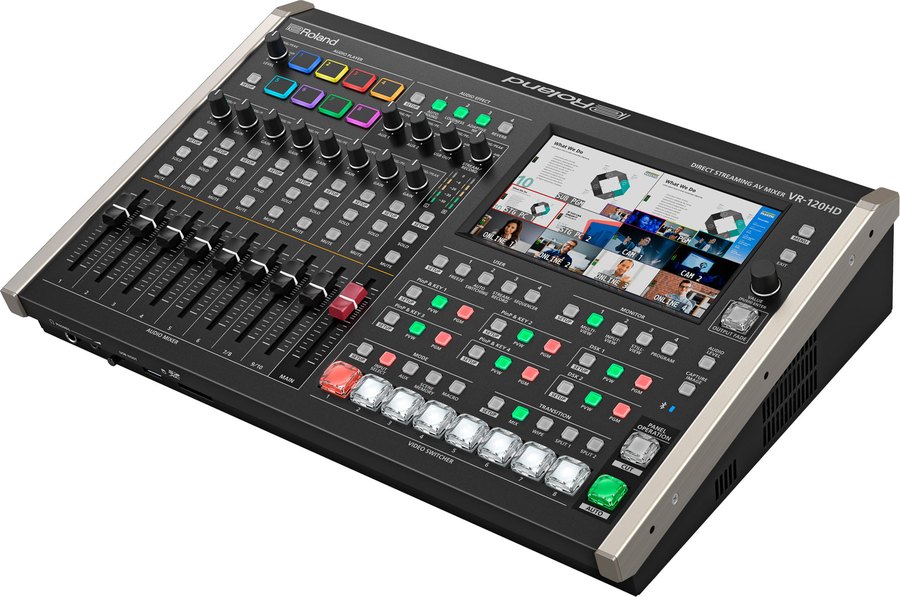

Roland VR-120HD Direct Streaming A/V Mixer

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.

The VR-120HD is a portable AV mixer for hybrid events that lets a single operator serve both the in-person audience and online viewers. It combines a 12-channel video switcher with six SDI and six HDMI inputs, a 42-channel audio mixer, two streaming encoders and SDXC recording.

Hybrid events in the hands of one operator

Six 3G-SDI and six HDMI inputs, eight outputs, two direct streams up to 1080p/60, a 7″ touchscreen and control of up to 12 PTZ cameras.

6× 3G-SDI + 6× HDMI2 RTMP/SRT streams42 audio channelsSDXC recordingUp to 12 PTZ cameras7″ touchscreen

Six SDI and six HDMI

SDI for long cable runs and professional cameras, HDMI with scalers, EDID and HDCP for computers, tablets and consoles. Every input has frame rate conversion.

A programme prepared in advance

32 scene memories, 100 macros and a sequencer with up to 1,000 steps set up the whole show beforehand. During the event you simply fire the prepared cues.

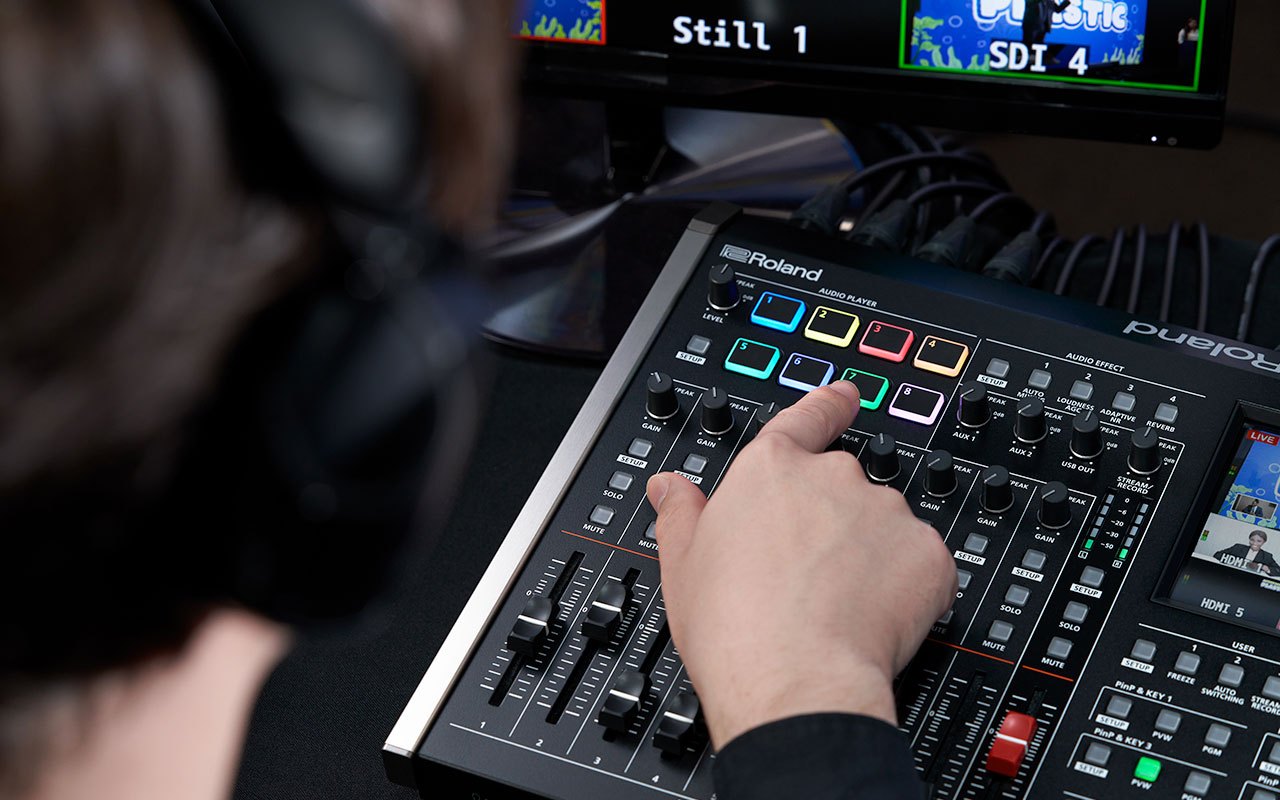

Eight pads for sounds

The Audio Player with eight pads triggers jingles, announcements or countdowns. Internal memory holds 16 audio files, and more can be played from an SDXC card.

Two streams without a computer

Over LAN the VR-120HD sends two independent streams up to 1080p/60 to Twitch, Facebook, YouTube or any RTMP service, with Adaptive Bitrate and an adjustable Safety Delay. Over USB-C it appears to a computer as a webcam for Zoom or Teams.

8 effect layers

Two backgrounds, four PinP or chroma/luminance key layers and two DSKs with fill/key and transparent PNG support.

42 audio channels

Six combo inputs with phantom power, Auto Mixing, anti-feedback and adaptive noise reduction.

PTZ control

Up to 12 LAN cameras from Canon, JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA, mixed brands at once.

Version 2

Graphics Presenter, a new chroma key engine, SRT input and output, three AUX buses and the VenuSet app.

• Direct Streaming AV Mixer
• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 3G SDI inputs with frame rate converters
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Eight-layer video effects engine
• Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
• Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
• 42-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images with alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with eight trigger pads and onboard storage for 16 audio files
• PTZ control for 12 cameras with support for multiple brands and mixed protocols
• Large seven-inch touch screen with graphical menu
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows
• Wireless and wired camera tally support

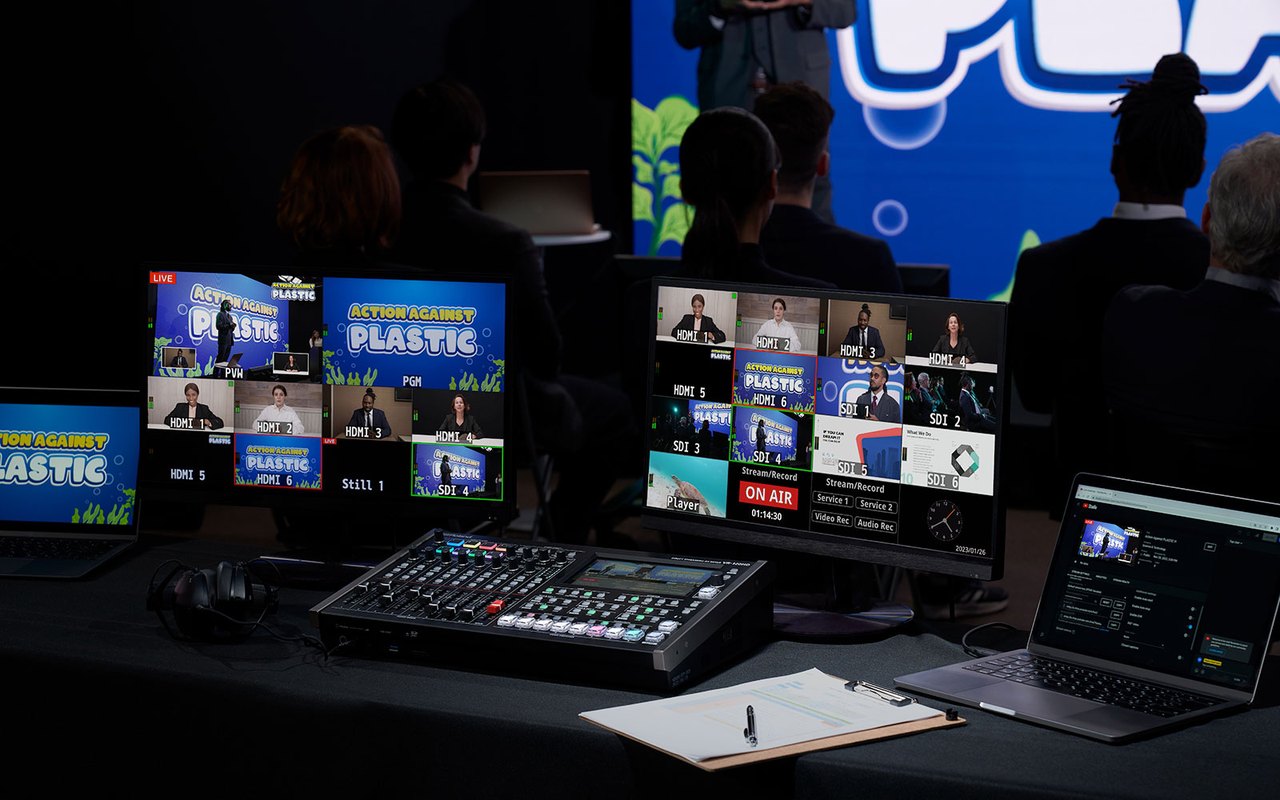

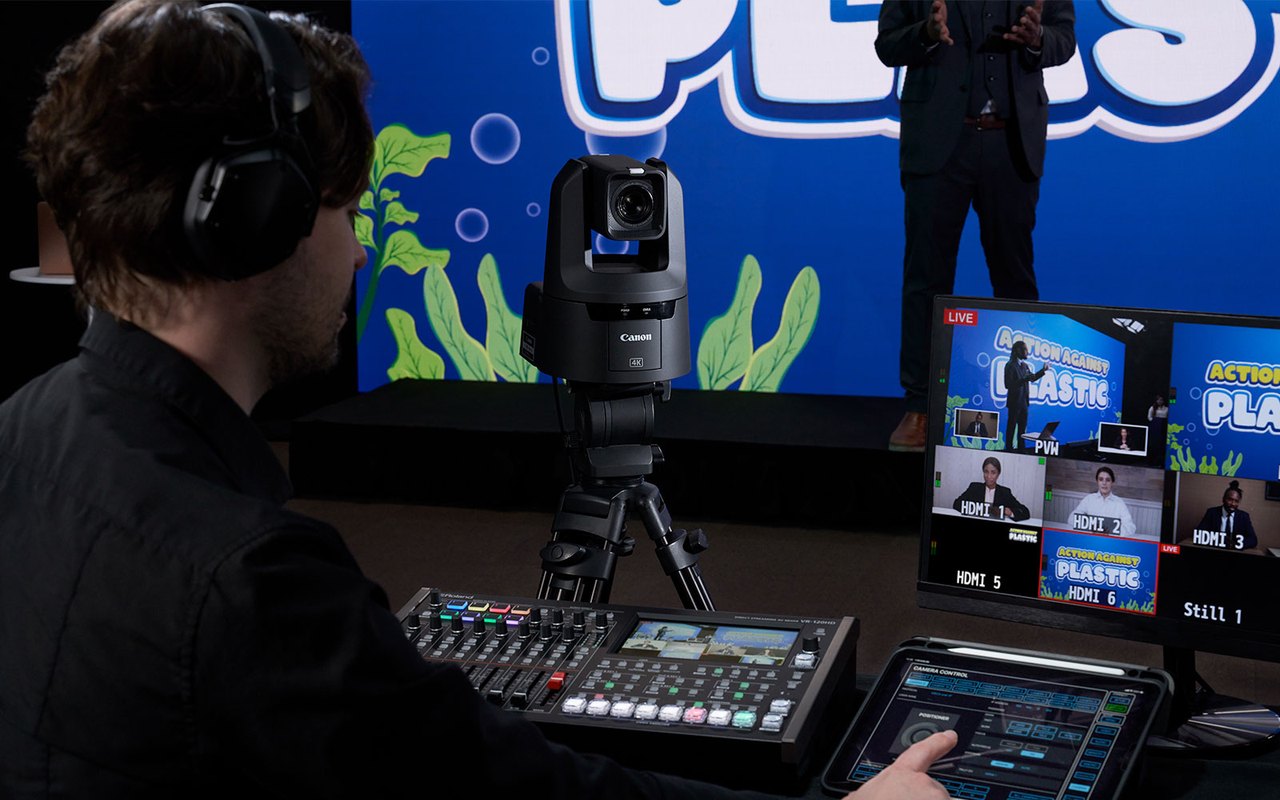

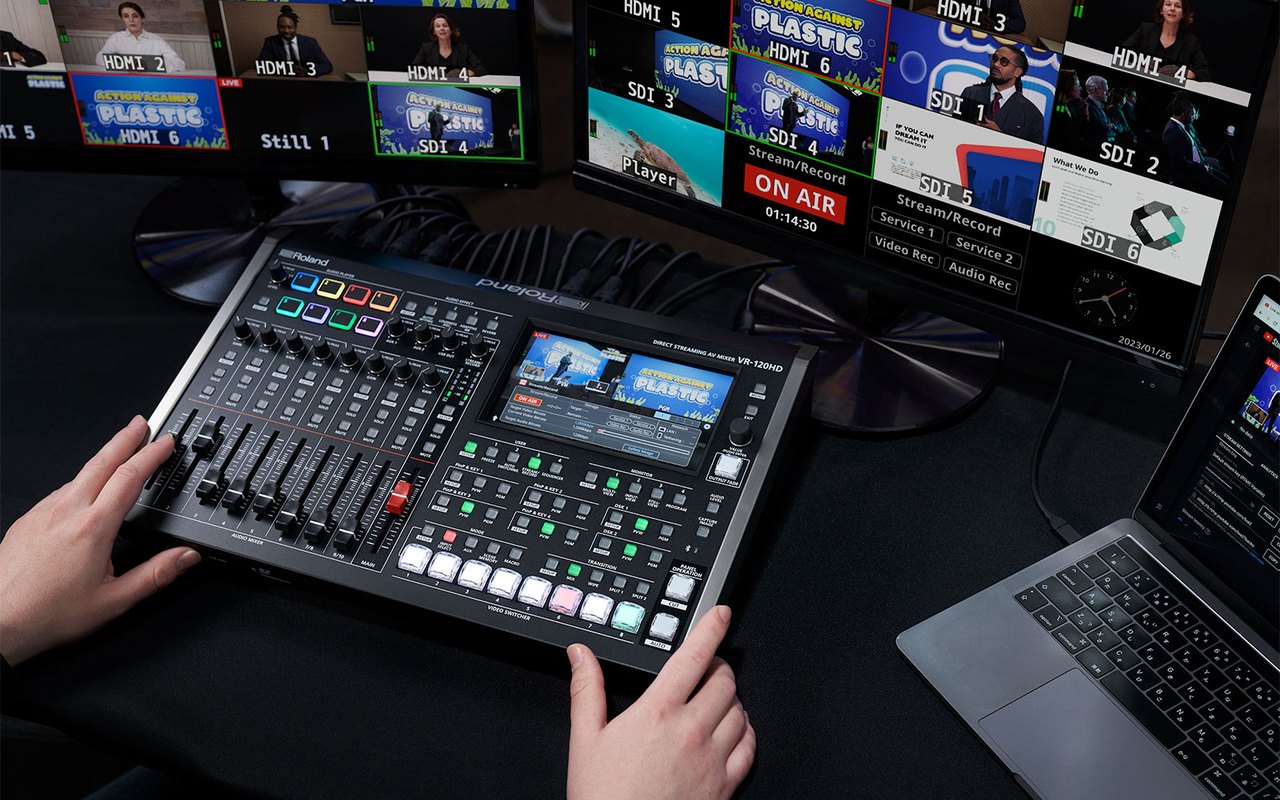

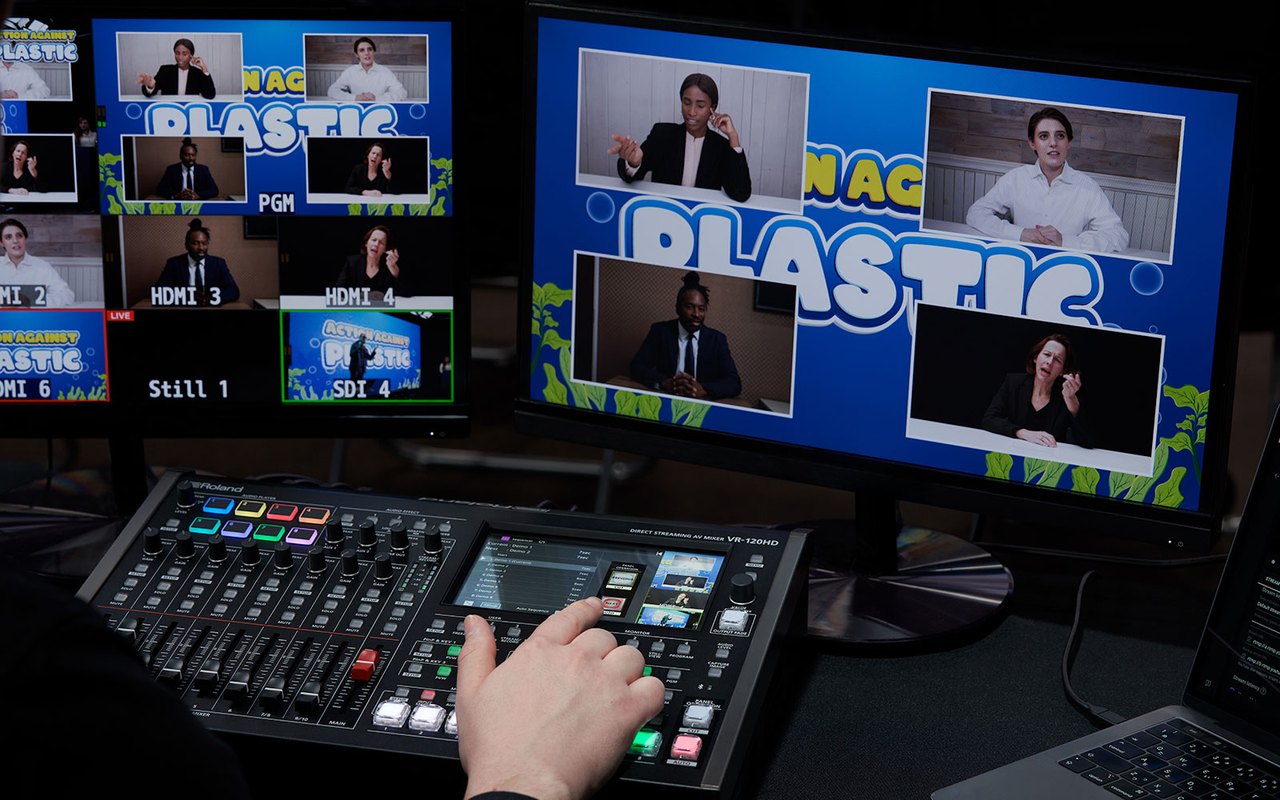

One operator, multiple audiences. Room projection, preview monitors, multi-view and the online stream are handled by one person without extra gear or crew.

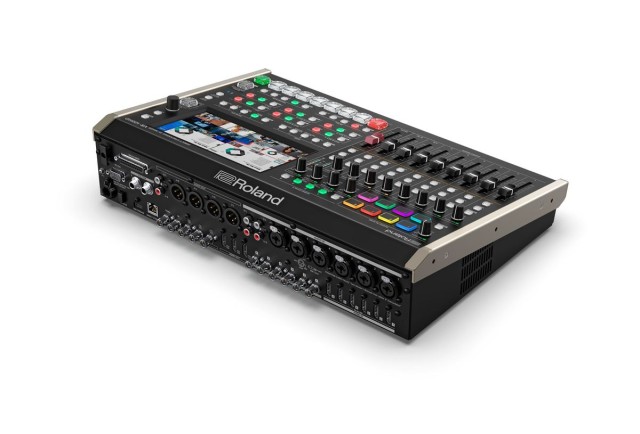

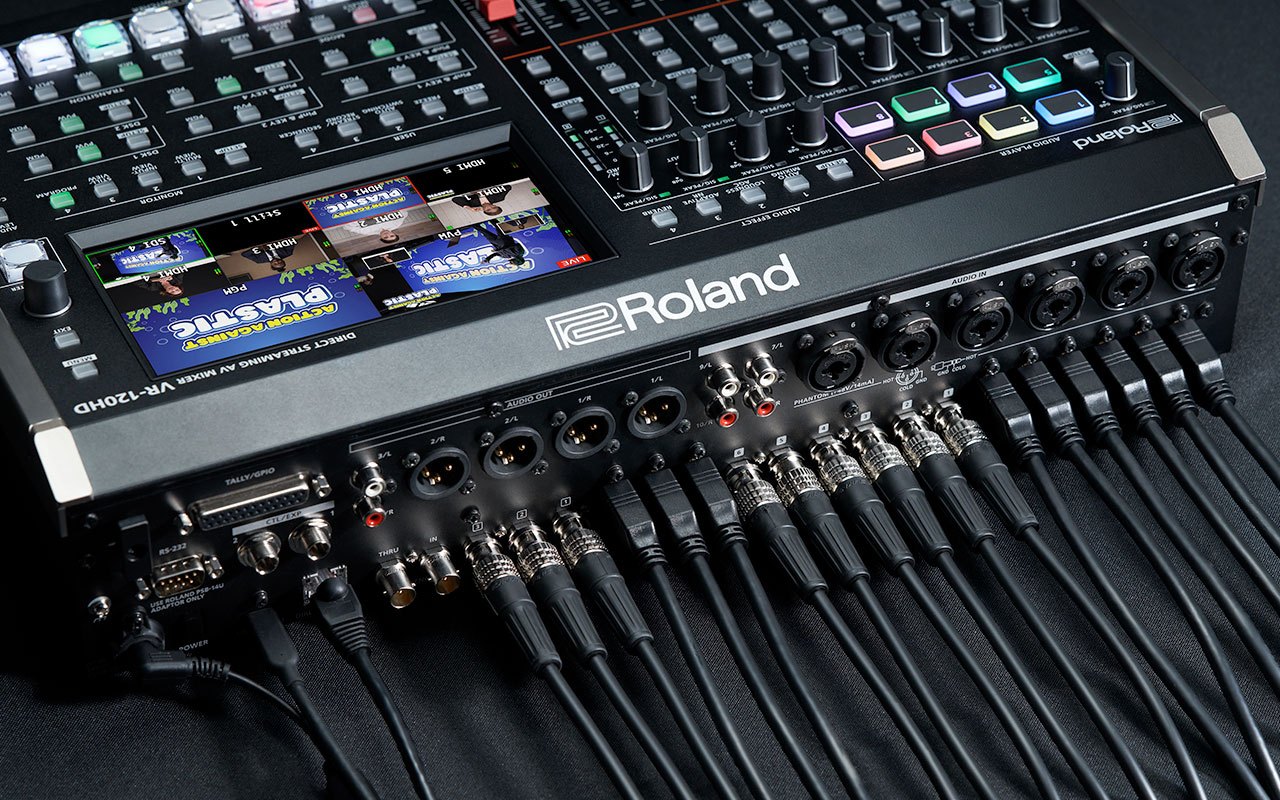

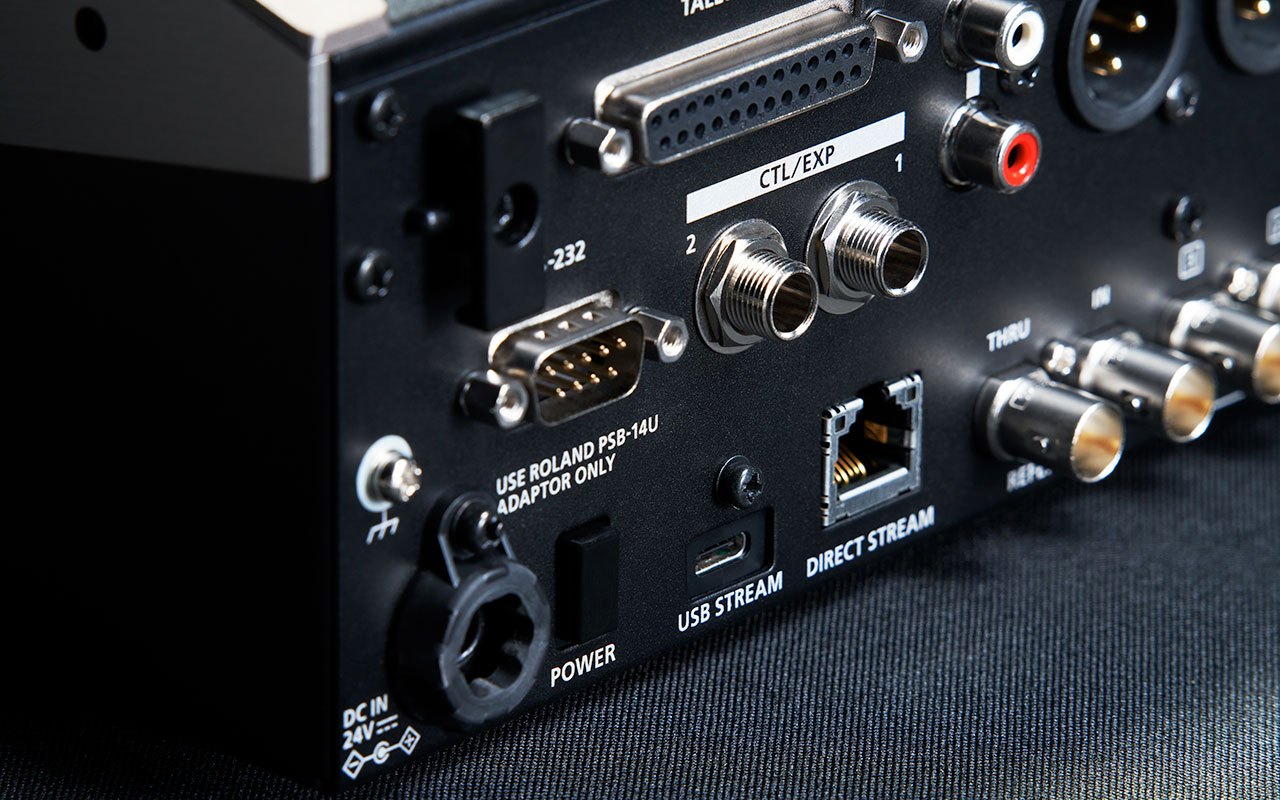

Connections for the whole event. The rear panel offers six SDI and six HDMI inputs, three SDI and three HDMI outputs, six combo audio inputs, LAN, RS-232, tally/GPIO and reference sync.

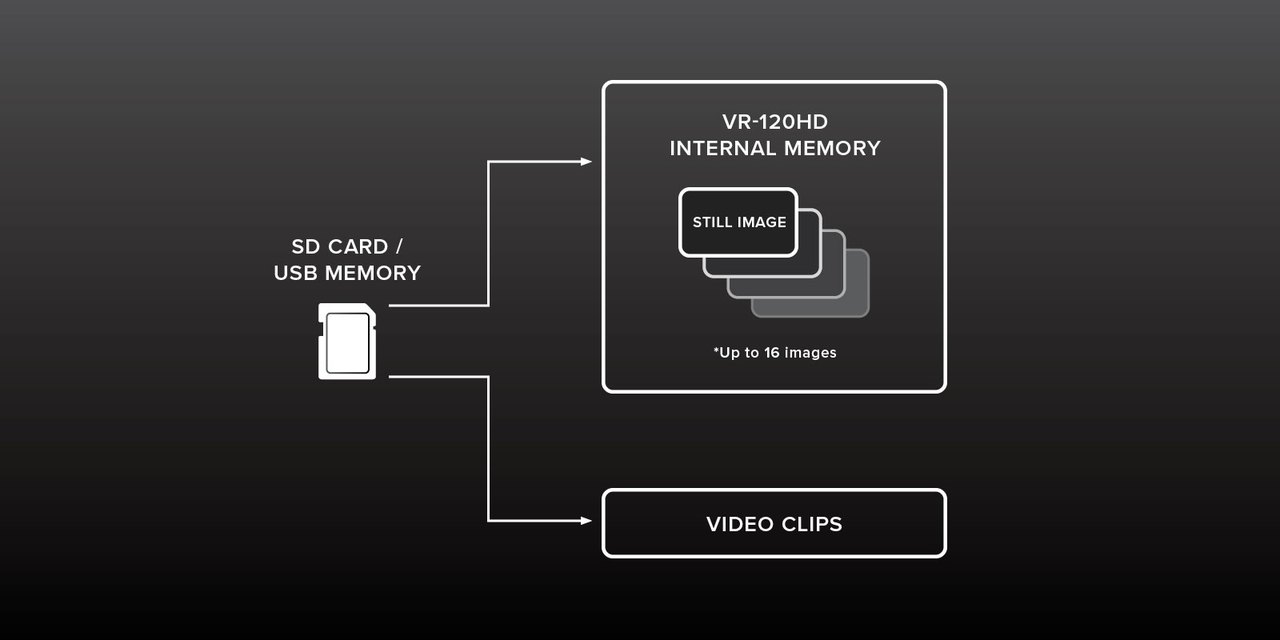

Stills and video clips. Up to 16 BMP, JPEG or PNG images with alpha channel are stored in internal memory, and MP4 video clips play straight from the SDXC card.

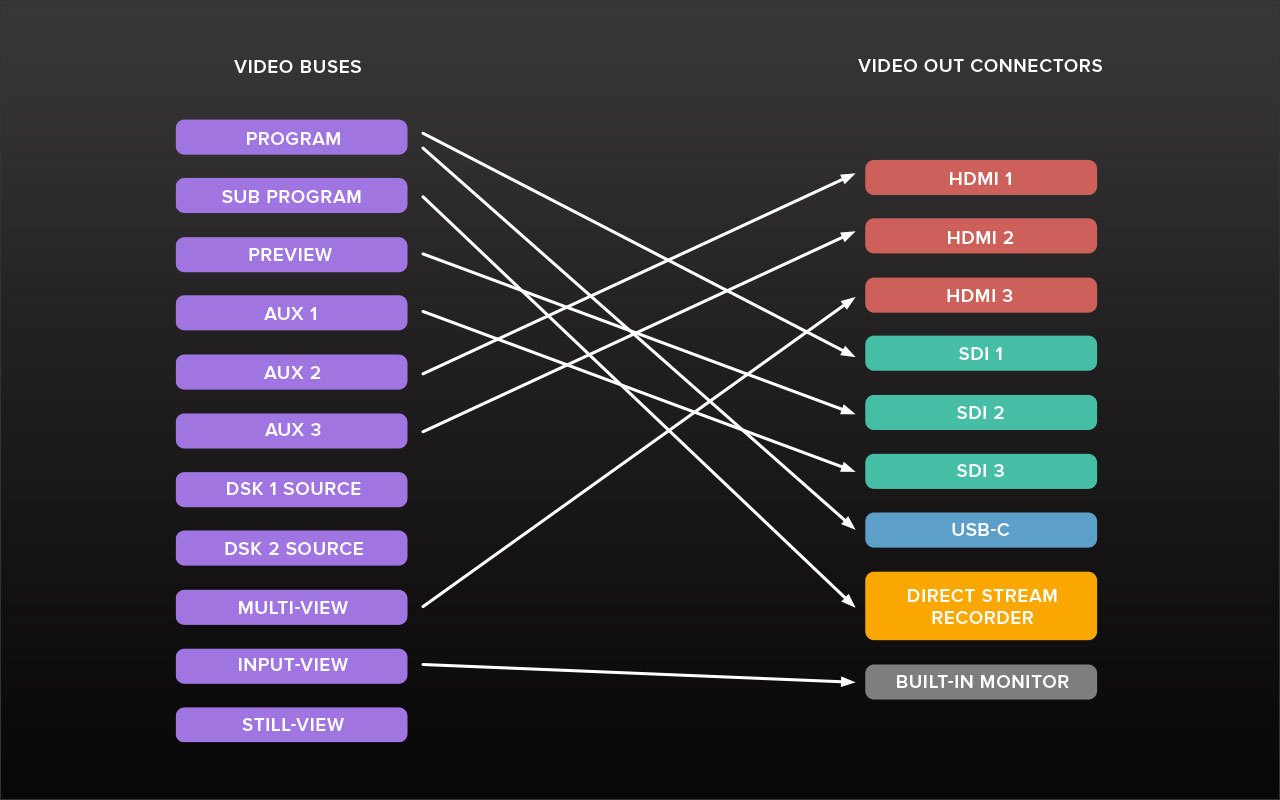

Versatile video outputs. Program, Sub-Program, Preview, three AUX buses, multi-view and the DSK sources can be assigned to three SDI and three HDMI outputs, USB-C and the direct stream.

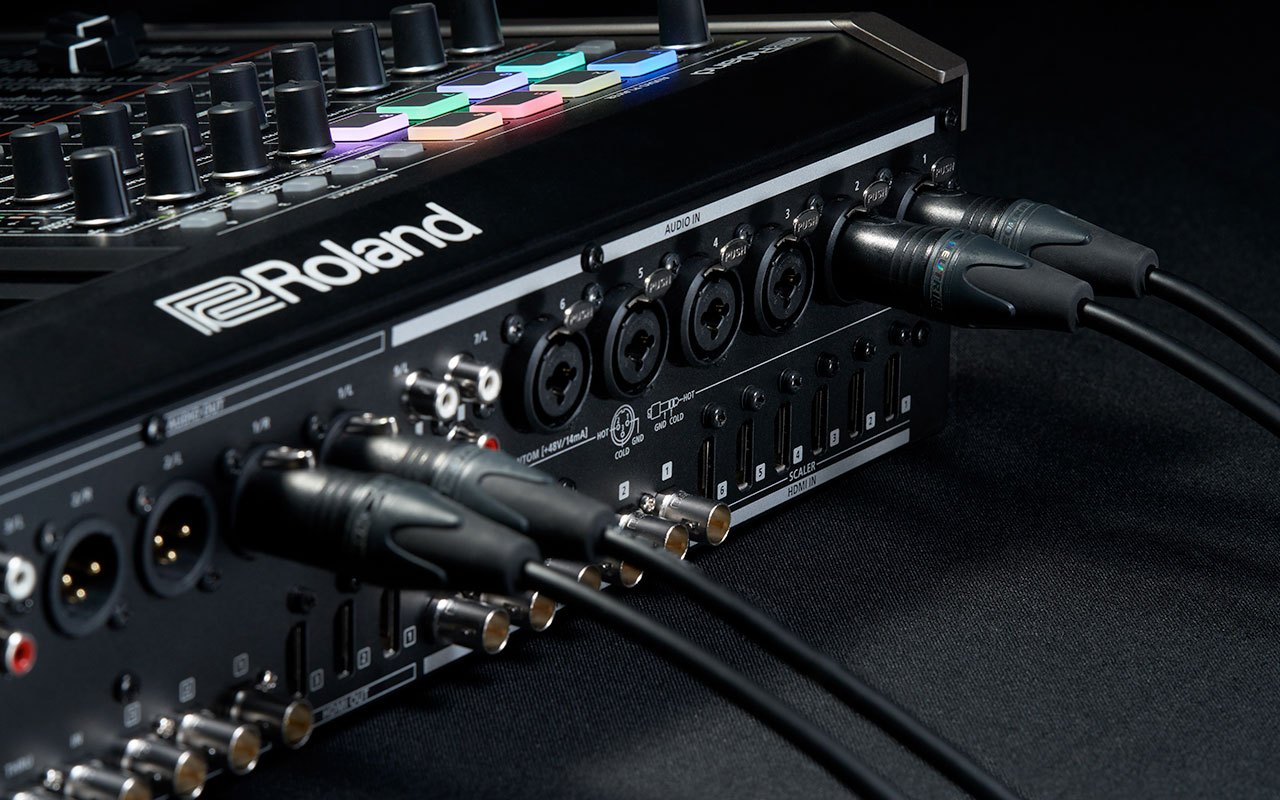

Analogue and digital inputs. Six balanced XLR/jack combo inputs with phantom power, four RCA inputs, embedded audio from HDMI, SDI and USB, and Bluetooth for playback from a phone.

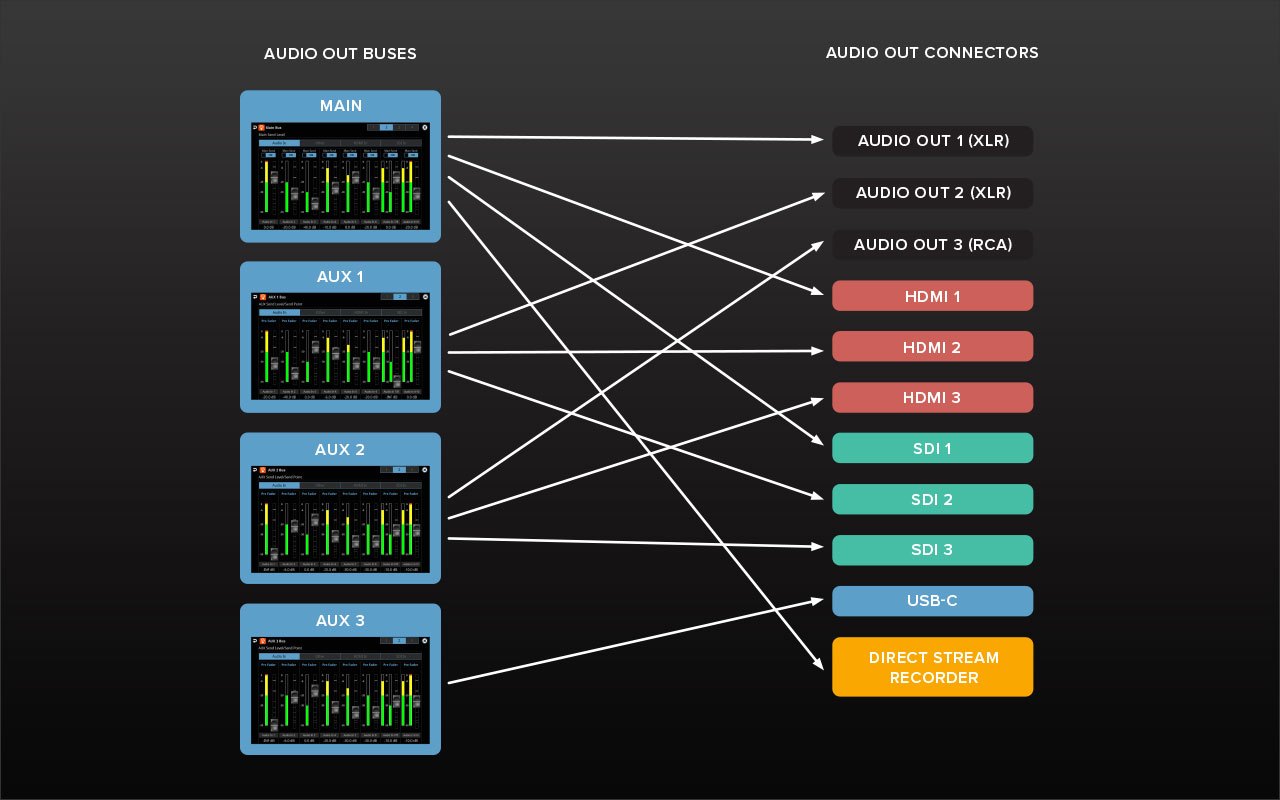

A mix for every audience. The main mix and three AUX buses can be routed to XLR, RCA, USB, HDMI, SDI and the stream, for example a stage monitor mix and a separate mix for online viewers.

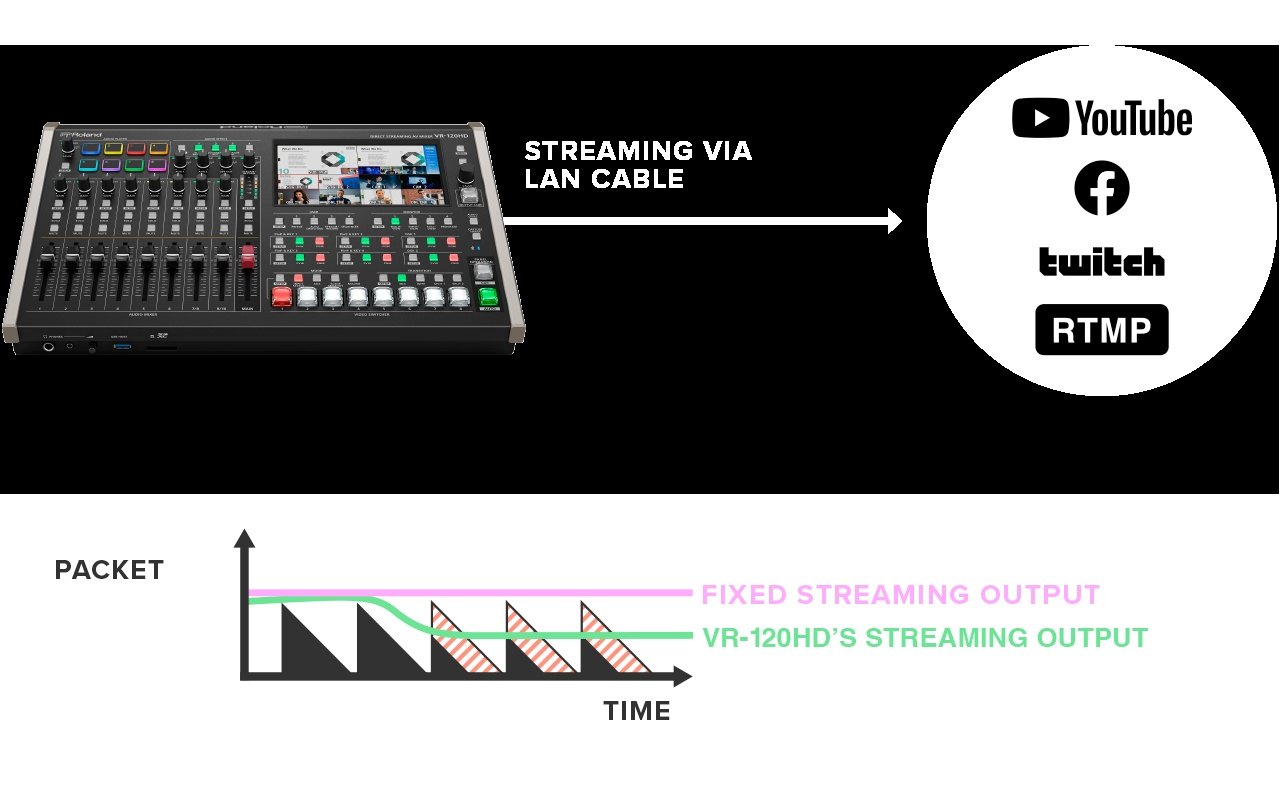

Adaptive Bitrate. The VR-120HD monitors the quality of the network connection and adjusts the streaming rate to avoid dropouts.

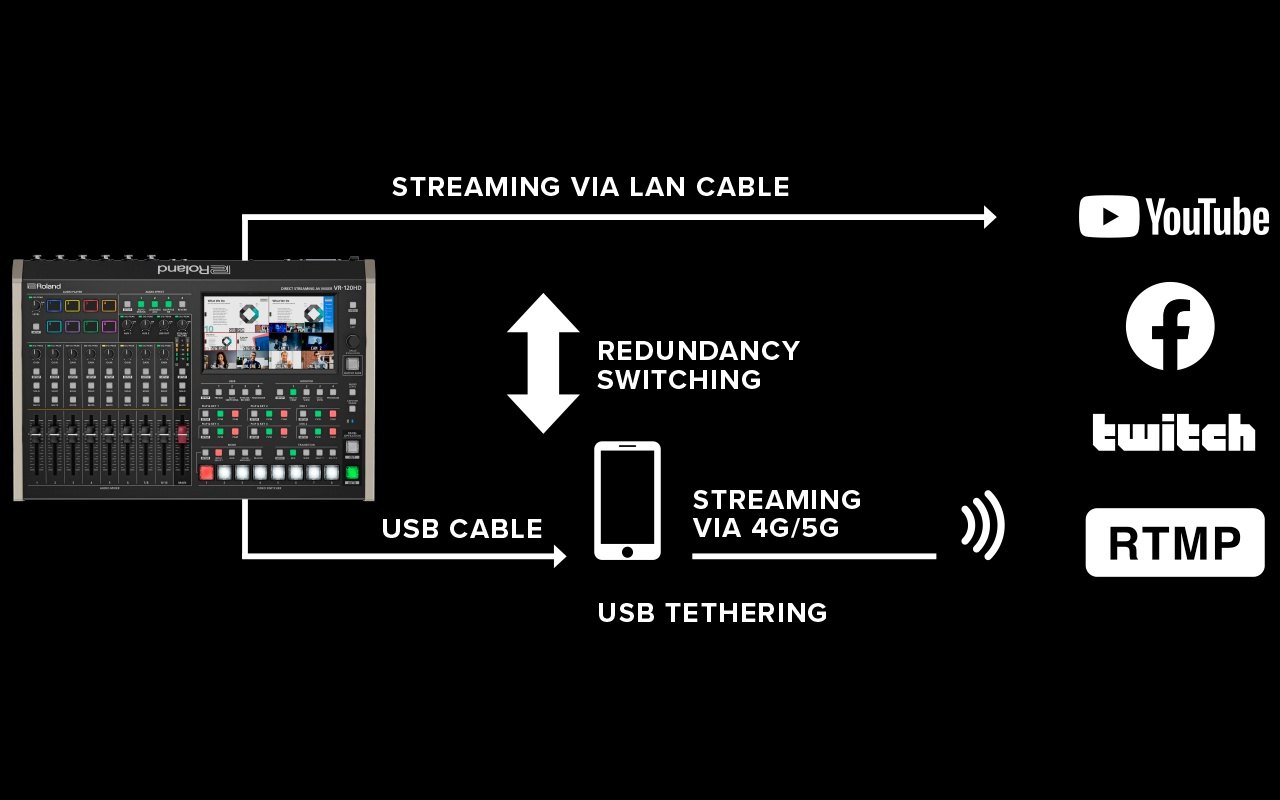

Backup over mobile data. A phone with a 4G or 5G data plan connected over USB can serve as the main streaming connection or as a backup if the network fails.

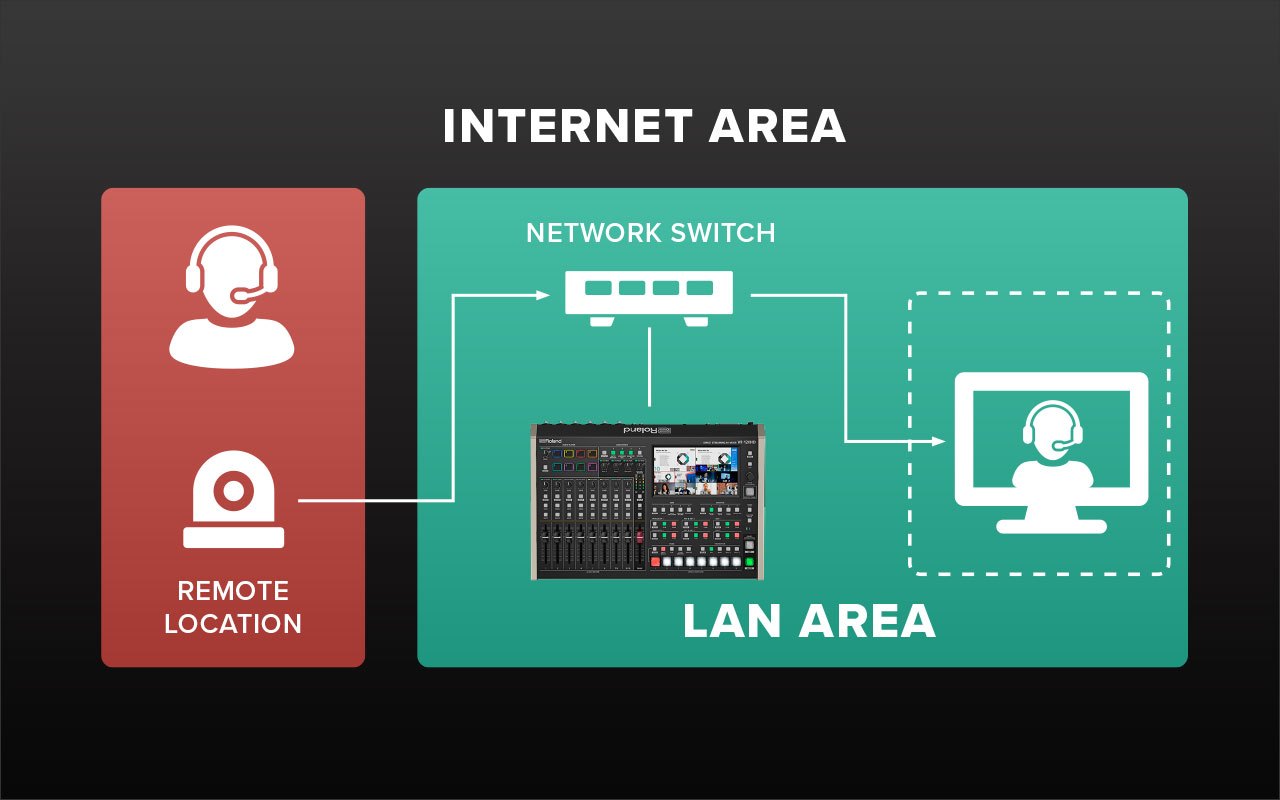

SRT input and output. SRT carries encrypted video and audio over LAN or the internet: remote cameras are switched together with local sources, and a dedicated SRT output can feed another building.

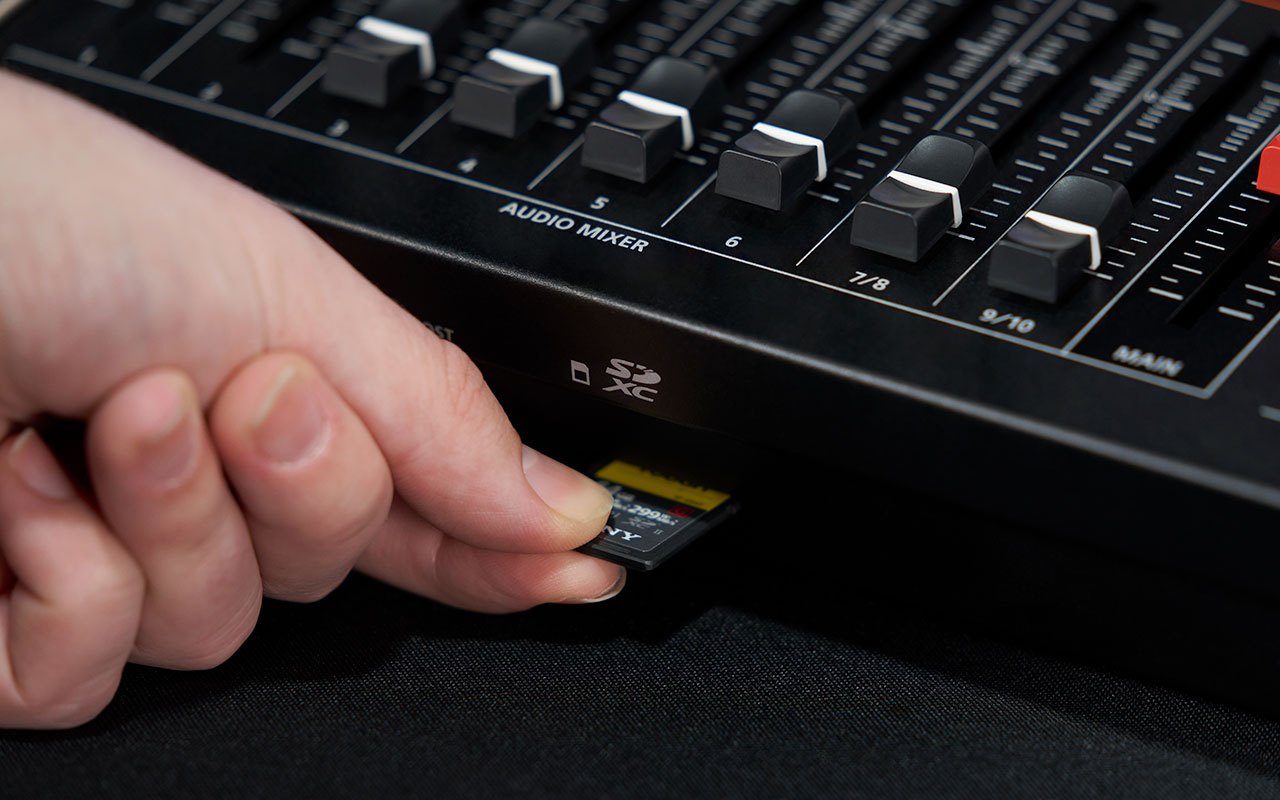

SDXC recording. The event is recorded to an SDXC card as H.264 MP4, with stereo WAV captured separately for podcasts. Stills grabbed from the outputs can be saved to the card too.

Scenes, macros and sequencer. Scene memories synchronise the transition of all layers, macros combine switching, DSK, audio adjustments and PTZ moves, and the sequencer fires them in exact order.

PTZ camera support. Up to 12 robotic cameras are controlled directly from the mixer, and shot presets can be stored and recalled from a USB numeric keypad.

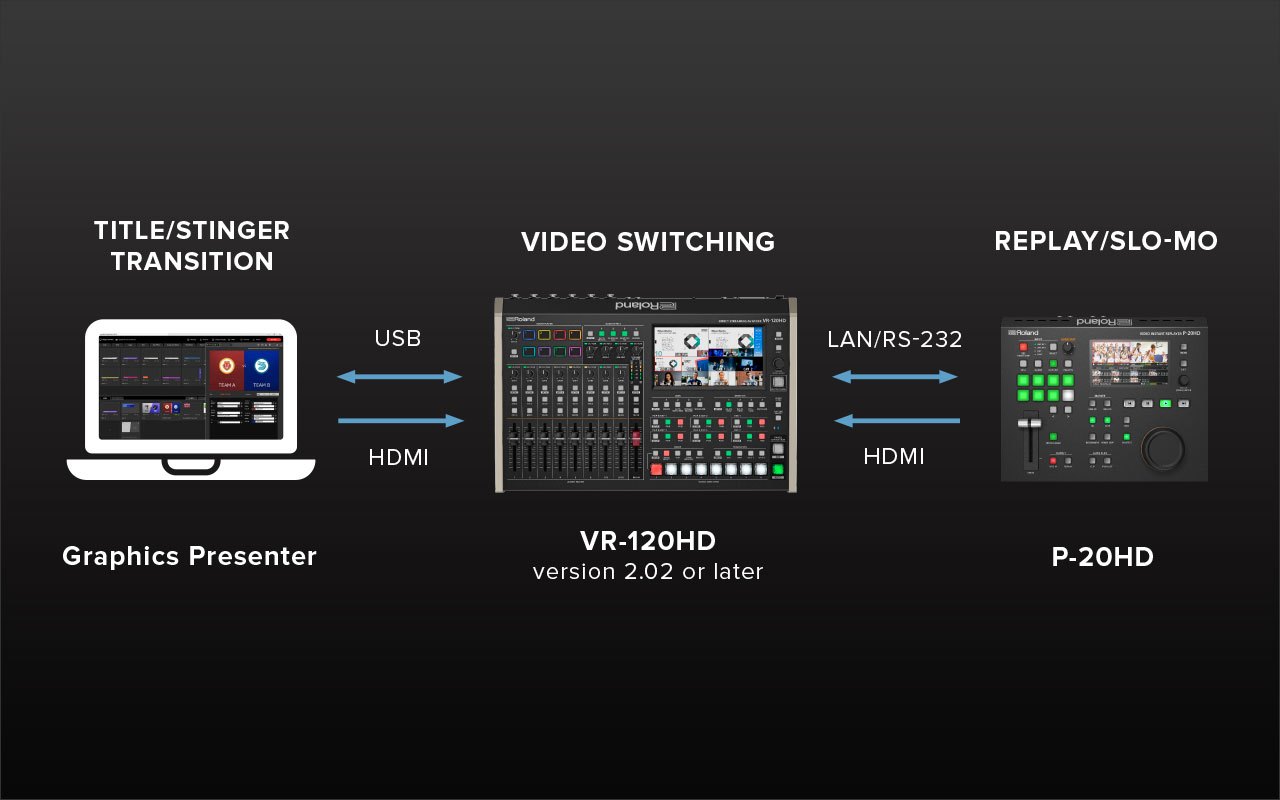

Graphics and replay. Graphics Presenter for Windows adds titles and stinger transitions over a single HDMI cable, while a P-20HD linked via LAN/RS-232 adds recording and instant replay.

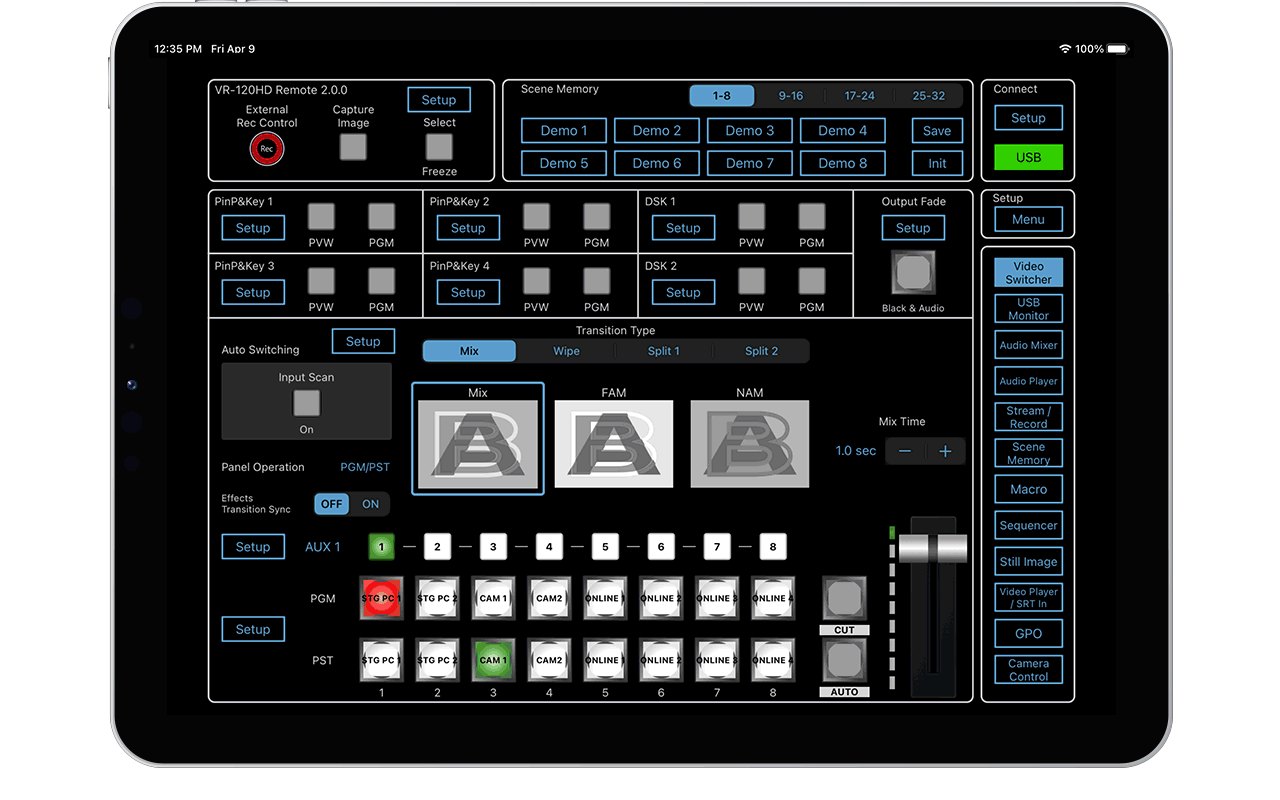

Remote control. The free VR-120HD Remote app for iPad, software for Mac and Windows, pedals, tally, and RS-232 and TALLY/GPIO connectors for fixed installations.
