Kramer XLR quad cable, 7.6 m

The Kramer C-XLQM/XLQF-25 is a professional-grade mic and line level audio cable, 7.6 m (25 ft) long, with an XLR male connector on one end and an XLR female on the other. Its four-core star quad design with mutually offsetting twisting reduces induced noise to a tenth of the level of a regular two-pair balanced cable. Suited to studios, stages and fixed …

More information

38 € with VAT 31.41 € without VAT
-+
Availability
Shipment day: 27. 10.
To be sent 1 pcs
Budapest 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Kramer C-XLQM/XLQF-25 is a professional-grade mic and line level audio cable, 7.6 m (25 ft) long, with an XLR male connector on one end and an XLR female on the other. Its four-core star quad design with mutually offsetting twisting reduces induced noise to a tenth of the level of a regular two-pair balanced cable. Suited to studios, stages and fixed installations.

Clean mic and line signal

A C-XLQM/XLQF cable links a microphone, mixing console, preamp or powered speaker with a balanced signal. Four conductors arranged in a star quad cancel interference before it can reach the audio path.

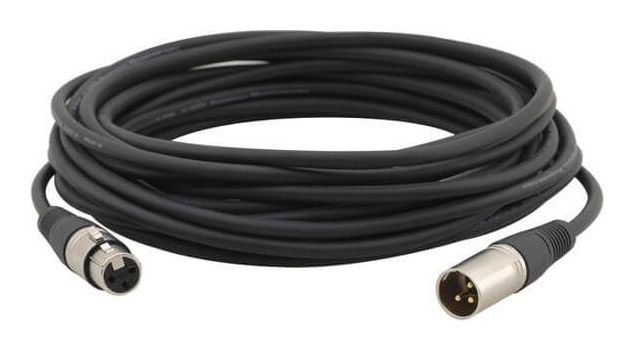

Kramer XLR quad cable, 7.6 m
XLR male – XLR femaleStar quad, 4 conductors7.6 m (25 ft)XLPE insulationHand-soldered connectors

Noise down to 10% of a regular cable

Mutually offsetting twisting of the four cores cancels electromagnetically induced noise from fluorescent lighting ballasts and AC power transformers, down to a tenth of the level of a regular two-pair balanced microphone cable.

Star quad construction

The four-conductor arrangement balances out interference from the surroundings, so hum stays out of the signal.

Super flexibility

Large numbers of thin bare copper strands in both the conductors and the shield make the cable supple.

XLPE insulation

Excellent electrical characteristics and no shrink-back during soldering.

Premium XLR connectors

The connectors are hand-soldered; the C-XLQM/XLQF series is made in many lengths.

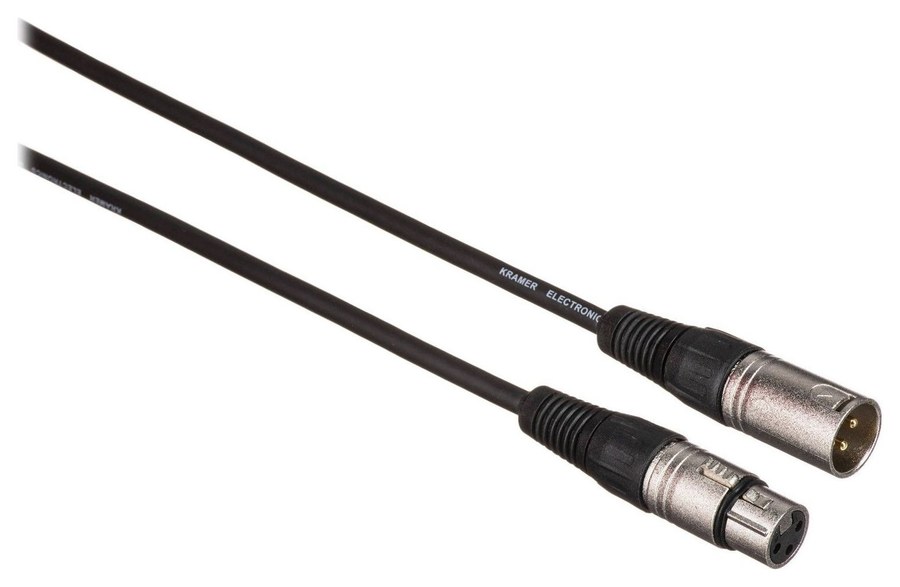

Kramer XLR quad cable, 7.6 m – XLR male and female connectors

XLR male and female connectors

A 3-pin XLR male on one end and an XLR female on the other, so the cable extends or links a standard mic run.

More information

Kramer C-XLQM/XLQF-25

The 25 ft (7.6 m) Kramer Electronics XLR 3-pin male to XLR 3-pin female quad style cable is designed for microphone or line level audio interconnections. The cable uses four cores of copper, wound in two parallel pairs, which keep electromagnetically induced noise from environmental sources such as AC transformers and fluorescent light ballasts from interfering with the audio signal.

The quad-core design can reduce induction levels by up to 90% when compared to a regular two-pair balanced microphone cable. Additionally, the cable features hand-soldered XLR connectors, XLPE insulation with no shrink-back during soldering, and a large number of thin bare copper wire strands to improve cable flexibility.

PACKAGE CONTENT

  • 1× Kramer C-XLQM/XLQF-25 XLR quad cable (7.6 m)

SPECIFICATIONS

  • Model: C-XLQM/XLQF-25
  • Cable type: mic / line level audio cable, four-core star quad
  • Connector 1: XLR 3-pin male, straight
  • Connector 2: XLR 3-pin female, straight
  • Length: 7.6 m (25 ft)
  • Conductor material: copper (thin bare copper strands)
  • Number of conductors: 4
  • Shielding: copper
  • Insulation: XLPE (cross-linked polyethylene)
  • Color: black
Parameters

Parameters

Manufacturer: Kramer Electronics
Category: Audio cables

Main parameters

Cable typeMicrophone
Length7.6m
VersionFlexible
ColourBlack
Connector shapeStraight
Connector typeXLR 3-pin
Connector genderMale · Female

Other parameters

OtherStar Quad
