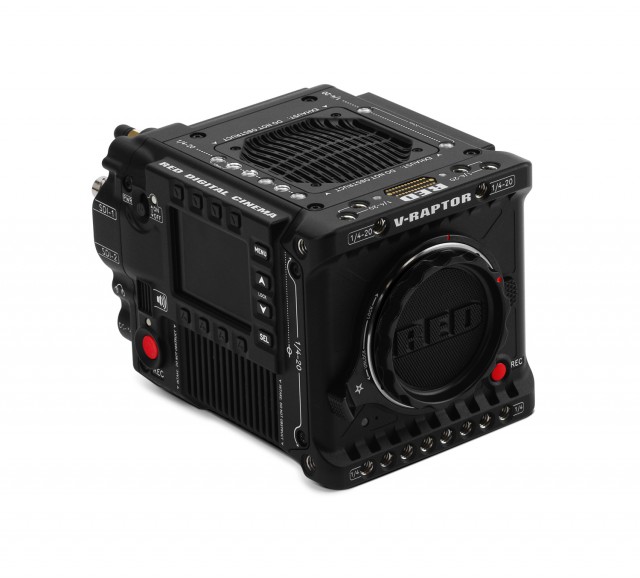

RED V-RAPTOR 8K VV + 6K S35 (DUAL FORMAT)

RED V-RAPTOR ST 8K VV is the most powerful and advanced RED cinema camera ever. As the brand’s new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of the of digital image capture technology.

More information

25 740 € with VAT 21 450 € without VAT
-+
Availability
phone
Manufacturer
RED
Free transport when purchasing this product
SKU:
KAT-17282
Add to Compare
Product description

Product description

RED V-RAPTOR ST 8K VV is the most powerful and advanced RED cinema camera ever. As the brand’s new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of the of digital image capture technology.

Featuring a groundbreaking multi-format 8K sensor- with the ability to shoot 8K Large Format or 6K S35, it unlocks the largest lens selection of any comparable camera on the market and allows shooters the ability to always deliver at over 4K. The sensor also boasts the highest recorded dynamic range of any RED camera and the fastest ever cinema quality scan time. With a dynamic range of over 17 stops and featuring scan times 2x faster than any previous RED camera, allowing users to capture up to 600 fps at 2K. V-RAPTOR will also continue to feature RED’s proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.

Along with a new flagship sensor, the V-RAPTOR features a modernized DSMC3 platform in an amazingly compact package weighing in at barely over 1.8 kg. With 2 4K 12G-SDI outputs, XLR audio and phantom power via adapter, Canon RF mount, and 1080p livestream, this system can handle most anything a shooter can throw at it.

The DSMC3 form features several improvements over DSMC2 but offers only limited compatibility with DSMC2 accessories. The KOMODO Outrigger handle is compatible, but POGO-connector compatibility is limited to the new V-RAPTOR version components. One update is a larger fan system with two intake valves that provide better thermal heat exchange (TEC), enabling a wide ambient temperature operating range. Separately available, upcoming V-RAPTOR accessories include a dedicated 7.0 TOUCH monitor, a new expander module, a top plate, a top handle with extension, an Arca-Swiss compatible quick release baseplate system, side handgrips, cage-type side accessory arms, and a 5-pin to dual XLR audio adapter.

Sensor Type: V-RAPTOR 8K VV 35.4 MP CMOS
Effective Pixels: 8192 x 4320
Sensor Size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
Dynamic Range: 17+ stops
Mount Type: Integrated RF mount with RF lens support, supports Canon EF lenses adapters; supports phase-detection autofocus (PDAF)
Max Data Rates: Up to 800 MB/s using RED branded or other qualified CFexpress media cards
REDCODE RAW Max Frame Rates:
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
Best Available REDCODE Settings:
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE® RAW Acquisition Formats:
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Weight: 1.83 kg (without body cap and CFexpress card)
Battery Type: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
DC Power Input: 11-17V via 6-pin DC-IN
Color Management: Image Processing Pipeline 2 (IPP2), supports 33×33×33 3D LUTs, supports import of CDLs
Audio: Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz, integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
Remote Control: Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector; Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port; wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Monitor Outputs: integrated dual 12G-SDI (up to 4096 x 2160 4:2:2 for 60p) with 6G-SDI (up to 4096 x 2160 4:2:2 for 30p, 25p, 24p), 3G-SDI (up to 2048 x 1080 4:2:2 for 60p) and 1.5G-SDI (up to 2048 x 1080 4:2:2 for 30p, 25p, 24p) modes, SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Options: DSMC3 RED® Touch 7.0” LCD; wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing; integrated 2.4" LCD for camera control (no preview video)
RED Control: access full camera controls and live preview from iOS or Android devices; available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

Included:
V-RAPTOR ST 8K VV Body​
DSMC AC Power Adaptor Pack (150W)
RED Logo Sticker​
V-RAPTOR Information Card (incl. registration and support info)​
2 Year Standard Warranty

Parameters

Parameters

Manufacturer: RED
Category: Digital Cinema

Main parameters

Camera Sensor sizeFull Frame
Resolution8K
Type of bayonetRF
Retrieved from12G SDI

Other parameters

Versionfilm
Record formatRAW
Media typeCFexpress
Battery typeV-mount
Colour depth16 bit
Other featuresRAW
Other featuresStreaming
Other featuresTimecode
Other featuresHDR
Other featuresWiFi
