Lilliput BM310-4KS 31.5" 4K HDMI Carry-On Broadcast Monitor
SKU: BM310-4KS
The Lilliput BM310-4KS is a 31.5″ 4K broadcast director monitor with a 3840 × 2160 panel covering 97% DCI-P3, housed in CNC-machined aluminium. It accepts 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, shows four inputs at once or picture in picture, and offers HDR, 3D LUT and color calibration. Power via DC 12–24 V XLR or V-Lock / Anton…
1 579 € with VAT
1 304.96 € without VAT
Availability
14-30 days
Lilliput BM120-4KS 12.5" 4K Director Monitor with SDI, HDR & 3D LUT in Hard Case
940.42 €without VAT 777.21 €
Lilliput BM150-4KS
1 209 €without VAT 999.17 €
Lilliput BM230-4KS
In stock 2 pcs1 339 €without VAT 1 106.61 €
Lilliput BM281-4KS - 28" 4K HDR LUT Monitor in Carry Case
1 339 €without VAT 1 106.61 €Top accessories for Lilliput BM310-4KS 31.5" 4K HDMI Carry-On Broadcast Monitor
SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 4985
SmallRig X221 V-mount battery with 221 Wh capacity, a touchscreen display and eight
559 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

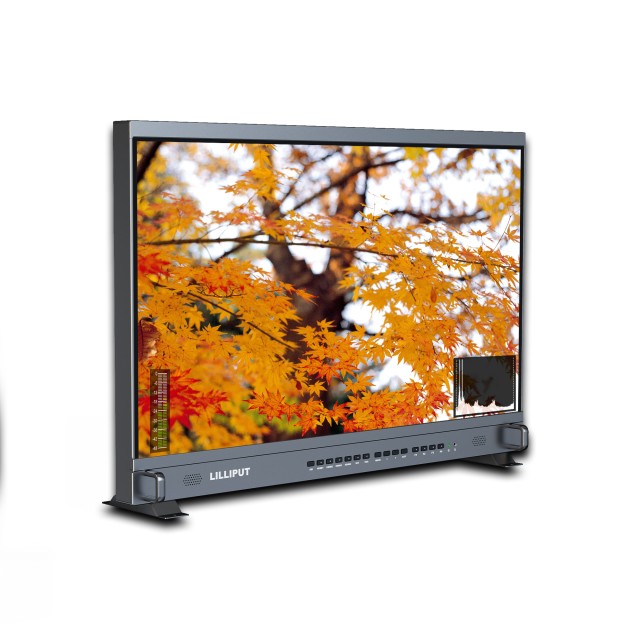

The Lilliput BM310-4KS is a 31.5″ 4K broadcast director monitor with a 3840 × 2160 panel covering 97% DCI-P3, housed in CNC-machined aluminium. It accepts 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, shows four inputs at once or picture in picture, and offers HDR, 3D LUT and color calibration. Power via DC 12–24 V XLR or V-Lock / Anton Bauer batteries.
31.5" 4K for directing with accurate color
A large 3840 × 2160 panel with 97% DCI-P3 and color calibration for directing, outside broadcast and post-production.
31.5" 4K UHD97% DCI-P33G-SDI + 4× HDMIHDR & 3D LUTCNC aluminium
Accurate color on a large screen
Choose native, Rec.709, DCI-P3 or three user-defined color spaces. Calibration with ColourSpace CMS by Light Illusion (PRO/LTE version) reproduces the colors of the selected color space faithfully.

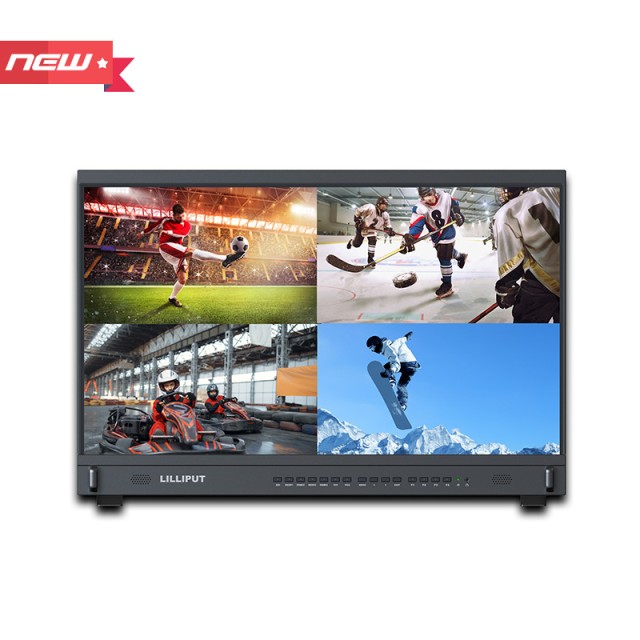

Quad view and PIP
Four different inputs at once, or picture in picture.
HDR & 3D LUT
HDR Auto / HDR10, 3D LUT with 3 user logs via USB.
Wireless receiver
Optional wireless HDMI/SDI transmitter with 150 m range and up to 1080p 60 Hz.
Metal construction
CNC-machined aluminium front panel, resistant to deformation and oxidation.
More information
About the monitor
In the studio or on location, the BM310-4KS is a reliable workhorse: CNC aluminium construction, a 31.5" 3840 × 2160 display and a wide range of inputs including HDMI, SDI, DVI and VGA, which can be viewed simultaneously thanks to quad view. For battery power it takes a V-Lock or Anton Bauer (Gold Mount) plate.
PACKAGE CONTENT
- 1× monitor Lilliput BM310-4KS
- 1× 15 V DC power adapter
- 1× tally connector
- 1× VESA mount plate
- 1× V-Lock (default) or Anton Bauer battery mount

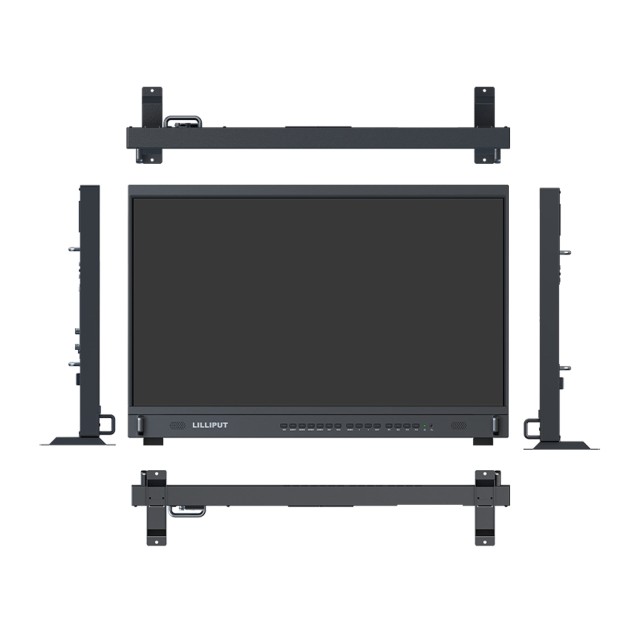

- 1× base brackets
- 1× user manual
SPECIFICATIONS
- Brand: Lilliput
- Model: BM310-4KS
- Display: 31.5"
- Resolution: 3840 × 2160 (4K UHD), 16:9
- Brightness: 350 cd/m²
- Contrast: 1,300:1
- Viewing angle (H/V): 178° / 178°
- Color space: 97% DCI-P3; native, Rec.709, DCI-P3 and 3 user-defined
- Calibration: ColourSpace CMS (Light Illusion), PRO/LTE version
- HDR: Auto / HDR10
- LUT: 3D LUT (.cube) via USB, 3 user logs
- Video inputs: 1× 3G-SDI, 2× HDMI 2.0 (up to 4K 60 Hz), 2× HDMI 1.4 (up to 4K 30 Hz), DVI, VGA
- Video outputs: 1× 3G-SDI (loop)

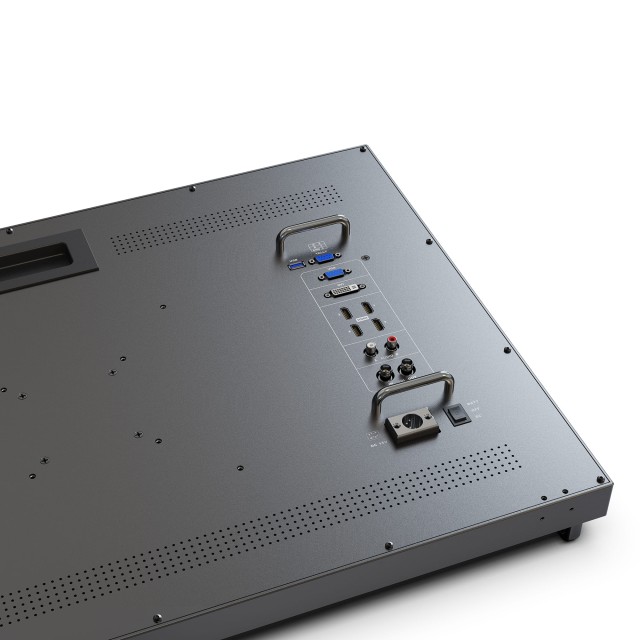

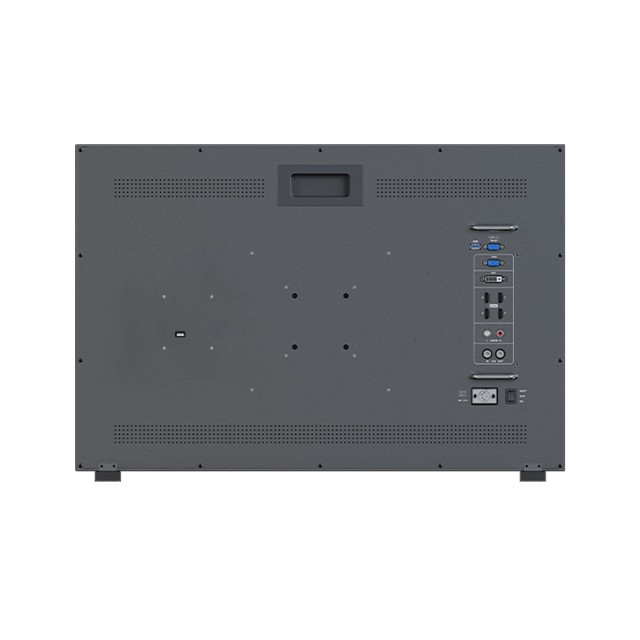

- Other interfaces: audio L/R, tally, USB (firmware and 3D LUT), slot for optional wireless receiver
- Audio: 2 speakers, 3.5 mm headphones
- Functions: quad view, picture in picture, HDR, 3D LUT, peaking (SDI), markers, audio level meter, histogram, false color, time code (SDI), exposure, check field, underscan, image freeze
- Power: DC 12–24 V (XLR)
- Batteries: V-Lock or Anton Bauer
- Power consumption: 4.2 A (15 V)
- Operating temperature: -10 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 718 × 478 × 38 mm
- Weight: 13.3 kg
- Mounting: VESA 75/100 mm
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 31.5" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 3G-SDI · DVI · VGA · HDMI 2.0 · HDMI 1.4 |
| Luminosity | 350cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | V-Mount · Gold Mount · 12V XLR · DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Tally · 3D LUT correction |
