Lilliput BM150-4KS
SKU: BM150-4KS
The Lilliput BM150-4KS is a 15.6″ 4K broadcast director monitor in a rugged carry-on case for studio and field use. The 3840 × 2160 panel displays 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, and offers HDR10, custom 3D LUT loading via USB and quad view. It runs on mains or V-Lock / Anton Bauer batteries and can also be rack-mounted.
1 209 € with VAT
999.17 € without VAT
Availability
on request
Lilliput BM120-4KS 12.5" 4K Director Monitor with SDI, HDR & 3D LUT in Hard Case
940.42 €without VAT 777.21 €
Lilliput BM310-4KS 31.5" 4K HDMI Carry-On Broadcast Monitor
1 579 €without VAT 1 304.96 €
Lilliput BM230-4KS
In stock 2 pcs1 339 €without VAT 1 106.61 €
Lilliput BM281-4KS - 28" 4K HDR LUT Monitor in Carry Case
1 339 €without VAT 1 106.61 €Top accessories for Lilliput BM150-4KS
SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 4985
SmallRig X221 V-mount battery with 221 Wh capacity, a touchscreen display and eight
559 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput BM150-4KS is a 15.6″ 4K broadcast director monitor in a rugged carry-on case for studio and field use. The 3840 × 2160 panel displays 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, and offers HDR10, custom 3D LUT loading via USB and quad view. It runs on mains or V-Lock / Anton Bauer batteries and can also be rack-mounted.

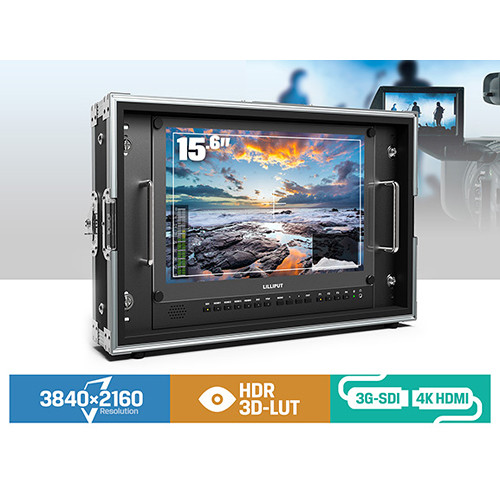

15.6" 4K monitor in a case for studio and field
A 3840 × 2160 director monitor with HDR and 3D LUT that you carry in its case, stand on a desk or build into a rack.
15.6" 4K UHD330 cd/m²3G-SDI + 4× HDMIHDR10 & 3D LUTV-Lock / AB

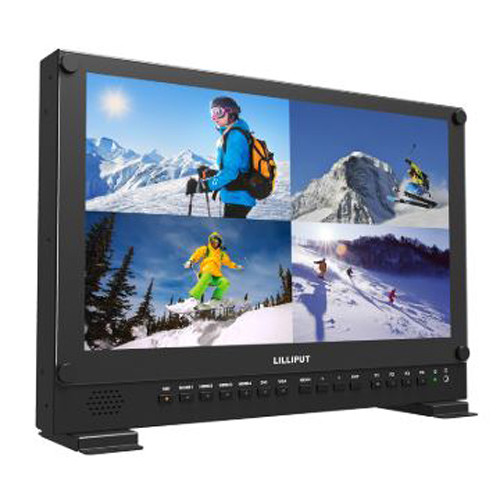

Four sources on one screen
Quad view displays signals from different inputs at the same time – SDI, HDMI, DVI and VGA – so you can watch several cameras or sources on a single monitor.

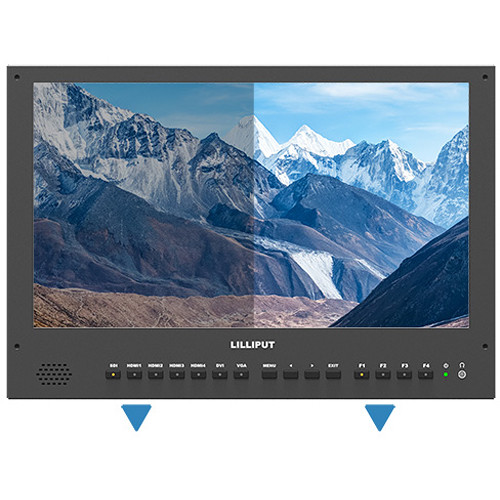

HDR10
Sharper images, greater detail and richer colors on the HDMI input.
Custom 3D LUTs
Load .cube files from a USB flash drive; S-Log, S-Log2 and S-Log3 supported.
4K 60 Hz via HDMI
Two HDMI 2.0 inputs accept 4K 60 Hz, two HDMI 1.4 inputs 4K 30 Hz.

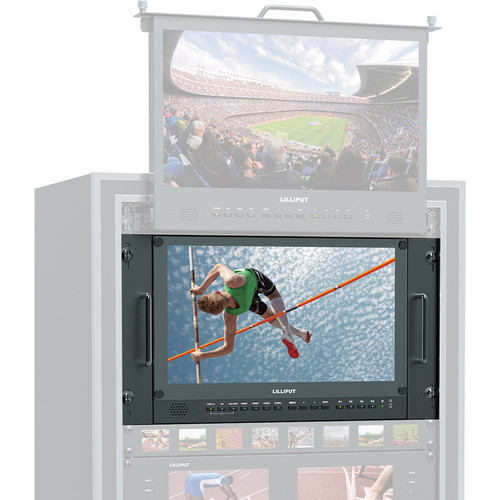

Case or rack
Carry case for transport, VESA 75/100 mm mounting and rack installation.
More information
About the monitor
The monitor is built into a durable hard case suitable for studio and field use. It offers multiple inputs including HDMI and SDI, works with sources up to 4K resolution, and supports adjustable HDR as well as built-in and custom 3D LUTs loaded via USB.
It can be powered by the included adapter or a battery plate, the 75/100 mm VESA mount makes it easy to set up on a stand, and rubber feet on the case allow vertical positioning. The included sunshade improves visibility outdoors.
PACKAGE CONTENT
- 1× monitor Lilliput BM150-4KS
- 1× carrying case
- 1× power adapter
- 1× sunshade
SPECIFICATIONS
- Brand: Lilliput
- Model: BM150-4KS
- Display: 15.6"
- Resolution: 3840 × 2160 (4K UHD), 16:9
- Brightness: 330 cd/m²
- Contrast: 1,000:1
- Viewing angle (H/V): 176° / 176°
- HDR: HDR10 (HDMI input)
- Supported log formats: Sony S-Log / S-Log2 / S-Log3
- LUT: 3D LUT (.cube format), loaded via USB
- Calibration: Rec.709 with optional calibration probe

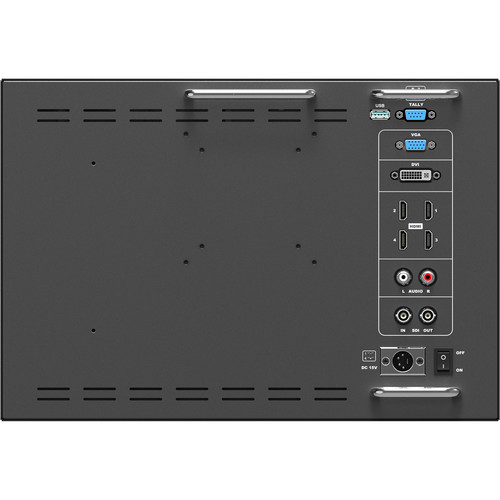

- Video inputs: 1× 3G-SDI, 2× HDMI 2.0 (up to 4K 60 Hz), 2× HDMI 1.4 (up to 4K 30 Hz), DVI, VGA
- Video outputs: 1× 3G-SDI (loop)
- SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: SDI 12 ch 48 kHz/24-bit, HDMI 2 ch, 1 built-in speaker, 3.5 mm headphones
- Functions: HDR, 3D LUT, quad view, peaking, false color, exposure (zebra), histogram, audio level meter, markers, check field, aspect ratio, zoom
- Power: DC 12–24 V (XLR)
- Batteries: V-Lock or Anton Bauer, 14.4 V nominal
- Power consumption: ≤ 32 W
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 389 × 267 × 38 mm / 524 × 305 × 170 mm (with case)
- Weight: 3.4 kg / 12 kg (with case)
- Mounting: VESA 75/100 mm
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 15.6" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 3G-SDI · DVI · VGA · HDMI 2.0 · HDMI 1.4 |
| Luminosity | 330cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | V-Mount · Gold Mount · 12V XLR · DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | Quad split · HDR · Tally · 3D LUT correction |
