Lilliput BM281-4KS - 28" 4K HDR LUT Monitor in Carry Case

+2
  • Free transport
SKU: BM281-4KS

The Lilliput BM281-4KS is a 28″ 4K broadcast director monitor with a 10-bit 3840 × 2160 panel, supplied in a carry-on case with a folding sunshade. Designed for FHD, 4K and 8K cameras, switchers and other signal transmission devices, it accepts 3G-SDI, four HDMI, DVI and VGA, shows four inputs at once and offers HDR, 3D LUT and color calibration via ColourSpace…

More information

1 339 € with VAT 1 106.61 € without VAT
Add to Compare Price history
Availability
on request
SKU:
BM281-4KS
Add to Compare Price history

Lilliput BM120-4KS 12.5" 4K Director Monitor with SDI, HDR & 3D LUT in Hard Case

940.42 €without VAT 777.21 €

Lilliput BM310-4KS 31.5" 4K HDMI Carry-On Broadcast Monitor

1 579 €without VAT 1 304.96 €

Lilliput BM150-4KS

1 209 €without VAT 999.17 €

Lilliput BM230-4KS

In stock 2 pcs1 339 €without VAT 1 106.61 €

Top accessories for Lilliput BM281-4KS - 28" 4K HDR LUT Monitor in Carry Case

SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 4985

SmallRig X221 V-mount battery with 221 Wh capacity, a touchscreen display and eight
559 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Canare HDMI Cable 3 m

  • New
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC

  • New
  • LAST PIECE
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput BM281-4KS is a 28″ 4K broadcast director monitor with a 10-bit 3840 × 2160 panel, supplied in a carry-on case with a folding sunshade. Designed for FHD, 4K and 8K cameras, switchers and other signal transmission devices, it accepts 3G-SDI, four HDMI, DVI and VGA, shows four inputs at once and offers HDR, 3D LUT and color calibration via ColourSpace CMS. Power via DC 12–24 V or V-mount / Anton Bauer batteries.

28" 4K monitoring in a case with sunshade

A 10-bit 3840 × 2160 panel for multi-camera directing – on set, at live events and in the studio, with a carrying case included.

Lilliput BM281-4KS
28" 4K, 10-bit300 cd/m²3G-SDI + 4× HDMIHDR & 3D LUTV-mount / AB

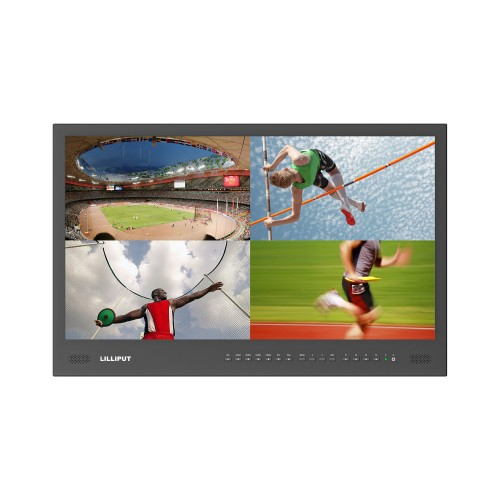

Four cameras on one monitor

Quad view displays signals from different inputs at the same time – SDI, HDMI, DVI and VGA. The large 28" display replaces several smaller monitors on multi-camera shoots.

Accurate color

Native, Rec.709 and 3 user color spaces, calibration via ColourSpace CMS PRO/LTE.

HDR & 3D LUT

HDR Auto / HDR10, built-in 3D LUTs and 3 user logs via USB.

Quick control

F1–F4 buttons as function shortcuts and a dial for adjusting values.

Case or desk

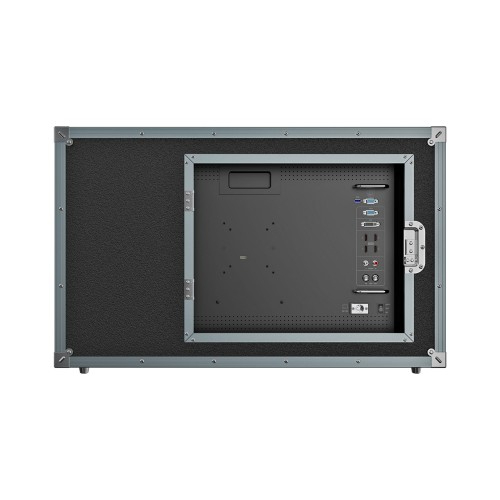

Carrying case, base brackets, VESA 75/100 mm and battery mount.

Lilliput BM281-4KS – infographic 1Lilliput BM281-4KS – infographic 2Lilliput BM281-4KS – infographic 3Lilliput BM281-4KS – infographic 4Lilliput BM281-4KS – infographic 5Lilliput BM281-4KS – infographic 6Lilliput BM281-4KS – infographic 7

More information

About the monitor

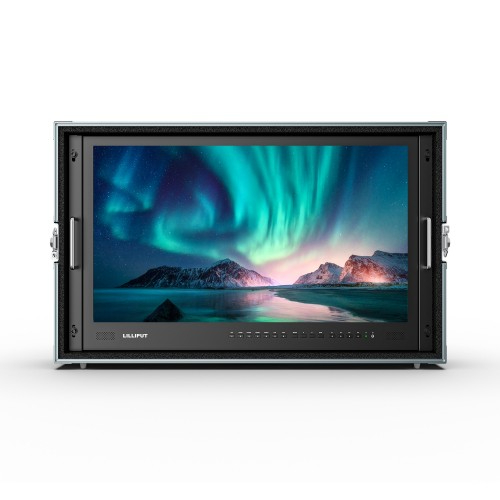

Its headline feature is a 3840 × 2160 Ultra HD native resolution screen, offering fine picture quality and accurate color representation. The inputs accept 3G-SDI and four 4K HDMI signals, and quad view from different input signals makes it an efficient solution for multi-camera monitoring.

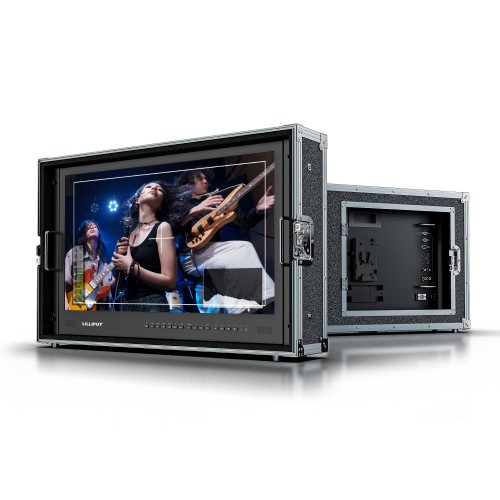

The monitor can be used as a stand-alone desktop unit or as a road-capable unit in its rugged flight case. It is well suited to in-studio filming, live events, small film productions and many other applications.

PACKAGE CONTENT

  • 1× monitor Lilliput BM281-4KS
  • 1× carrying case
  • 1× folding sunshade
  • 1× 15 V / 4 A DC power adapter
  • 1× adapter fixing belts (2 pcs)
  • 1× battery plate bracket
  • 1× pair of base brackets
  • 1× V-mount or Anton Bauer battery mount
  • 1× tally connector
  • 1× user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: BM281-4KS
  • Display: 28" 10 bit
  • Resolution: 3840 × 2160 (4K UHD), 16:9
  • Brightness: 300 cd/m²
  • Contrast: 1,000:1
  • Viewing angle (H/V): 178° / 178°
  • Color space: native, Rec.709 and 3 user-defined
  • Calibration: ColourSpace CMS (Light Illusion), PRO/LTE version
  • HDR: Auto / HDR10
  • LUT: 3D LUT (.cube) via USB, 3 user logs
  • Video inputs: 1× 3G-SDI, 2× HDMI 2.0 (up to 4K 60 Hz), 2× HDMI 1.4b (up to 4K 30 Hz), DVI, VGA
  • Video outputs: 1× 3G-SDI
  • SDI formats: 480i, 576i, 720p, 1080i, 1080p 23.98–60, 1080PsF
  • HDMI formats: 4K, 1080p, 1080i, 720p, 576p, 576i, 480p

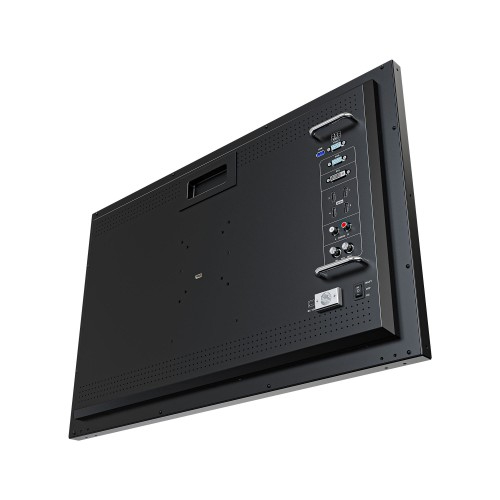

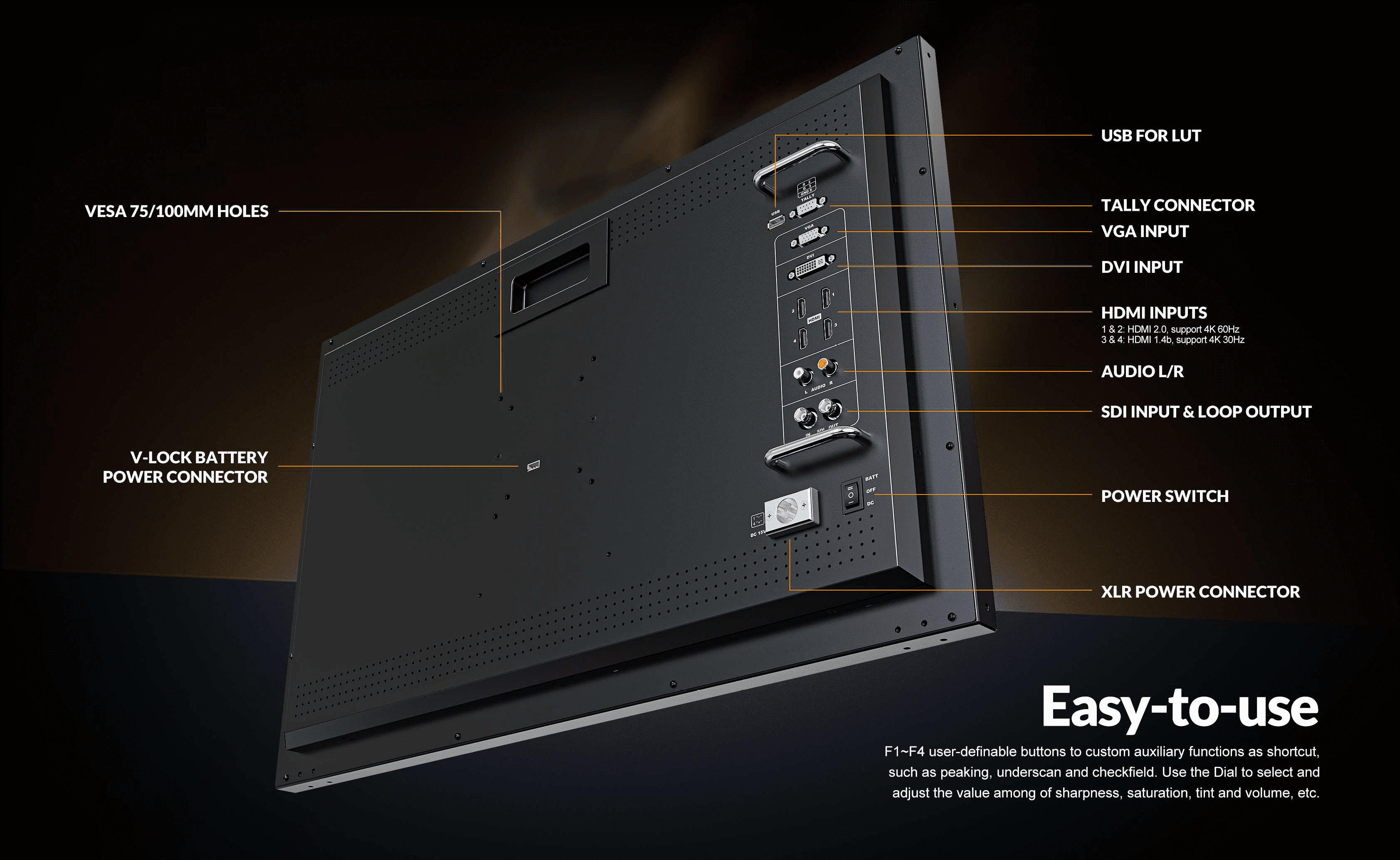

  • Other interfaces: audio L/R, tally, USB (3D LUT)
  • Audio: 2 speakers, 3.5 mm headphones
  • Functions: quad view, HDR, 3D LUT, peaking, false color, audio level meter, underscan, check field, user buttons F1–F4, dial
  • Power: DC 12–24 V (XLR)
  • Batteries: V-mount or Anton Bauer
  • Power consumption: ≤ 51 W
  • Operating temperature: 0 to 60 °C
  • Storage temperature: -20 to 60 °C
  • Dimensions (L × W × D): 663 × 425 × 43.8 mm / 761 × 474 × 173 mm (with case)
  • Weight: 9 kg / 21 kg (with case)
  • Mounting: VESA 75/100 mm
Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p
Size28"
Monitor inputsHDMI · SDI · 4K HDMI · 3G-SDI · DVI · VGA · HDMI 2.0 · HDMI 1.4
Luminosity300cd/m2
Panel resolution3840x2160
Monitor power supplyGold Mount · 12V XLR · DC 12–24 V

Other parameters

TallyYes
Other featuresQuad split · HDR · Tally · 3D LUT correction
