Lilliput BM120-4KS 12.5" 4K Director Monitor with SDI, HDR & 3D LUT in Hard Case

  • -3 %
SKU: BM120-4KS

The Lilliput BM120-4KS is a 12.5″ 4K broadcast director monitor built straight into a rugged hard case. The 3840 × 2160 display with 400 cd/m² sits in the lid, while the connectors and V-mount battery plate are protected in the base. It accepts 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, and offers HDR, 3D LUT and quad view – ideal for…

More information

Promotion: -3%
966.79 € 940.42 € with VAT 777.21 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
BM120-4KS
Add to Compare Price history

Lilliput BM310-4KS 31.5" 4K HDMI Carry-On Broadcast Monitor

1 579 €without VAT 1 304.96 €

Lilliput BM150-4KS

1 209 €without VAT 999.17 €

Lilliput BM230-4KS

In stock 2 pcs1 339 €without VAT 1 106.61 €

Lilliput BM281-4KS - 28" 4K HDR LUT Monitor in Carry Case

1 339 €without VAT 1 106.61 €

Top accessories for Lilliput BM120-4KS 12.5" 4K Director Monitor with SDI, HDR & 3D LUT in Hard Case

SmallRig X-Touch Smart Triple-Proof V-Mount Battery X221 4985

SmallRig X221 V-mount battery with 221 Wh capacity, a touchscreen display and eight
559 €
In stock > 5 pcs

Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC

  • New
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs

Canare HDMI Cable 3 m

  • New
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs

Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC

  • New
  • LAST PIECE
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Lilliput BM120-4KS is a 12.5″ 4K broadcast director monitor built straight into a rugged hard case. The 3840 × 2160 display with 400 cd/m² sits in the lid, while the connectors and V-mount battery plate are protected in the base. It accepts 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, and offers HDR, 3D LUT and quad view – ideal for directing on set and in the field.

4K monitoring that fits in a case

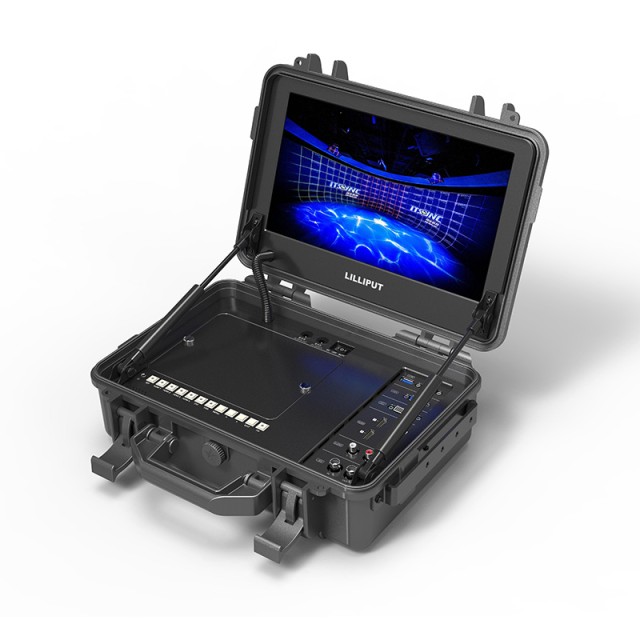

Just open the lid: the 12.5" 3840 × 2160 display is ready instantly, while the connectors and battery stay protected in the base of the case.

Lilliput BM120-4KS
12.5" 4K UHD400 cd/m²3G-SDI + 4× HDMIHDR & 3D LUTV-mount

Everything in one case

Monitor, inputs, outputs and power form a single unit. Two pistons hold the lid so it can neither slam shut nor be jerked open, and the connections are protected from dust, water and knocks during transport and storage.

4 inputs at once

Quad view shows different sources side by side – SDI, HDMI, DVI and VGA.

HDR & 3D LUT

HDR for truer highlights and shadows; load .cube 3D LUTs from USB.

Camera assist

Peaking, false color, zebra, histogram, audio level meter and markers.

Battery power

V-mount plate, DC 10–24 V input and a DC 8 V output for accessories.

Lilliput BM120-4KS – infographic 1Lilliput BM120-4KS – infographic 2Lilliput BM120-4KS – infographic 3Lilliput BM120-4KS – infographic 4Lilliput BM120-4KS – infographic 5Lilliput BM120-4KS – infographic 6Lilliput BM120-4KS – infographic 7

More information

About the monitor

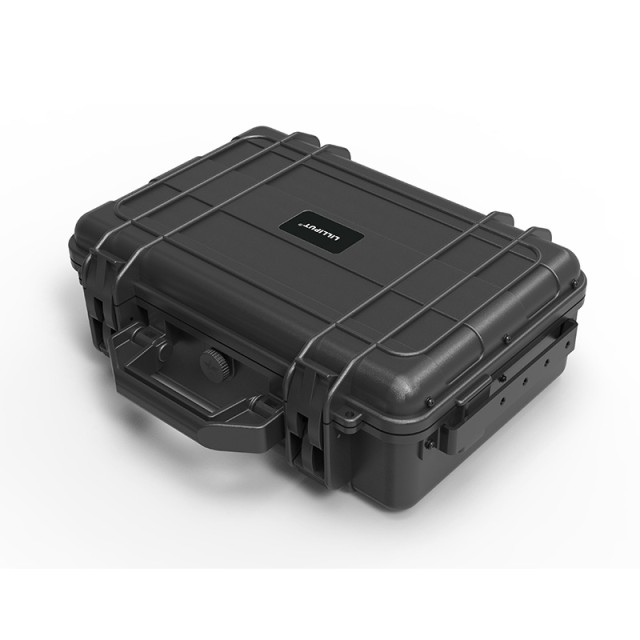

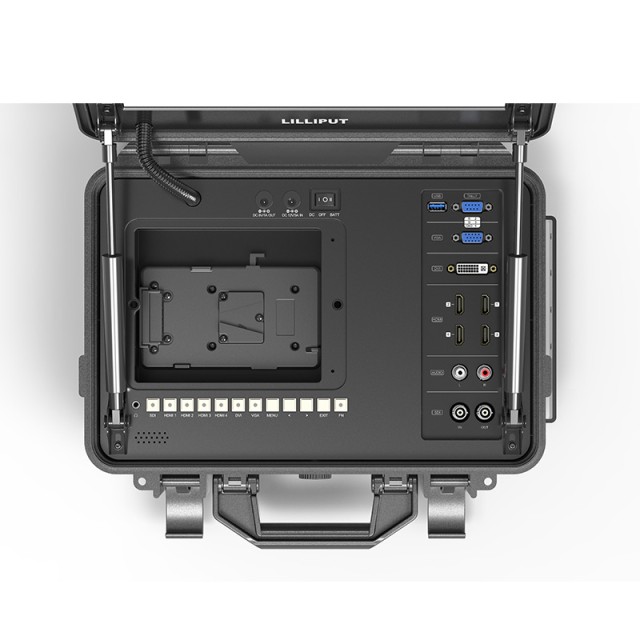

The monitor is built for travel and location work: everything packs into a hard case, so you carry it as a single piece of luggage and simply open the lid on site. The 3840 × 2160 panel is in the lid; the base holds the V-mount battery plate and all inputs and outputs.

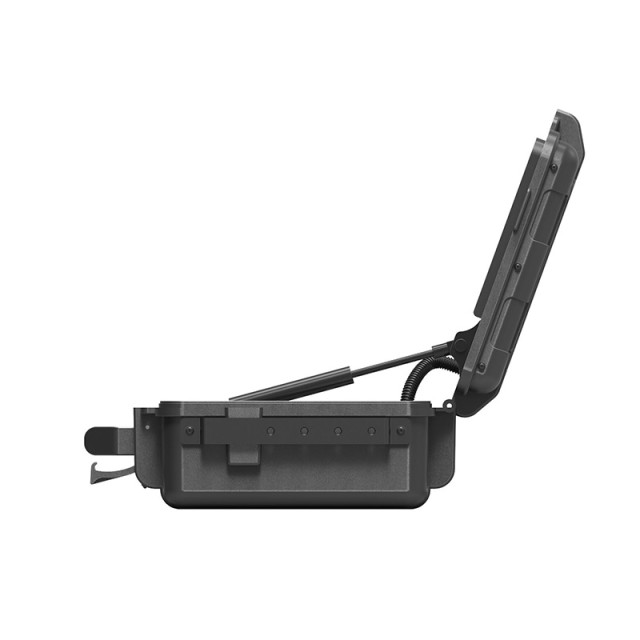

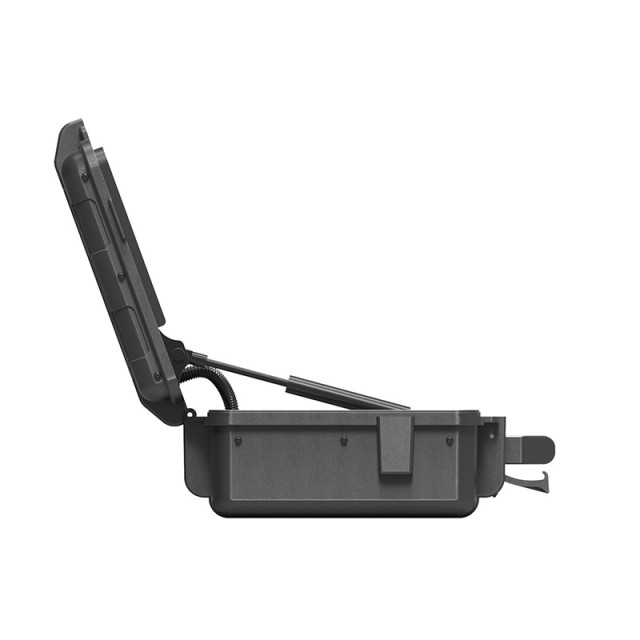

The case protects the connections from dust, water and damage during transport and storage. Two pistons in the lid prevent it from being jerked open or slamming shut, protecting the built-in display.

PACKAGE CONTENT

  • 1× Lilliput BM120-4KS monitor built into the hard case
  • 1× V-mount battery plate
  • 1× tally connector
  • 1× sunshade
  • 1× USB flash drive

SPECIFICATIONS

  • Brand: Lilliput
  • Model: BM120-4KS
  • Display: 12.5" LCD
  • Resolution: 3840 × 2160 (4K UHD), 16:9
  • Brightness: 400 cd/m²
  • Contrast: 1,500:1
  • Viewing angle (H/V): 170° / 170°
  • Video inputs: 1× 3G-SDI (up to 1080p 60 Hz), 2× HDMI 2.0 (up to 4K 60 Hz), 2× HDMI 1.4b (up to 4K 30 Hz), DVI, VGA, audio L/R
  • Video outputs: 1× 3G-SDI
  • Other interfaces: tally, USB (3D LUT loading), DC 8 V power output
  • Audio: 1 speaker, 3.5 mm headphones
  • Functions: HDR, 3D LUT, quad view, peaking, false color, exposure (zebra), histogram, audio level meter, markers, check field, aspect ratio, zoom
  • Power: DC 10–24 V, V-mount battery plate
  • Power consumption: ≤ 23 W
  • Operating temperature: 0 to 50 °C
  • Storage temperature: 10 to 60 °C
  • Dimensions (L × W × D): 356.8 × 309.8 × 122.1 mm
  • Weight: 4.35 kg (including accessories)
Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p
Size12.5"
Monitor inputsHDMI · SDI · 4K HDMI · 3G-SDI · DVI · VGA · HDMI 2.0 · HDMI 1.4
Luminosity400cd/m2
Panel resolution3840x2160
Monitor power supplyV-Mount

Other parameters

TallyYes
Other featuresQuad split · HDR · Tally · 3D LUT correction
