RGBlink RMS1A with Desktop Accessory

The RGBlink RMS1A is a compact 8-inch LCD monitor for monitoring applications. It auto-detects a wide range of input resolutions with automatic scaling and aspect ratio. It can be desk-mounted or rack-mounted (optional kit), including several units side by side. It has a DVI input with loop-through and a USB port for playing media files.

Compact 8″ desktop monitor

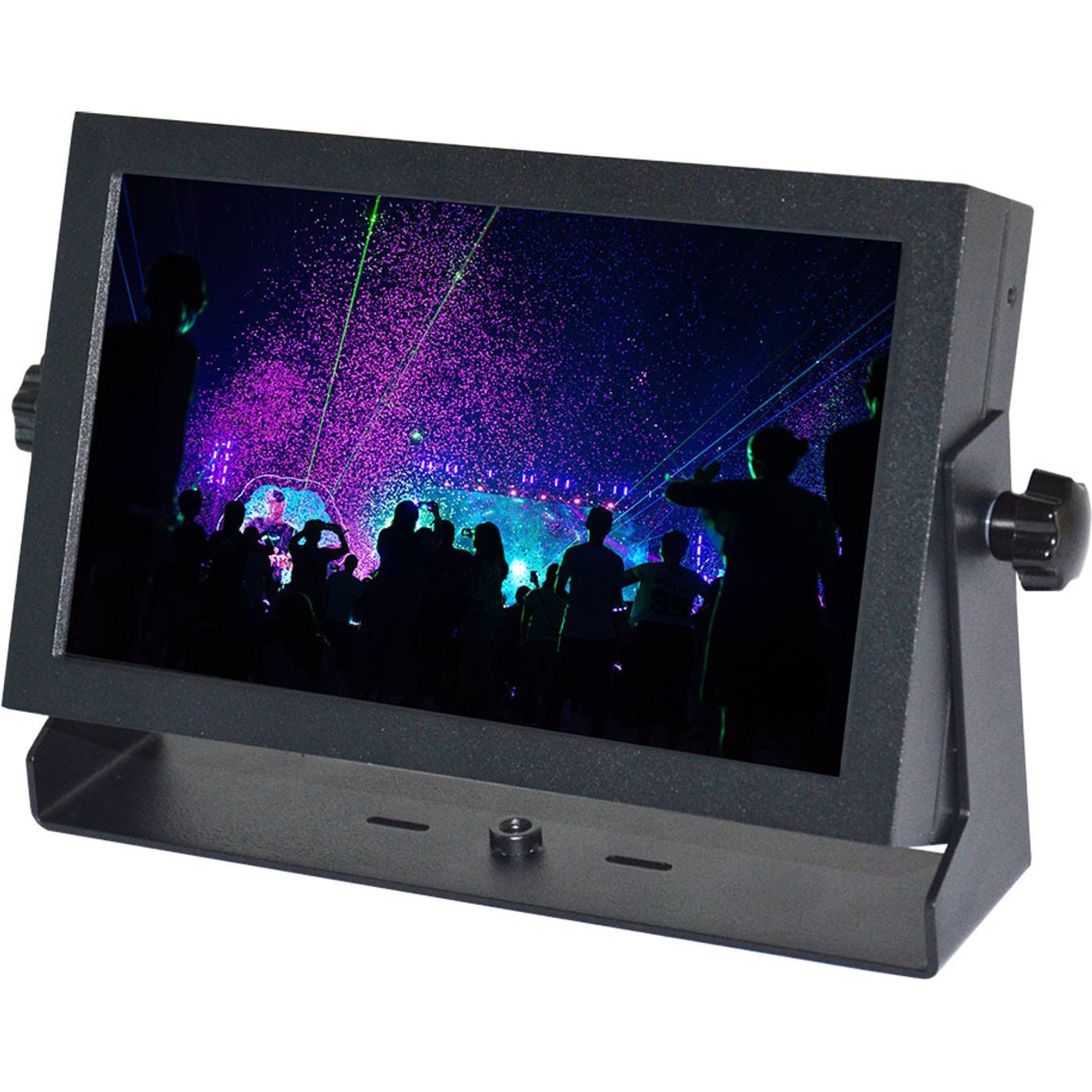

The RMS1A is a self-contained 8″ LCD monitor with a resolution of 1024 × 600, 500 cd/m² brightness and a 140° × 140° viewing angle. This set comes with a desktop stand on which the monitor tilt is set with a screw. The monitor itself weighs 0.9 kg.

DVI input, loop-through and USB

The DVI-I input also accepts VGA and composite video through an adapter. The DVI loop-through output passes the same signal on, for example to another RMS1A or to a video processor. The monitor plays media files from a USB drive and detects the active input automatically at power-on. It runs on 12 V DC and draws 24 W at most.

More information

• 8" LCD display
• Auto-detection of a wide range of input resolutions
• Automatic scaling and aspect ratio
• Optional accessories for desk and rack mounting
• Compact monitoring solution
