Feelworld WPC156

The Feelworld WPC156 is a 15.6-inch Full HD field monitor housed in a portable waterproof case. With 1000 nits brightness, 4K HDMI input, and advanced monitoring tools like waveform, vectorscope, histogram, focus assist, false color, and 3D-LUT support, it is ideal for outdoor shoots, professional video production, and on-location monitoring.

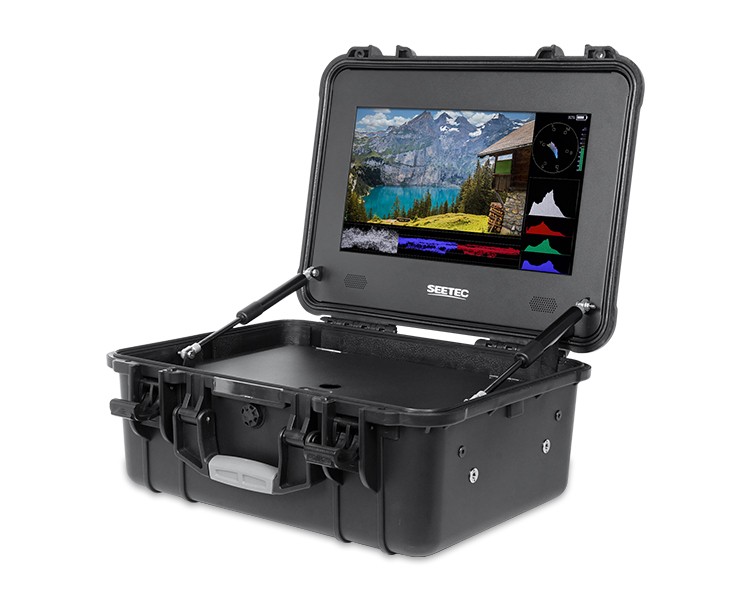

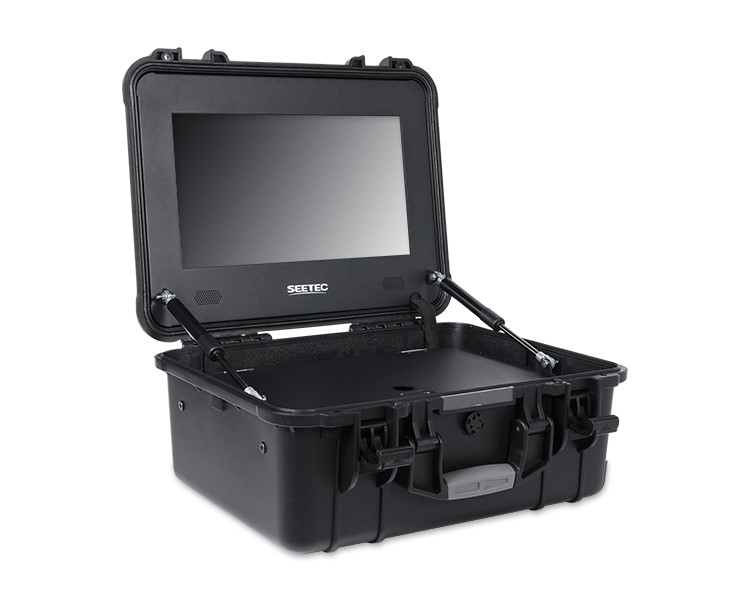

The Feelworld WPC156 15.6" Full HD Monitor delivers professional-grade video monitoring in a rugged, waterproof portable case, making it perfect for demanding outdoor and on-location shoots. The 1000-nit high-brightness display ensures clear visibility even in direct sunlight, while the intuitive button interface and touchscreen functions make operation straightforward and flexible.

This monitor supports HDMI input up to 4K@30Hz, allowing seamless connection to DSLRs, mirrorless cameras, cinema cameras, and video transmitters. Custom 3D-LUTs let you preview film looks in real-time, helping cinematographers, DPs, and directors make precise color decisions on set.

For accurate image analysis, the WPC156 provides waveform, vectorscope, RGB histogram, focus assist (red, green, blue), embedded audio monitoring, false color, over-exposure check, nine-grid, center marker, safety markers, ratio markers, anamorphic support, image flip, zoom modes, freeze, pixel-to-pixel display, and color temperature adjustments (5600K, 6500K, 9300K, user).

The monitor is designed for mounting flexibility, with multiple 1/4"-20 threads for accessories like wireless video transmitters and a built-in metal bracket for tripod use. A stereo headphone output provides direct monitoring of audio on set.

Compact, robust, and versatile, the WPC156 ensures you can capture, monitor, and color-grade footage with confidence, even in challenging conditions.

Key Features:

• 15.6" Full HD IPS Screen – 1920 x 1080 resolution, 1000 nits brightness

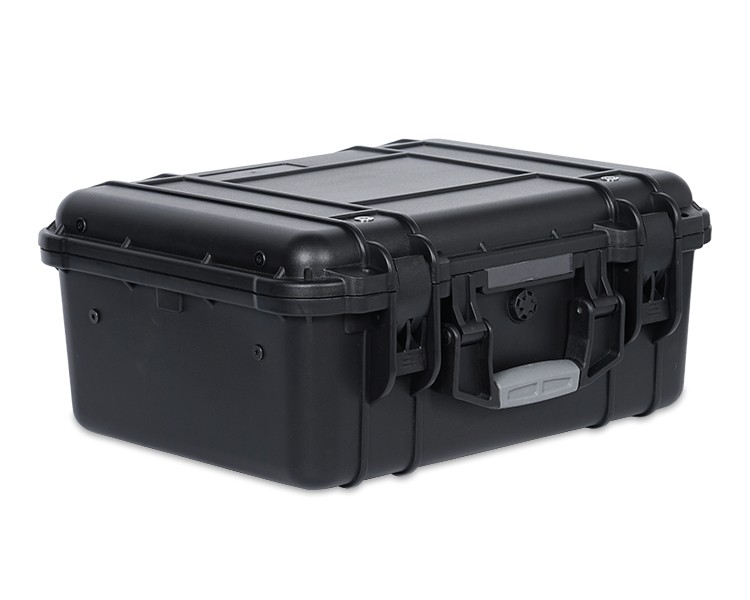

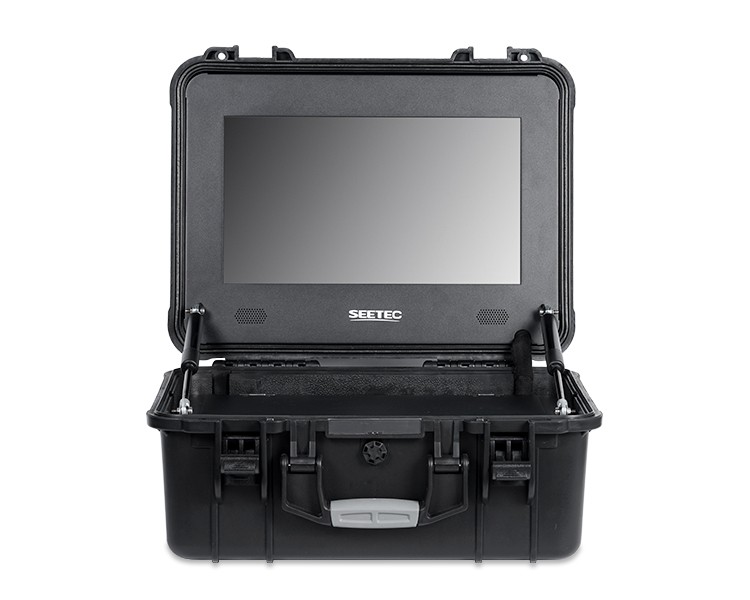

• Waterproof Portable Case – Ideal for rugged outdoor shooting

• HDMI Input – Supports up to 4K@30Hz

• Custom 3D-LUT Support – Preview film looks in real-time

• Professional Monitoring Tools – Waveform, vectorscope, RGB histogram, focus assist, false color, over-exposure check, center/safety/ratio markers, anamorphic support, image flip, freeze, pixel-to-pixel display

• Flexible Mounting Options – Multiple 1/4"-20 threads and built-in tripod bracket

• Stereo Audio Output – Headphone monitoring

• Color Temperature Control – 5600K, 6500K, 9300K, user-defined

Functions:

• All waves: waveform (RGB/YUV/Y), vectorscope, histogram (RGB1, RGB2, Y)

• Focus Assist (Red, Green, Blue highlight options)

• Embedded Audio monitoring

• Over-Exposure check (10–100)

• Check Field (Red, Green, Blue, Gray)

• False Color display

• Nine-Grid overlay

• Safety Markers (80%, 85%, 90%, 93%, 96%, 2.35:1)

• Center Marker

• Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)

• Scan Mode (Under Scan, Over Scan)

• Aspect Ratio adjustments (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)

• Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User adjustable)

• Image Flip (H, V, H+V)

• Zoom Mode (2X, 4X, 9X, 16X, User-defined)

• Freeze Frame

• Pixel-to-Pixel display

• Color Temperature (5600K, 6500K, 9300K, User-defined)
