Blackmagic Design DeckLink IP 100G

Two 100G ports for redundancy

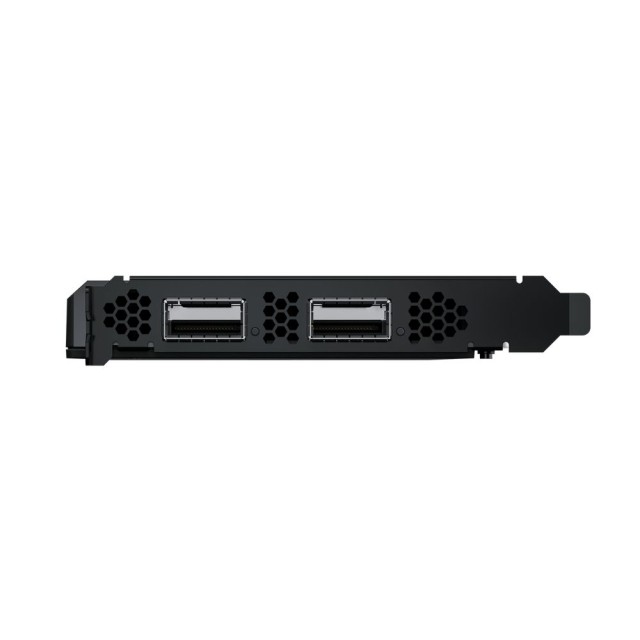

Two QSFP28 ports for 100 Gb/s optical modules allow redundant operation to SMPTE 2022-7 (receiver class A) or connection to two separate 100G Ethernet switches. QSFP28 modules are not included.

IP10 codec for 2160p60

Uncompressed 10-bit 2160p59.94 and 2160p60 video does not fit within the 10G Ethernet bandwidth per channel. The open Blackmagic IP10 codec lowers the data rate of these formats with only 8 samples of latency and minimal FPGA resources, so downstream 2110 IP products can stay smaller and more affordable.

Details for IP video workflows

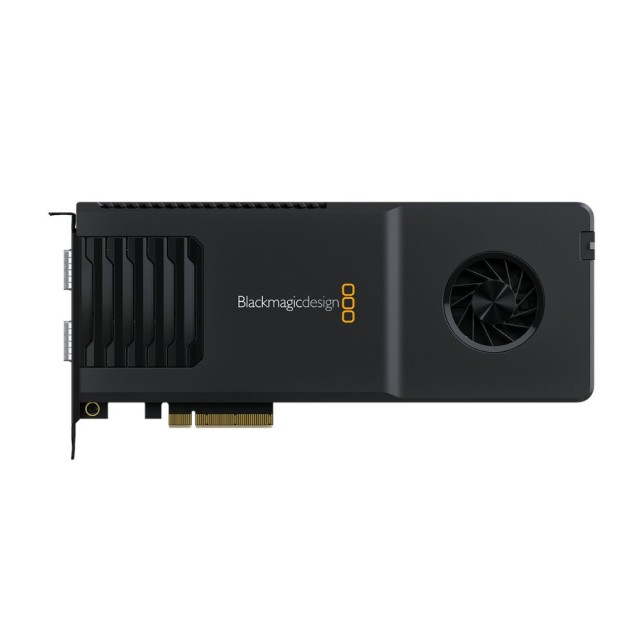

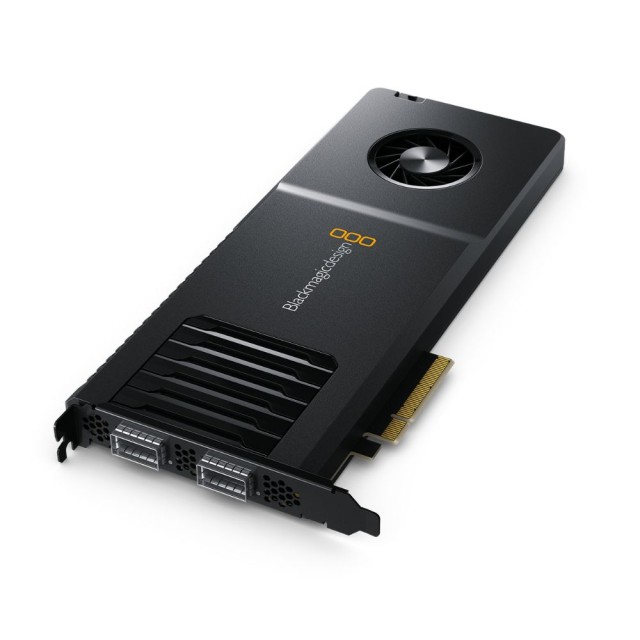

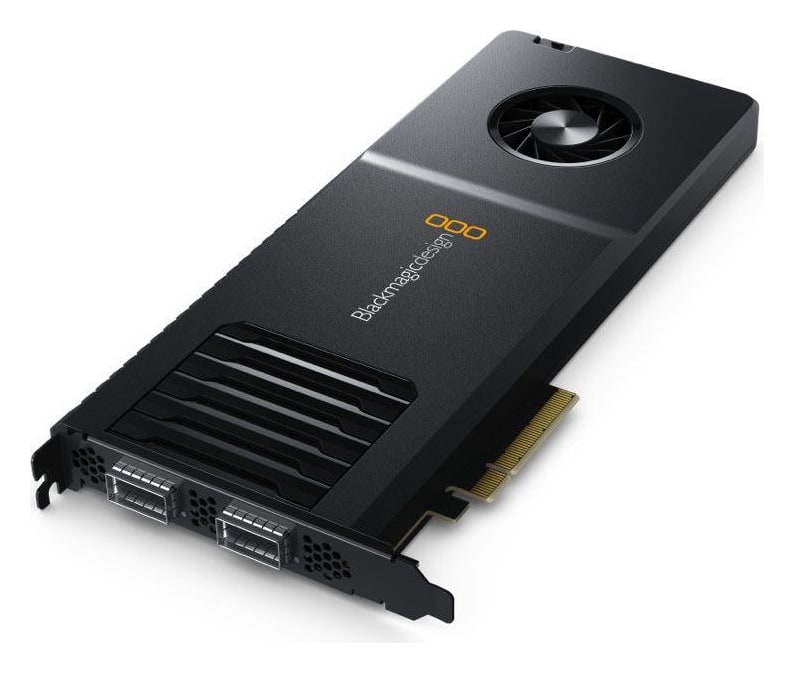

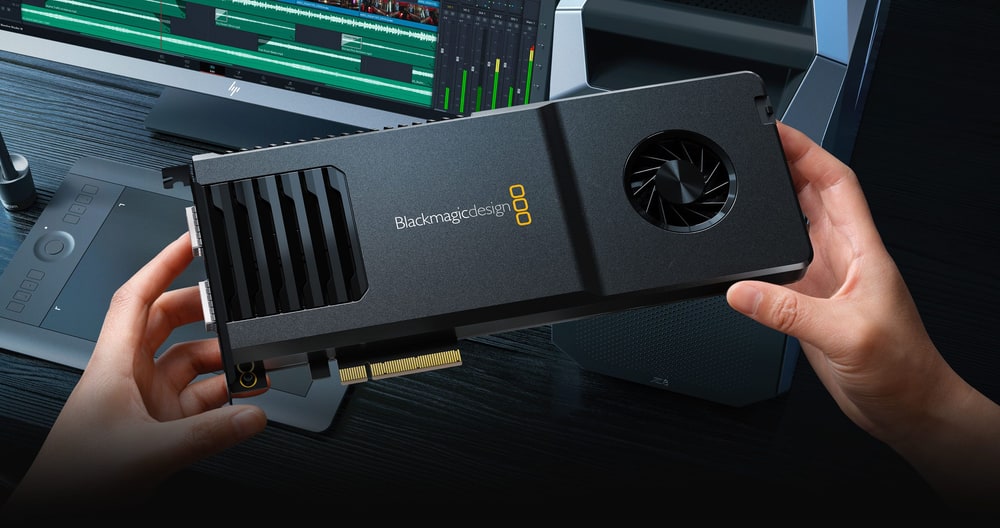

DeckLink IP 100G is a PCI Express generation 4 card for simultaneous capture and playback of up to eight channels of Ultra HD video in broadcast systems based on SMPTE 2110 IP. It connects via two 100G Ethernet QSFP28 optical ports, which provide full redundancy or connection to two separate 100G Ethernet switches.

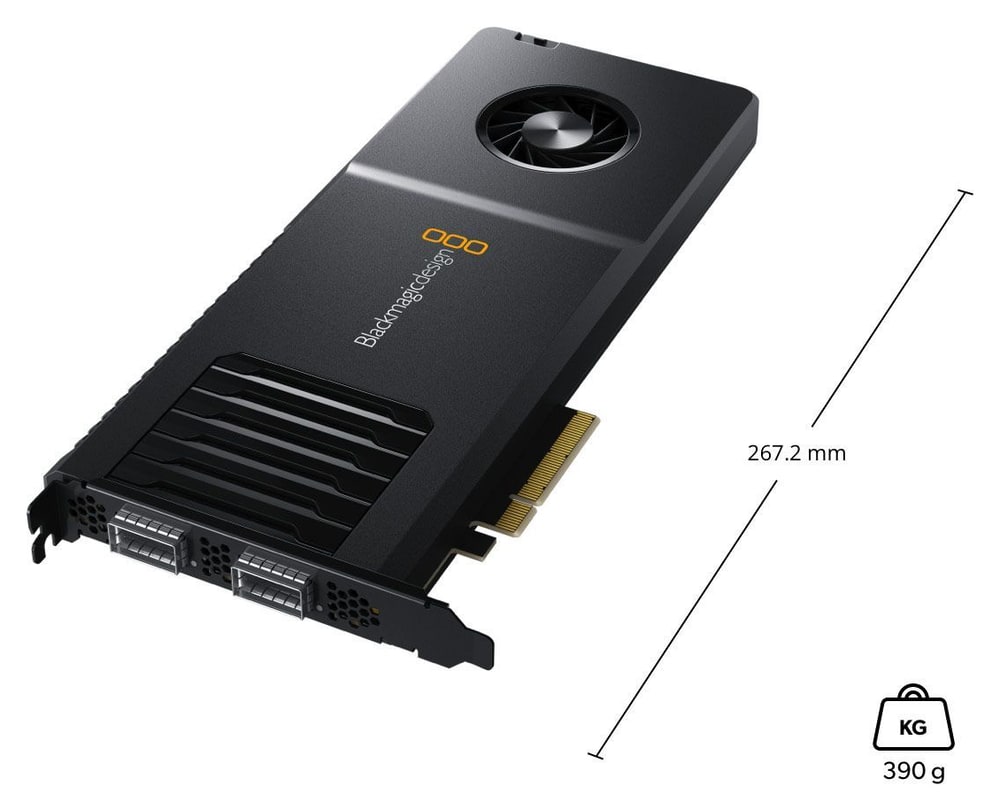

DeckLink IP 100G has built-in cooling. It supports GPUDirect RDMA for direct memory transfers between the DeckLink card and the GPU, reducing PCI Express bus load when processing video on the GPU and significantly lowering latency.

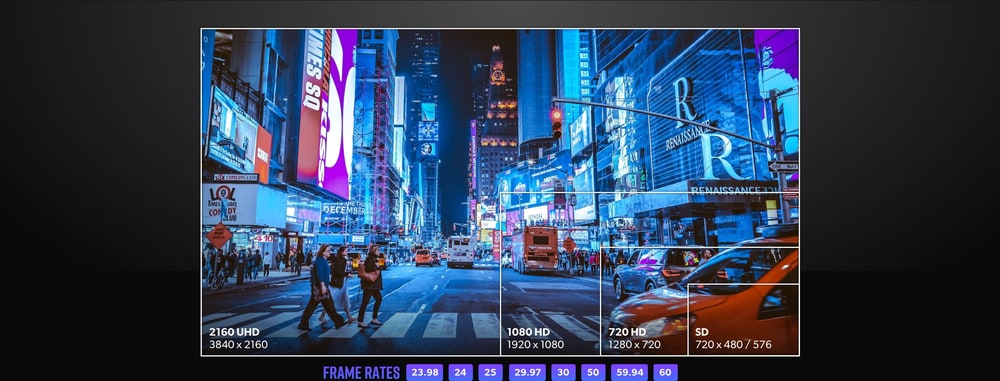

The card is designed to work with the highest quality video and supports capture and playback in Apple ProRes, DNxHD and even uncompressed 10-bit video. DeckLink IP 100G connections are multi rate, so they support all SD, HD and Ultra HD standards up to 2160p60.

On the DeckLink IP 100G model, the open standard IP10 codec lowers the data rate of the 2160p59.94 and 2160p60 television standards – with only 8 samples of latency. It is an extremely small codec that uses very few FPGA resources, so SMPTE 2110 IP video products remain affordable.

DeckLink IP 100G supports all popular video software. It is ideal for DaVinci Resolve as an editing and color correction solution in SMPTE 2110 IP broadcast systems. Because the card supports simultaneous capture and playback, you can use live grading in DaVinci Resolve – capture video, correct the color and output it at the same time. The card also works with other editing software such as Final Cut Pro, Media Composer or Premiere Pro, and with the visual effects applications Fusion, After Effects and Photoshop. A Windows WDM driver is also included.

Connections

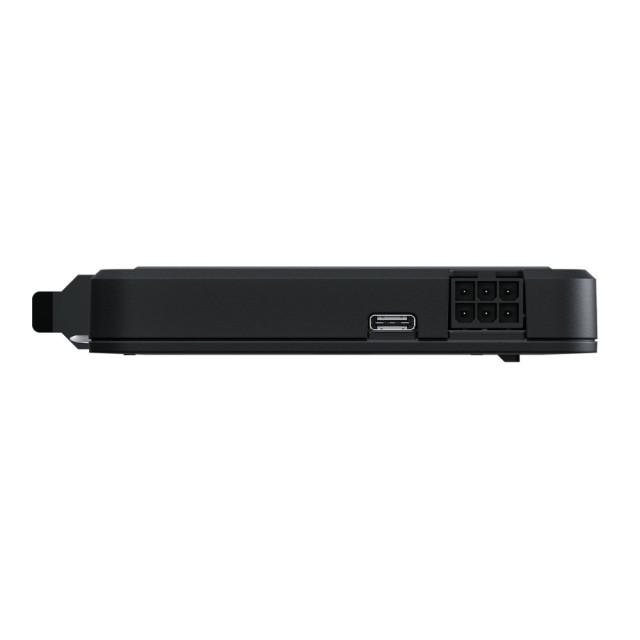

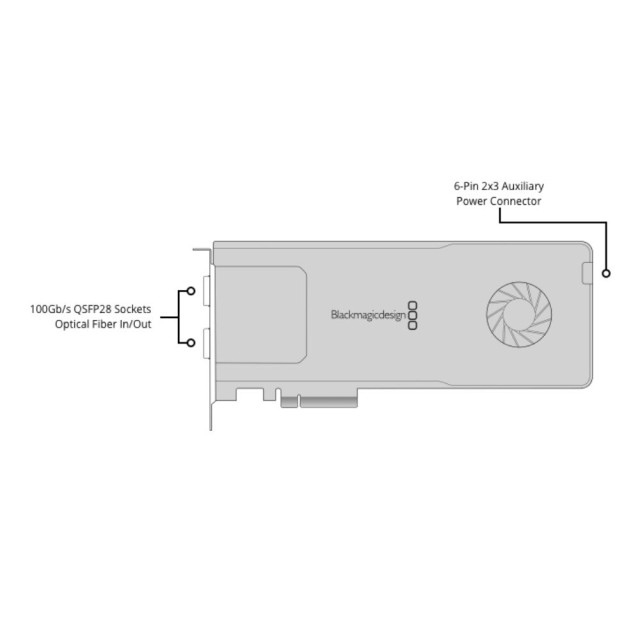

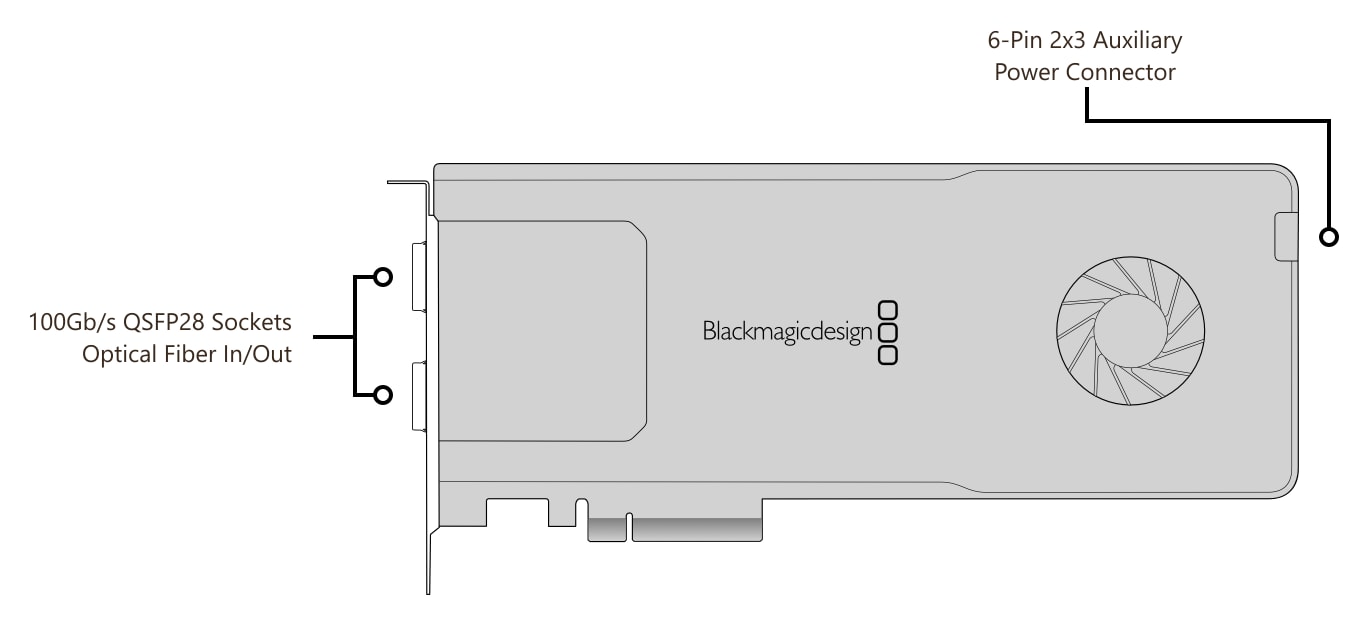

100G Ethernet ports: 2× 100 Gb/s QSFP28 connector. Computer interface: PCI Express x8 generation 4, compatible with x8 and x16 slots. Power: 6-pin 2×3 auxiliary connector.

Supported codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, ProRes 422 HQ, ProRes 422, ProRes LT, ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4.

What’s included
DeckLink IP 100G, welcome wallet with QR code for software download.
