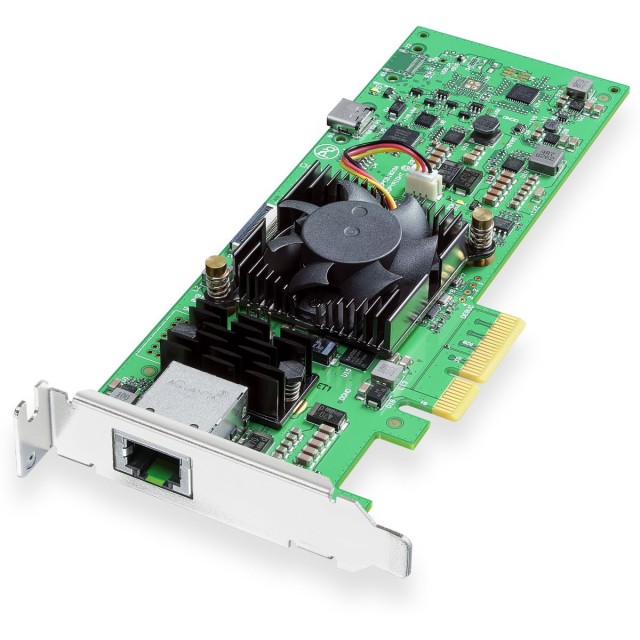

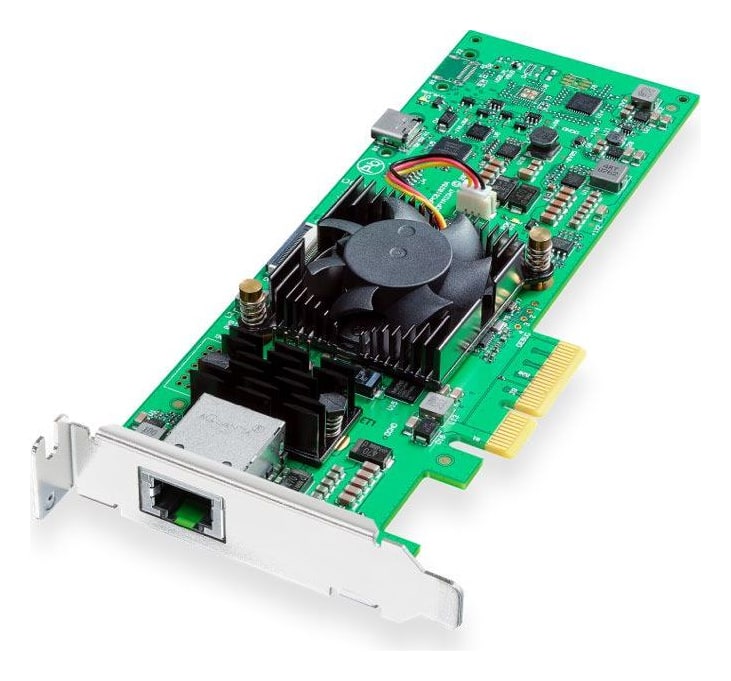

Blackmagic Design DeckLink IP HD
SKU: BDLKIPBIP/HD
Blackmagic DeckLink IP HD is a low profile PCI Express card for capturing and playing back video directly into SMPTE 2110 networks. Through a single 10G Ethernet port with an RJ45 connector it carries two input and two output channels of SD and HD up to 1080p60, each with 16 audio channels. It works with the same software as all other DeckLink cards on macOS,…
479 € with VAT
395.87 € without VAT
Personal pickup within 90 minutes
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Blackmagic Design DeckLink IP HD
Blackmagic Design DaVinci Resolve Studio
Promotion: -20% ends in: 22d: 10h: 12m
DaVinci Resolve Studio by Blackmagic Design is a professional application for editing,
246.84 €
308.55 €
Backordered > 5 pcs
Blackmagic Design 2110 IP Mini BiDirect 12G
Blackmagic 2110 IP Mini BiDirect 12G connects a camera with an SDI interface to an
569 €
To be sent 2 pcs
PremiumCord CAT6 UTP patch cable RJ45-RJ45, 5 m, blue
A category 6 UTP network patch cable with RJ45 connectors at both ends and straight-through
3 €
In stock 1 pcs
Blackmagic Design 2110 IP Converter 3x3G
Promotion: -35%
Blackmagic 2110 IP Converter 3x3G is a bidirectional rack converter for three separate
648.73 €
998.25 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic DeckLink IP HD is a low profile PCI Express card for capturing and playing back video directly into SMPTE 2110 networks. Through a single 10G Ethernet port with an RJ45 connector it carries two input and two output channels of SD and HD up to 1080p60, each with 16 audio channels. It works with the same software as all other DeckLink cards on macOS, Windows and Linux computers.
SMPTE 2110 over a standard RJ45 port
Two capture and two playback channels in one low profile card – for broadcast graphics servers, virtual sets and editing workstations connected to 2110 IP infrastructure.
SMPTE 211010G Ethernet RJ452× capture + 2× playbackUp to 1080p60Low profile
Built-in video firewall
The Ethernet port carries only video and audio from the card’s frame buffers – rogue software and hackers cannot reach the 2110 IP network through the computer.
Broadcast graphics
Title and graphics servers directly on the 2110 network.
Virtual sets
Rendered scenes output into the IP infrastructure.
Editing and grading
DaVinci Resolve as a workstation on the 2110 network.
Automation and streaming
Playout, broadcast automation and streaming servers.

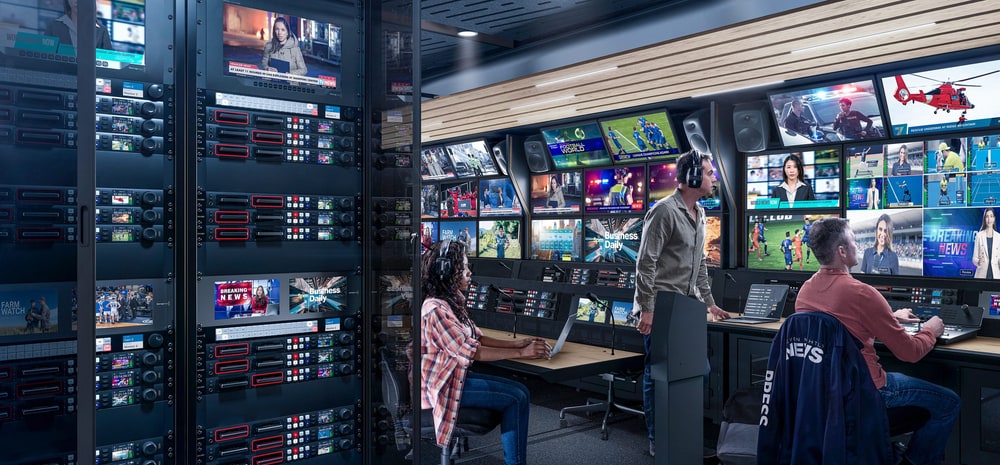

Two inputs and two outputs over one port
The 10GBASE-T port carries two input and two output channels at the same time, each up to 1080p60 with 16 channels of embedded 48 kHz / 24-bit audio. You connect the card to standard 10G Ethernet switches and existing cabling in server rooms, control rooms and at workstations.
Full SMPTE 2110 and PTP support
The card conforms to SMPTE 2110-20 (uncompressed video), 2110-21 (traffic shaping), 2110-30 (PCM audio) and 2110-40 (ancillary data). Video, audio and data travel over the network independently, multicast distributes one source to many destinations and a common PTP clock (IEEE 1588, ST 2059) keeps all sources in sync.

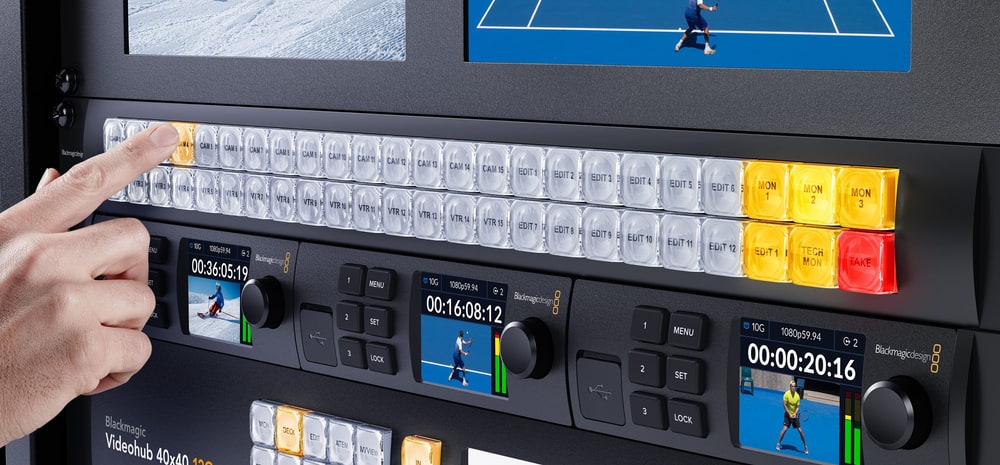

A virtual router with NMOS
Support for NMOS IS-04 (discovery and registration) and IS-05 (connection management) lets you control 2110 IP devices as one large virtual router. You connect sources and destinations just like on a traditional SDI router – for example from Videohub Smart Control, which works as an NMOS controller.
Broadcast quality
The card works with 10-bit YUV 4:2:2 in all formats and with 8, 10 and 12-bit RGB 4:4:4 up to 1080p30, in Rec. 601, 709 and 2020 color spaces. Capture to ProRes, DNxHD or uncompressed 10-bit video keeps images free of generational loss for keying, compositing and color correction.

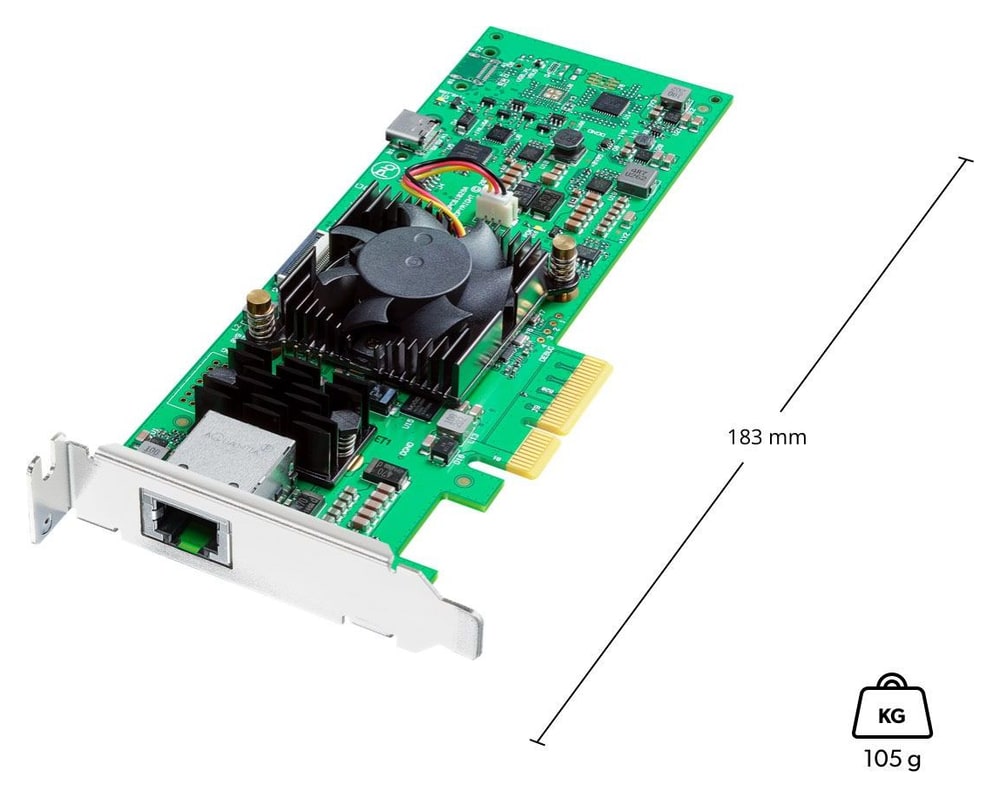

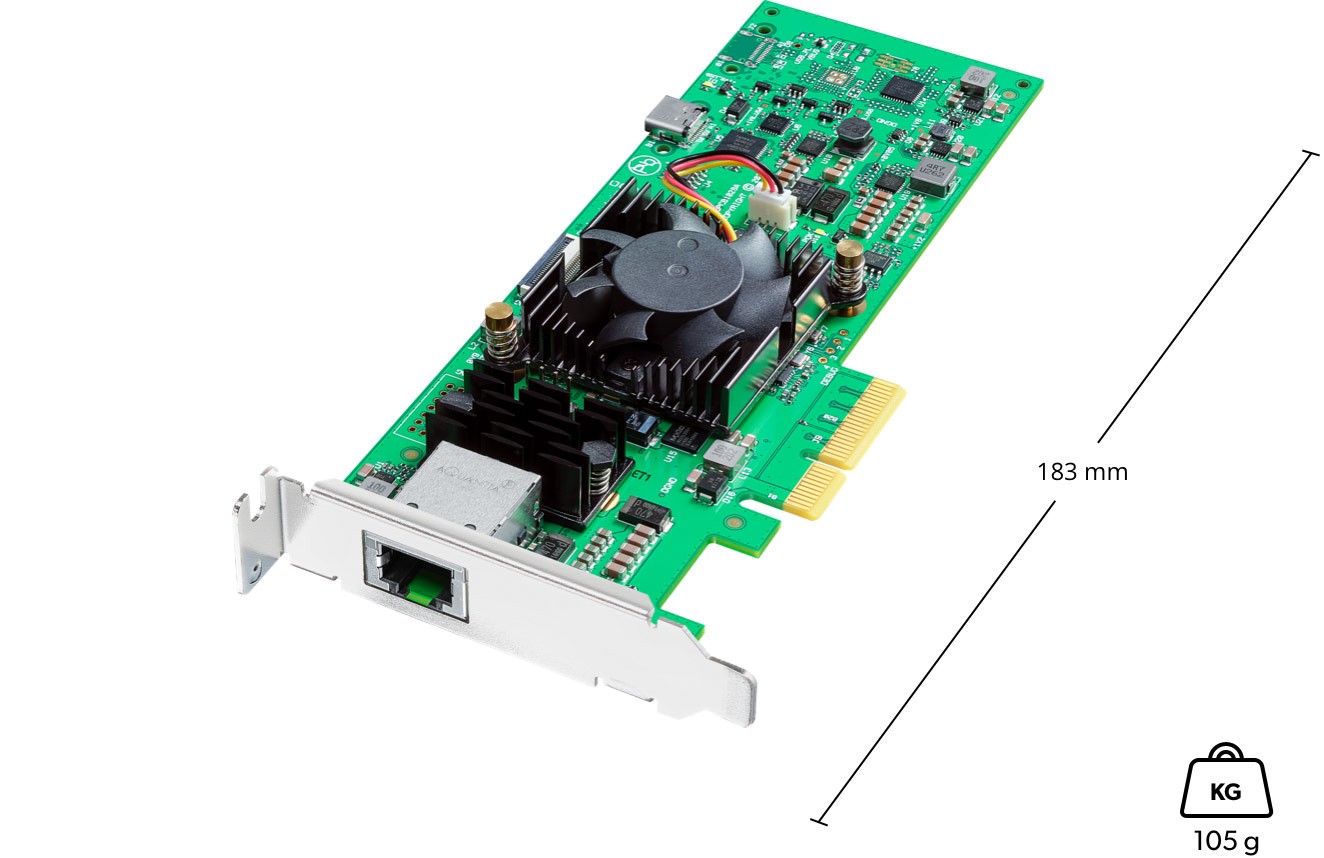

Low profile and dimensions
The card is 183 mm long, weighs 105 g and draws 10 W. The PCI Express x4 generation 2 interface works in x4, x8 and x16 slots; with the low profile bracket included the card fits into rack mount servers and compact computers. On Mac it requires a Mac Pro with PCI Express slots.
DaVinci Resolve and other software
With DaVinci Resolve you get an editing and grading workstation directly on the 2110 network – simultaneous capture and playback even enables live grading. The card works with Final Cut Pro, Premiere Pro, Media Composer, Fusion, After Effects and Photoshop, with broadcast automation and with streaming applications such as OBS or Wirecast. Media Express, Disk Speed Test, LiveKey and the driver are included, and the free Desktop Video SDK is available for custom applications.

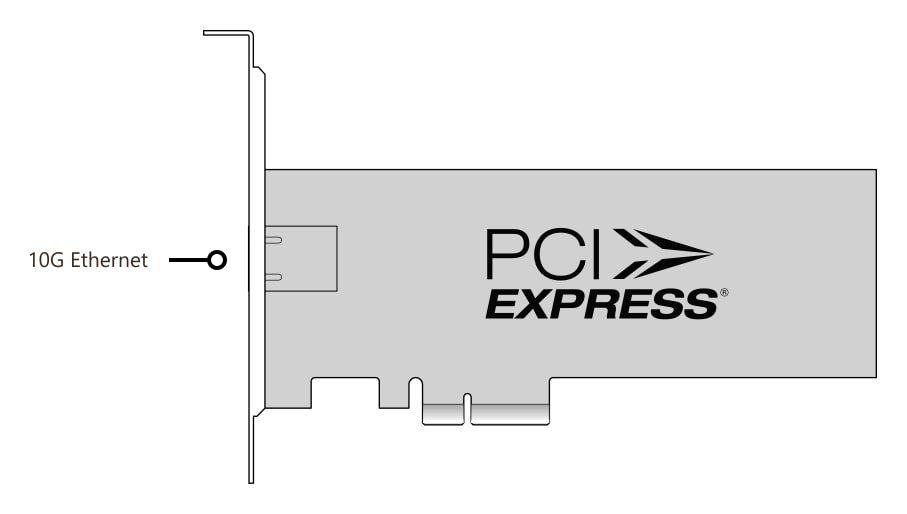

Connectors
The low profile bracket has a single RJ45 connector for the 10G Ethernet port (10GBASE-T) to connect to the SMPTE 2110 network.
More information
Details for IP video
The DeckLink IP family includes PCI Express cards for capturing and playing back 10-bit uncompressed video in IP infrastructure based on the SMPTE 2110 standard. The cards offer several full duplex channels in three HD models: DeckLink IP HD has two input and two output channels up to 1080p60 and an RJ45 Ethernet connector, DeckLink IP HD Optical also has two input and two output channels and a 10GBASE-LR SFP+ optical port, and DeckLink IP/SDI HD bridges 3G-SDI and 2110 IP with two channels for simultaneous capture and playback, an RJ45 connector, 3G-SDI and a reference output. All models support 720p, 1080i and 1080p standards up to 1080p60.
DeckLink IP cards are the easiest way to capture and play back IP video based on the SMPTE 2110 standard. They offer the same features as other DeckLink cards and work with the same applications (including DaVinci Resolve, Premiere Pro, Media Composer, After Effects, Pro Tools, Nuendo, Final Cut Pro and EDIUS), so they fit into existing production chains. They use the fast PCI Express bus and are compatible with current versions of macOS, Windows and Linux.
Supported codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR and DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2 video, uncompressed 10-bit 4:2:2 and 4:4:4 video.
Supported IP video standards
SMPTE 2110-20 (uncompressed video), SMPTE 2110-21 (traffic shaping), SMPTE 2110-30 (PCM audio), SMPTE 2110-40 (ancillary data), IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2, NMOS IS-04, NMOS IS-05, NMOS BCP-002-01, NMOS BCP-004-01.
PACKAGE CONTENT
- DeckLink IP HD card
- Low profile bracket
- Welcome wallet with QR code for software download
SPECIFICATIONS
- Network interface: 1× 10G Ethernet (10GBASE-T, RJ45 connector)
- 2110 IP channels: 2 input and 2 output, each up to 1080p60 with 16 audio channels
- SD formats: 525i59.94 NTSC, 625i50 PAL
- HD formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60
- Audio sampling: 48 kHz, 24-bit
- Color precision: 8, 10 and 12-bit RGB 4:4:4 up to 1080p30, 8 and 10-bit YUV 4:2:2 in all formats
- Color space: Rec. 601, Rec. 709, Rec. 2020
- IP video standards: SMPTE 2110-20, 2110-21 (sender Narrow, receiver Narrow, Wide and asynchronous), 2110-30 (level C), 2110-40; IGMP v2/v3
- Synchronization: PTP (IEEE 1588-2008, ST 2059-1, ST 2059-2)
- Control: NMOS IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01
- Color space conversion: hardware based, real time
- Computer interface: PCI Express x4 generation 2, for x4, x8 and x16 slots
- Form factor: low profile (low profile bracket included)
- Length and weight: 183 mm, 105 g
- Power consumption: 10 W
- Software included: Media Express, Disk Speed Test, LiveKey, Desktop Video Utility and driver (macOS, Windows); Media Express, Desktop Video Utility and driver (Linux)
- Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later, Windows 10 (64-bit), Windows 11, Linux
- Operating temperature: 5 to 40 °C
- Storage temperature: −20 to 45 °C
- Relative humidity: 0 to 90 % non-condensing
- Warranty: 3-year limited manufacturer’s warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Capture cards internal |
Main parameters
| Maximum resolution | HD · 1920×1080 @ 60 fps |
| Output | IP |
| Inputs | IP |
| Interface type | PCI Express 2.0 x4 |
Other parameters
| Other | Multiple inputs |
