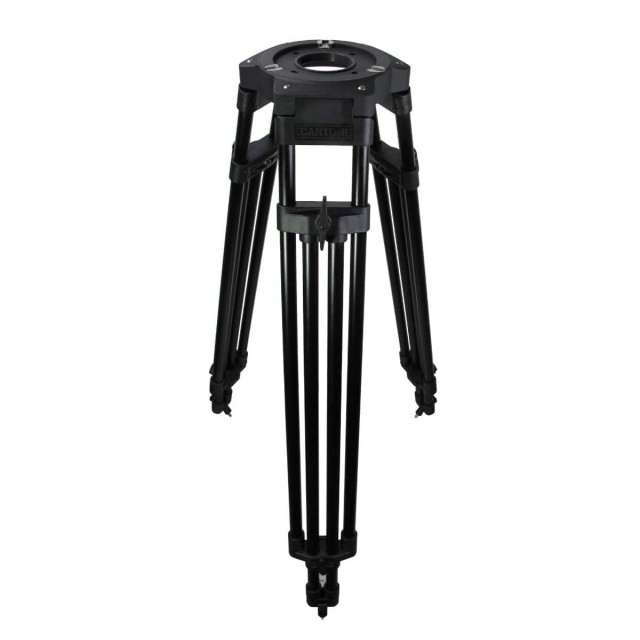

Cartoni T724/CM Studio Carbon Tripod

The Cartoni T724/CM Studio Carbon is a 1-stage carbon fiber tripod with a Mitchell flat base and a load capacity of 150 kg. It works at 80–155 cm, folds to 95 cm and weighs 5.3 kg. It is built for larger fluid heads and professional camera packages in the studio. It accepts Cartoni mid-level and ground spreaders and dollies. Six 2.5 cm tubes keep the structure rigid.

Studio tripod for large fluid heads

The Cartoni Studio Carbon is a single-stage carbon fiber tripod, designed to load larger fluid heads and camera packages while keeping its weight low to ease the operator's work.

150 kg load80–155 cm5.3 kgMitchell flat baseCarbon fiber1 stage

Torsion-free Mitchell base

Cartoni engineers designed the aluminum alloy Mitchell base to flawlessly integrate the leg castings, forming a torsion-free structure.

150 kg

Tripod load capacity – enough for heavy camera packages.

80–155 cm

Working height; 95 cm when folded.

5.3 kg

Tripod weight – carbon fiber 1-stage design.

Mitchell

Flat base for Mitchell heads.

Design and use

To reduce overall tripod weight while keeping the intended 150 kg (331 lb) load capacity, all locking knobs and leg castings are made of a high-strength blend of polymers and fiberglass – a superior combination of load capacity and operating comfort.

Six high-quality carbon fiber tubes with a diameter of 2.5 cm (1″) and a wall thickness of 1 mm are the ultimate solution for operators who need a lightweight system with high load capacity.

All Studio tripods are geared to mount Cartoni accessories – mid-level and ground spreaders and dollies – to work in the widest variety of environments. Studio tripods are available in single or double stage and in Baby and Minibaby versions.

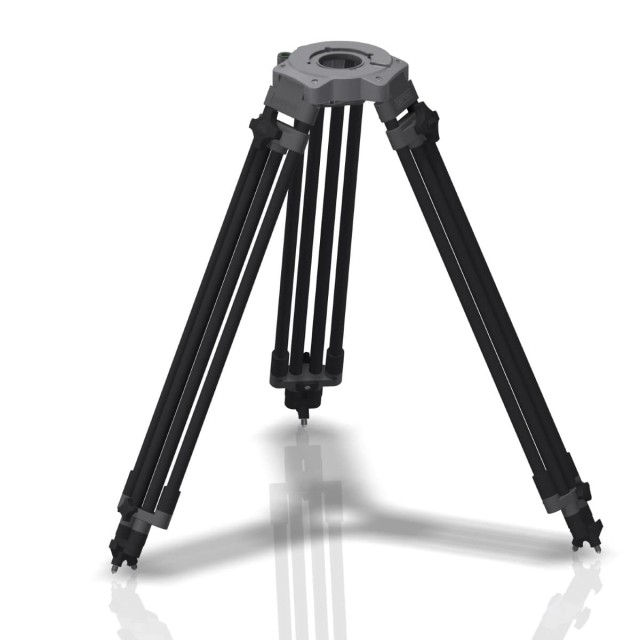

Tripod in working position

1-stage legs, working height 80–155 cm.

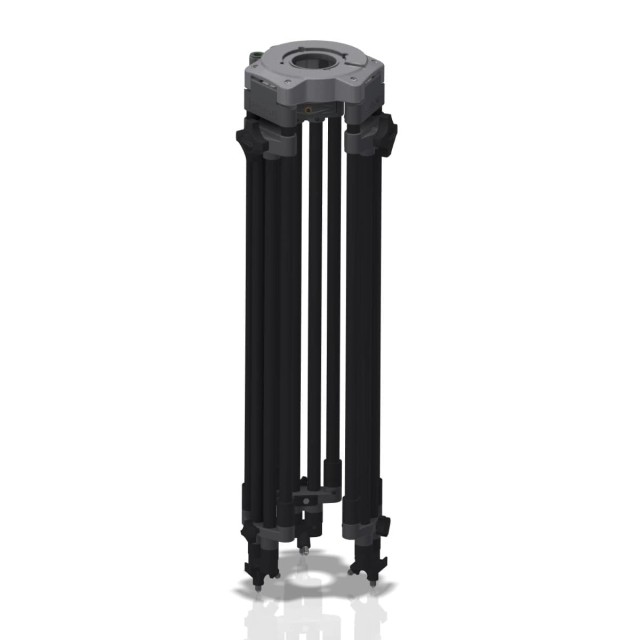

Folded tripod

Folded, it measures 95 cm and weighs 5.3 kg.

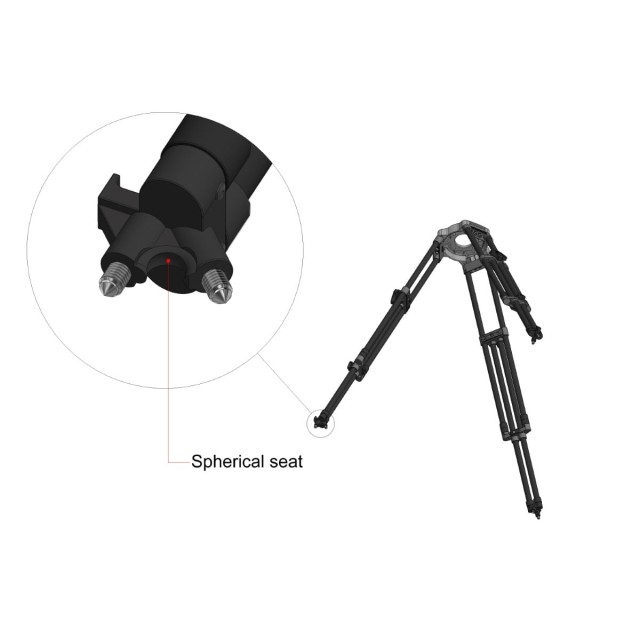

Spherical seat in the foot

The leg feet have a spherical seat for Cartoni ground spreaders and dollies with a ball coupling.
