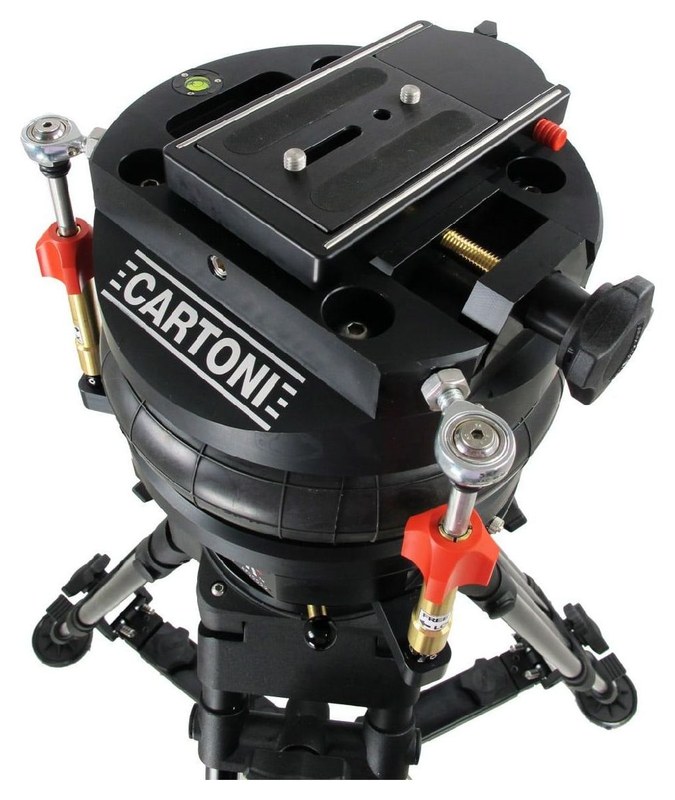

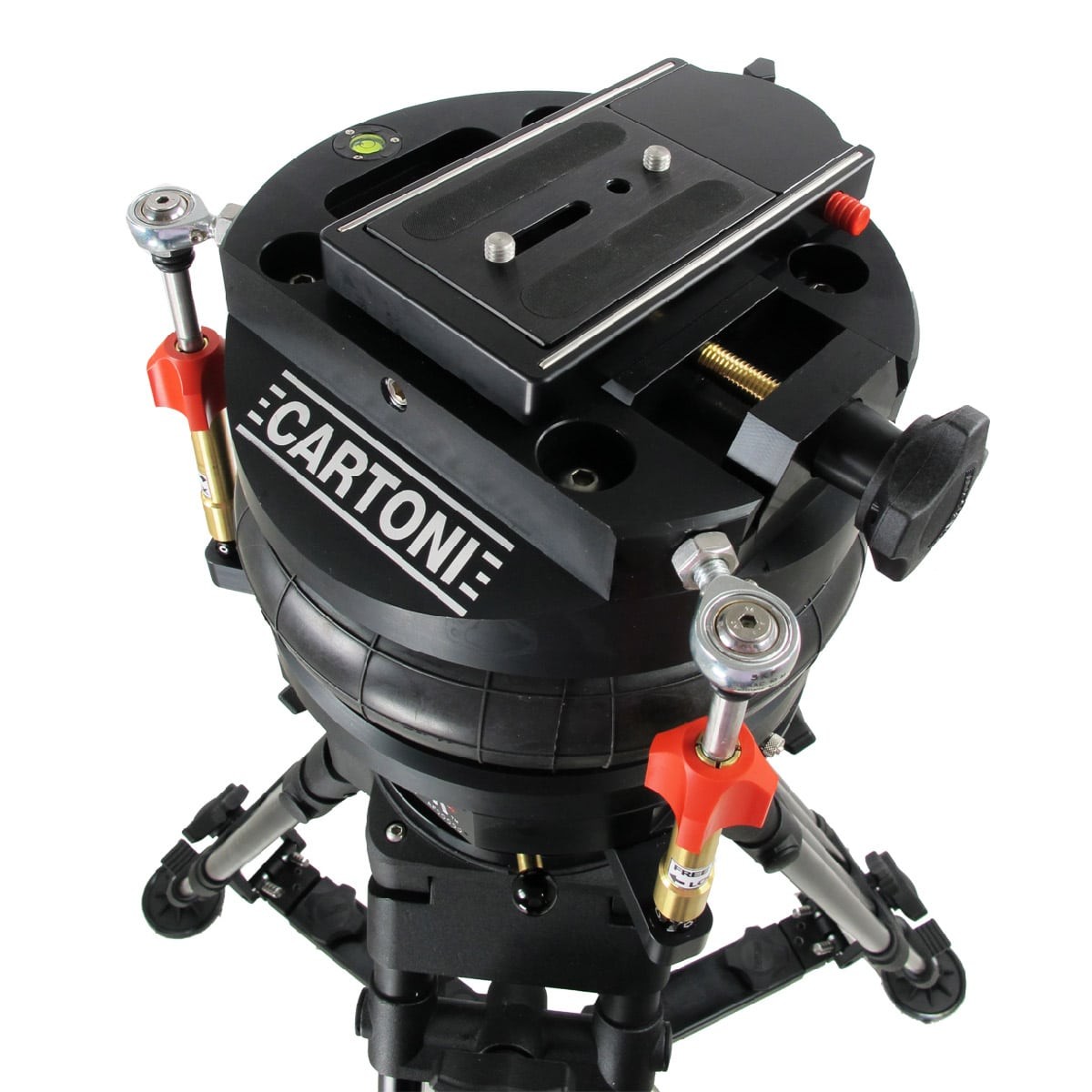

Cartoni Airfloater

The Cartoni Airfloater is a pneumatic head with a flat base for extremely heavy camera rigs up to 150 kg. Its patented design simulates shoulder-mounted operation, spares the operator’s back and stays very easy to handle even with the heaviest camera. It offers 360° pan and ±35° tilt, weighs 15.5 kg and comes with a 6 bar hand pump and a camera plate.

Shoulder-camera freedom, head-level payload

The Airfloater carries the camera on an air cushion, so you can circle and tilt it freely as if shooting from the shoulder. The red knobs lock the tilt when the shot needs to settle.

up to 150 kg±35° tilt6 bar pump15.5 kg

The feel of a shoulder-mounted camera

The patented Airfloater spares the operator’s back and shoulders while simulating active shoulder shots, realistic points of view and total freedom of movement. Even with the heaviest camera configuration it is incredibly easy to handle.

150 kg payload

Handles even the heaviest film and TV rigs.

360° pan

Pan a full circle; the red knobs lock the tilt.

Three base attachments

Chapman/Whitworth bolt, 4-bore Vinten holes and a 300 mm Mitchell with castle nut.

The size of a regular head

The platform has a Euro-style quick-release plate, and the head is about the size of a conventional fluid head.

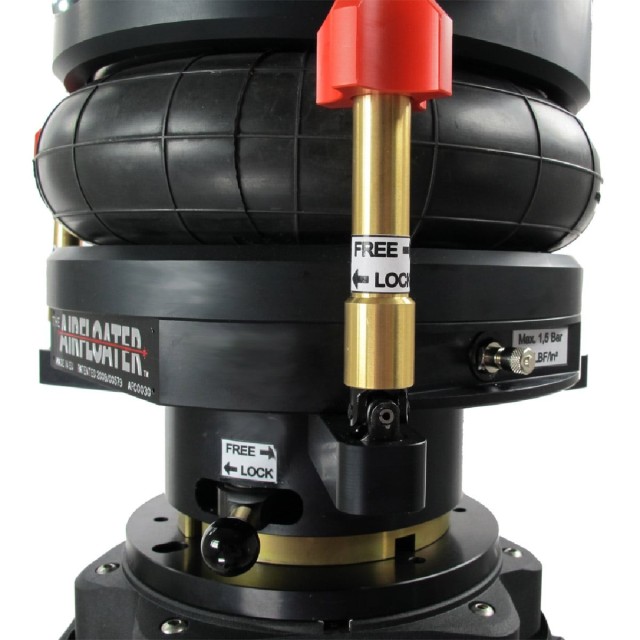

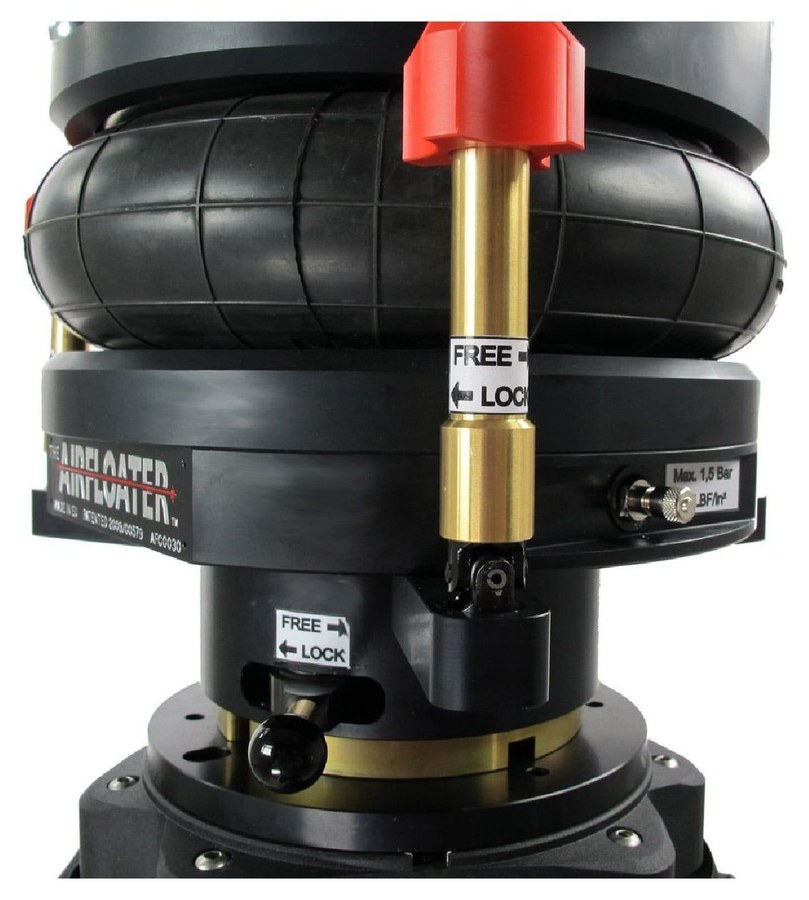

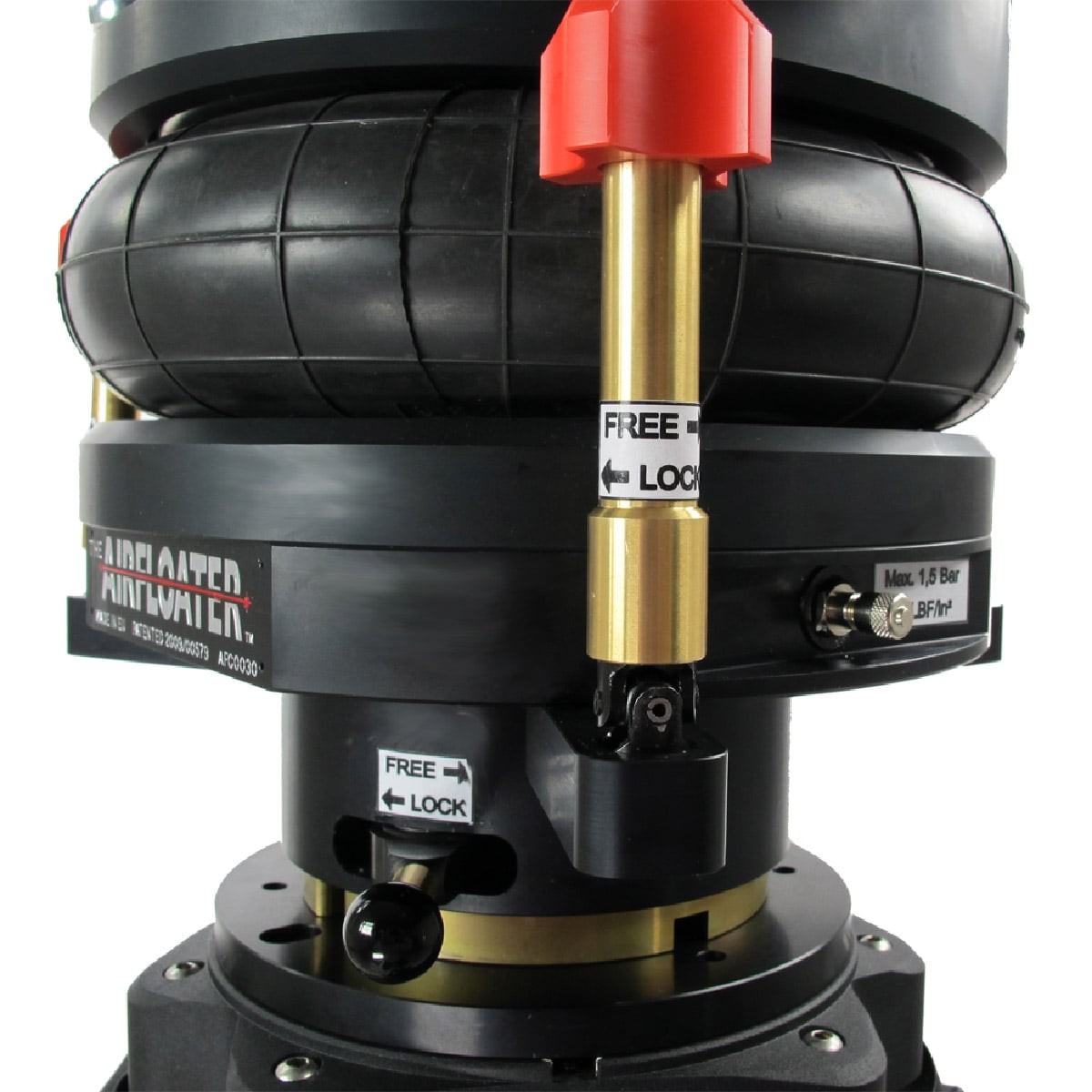

Air bellows and lock

An air bellows inflated with the hand pump works under the platform. The FREE/LOCK lever frees the head for movement or locks it.
