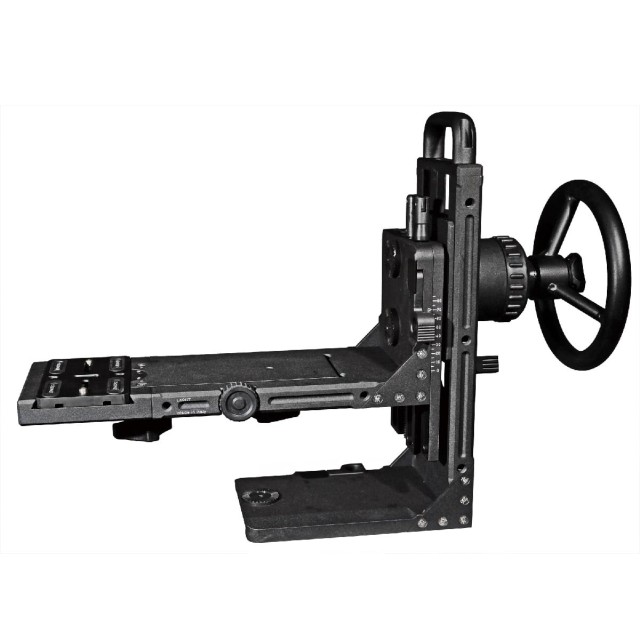

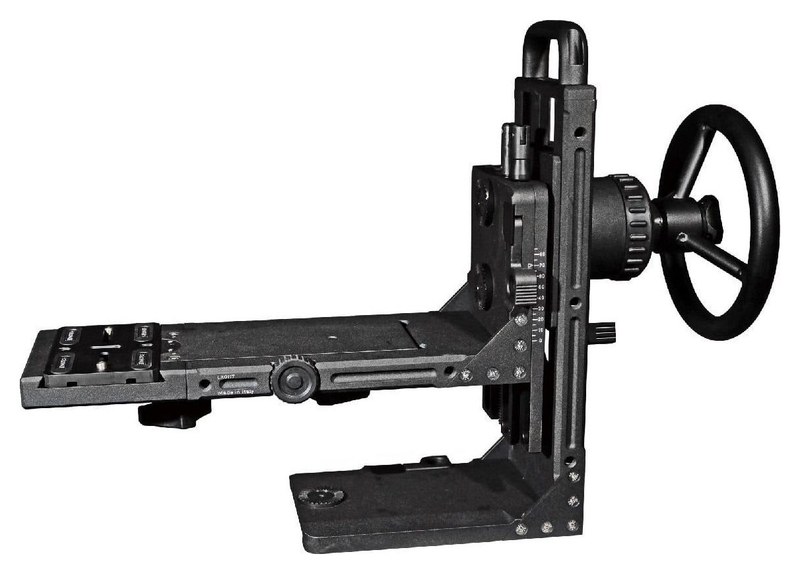

Cartoni Lambda 50 Third Axis
SKU: HL5000/TA
The Cartoni Lambda 50 Third Axis adds the roll axis to the classic Lambda 50 nodal head. It is mounted in place of the Lambda 50 camera stage, creating three independent rotation axes for pan, tilt and roll. Precision cranks on the slide let you combine nodal settings on all three axes. It includes an additional 7-step + 0 fluid drag unit.
9 209 € with VAT
7 610.74 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Cartoni Lambda 50 Third Axis adds the roll axis to the classic Lambda 50 nodal head. It is mounted in place of the Lambda 50 camera stage, creating three independent rotation axes for pan, tilt and roll. Precision cranks on the slide let you combine nodal settings on all three axes. It includes an additional 7-step + 0 fluid drag unit.
A third axis for the Lambda 50
The third axis comes with a hand wheel and a rod with counterweight to compensate offset camera positions. It carries up to 40 kg and weighs 15.5 kg.
up to 40 kg7-step drag + 03 independent axes15.5 kg
Pan, tilt and roll
With the third axis the camera rotates around its nodal point in all three directions – for image rotation, tilted compositions and demanding VFX shots.
Replaces the camera stage
The third axis replaces the camera stage of the Lambda 50.
Precision cranks
Slide cranks let you combine nodal settings on all three axes.
Hand wheel
The roll axis is driven by the supplied hand wheel.
Counterweight
A rod with counterweight compensates offset camera positions.

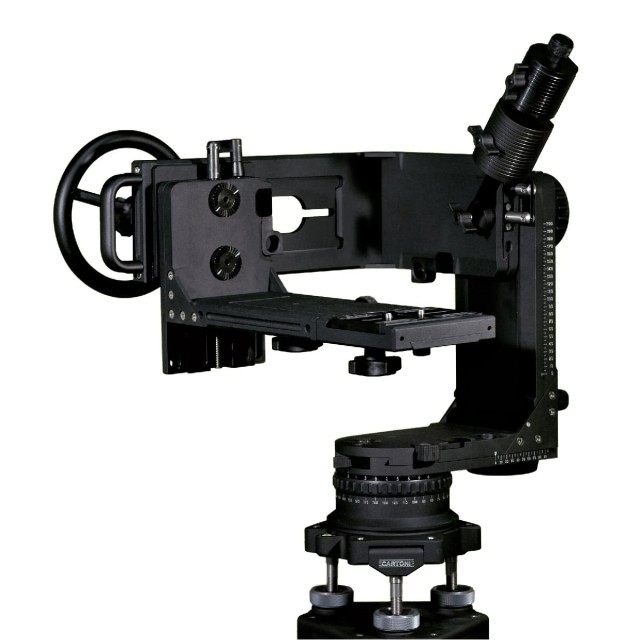

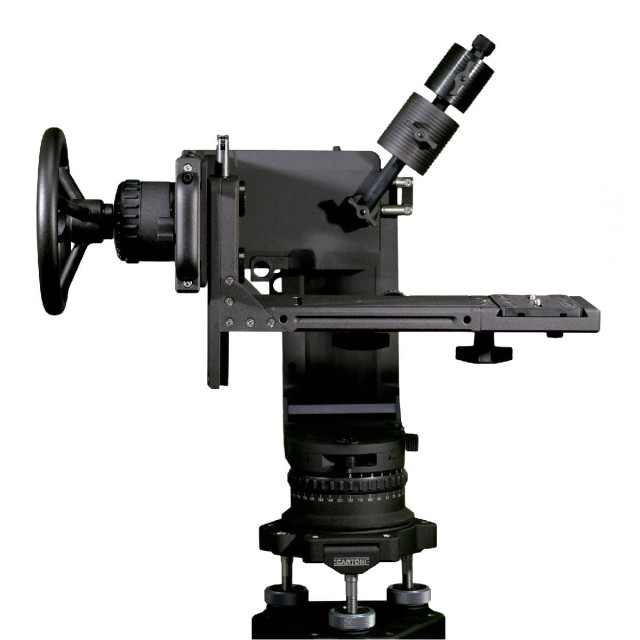

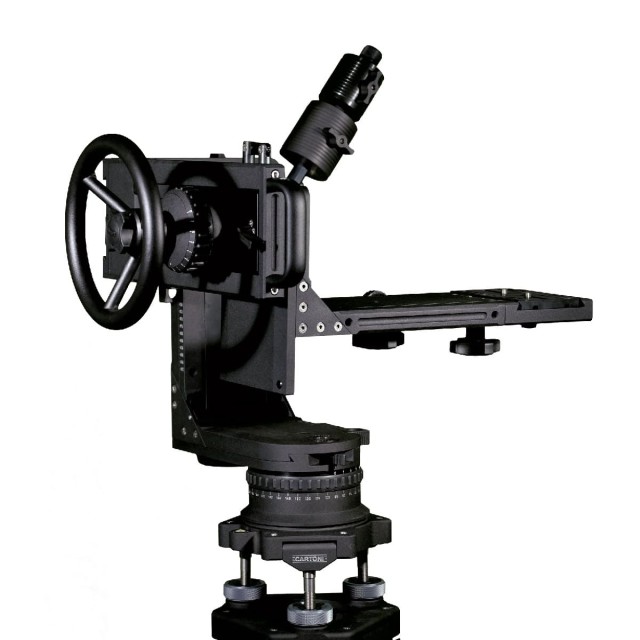

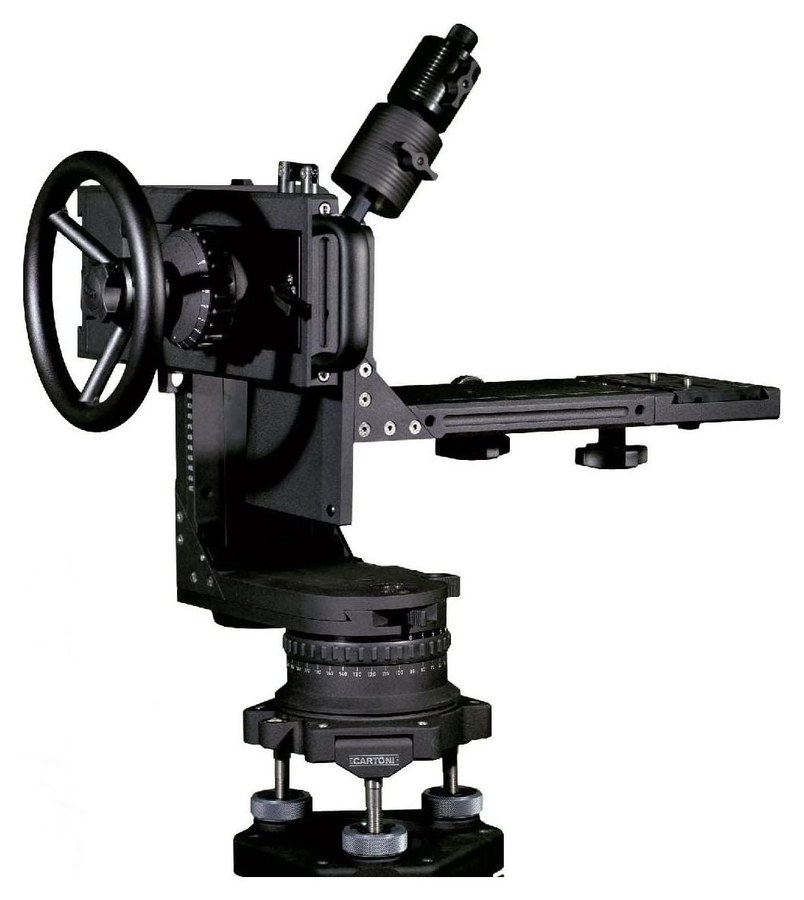

Third axis on the Lambda 50
The rig on a tripod: the roll axis with hand wheel carries the camera above the Lambda 50.

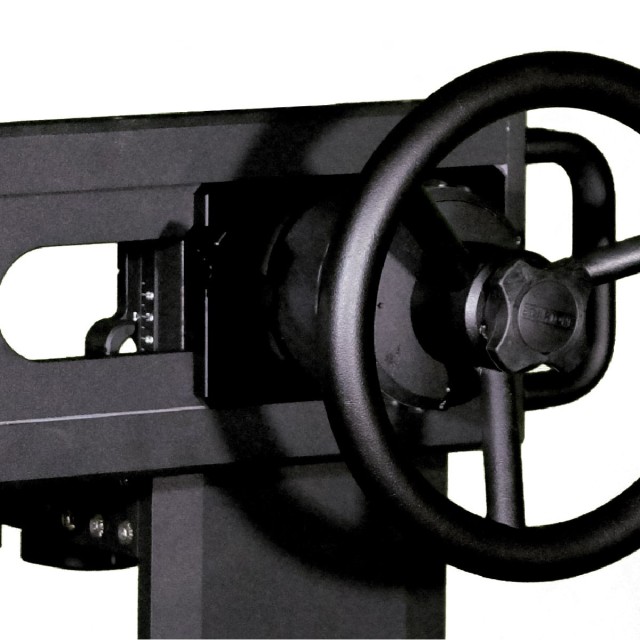

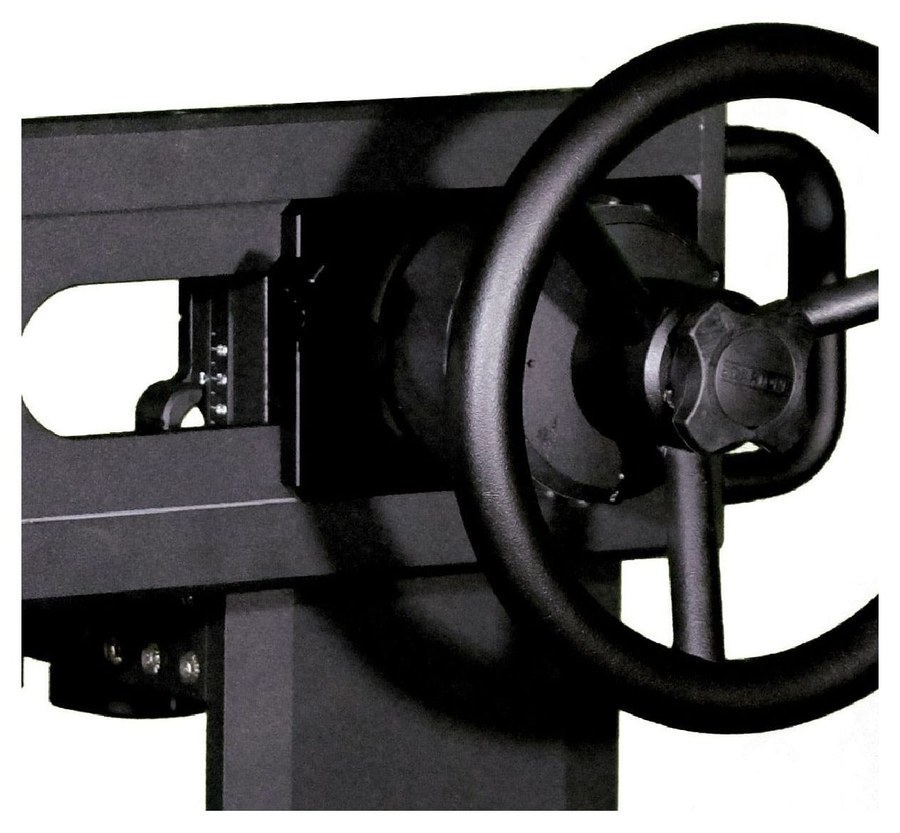

Hand wheel close-up
The large hand wheel gives fine control of the roll even with a heavy camera.
PACKAGE CONTENT
- Lambda 50 Third Axis
- hand wheel
- counterweight Lambda 50
SPECIFICATIONS
- Payload: up to 40 kg
- Weight: 15.5 kg
- Base: plate (mounts on a head)
- Fluid drag: 7 steps + 0
- Roll (third axis): 360°
- Designed for: Cartoni Lambda 50 nodal head
- Operating temperature: −40 to +60 °C
- Manufacturer code: HL5000/TA
