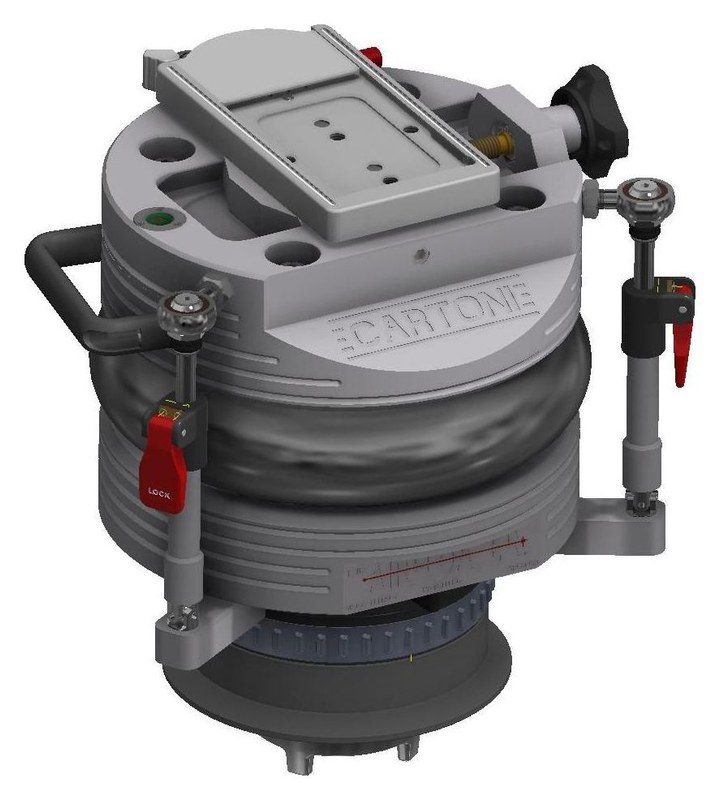

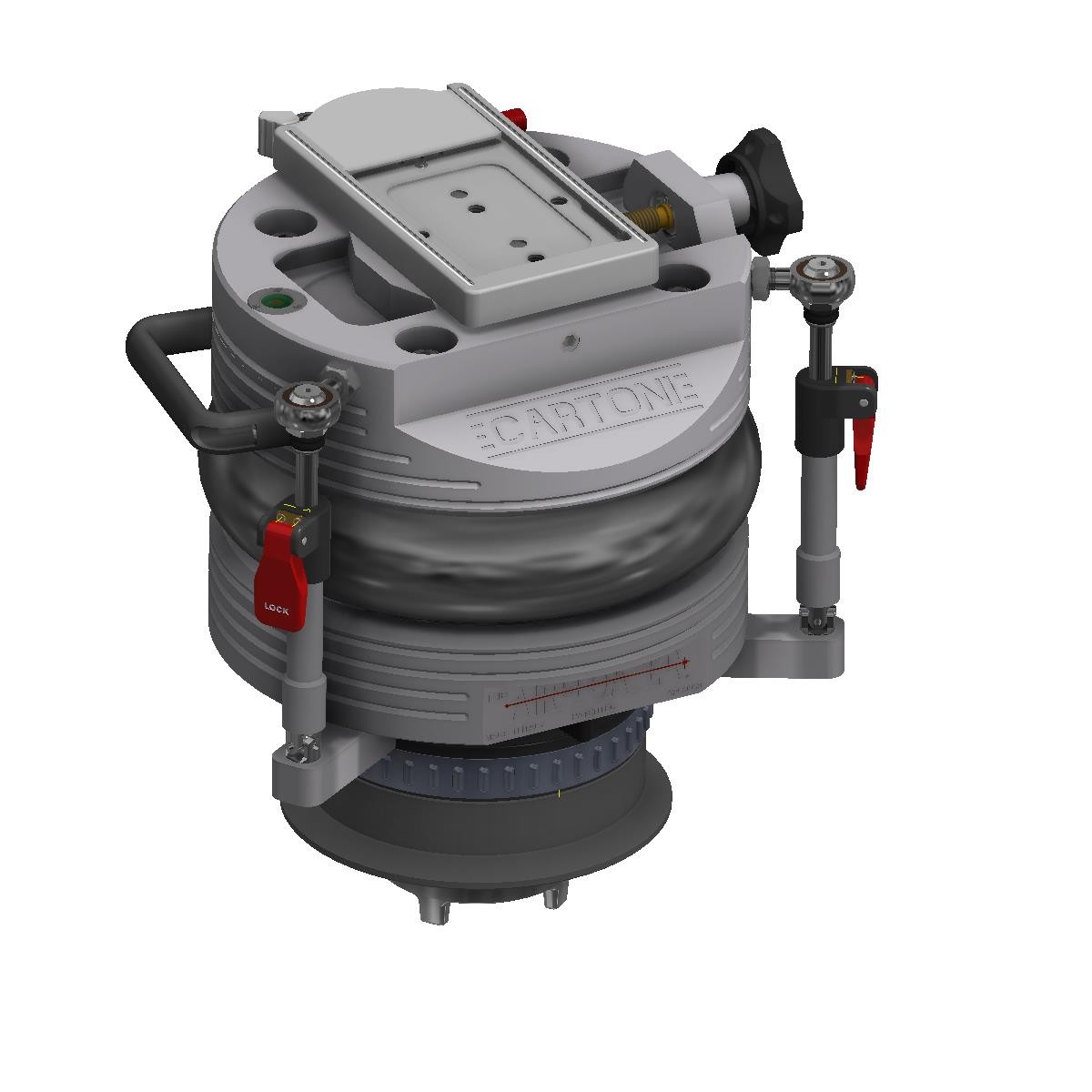

Cartoni Airfloater Pan Drag Version

The Cartoni Airfloater Pan Drag Version (H564) is the version of the pneumatic Airfloater head with adjustable pan drag. It carries extremely heavy film and TV rigs up to 150 kg, simulates shoulder-mounted operation and spares the operator’s back. Flat base, works from −40 to +60 °C, weighs 15.8 kg and comes with a 6 bar hand pump and plate.

The Airfloater with pan drag

Adjustable pan drag calms rotation with long focal lengths and slow moves without losing the freedom of the air head. In every other respect it is the same patented Airfloater.

up to 150 kgpan drag6 bar pump15.8 kg

The feel of a shoulder-mounted camera

The patented Airfloater spares the operator’s back and shoulders while simulating active shoulder shots, realistic points of view and total freedom of movement. Even with the heaviest camera configuration it is incredibly easy to handle.

150 kg payload

Handles even the heaviest film and TV rigs.

360° pan

Pan a full circle; the red knobs lock the tilt.

Three base attachments

Chapman/Whitworth bolt, 4-bore Vinten holes and a 300 mm Mitchell with castle nut.

The size of a regular head

The platform has a Euro-style quick-release plate, and the head is about the size of a conventional fluid head.
