Cartoni T724/BM Studio Baby Tripod

The Cartoni T724/BM Studio Baby is a 1-stage aluminum tripod in the Baby version with a Mitchell flat base and a load capacity of 150 kg. It works at 52–65 cm, folds to 55 cm and weighs 4.5 kg. It is built for larger fluid heads and professional camera packages in the studio. It accepts Cartoni mid-level and ground spreaders and dollies. Six 2.5 cm tubes keep the structure rigid.

Studio tripod for large fluid heads

The Cartoni Studio is a single-stage aluminum tripod in the shorter Baby version, designed to load larger fluid heads and camera packages while keeping its weight low to ease the operator's work.

150 kg load52–65 cm4.5 kgMitchell flat baseAluminum1 stage

Torsion-free Mitchell base

Cartoni engineers designed the aluminum alloy Mitchell base to flawlessly integrate the leg castings, forming a torsion-free structure.

150 kg

Tripod load capacity – enough for heavy camera packages.

52–65 cm

Working height; 55 cm when folded.

4.5 kg

Tripod weight – aluminum 1-stage design.

Mitchell

Flat base for Mitchell heads.

Design and use

To reduce overall tripod weight while keeping the intended 150 kg (331 lb) load capacity, all locking knobs and leg castings are made of a high-strength blend of polymers and fiberglass – a superior combination of load capacity and operating comfort.

Six hard-anodized aluminum tubes with a diameter of 2.5 cm (1″) and a wall thickness of 1 mm strike the perfect balance between rigidity and easy handling.

All Studio tripods are geared to mount Cartoni accessories – mid-level and ground spreaders and dollies – to work in the widest variety of environments. Studio tripods are available in single or double stage and in Baby and Minibaby versions.

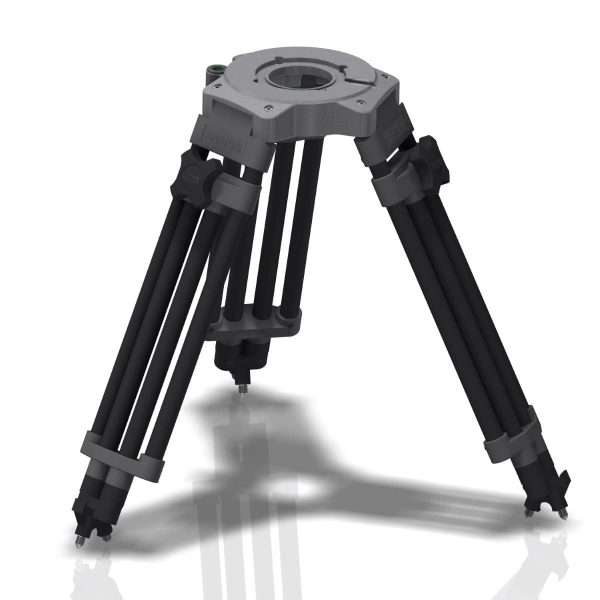

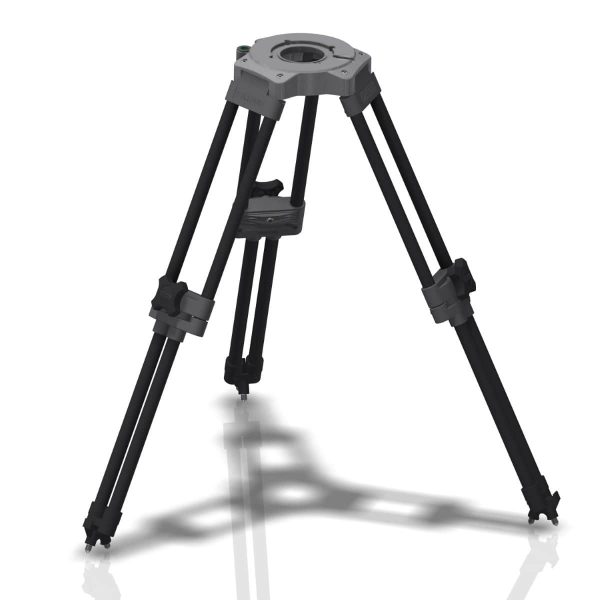

Tripod in working position

1-stage legs, working height 52–65 cm.

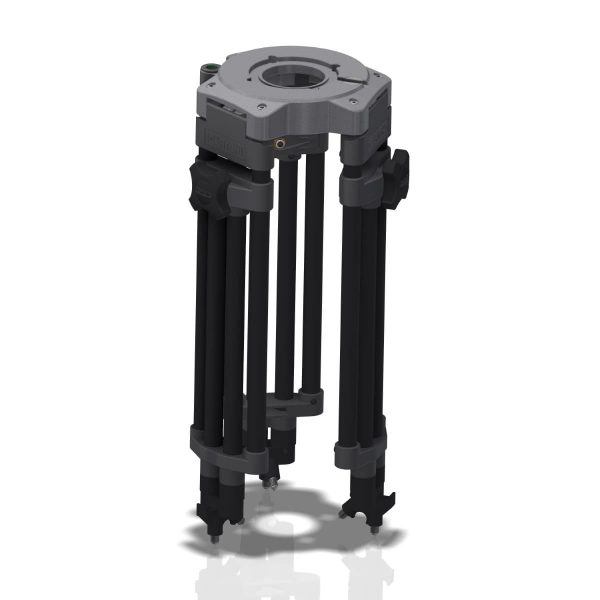

Folded tripod

Folded, it measures 55 cm and weighs 4.5 kg.

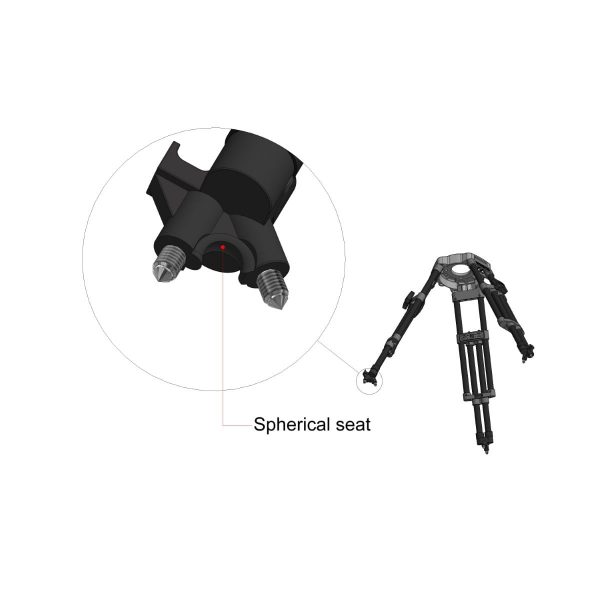

Spherical seat in the foot

The leg feet have a spherical seat for Cartoni ground spreaders and dollies with a ball coupling.
