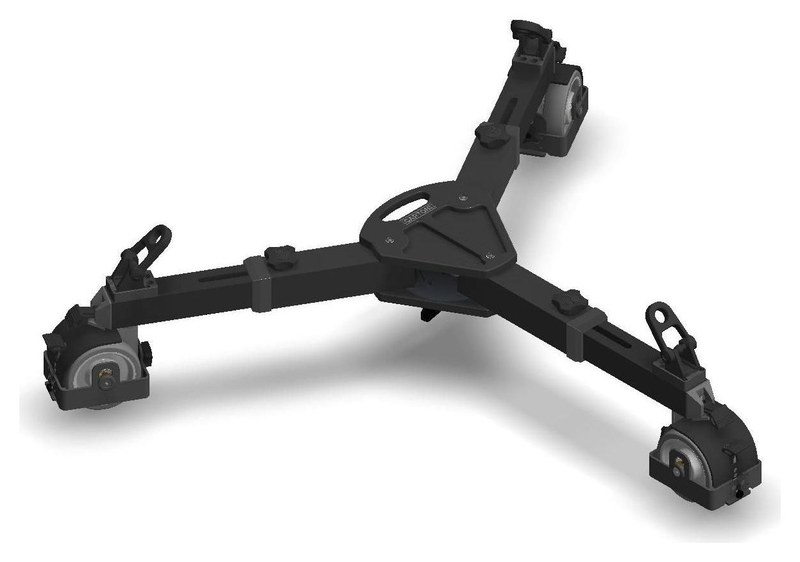

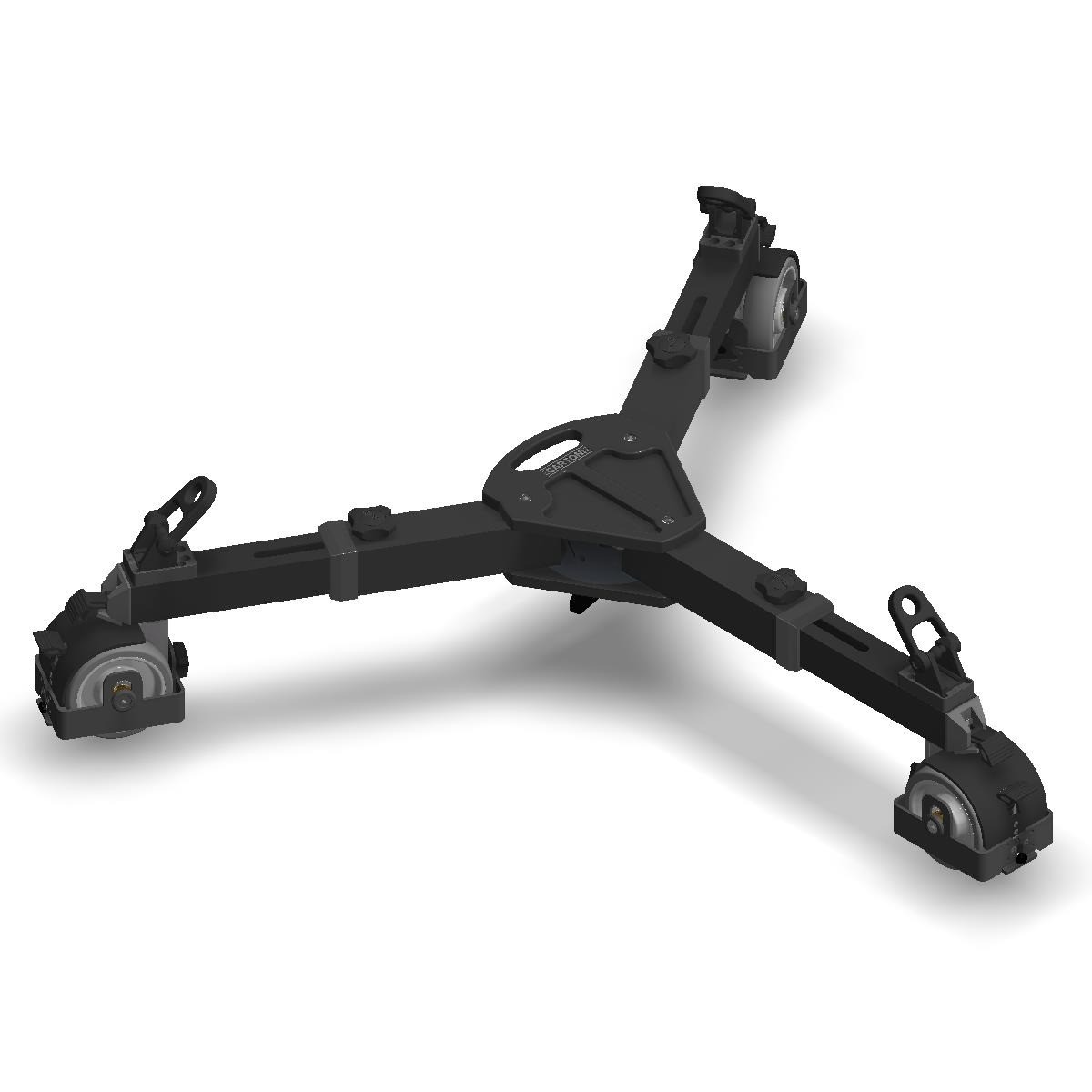

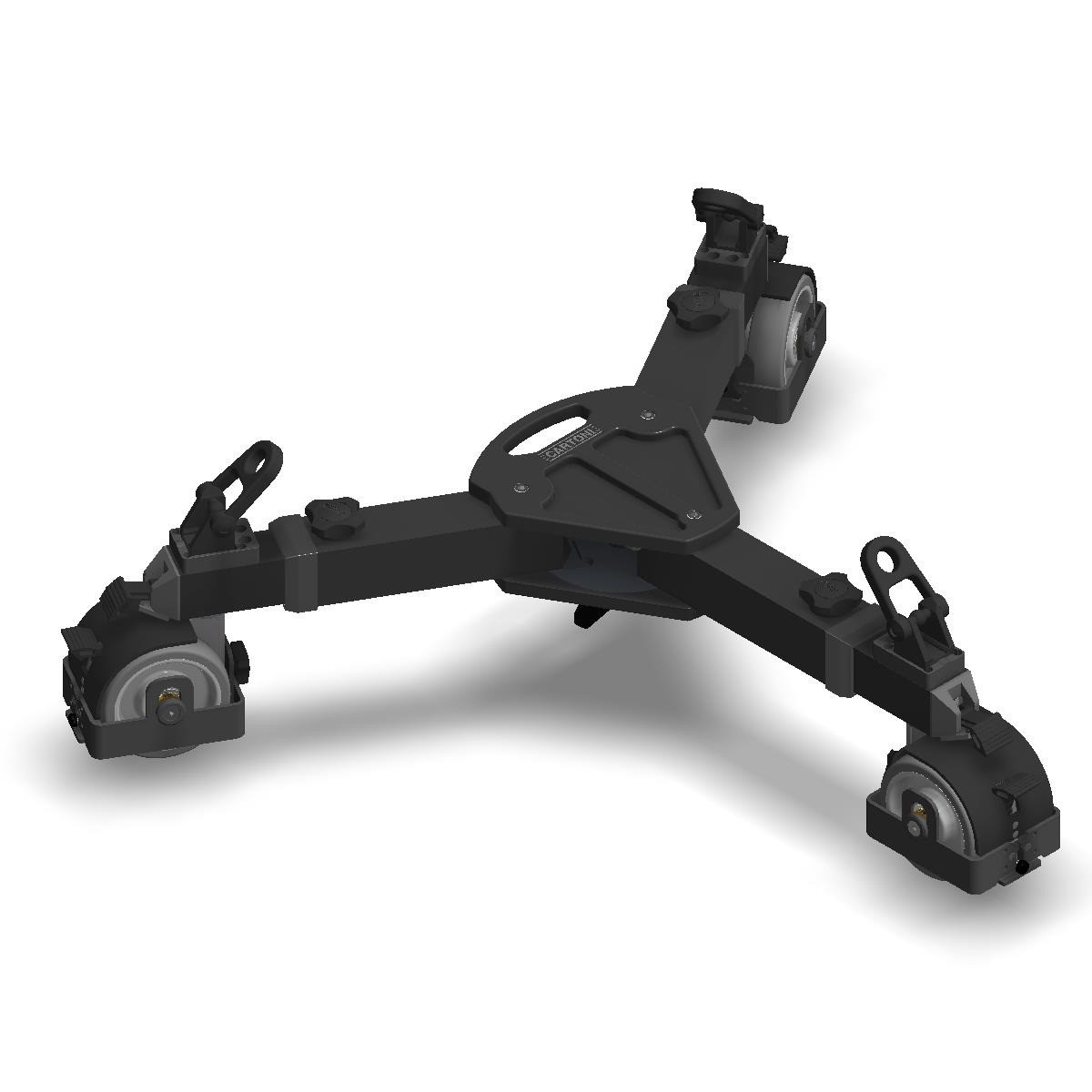

Cartoni D837/A Studio Extendable Dolly

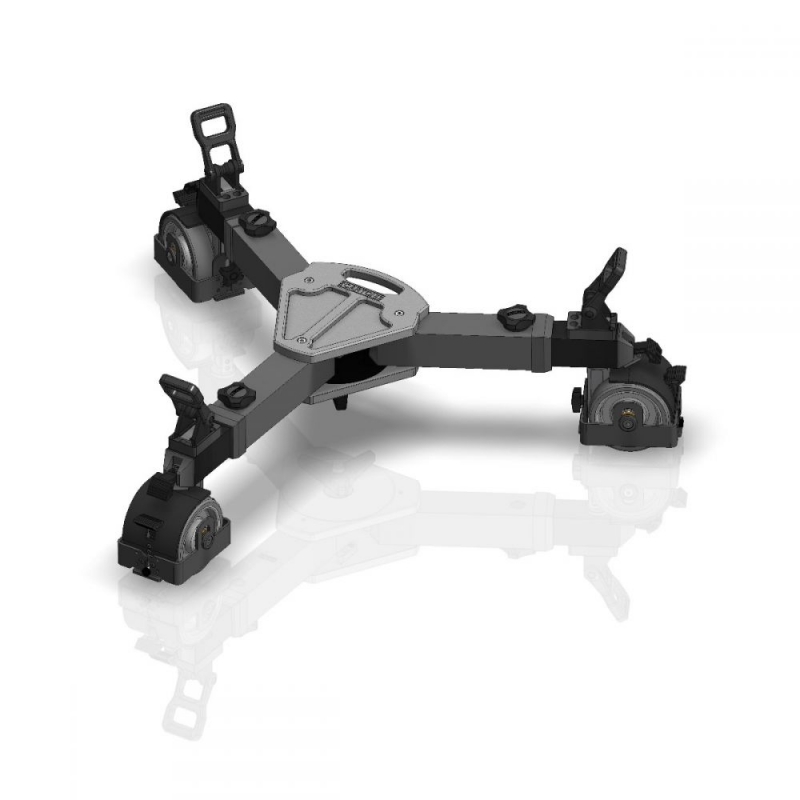

The Cartoni D837/A is an aluminum dolly with extendable legs for 1- and 2-stage EFP and Studio tripods. Each wheel group can be set in 6 positions at 60°, so it tracks smoothly even without rails. It has 125 mm wheels and weighs 13.6 kg. It is compatible with pneumatic wheels for outside broadcasts. Cartoni dollies are made from the highest quality alloys.

Smooth tracking even without rails

Cartoni dollies are designed and manufactured with the highest quality alloys. All wheel groups are assembled with high-precision bearings and equipped with positive individual locks. Each wheel group can be set in 6 different positions at 60°, allowing smooth, precise translational movement even without tracks.

125 mm wheels6 positions at 60°Extendable legs13.6 kgAluminum

6 wheel-group positions at 60°

Each wheel group turns to one of six positions, so the dolly travels exactly where you need it – even without tracks.

125 mm

Wheel diameter.

76–95 cm

Doorway tracking width, depending on leg extension.

13.6 kg

Dolly weight.

Aluminum

Strong, light alloy construction.

Design and use

This aluminum dolly with extendable legs is designed for 1- and 2-stage EFP and Studio tripods.

It attaches to the tripod feet with a ball coupling.

It is compatible with pneumatic wheels for OB use.

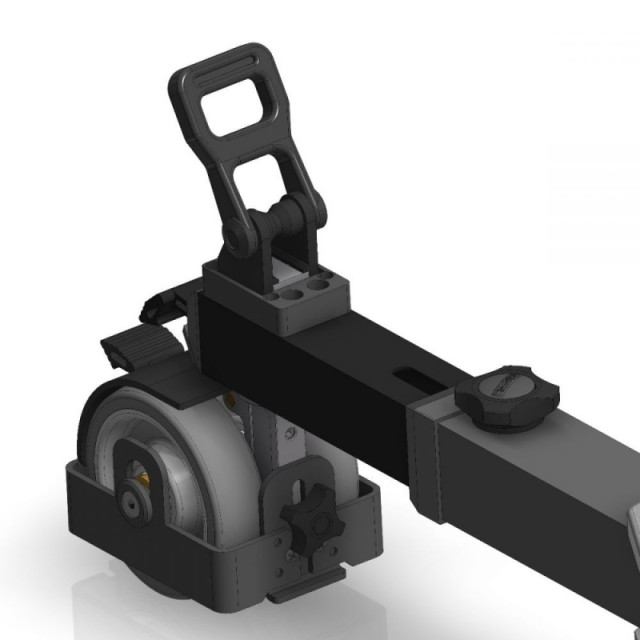

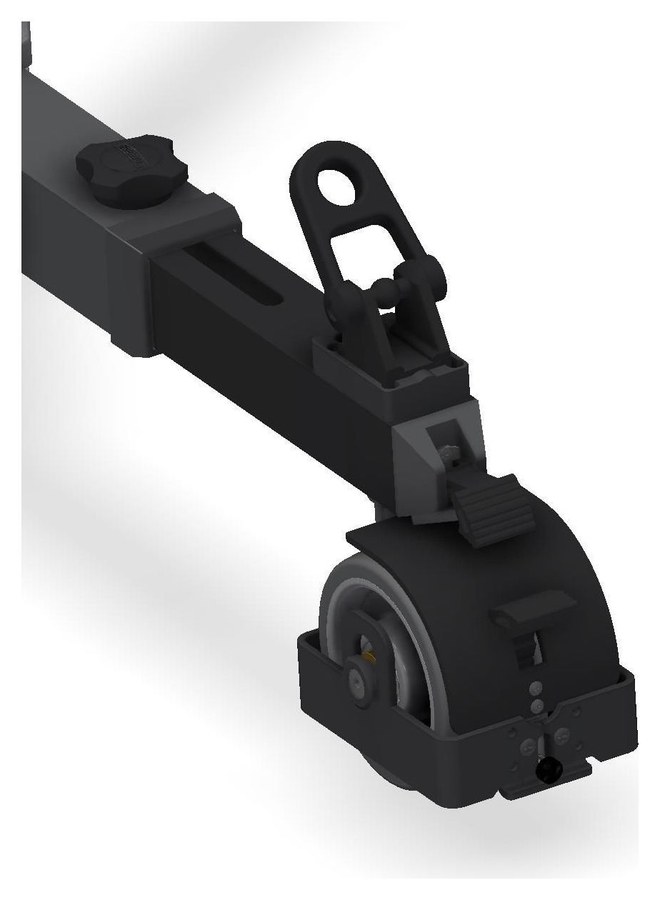

Wheel group

The wheel group turns to 6 positions at 60° and has its own lock.

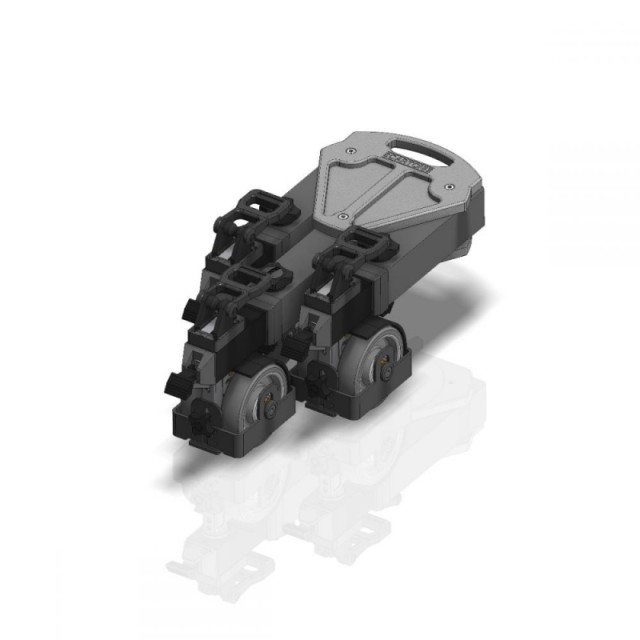

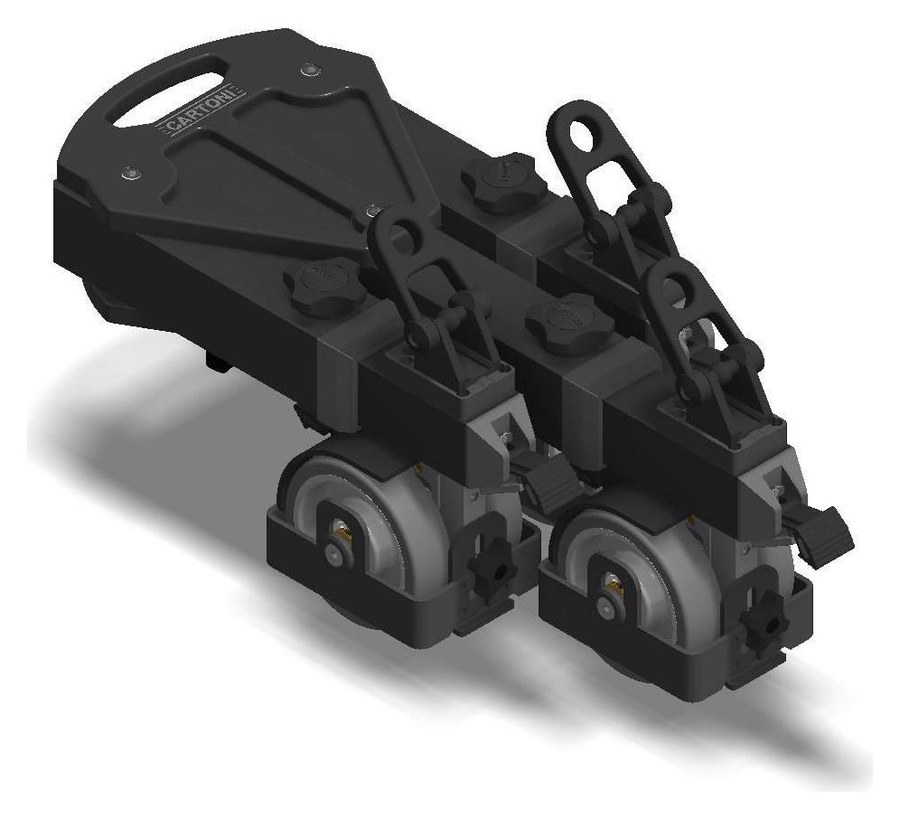

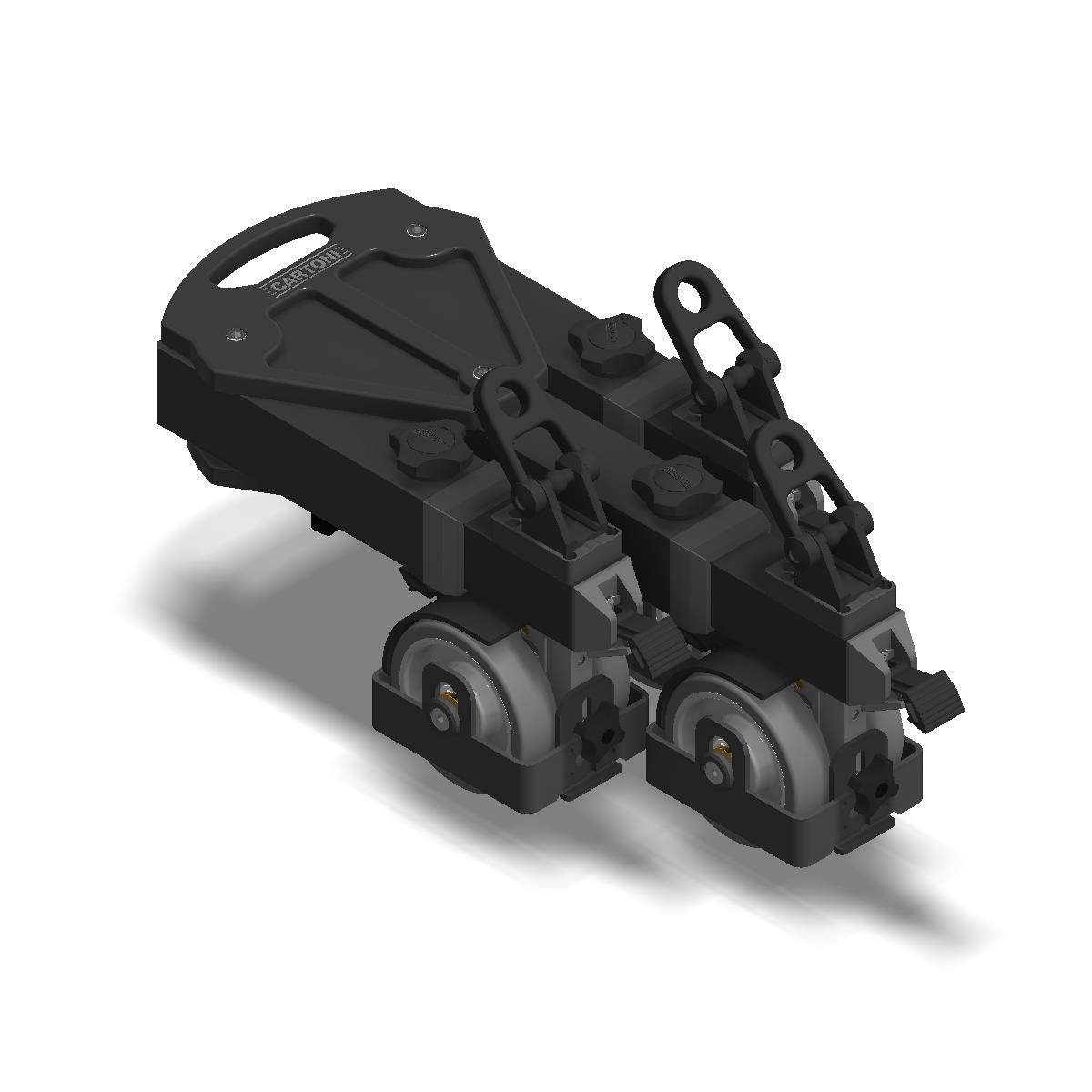

Folded dolly

The legs fold together for transport and storage.

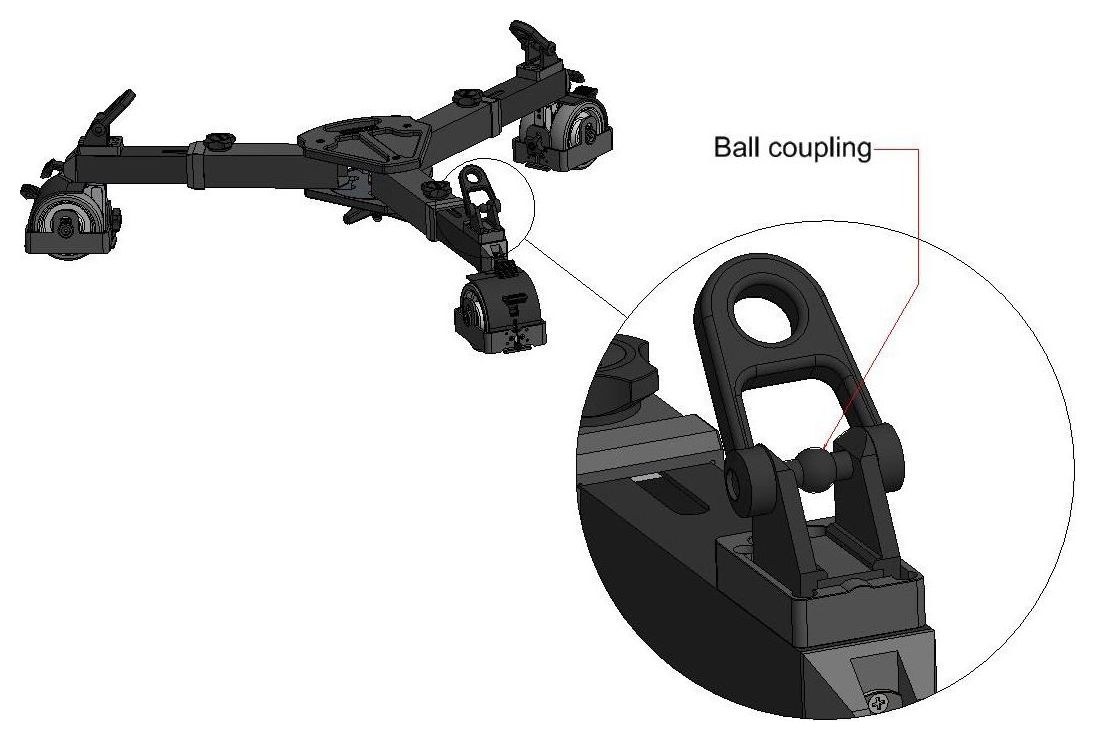

Ball coupling

The dolly arm ends connect to the tripod feet with a ball coupling.
