Tilta Accessory Mounting Bracket (NATO) - Black

The Tilta TA-AMB5-B is an accessory bracket with a joint: on top a 1/4"-20 screw with locating pins for a monitor or wireless video transmitter, underneath a NATO clamp that drops onto the NATO rail of a cage or handle and locks with the lever. The joint pans 360° and tilts 175°, and the locking screw holds the position even with heavier accessories. Aluminium alloy and stainless steel, black.

The Tilta TA-AMB5-B is the NATO clamp version of the Accessory Mounting Bracket — with it a monitor or transmitter moves from the side of the cage to the top handle without any screwing.

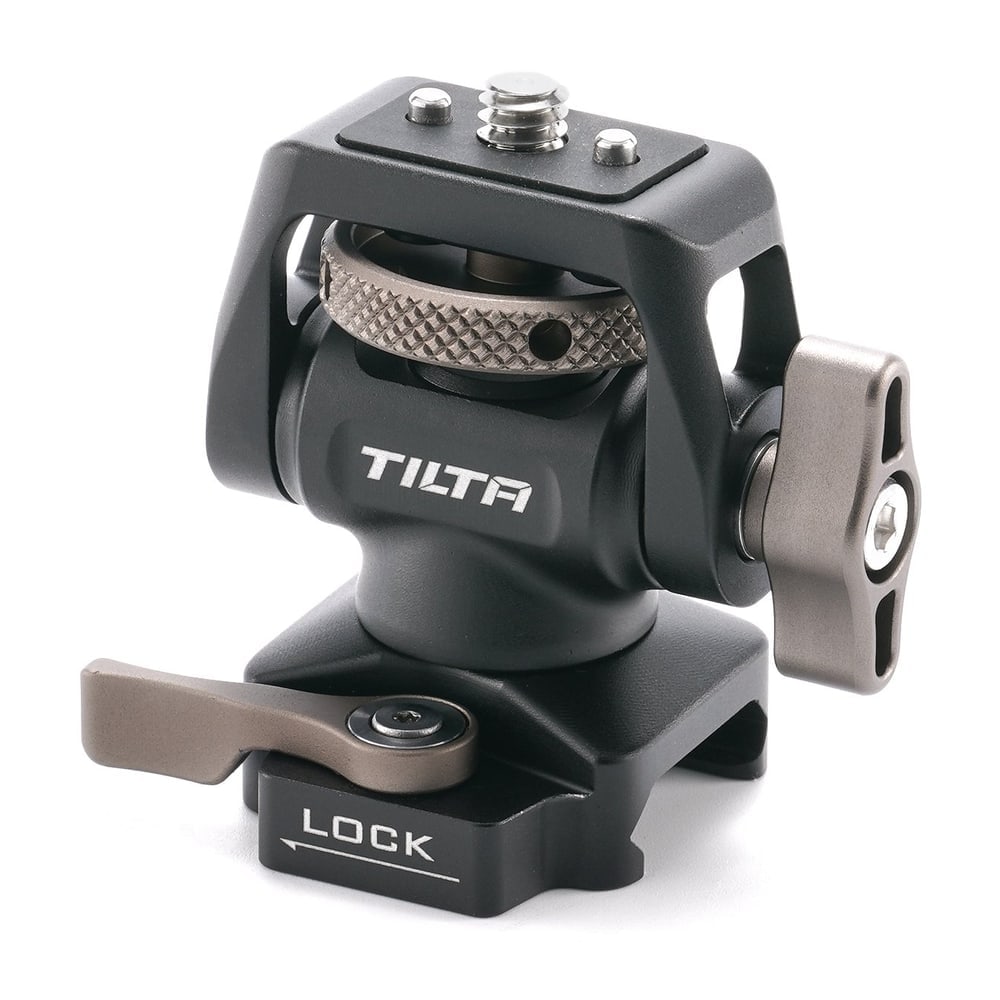

NATO clamp with a LOCK lever

The underside is a NATO clamp: it drops from above onto the NATO rail of a cage, handle or arm and the LOCK lever grips it. Sliding it along the rail or moving it to another rail takes seconds and needs no tools.

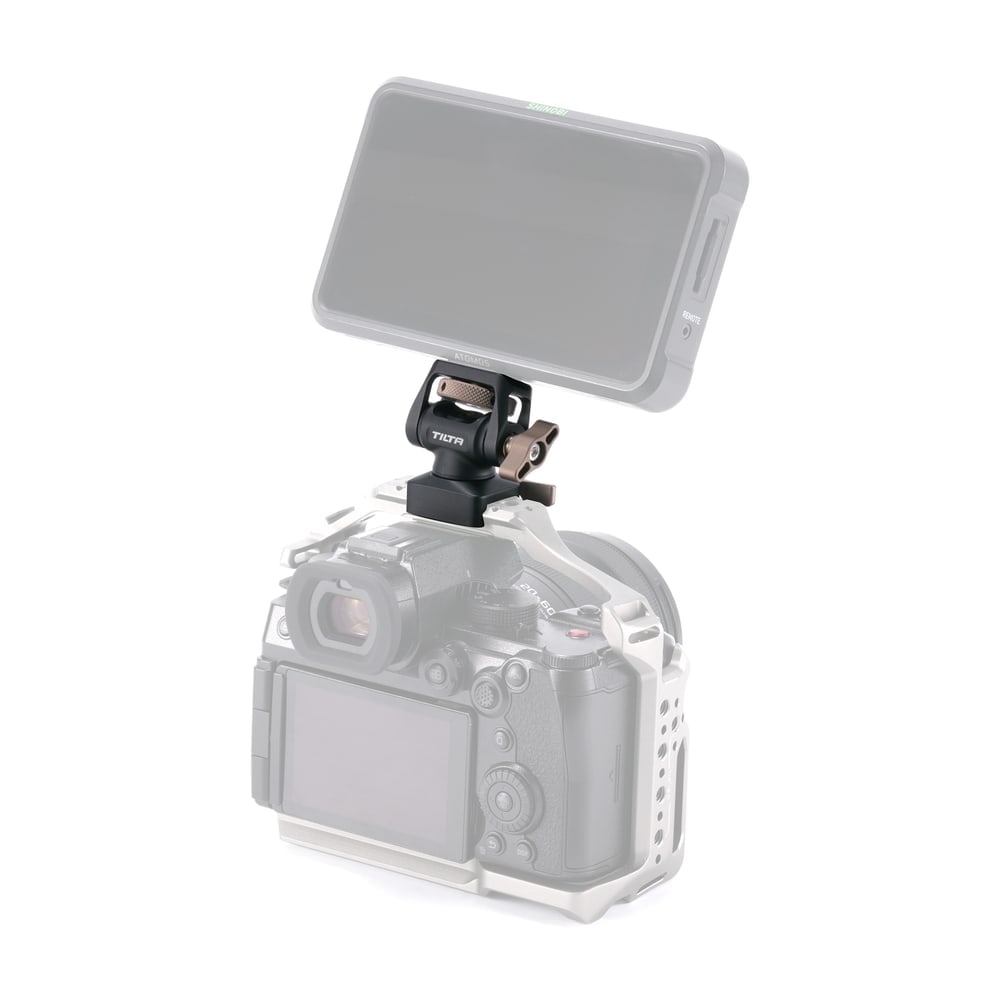

Joint: 360° pan, 175° tilt

On top the accessory sits on a 1/4"-20 screw with two locating pins that stop it from twisting. The joint between the clamp and the screw pans 360° around the vertical axis and tilts 175°, so the monitor faces you from the side of the cage as well as from the top. Tighten the locking screw on the side of the joint for heavier accessories — the position then holds even with a transmitter or a monitor with a battery.

The Tilta NATO system

A NATO rail is a dovetail profile the clamp drops onto from above and locks with a lever — no screwing, repeatable, with a safety catch against sliding off. Tilta puts it on cages, handles and arms and backs it with adapters: clamps with a joint for a monitor, adapters from NATO to cold shoe, ARCA or 1/4"-20 thread, rod holders and rails that add the NATO interface where it is missing. This part is one of them.
