Teradek Bolt 6 LT 750 Int Ant RX

TERADEK BOLT 6 LT 750 · RECEIVER

INTERNAL-ANTENNA RECEIVER

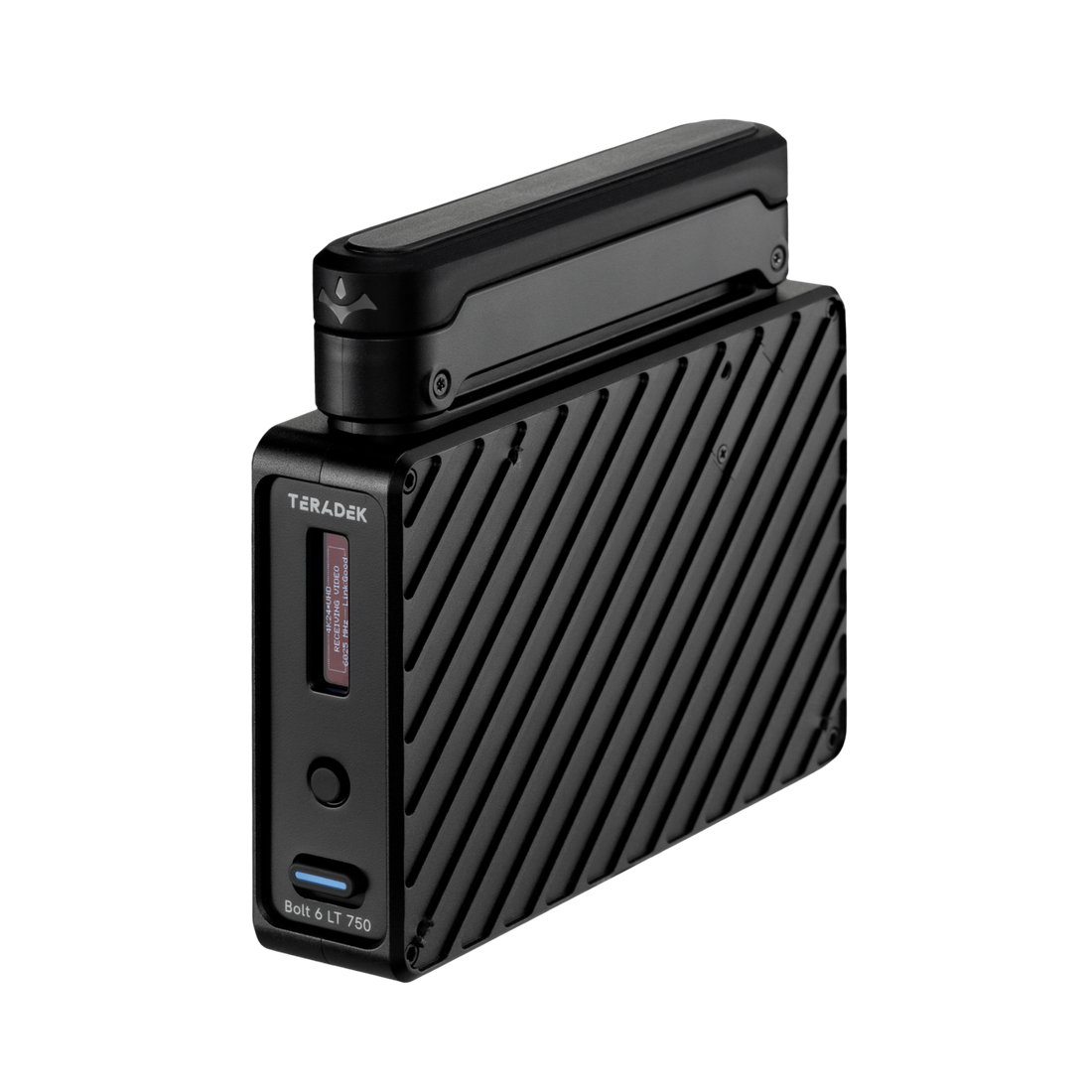

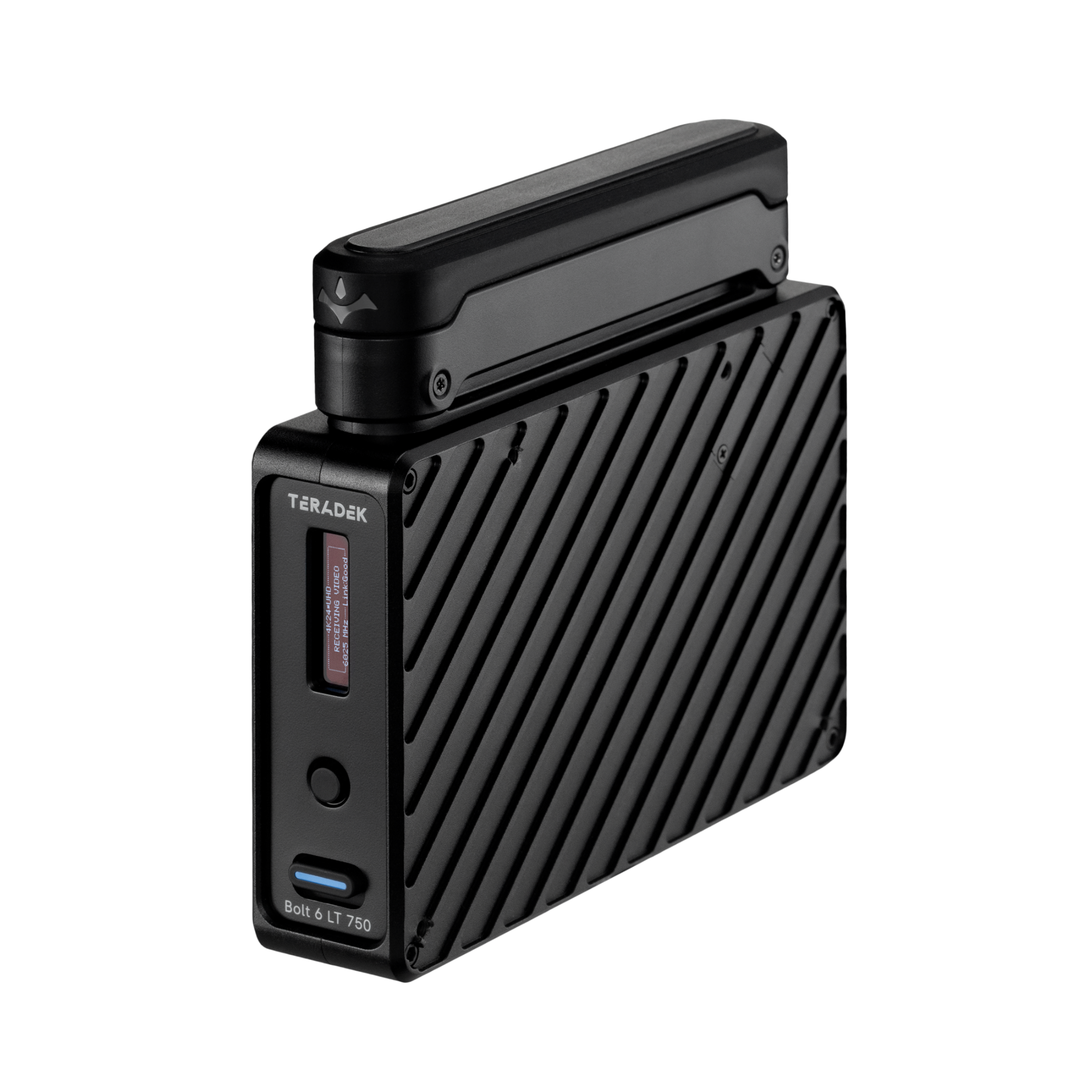

The Bolt 6 LT 750 Internal Antenna RX sends wireless video to a monitor or video village with virtually zero delay. Its permanently built-in antennas stay within the receiver’s compact body, so there are no external rods to attach or reposition during a fast camera setup.

Teradek says the internal antennas are 75% shorter than the external version. This model provides up to 750 ft / 228 m line-of-sight range, while retaining the receiver’s core specifications and functions.

TERADEK BOLT 6 LT 750 · RECEIVER

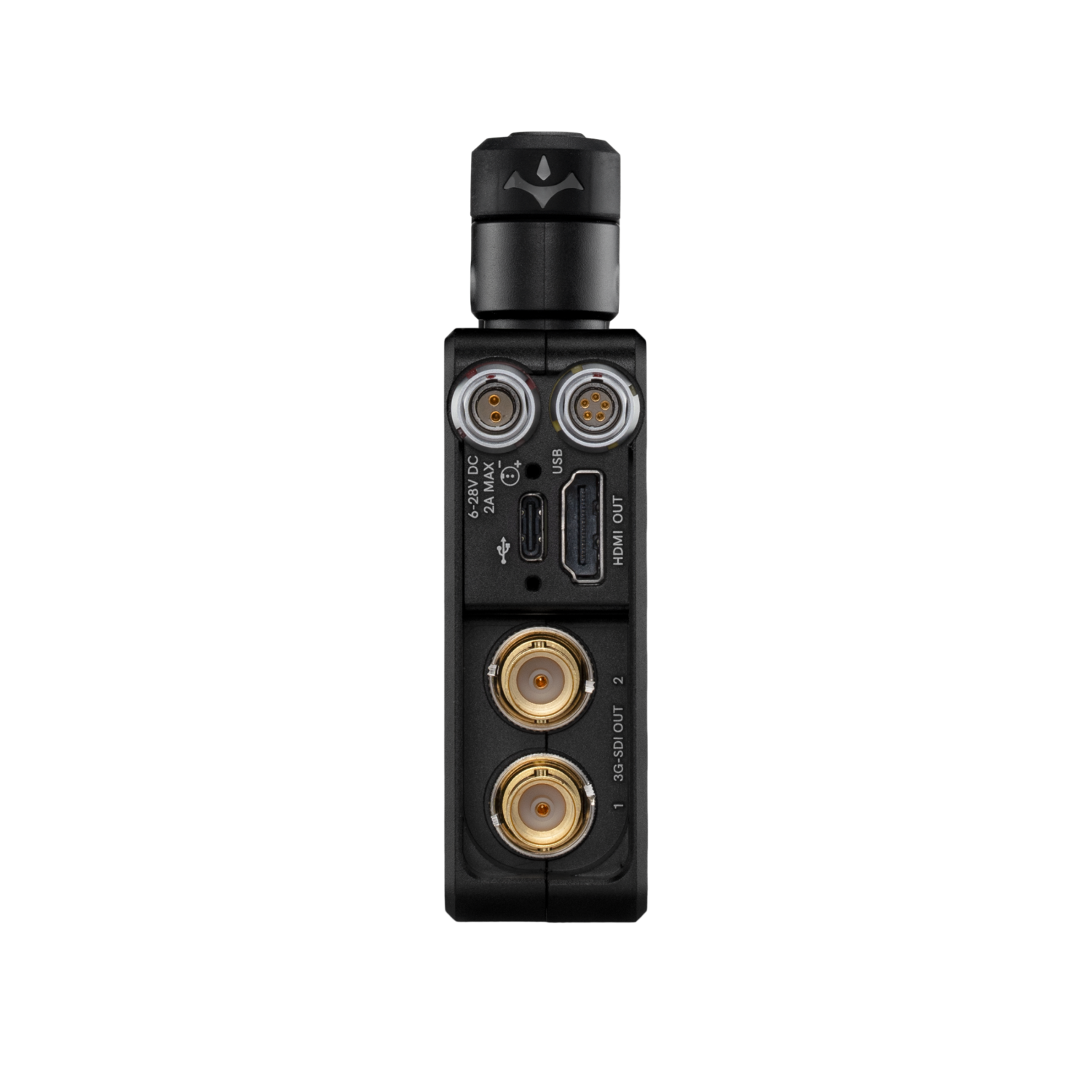

THREE VIDEO OUTPUTS FOR MONITORING

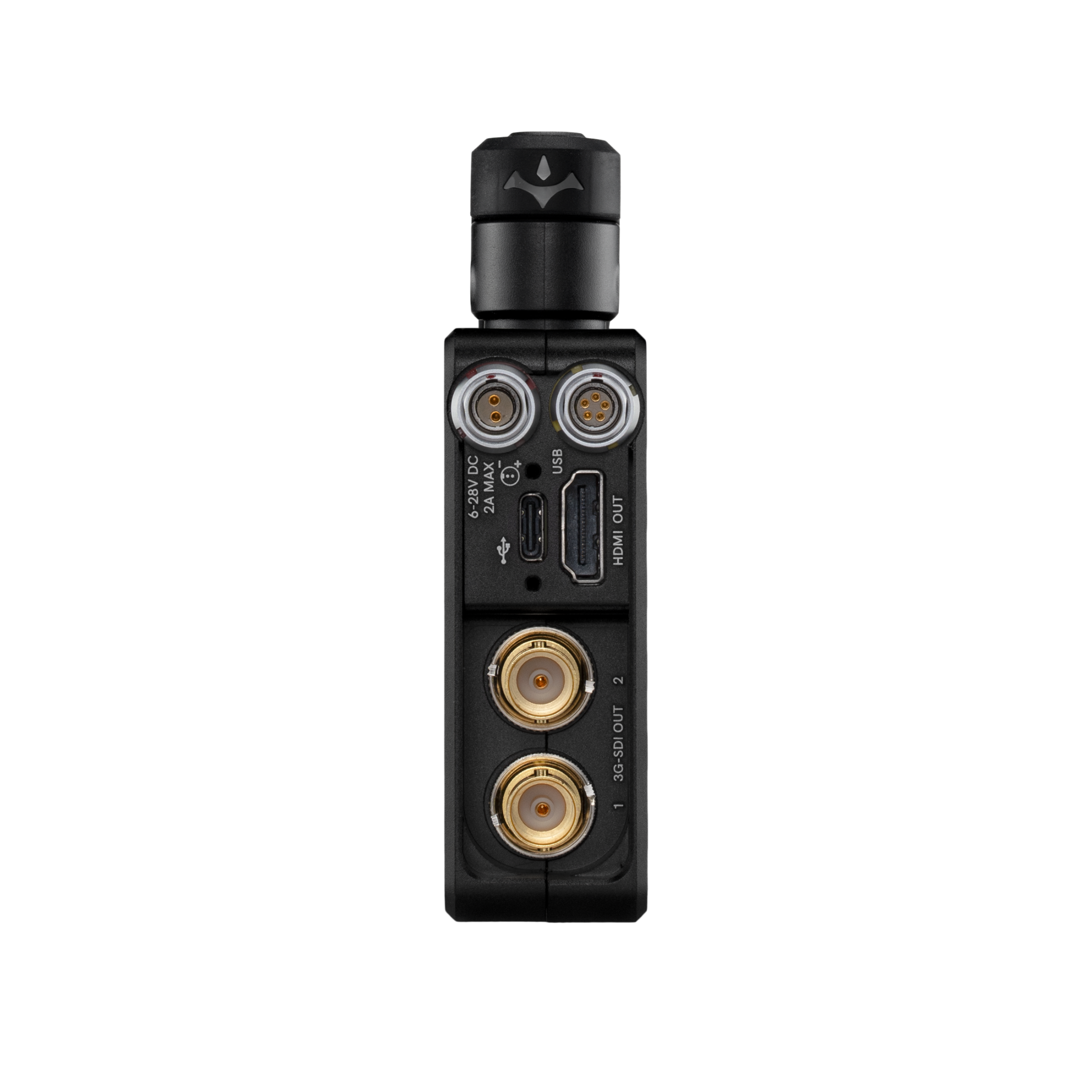

The side panel provides two 3G-SDI outputs and one HDMI output. 3G-SDI carries up to 1080p60 10-bit 4:2:2 HDR, while HDMI supports up to 4K30. Up to six receivers can be linked to one transmitter.

OFFICIAL TE-10-2264 PACKAGE

POWER AND CABLES INCLUDED

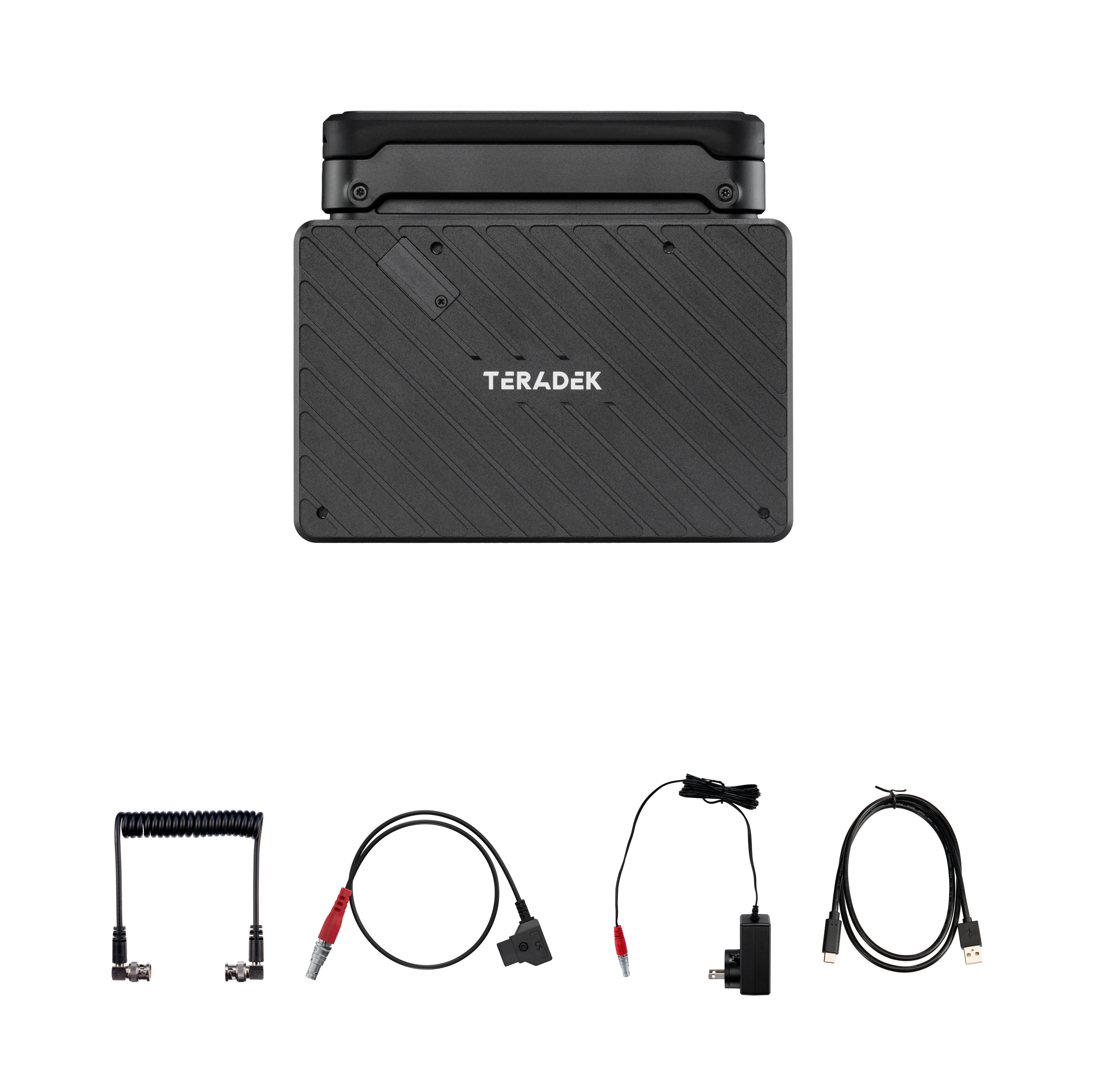

The manufacturer infographic below is for the exact 750 RX internal-antenna, no-mount configuration. The package includes two power options and the required connection cables.

• Bolt 6 LT 750 RX with internal antennas ×1
• 2-pin to P-Tap power cable, 18 in / 46 cm ×1
• 18 W 2-pin AC adapter with 6 ft / 1.8 m cable ×1
• 10 in / 25.4 cm SDI cable ×1
• 1 m USB-C 2.0 male-to-male cable ×1
