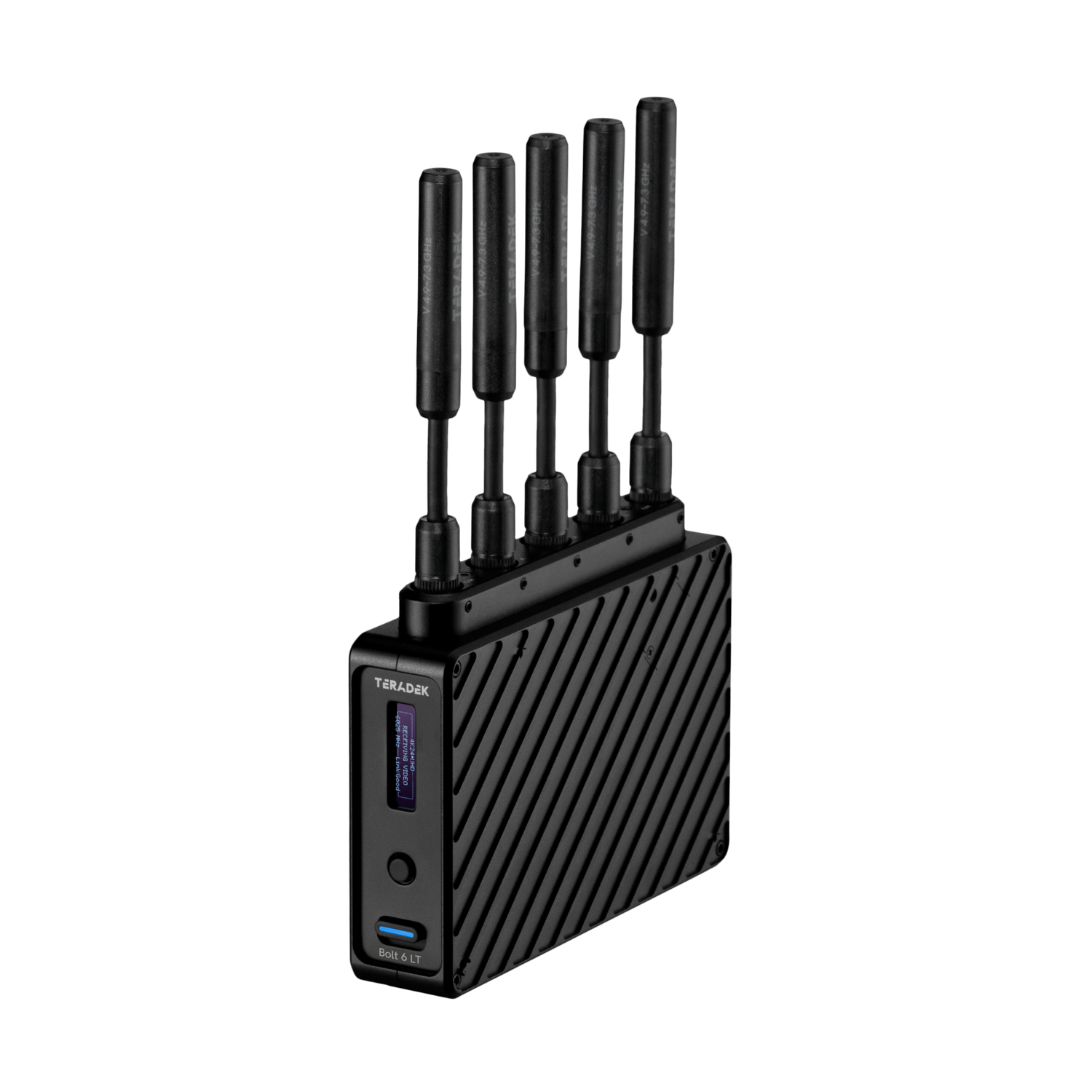

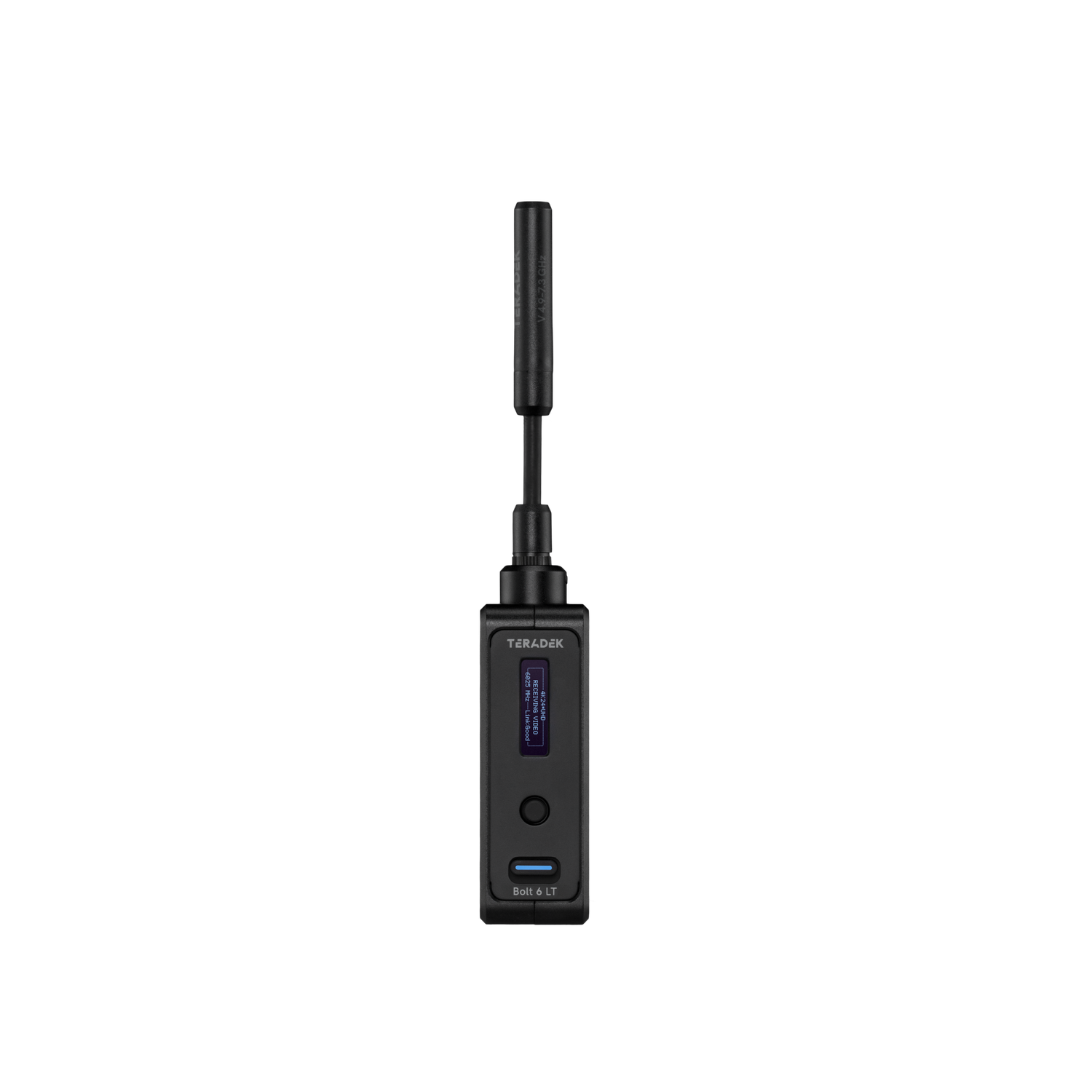

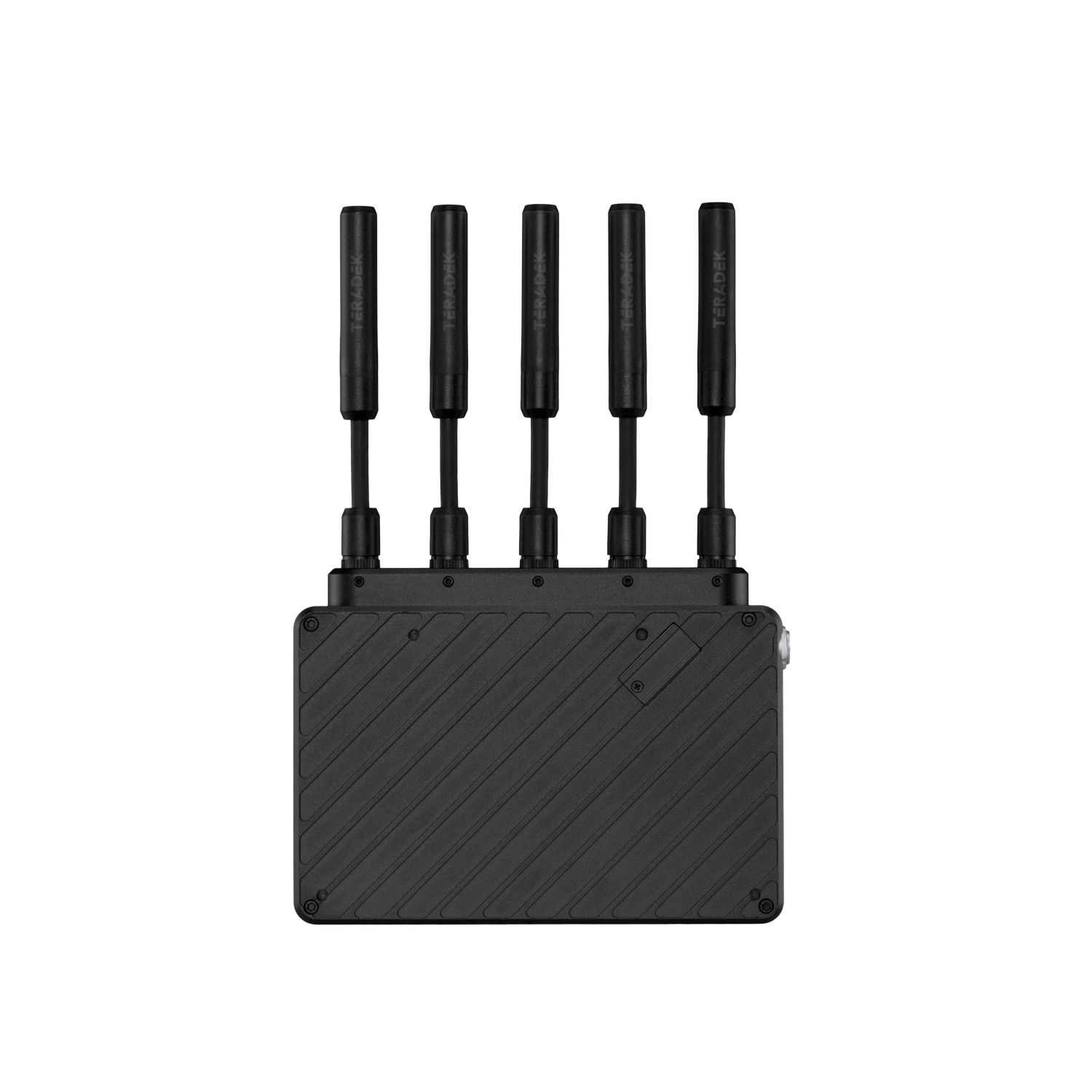

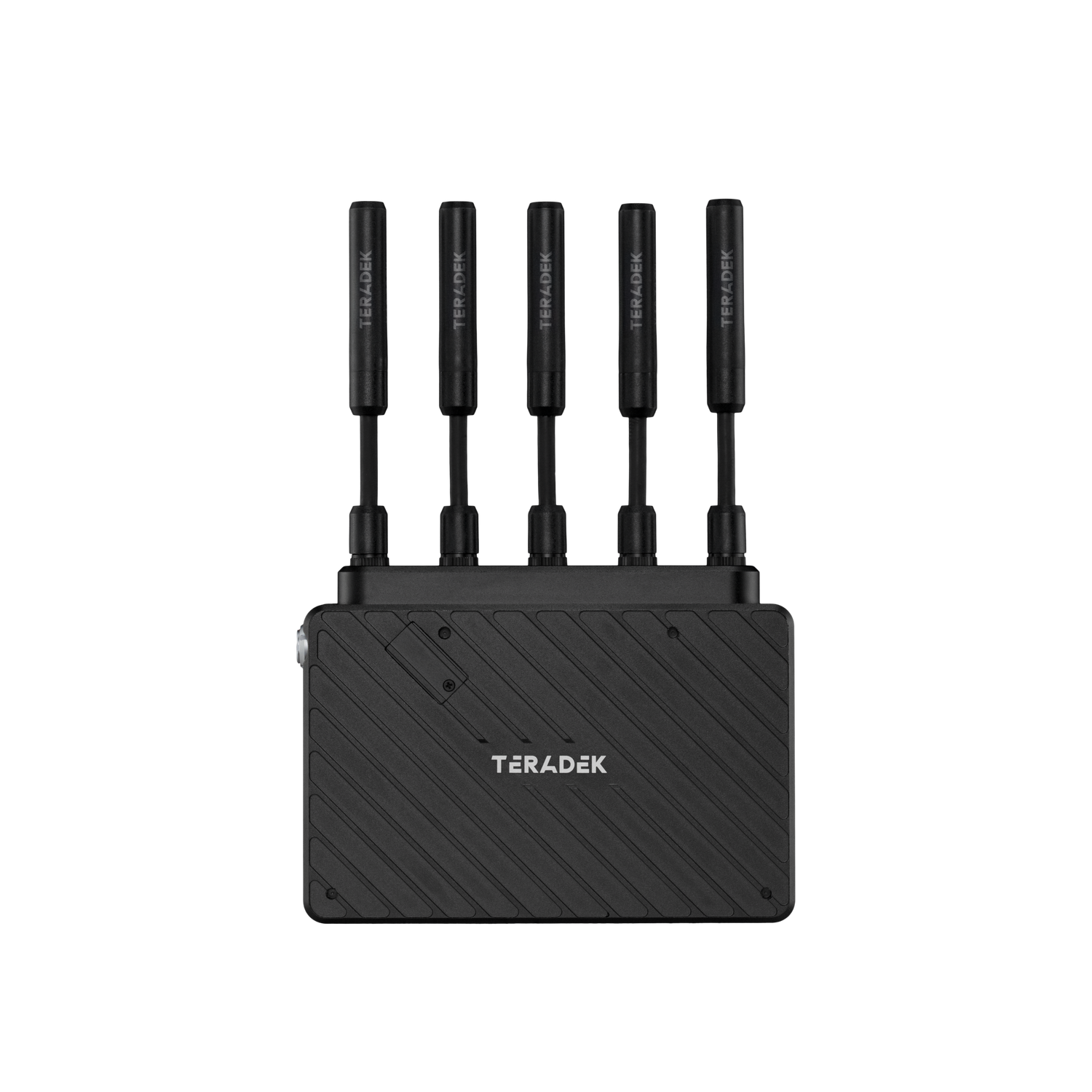

Teradek Bolt 6 LT 1500 RX

  • New
  • Free transport
SKU: TE-10-2272

The Teradek Bolt 6 LT 1500 RX (10‑2272) is a wireless video receiver with external antennas and a range of up to 1,500 ft / 457 m in line of sight. It receives up to 1080p60 in 10-bit 4:2:2 HDR via 3G-SDI or up to 4K30 via HDMI and operates in the 5 GHz and 6 GHz bands.

More information

4 029 € with VAT 3 329.75 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TE-10-2272
Add to Compare Price history

Teradek Bolt 6 LT 750 RX

Call us for pricing information

Teradek Bolt 6 LT MAX RX

7 949 €without VAT 6 569.42 €

Teradek Bolt 6 LT 750 Int Ant RX Gold-Mount

2 419 €without VAT 1 999.17 €

Teradek Bolt 6 LT 750 RX Gold-Mount

2 419 €without VAT 1 999.17 €

Teradek Bolt 6 LT MAX RX Gold Mount

8 299 €without VAT 6 858.68 €

Teradek Bolt 6 LT 1500 RX Gold-Mount

4 379 €without VAT 3 619.01 €

Teradek Bolt 6 LT 750 Int Ant RX V-Mount

2 419 €without VAT 1 999.17 €

Teradek Bolt 6 LT MAX RX V-Mount

8 299 €without VAT 6 858.68 €

Teradek Bolt 6 LT 750 RX V-Mount

2 419 €without VAT 1 999.17 €

Teradek Bolt 6 LT 1500 RX V-Mount

4 379 €without VAT 3 619.01 €

Teradek Bolt 6 LT 750 Int Ant RX

2 069 €without VAT 1 709.92 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Teradek Bolt 6 LT 1500 RX (10‑2272) is a wireless video receiver with external antennas and a range of up to 1,500 ft / 457 m in line of sight. It receives up to 1080p60 in 10-bit 4:2:2 HDR via 3G-SDI or up to 4K30 via HDMI and operates in the 5 GHz and 6 GHz bands.

The 10-2272 variant does not include a battery plate. It comes with external H and V antennas and is compatible with the entire Bolt 4K series, including the Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Modules. Up to six receivers can be connected to a single transmitter.

BOLT 6 LT RECEIVER WITH 1,500 FT RANGE

Model 10‑2272 is an external 1,500 ft receiver without a battery pack for professional wireless monitoring. The Bolt 6 transmits video with virtually no delay in the 5 and 6 GHz bands.

H AND V ANTENNAS FOR A MORE RELIABLE CONNECTION

The 1,500-ft version includes both vertical and horizontal antennas. H-antennas help improve signal resilience in challenging RF conditions.

SDI AND HDMI

The receiver supports up to 1080p60 10-bit 4:2:2 HDR via 3G-SDI or up to 4K30 via HDMI. It is compatible with Bolt 4K and Bolt 6 transmitters, depending on the product line.

PACKAGE CONTENT

PACKAGE CONTENTS

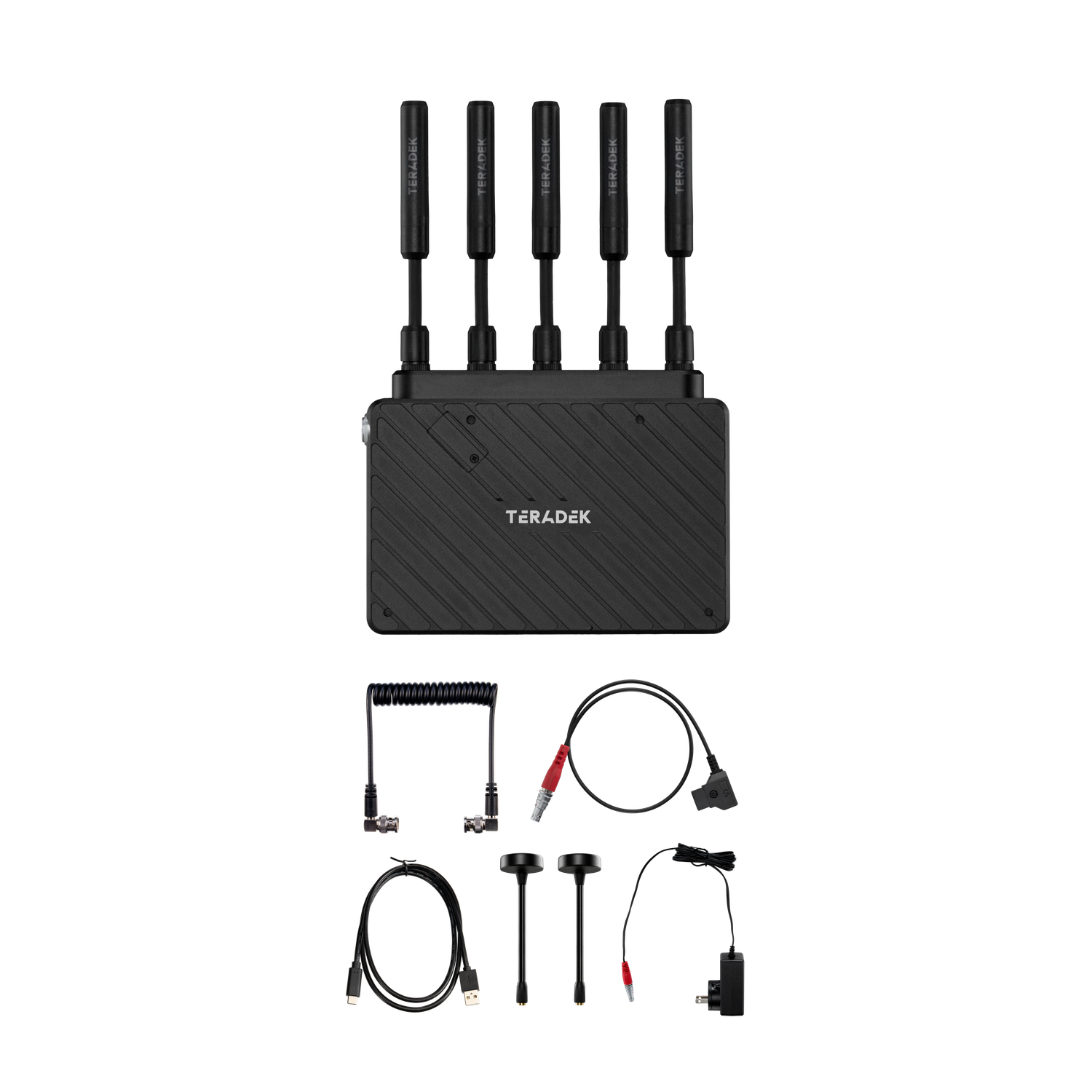

Bolt 6 LT 1500 RX (10-2272), external H/V antennas, and original connection/accessory cables as per the official 10-2272 packaging.

SPECIFICATIONS

SPECIFICATIONS

  • Model: Bolt 6 LT 1500 RX, 10‑2272
  • Range: up to 1,500 ft / 457 m (line of sight)
  • Video: up to 1080p60 10-bit 4:2:2 HDR via 3G-SDI; up to 4K30 via HDMI
  • Wireless bands: 5 GHz and 6 GHz
  • Antennas: external H and V
  • Battery Mount: No battery plate
  • Multi-receiver operation: up to 6 RX per TX
Parameters

Parameters

Manufacturer: Teradek
Category: Wireless video transmission
