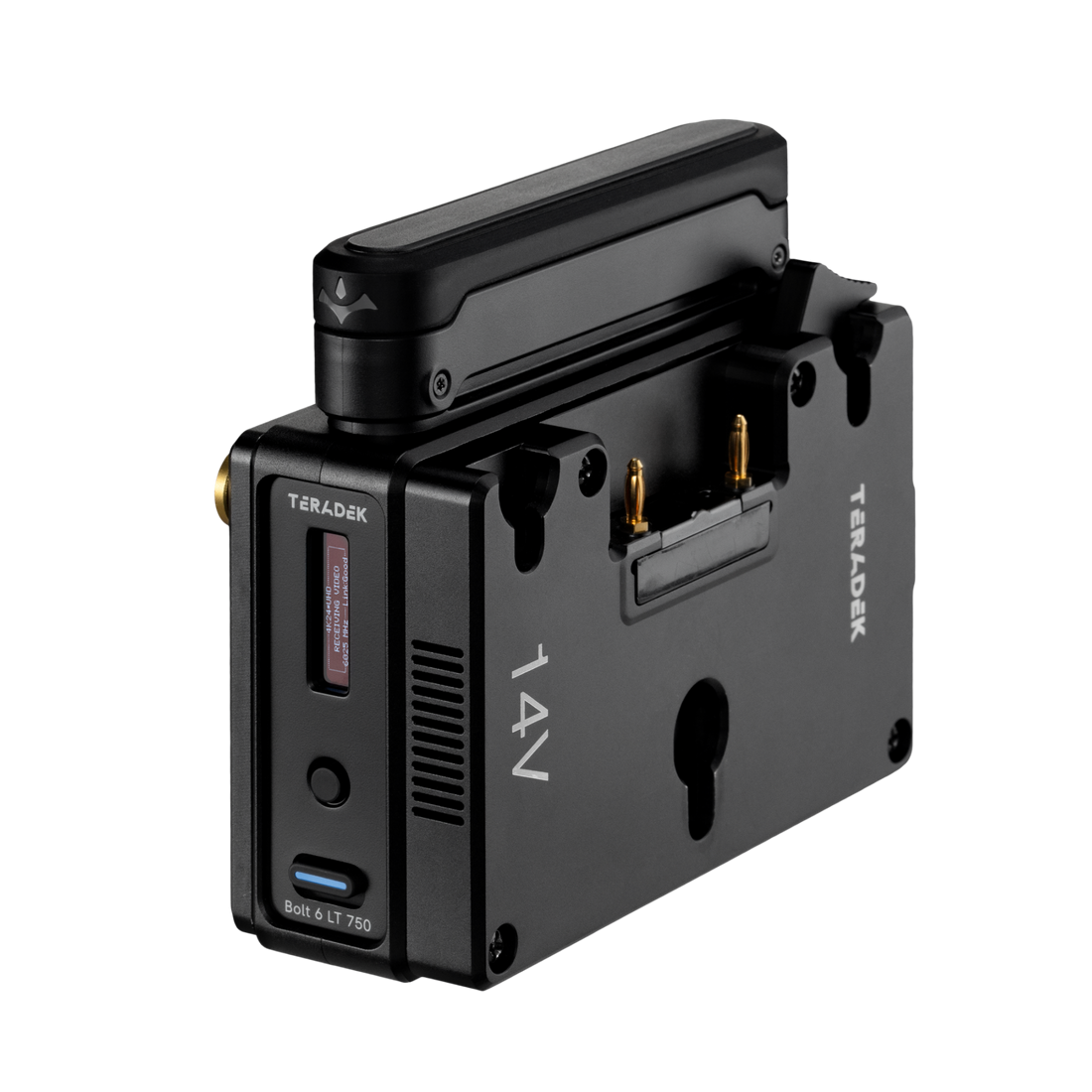

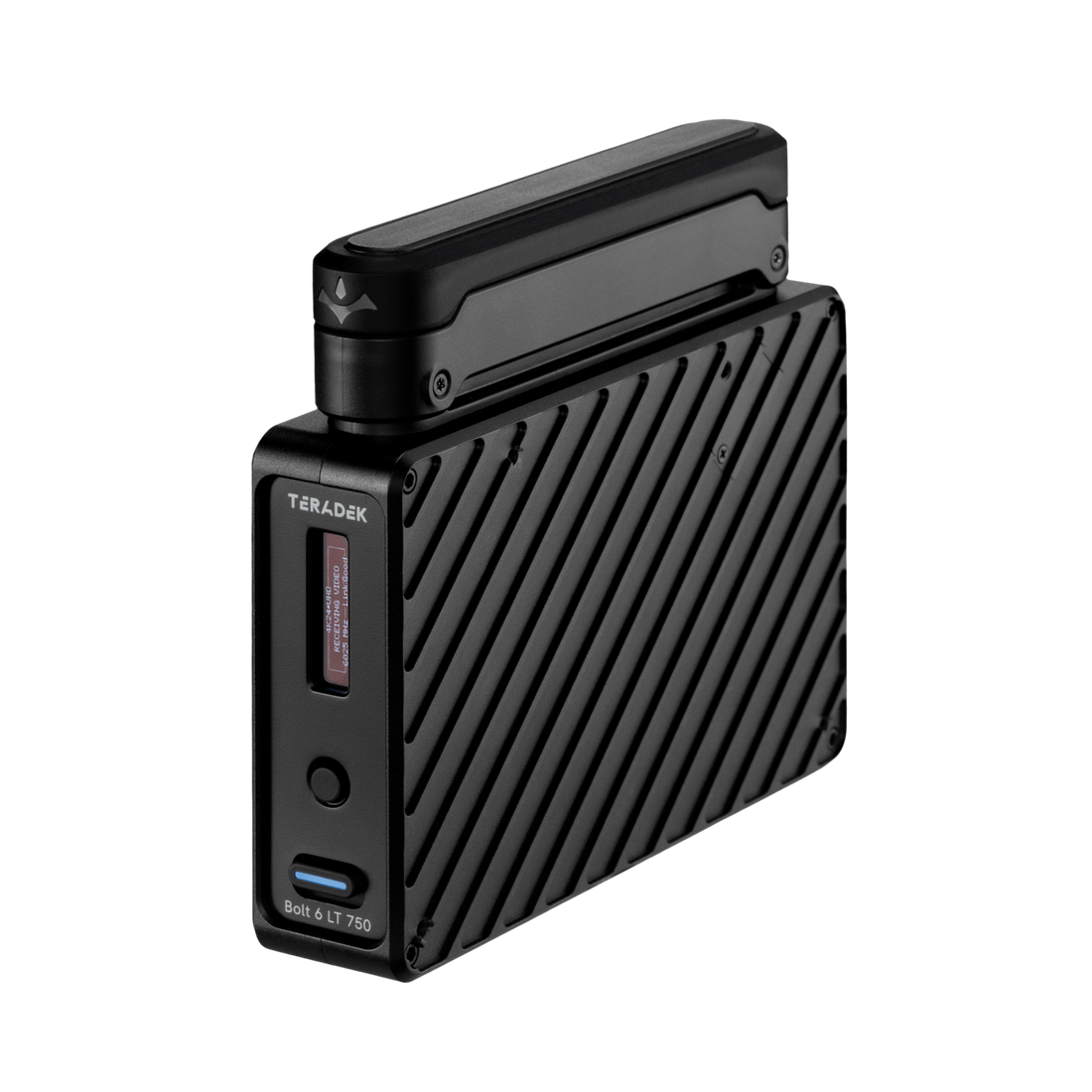

Teradek Bolt 6 LT 750 Int Ant RX Gold-Mount

The Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas (Gold Mount) is a compact professional wireless video receiver designed to receive high-quality video from compatible Teradek Bolt transmitters from distances of up to 750' line of sight. Supporting the 6 GHz frequency band, the receiver can handle up to UHD 4K30 video with 10-bit 4:2:2 color and Rec. 2020 HDR, while providing both HDMI and 3G-SDI outputs with zero-delay transmission. Its sleek design incorporates internal antennas for a clean, compact setup and includes 1/4"-20 and M3 mounting threads for flexible installation on cameras, cages, and rigs. The receiver is cross-compatible with all Bolt 4K series devices over 5 GHz and works with Bolt 6 series devices over 6 GHz. Bluetooth connectivity enables control through the Bolt mobile app for iOS and Android, including channel selection, spectrum analysis, and remote configuration. A bright OLED display provides convenient status monitoring, while AES-256 encryption helps secure wireless video transmission. This Gold Mount version features an integrated Gold Mount battery plate and accepts 6 to 28 VDC input power.

Key Features

• Wireless video reception up to 750' line of sight
• Supports the 6 GHz frequency band
• Sleek design with internal antennas
• Supports up to UHD 4K30 wireless video
• 10-bit 4:2:2 color with Rec. 2020 HDR support
• HDMI and 3G-SDI outputs
• HDMI output supports 4K; 3G-SDI output supports up to 1080p
• Zero-delay wireless transmission
• Compatible with all Bolt 4K transmitters
• Compatible with Bolt 6 series devices over the 6 GHz band
• AES-256 encryption
• Bluetooth connectivity for mobile app control
• Spectrum analyzer and channel selection tools
• SDI Eye Pattern Tool for checking SDI cable integrity
• Bright OLED display
• 1/4"-20 and M3 mounting threads
• Integrated Gold Mount battery plate
