Teradek Bolt 6 LT 750 RX Gold-Mount

The Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver (Gold Mount) is a compact, professional wireless video receiver designed to receive high-quality video from compatible Bolt transmitters at distances up to 750' / 228.6 m line-of-sight. Supporting the new 6 GHz frequency band, the receiver can handle wireless transmission of up to UHD 4K30 video and outputs 4K through HDMI or up to 1080p through 3G-SDI. It also supports 10-bit 4:2:2 Rec. 2020 HDR and delivers less than 1 ms latency for real-time monitoring.

The receiver features five antennas, AES-256 encryption, RSA 1024 key pairing, improved long-range mode, and an SDI Eye Pattern Tool for checking cable integrity. It is cross-compatible with Bolt 4K series devices over the 5 GHz spectrum and supports Bolt 6 devices over 6 GHz. Bluetooth connectivity allows control through the Teradek app for iOS and Android, including spectrum analysis, channel selection, and remote configuration. Power can be supplied through the 2-pin DC input or the included interchangeable Gold Mount battery plate, making the receiver well suited for professional camera, monitor, and on-set video applications.

Key Features

• Receives video from up to 750' / 228.6 m line-of-sight
• Supports the new 6 GHz wireless frequency band
• Receives up to UHD 4K30 video

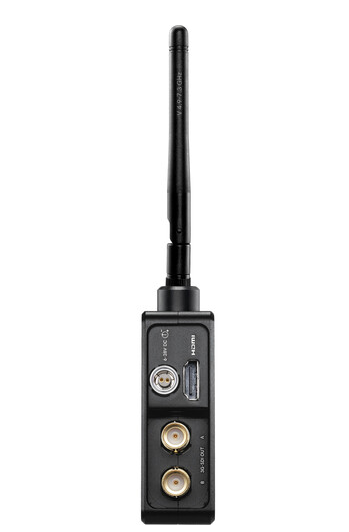

• HDMI and 3G-SDI video outputs
• Outputs 4K through HDMI
• Outputs up to 1080p through 3G-SDI
• Supports 10-bit 4:2:2 Rec. 2020 HDR
• Less than 1 ms latency
• Compatible with Bolt 6 series devices
• Cross-compatible with Bolt 4K series devices over 5 GHz
• AES-256 encryption
• RSA 1024 key pairing

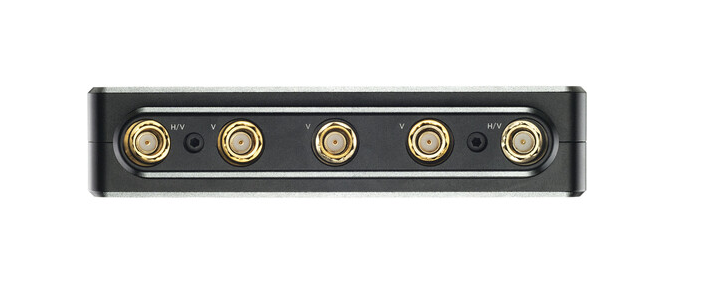

• Five RP-SMA antenna connections
• Built-in SDI Eye Pattern Tool
• Improved long-range mode and noise rejection
• Bluetooth connectivity for iOS/Android app control
• Spectrum analyzer and remote configuration
• Supports timecode and start/stop triggers
• Gold Mount battery plate included
• 2-pin DC power input
• Compact and lightweight construction
