Teradek Antenna Array V Mount (Bolt 6 / Bolt 4K)

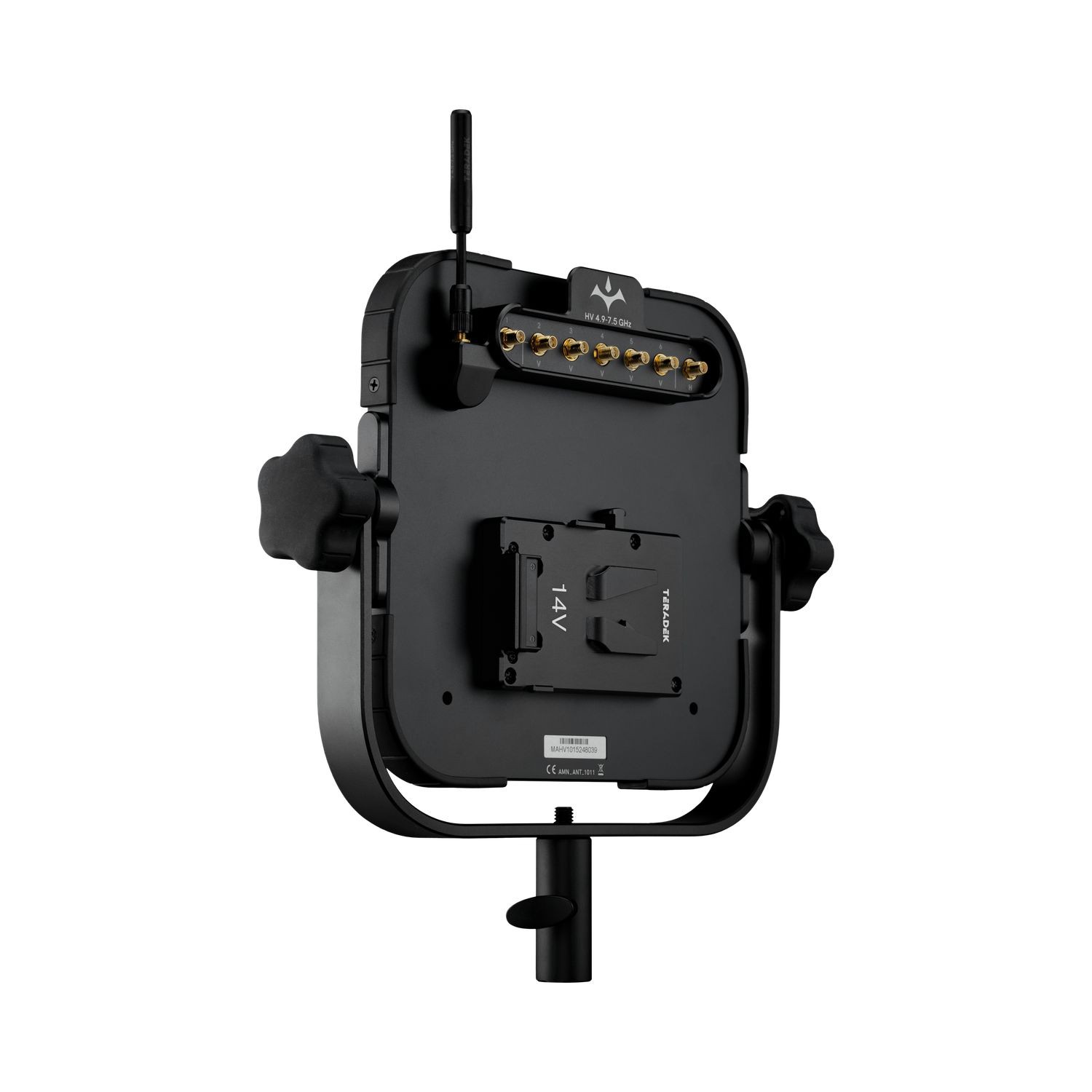

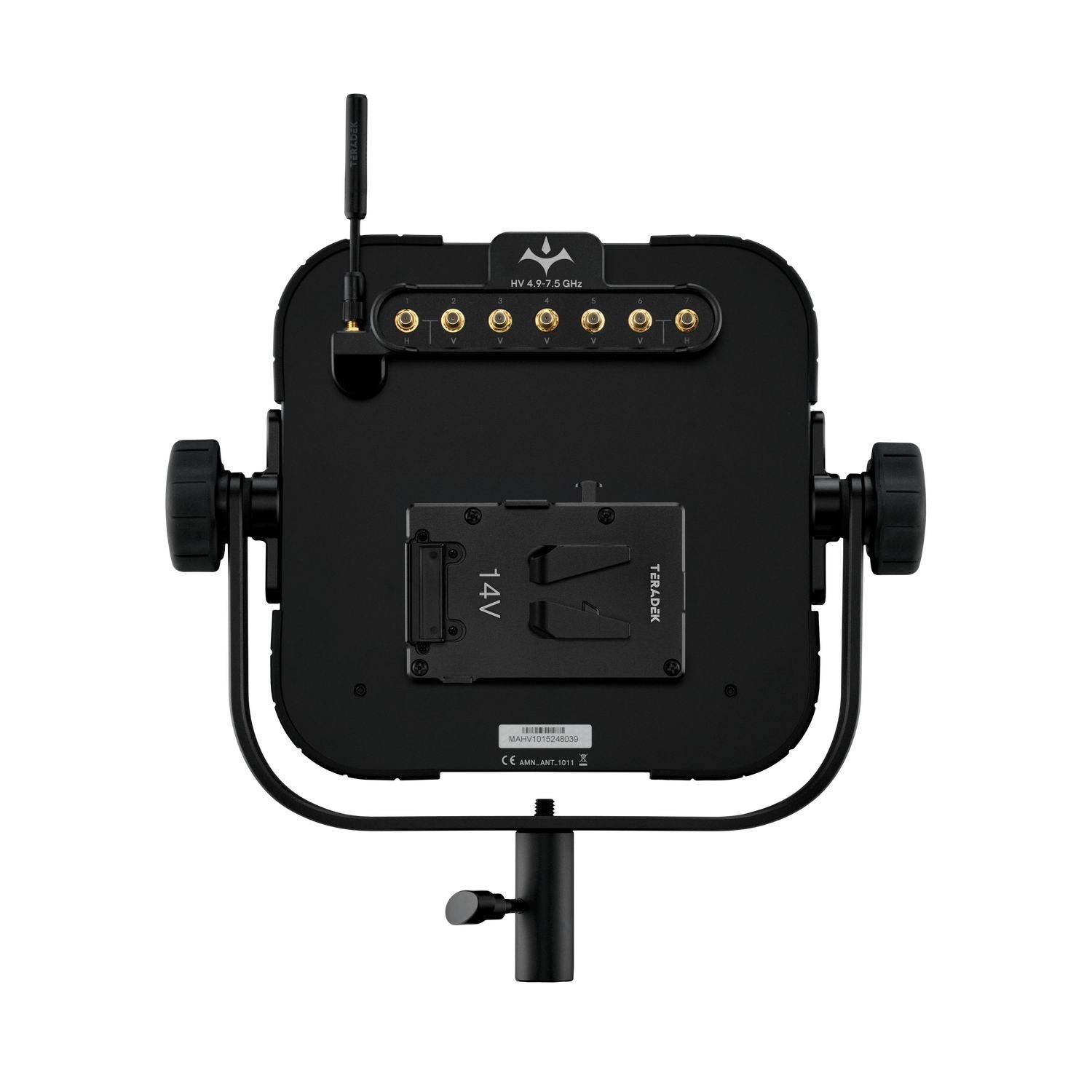

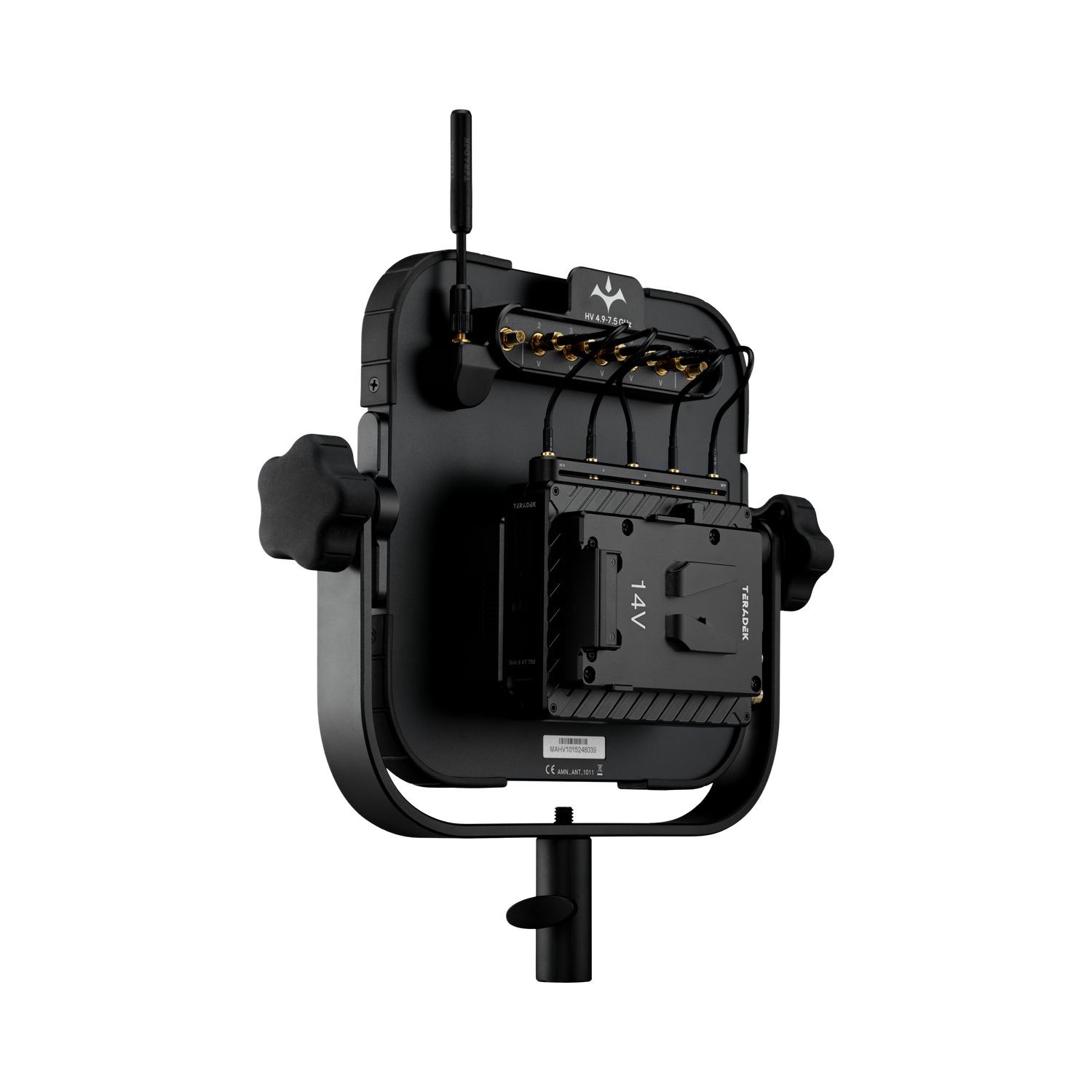

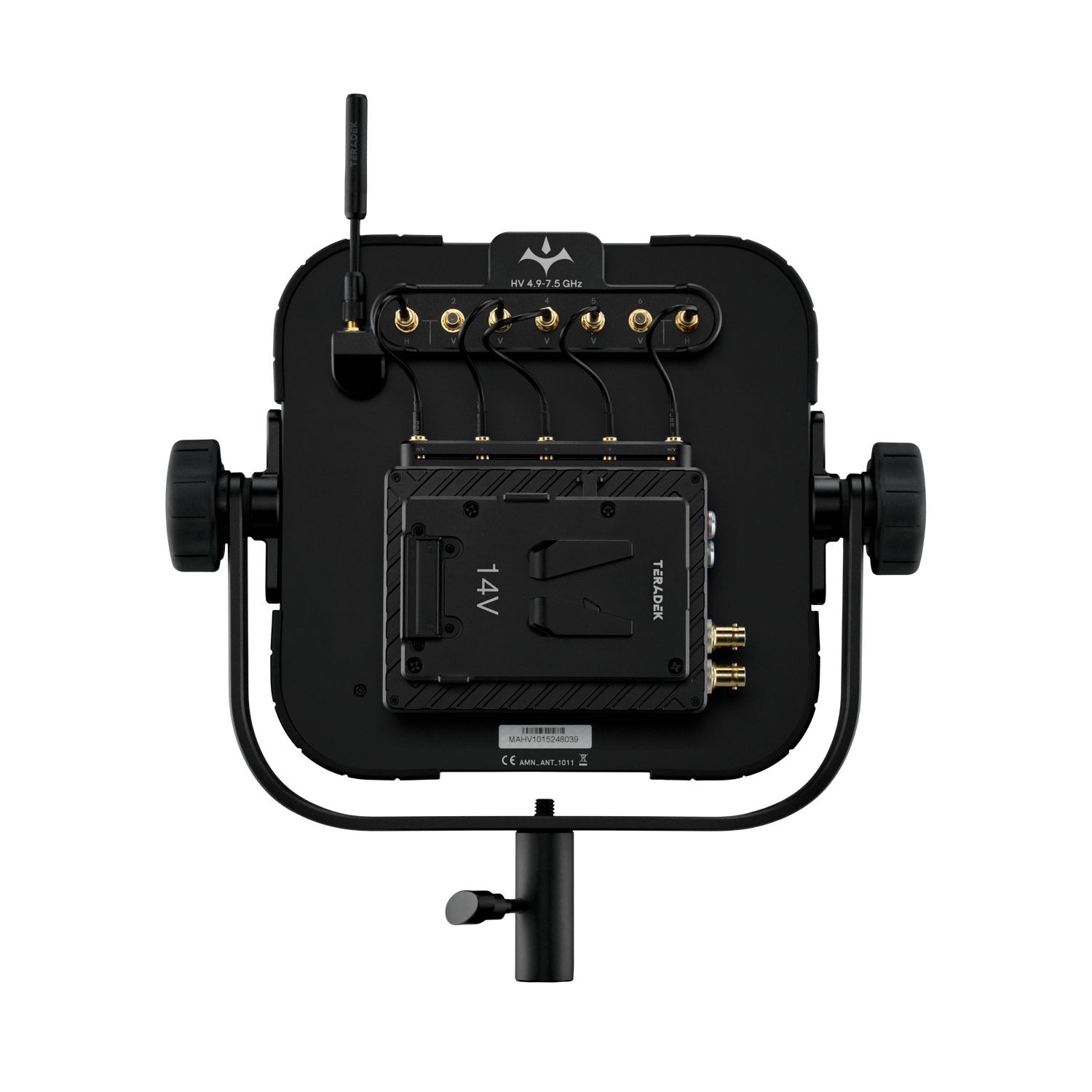

The Teradek Antenna Array V-Mount (11-0888-V) is a directional antenna array for the Bolt 6 and Bolt 4K systems operating in the 4.9–7.3 GHz band. The V-Mount design is a feature of this specific model and allows for both power delivery and mounting within a workflow compatible with a V-Mount setup.

The array combines three 16 dBi, two 14 dBi, and one 2 dBi antennas; it focuses the wireless signal, reduces interference, and can improve reception in challenging RF environments. The stated range of up to 5,000 ft is always limited by the maximum range of the connected Bolt kit. Before deployment, verify transmitter/receiver compatibility, the frequency plan, and that the RP-SMA cables are properly connected.
