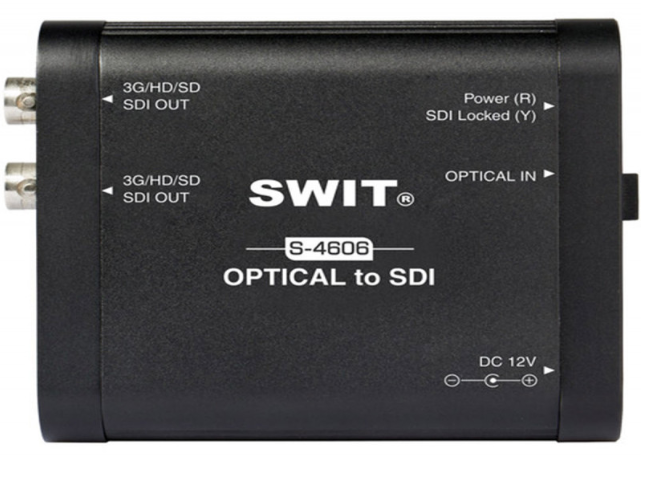

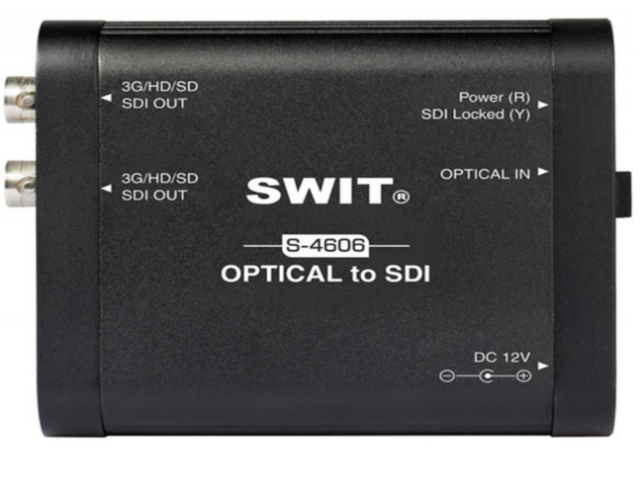

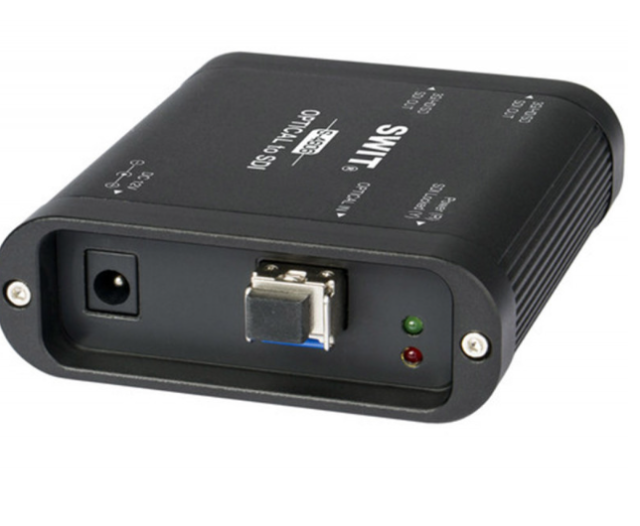

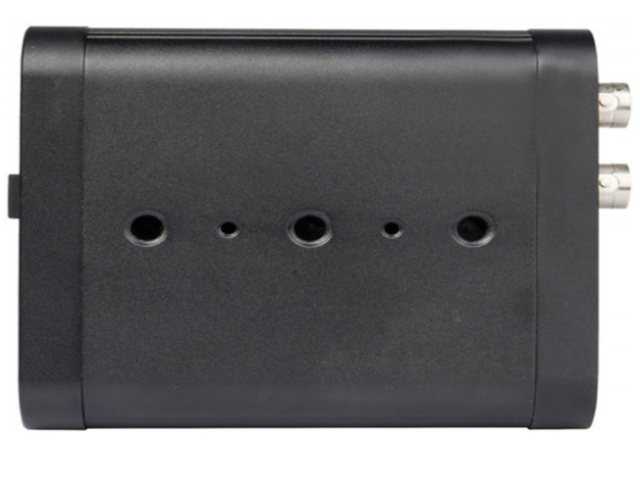

SWIT S-4606 | Heavy Duty Optical fiber to 3G-SDI converter

  • New
SKU: S-4606

The SWIT S-4606 Fiber Optic to 3G-SDI Converter is a portable and rugged single-mode fiber optic converter designed for reliable 3G/HD/SD-SDI signal transmission up to 20 km. Featuring hot-swappable optical modules, LC fiber connectors, and a robust aluminum casing with multiple mounting options, it ensures stable video conversion…

More information

569 € with VAT 470.25 € without VAT
Add to Compare Price history
Availability
on request
SKU:
S-4606
Add to Compare Price history

SWIT S-4601 | Heavy Duty HDMI to 3G-SDI converter

313 €without VAT 258.68 €

SWIT S-4612 | Heavy Duty DVI to SDI converter

313 €without VAT 258.68 €

SWIT S-4607 | Heavy Duty Bi-directional 3G-SDI / Optical converter

829 €without VAT 685.12 €

SWIT S-4610 | SDI Audio Embedder

419 €without VAT 346.28 €

SWIT S-4611 | Heavy Duty SDI to DVI converter

313 €without VAT 258.68 €

SWIT S-4600 | Heavy Duty 3G-SDI to HDMI converter

313 €without VAT 258.68 €

SWIT S-4040+PB-R290S+*4 KIT | 48V+24VDC, 1160Wh total

4 569 €without VAT 3 776.03 €

SWIT S-4605 | Heavy Duty 3G-SDI to Optical fiber converter

569 €without VAT 470.25 €

SWIT S-4609 | SDI Audio De-Embedder

419 €without VAT 346.28 €

Top accessories for SWIT S-4606 | Heavy Duty Optical fiber to 3G-SDI converter

Swit S-7102 4-pin XLR DC adapting power cable

S-7102 is the XLR female to male DC adapting power cable.Connect the XLR female end
30 €
To be sent > 5 pcs

SWIT PD-A12K | 12V-1A Lockable Pole Power Adaptor

12V-1A Lockable Pole Power Adaptor 1.5m, also for FLOW/Curve, S-1053 etc.
42 €
In stock 2 pcs

SWIT S-4020 KIT2 | 12/24V power station with 4*S-8183S total 960Wh power batteries

  • New
  • Free transport
The SWIT S-4020 KIT2 is a professional 12/24V portable power station kit supplied
3 289 €
on request

SWIT S-1173/12x3 Adaptor | 12V-5A 60W 4-pin XLR(Bend) Power Adaptor

  • New
The SWIT S-1173 12x3 Adaptor is a compact and durable 12V 5A, 60W 4-pin XLR bend
42 €
on request

SWIT VOLTA PRO power station

  • New
  • Free transport
The SWIT VOLTA PRO is a 9kWh modular mobile power station built for professional
12 099 €
on request

SWIT S-4030 | 4-Battery power station box with 2x24V output

  • New
The SWIT S-4030 is a 4-battery V-mount power station that provides dual 24V outputs
969 €
on request

SWIT CIMO-98S | 98Wh 150W High Load V-Mount Battery with USB-C and powerful 2xD-taps

  • New
The SWIT CIMO-98S is a 98Wh slim Cine V-mount battery with high-load performance,
301 €
on request

SWIT PD-A12L4 | 12V-1A 4-pin Lemo Power Adaptor

  • New
The SWIT PD-A12L4 is a 12V 1A 4-pin Lemo power adaptor with a 1.5-meter cable, designed
59 €
on request

SWIT VOLTA PRO(2BP) Modular Power Station

  • New
  • Free transport
The SWIT VOLTA PRO 4.5kWh 2BP Modular Power Station is a compact, high-performance
8 109 €
on request

SWIT A-PA04 | 12V-4.5A 54W Pole Power Adaptor

  • New
The SWIT A-PA04 is a 54W AC power adapter delivering stable 12V/4.5A output. Featuring
59 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The SWIT S-4606 Fiber Optic to 3G-SDI Converter is a portable and rugged single-mode fiber optic converter designed for reliable 3G/HD/SD-SDI signal transmission up to 20 km. Featuring hot-swappable optical modules, LC fiber connectors, and a robust aluminum casing with multiple mounting options, it ensures stable video conversion in demanding broadcast and professional video environments.

The SWIT S-4606 Heavy Duty Fiber Optic to 3G-SDI Converter offers a high-performance solution for converting single-mode optical fiber signals to 3G/HD/SD-SDI electrical outputs, enabling long-distance video transmission with minimal signal loss. Designed for portability and durability, the S-4606 features a rugged aluminum housing that protects critical connectors and allows for secure mounting with lower screw threads.

Supporting transmission distances up to 20 km via single-mode fiber and equipped with standard LC connectors, the converter guarantees reliable connectivity for professional broadcast, live event, and studio applications. Its hot-swappable optical module functionality permits quick replacement or upgrades without interrupting the workflow.

The device includes clear LED indicators for power and SDI input status to aid real-time monitoring, ensuring efficient setup and troubleshooting. With a wide operating temperature range and humidity tolerance, the S-4606 performs reliably in diverse environmental conditions.

Compact yet robust, this converter is an essential component for users needing high-quality fiber-to-SDI conversion with professional-grade dependability.

Key Features

  • Portable fiber optic to 3G/HD/SD-SDI converter

  • Single-mode optical fiber support with LC connector

  • Hot-swappable optical module for easy maintenance

  • Power and SDI input status indicators

  • Durable aluminum casing with protective design

  • Multiple screw threads for secure installation

  • Supports transmission distances up to 20 km

  • Compatible with standard 3G-SDI, HD-SDI, and SD-SDI signals

PACKAGE CONTENT

  • SWIT S-4606 Fiber Optic to 3G-SDI Converter

  • AC Power Adapter

SPECIFICATIONS

  • Type: 3G/HD/SD-SDI Optical/Electrical Converter
  • Fiber Type: Single-mode optical fiber
  • Fiber Connector: LC
  • SDI Input: 1 × 3G HD-SDI input (optical)
  • SDI Output: 2 × 3G HD-SDI output (BNC)
  • Power Input: DC 6–18 V
  • Dimensions: 3.9" (W) × 3.3" (D) × 1.1" (H)
  • Weight: 7.76 oz (220 g)
  • Operating Temperature: 32°F to 158°F (0°C to 70°C)
  • Operating Humidity: 10–90%
  • Kit Contents: AC adapter included
