SWIT S-4601 | Heavy Duty HDMI to 3G-SDI converter

  • New
SKU: S-4601

The SWIT S-4601 is a portable, heavy-duty HDMI to 3G/HD/SD-SDI converter featuring one HDMI input and dual SDI outputs. It supports embedded HDMI audio as well as external analog audio via a 3.5mm input, both integrated into the SDI output. Housed in a robust metal casing with bottom screw threads for secure installation, it’s…

More information

313 € with VAT 258.68 € without VAT
Add to Compare Price history
Availability
on request
SKU:
S-4601
Add to Compare Price history

SWIT S-4606 | Heavy Duty Optical fiber to 3G-SDI converter

569 €without VAT 470.25 €

SWIT S-4612 | Heavy Duty DVI to SDI converter

313 €without VAT 258.68 €

SWIT S-4610 | SDI Audio Embedder

419 €without VAT 346.28 €

SWIT S-4600 | Heavy Duty 3G-SDI to HDMI converter

313 €without VAT 258.68 €

SWIT S-4040+PB-R290S+*4 KIT | 48V+24VDC, 1160Wh total

4 569 €without VAT 3 776.03 €

SWIT S-4605 | Heavy Duty 3G-SDI to Optical fiber converter

569 €without VAT 470.25 €

SWIT S-4609 | SDI Audio De-Embedder

419 €without VAT 346.28 €

Top accessories for SWIT S-4601 | Heavy Duty HDMI to 3G-SDI converter

Swit BA-PARA26 Parabolic 26-inch Dome Softbox for Bowens Lights

  • -24 %
Promotion: -24%
Bowens Mount 26-inch Easy-open Parabolic Dome Softbox, With eggcrate and dual di
174.09 €
228.69 €
3-5 days

SWIT LA-BX300 | 60° Softbox diffuser for PL-S300H/PL-S300D/PL-S150D

  • New
The SWIT LA-BX300 is a 60° softbox diffuser designed for use with SWIT PL-S150D,
144 €
on request

SWIT LA-B840 | Foldable Softbox with Eggcrate for S-2840

  • New
The SWIT LA-B840 Honeycomb Collapsible Diffuser for S-2840 is a foldable softbox
429 €
on request

SWIT LA-BX60 softbox

  • New
The SWIT LA-BX60 is a dedicated softbox diffuser designed for the SWIT CL-60D LED
96 €
on request

Swit BA-OCT36 Octagonal 36-inch Softbox for Bowens Lights

Bowens Mount 36-inch Easy-open Octagonal Softbox, with dual diffusers
103 €
3-5 days

SWIT LA-B610*5 | Softbox 5Pack for S-2610

  • New
The SWIT LA-B610 Eggcrate Diffuser is a dedicated light-shaping accessory designed
689 €
on request

SWIT S-4606 | Heavy Duty Optical fiber to 3G-SDI converter

  • New
The SWIT S-4606 Fiber Optic to 3G-SDI Converter is a portable and rugged single-mode
569 €
on request

SWIT LA-BX120 softbox

  • New
The SWIT LA-BX120 is a dedicated softbox diffuser designed for the SWIT CL-120D LED
144 €
on request

SWIT S-4600 | Heavy Duty 3G-SDI to HDMI converter

  • New
The SWIT S-4600 is a compact 3G/HD/SD-SDI to HDMI® converter designed to display
313 €
on request

SWIT LA-BC90 softbox

  • New
The SWIT LA-BC90 is an octagonal softbox with grid designed for FL-C series spot
241 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

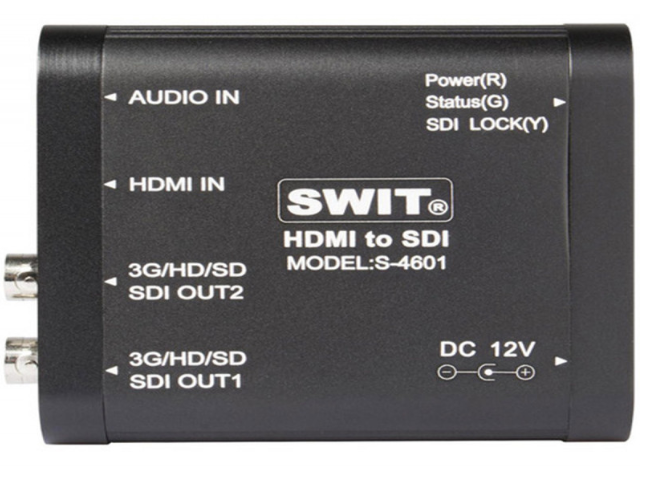

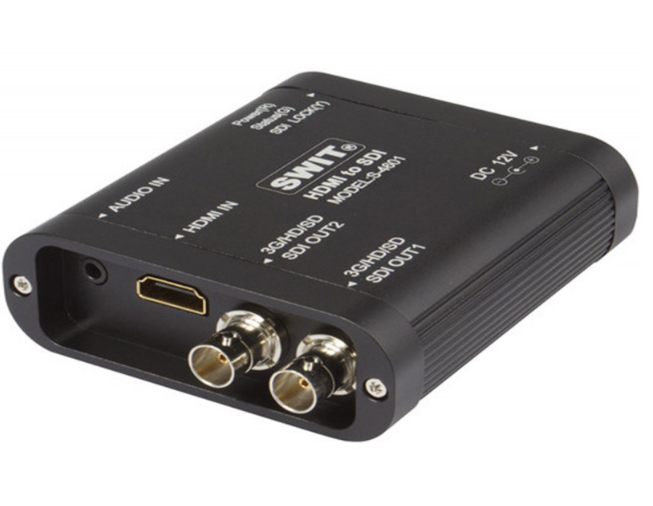

The SWIT S-4601 is a portable, heavy-duty HDMI to 3G/HD/SD-SDI converter featuring one HDMI input and dual SDI outputs. It supports embedded HDMI audio as well as external analog audio via a 3.5mm input, both integrated into the SDI output. Housed in a robust metal casing with bottom screw threads for secure installation, it’s an ideal solution for professional broadcast, live production, and AV workflows.

The SWIT S-4601 HDMI to 3G/HD/SD-SDI Converter is a compact and rugged signal conversion solution designed for professional video applications. It converts a single HDMI input (v1.3) into two simultaneous 3G/HD/SD-SDI outputs via BNC connectors, ensuring reliable signal distribution for broadcast monitors, switchers, recorders, and transmission systems.

The S-4601 supports embedded HDMI audio directly into the SDI stream. Additionally, it features a 3.5mm analog audio input, allowing external audio sources to be embedded into the SDI output—ideal for integrating microphones or mixers into professional SDI workflows.

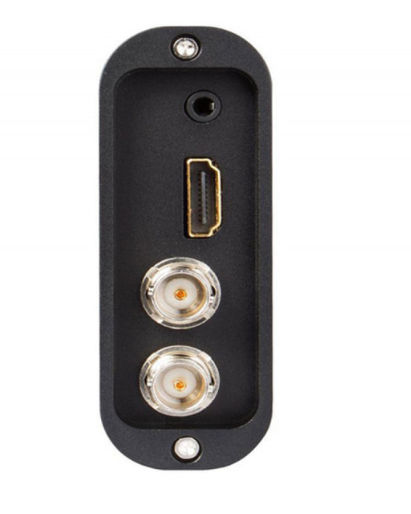

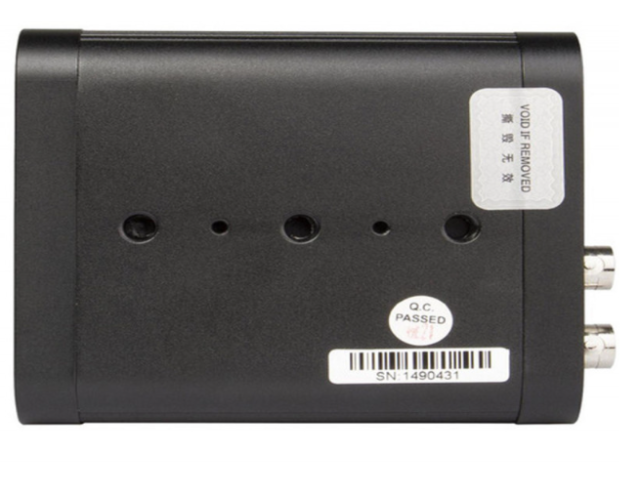

Built with durability in mind, the unit is enclosed in a robust protective housing that safeguards the BNC connectors. Multiple bottom screw threads provide flexible mounting options for camera rigs, broadcast carts, or studio installations.

Clear LED status indicators display power (red), HDMI input status (green), and SDI output lock (yellow), allowing users to monitor operational status at a glance. With low power consumption (3W) and a wide 6–18V DC operating range, the included 12V power adapter ensures reliable performance in both field and studio environments.

Key Features

  • HDMI to 3G/HD/SD-SDI conversion

  • 1 × HDMI input (v1.3)

  • 2 × SDI outputs (BNC)

  • Embed HDMI audio into SDI output

  • Embed analog audio (3.5mm jack) into SDI output

  • Supports 3G-SDI, HD-SDI, and SD-SDI formats

  • LED indicators for power, HDMI input, and SDI lock

  • Heavy-duty protective casing

  • Bottom screw threads for convenient mounting

  • Compact, portable design

PACKAGE CONTENT

  • 1 × SWIT S-4601 HDMI to 3G/HD/SD-SDI Converter

  • 1 × 12V DC Power Adapter

  • User Manual

SPECIFICATIONS

Inputs

  • 1 × HDMI (v1.3)

  • 1 × Analog audio (3.5mm jack)

Outputs

  • 2 × 3G/HD/SD-SDI (BNC)

Supported SDI Standards

  • SMPTE-425M: 1080p (60 / 59.94 / 50)

  • SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

  • SMPTE-RP211: 1080PsF (30 / 29.97 / 25 / 24 / 23.98)

  • SMPTE-296M: 720p (60 / 59.94 / 50)

  • SMPTE-125M: 480i (59.94)

  • ITU-R BT.656: 576i (50)

Supported HDMI Formats

  • 480i / 576i

  • 720p (60 / 59.94 / 50)

  • 1080i (60 / 59.94 / 50)

  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDCP

  • Not supported

LED Indicators

  • Power: Red

  • HDMI input status: Green

  • SDI output lock: Yellow

Electrical

  • Operating voltage: 6–18 VDC

  • Included AC adapter: 12V DC, 5.5mm barrel connector (center positive)

  • Power consumption: 3W

Environmental

  • Operating temperature: 32 to 158°F (0 to 70°C)

  • Operating humidity: 10% to 90%

Physical

  • Dimensions: 2.9 × 2.9 × 1.1 in (7.3 × 7.4 × 2.9 cm)

  • Weight: 4.9 oz (138.5 g)

WE RECOMMEND

The SWIT S-4601 is a rugged professional HDMI-to-SDI converter that requires high-quality power solutions and signal distribution accessories for reliable operation in both field and studio environments. The accessories listed below include compatible battery plates, rechargeable batteries, and power cables that ensure flexibility in a variety of production environments.

Battery plates and adapters - Plates that allow the converter to be mounted and powered by professional rechargeable batteries.

Batteries - Compatible batteries for powering the converter via the corresponding plates.

Chargers - Charging stations to keep batteries ready for use.

Power Cables - Cables for directly powering the converter from external sources or batteries with a D-Tap output.

Video equipment and distribution - Devices for further processing and distribution of the SDI signal from the converter's output.

Maintenance and Transport - Accessories for the safe transport and cleaning of optical and signal interfaces.
