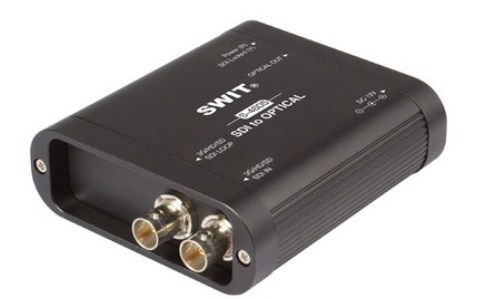

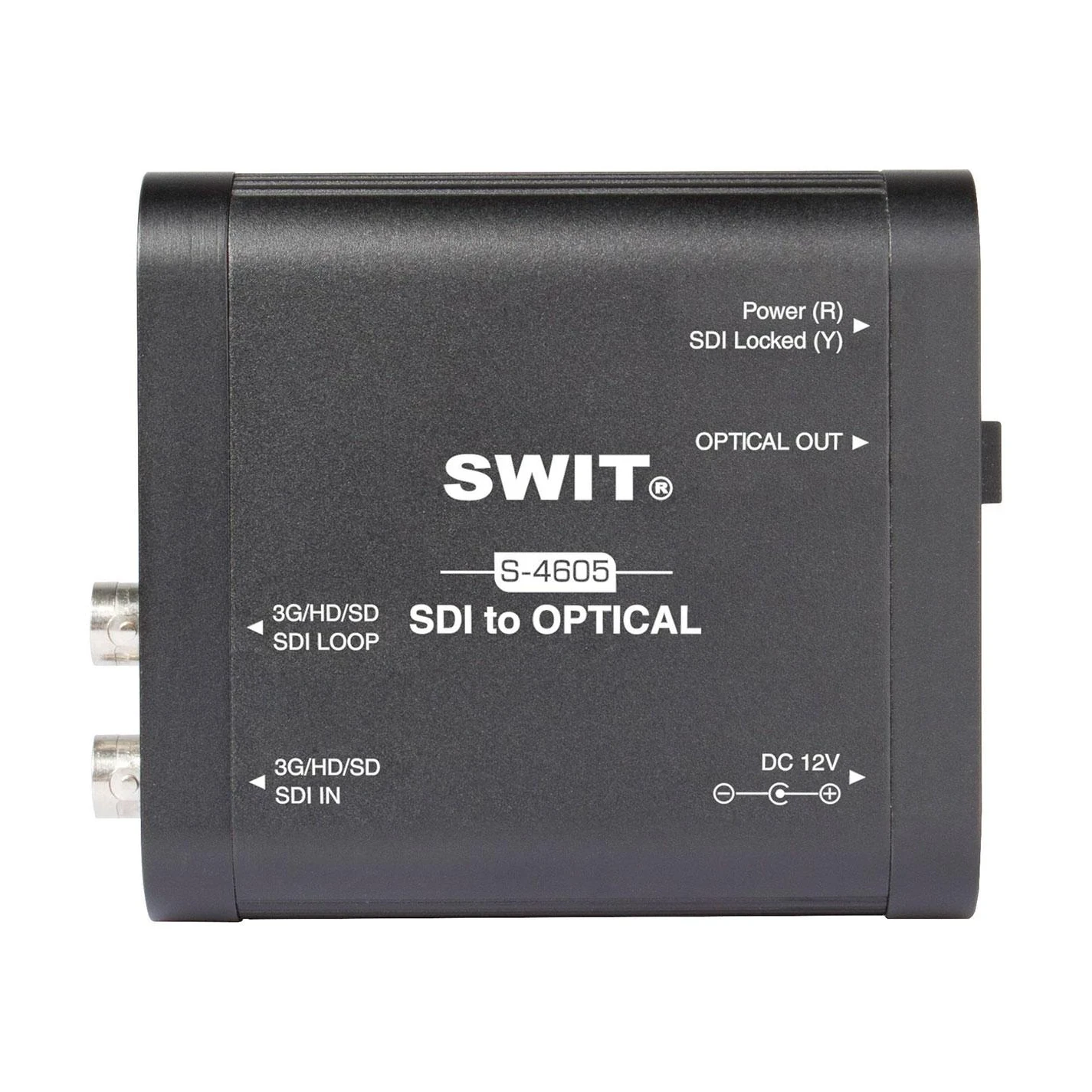

SWIT S-4605 | Heavy Duty 3G-SDI to Optical fiber converter

The SWIT S-4605 is a compact SDI to single-mode optical fiber converter designed for long-distance transmission of 3G/HD/SD-SDI signals, supporting up to 20km reliable transmission with rugged aluminum construction and flexible power options.

The SWIT S-4605 SDI to Optical Converter is a portable and reliable solution for transmitting broadcast-quality SDI signals over long distances using single-mode optical fiber. Designed for professional broadcast, live production, and AV installations, the S-4605 converts 3G/HD/SD-SDI signals into optical fiber output via an LC connector, enabling stable transmission up to 20 kilometers without signal degradation.

The unit features one SDI input, one SDI loop output, and one optical fiber output, allowing seamless signal monitoring or daisy-chaining while transmitting over fiber. It supports hot-swap optical modules, making maintenance and system upgrades quick and convenient in demanding environments.

Built with a heavy-duty aluminum housing, the S-4605 is designed for durability in both studio and field use. Clear power and SDI input status indicators provide instant operational feedback, while the 6–18V DC pole-tap power input ensures compatibility with a wide range of power sources, including camera batteries and AC adapters.

With its compact size, low power consumption, and included mounting plate, the SWIT S-4605 is an ideal choice for OB vans, broadcast studios, live events, and long-distance SDI transmission applications.

Key Features

• 3G/HD/SD-SDI to optical fiber converter

• Single-mode optical fiber output with LC connector

• Up to 20km reliable signal transmission

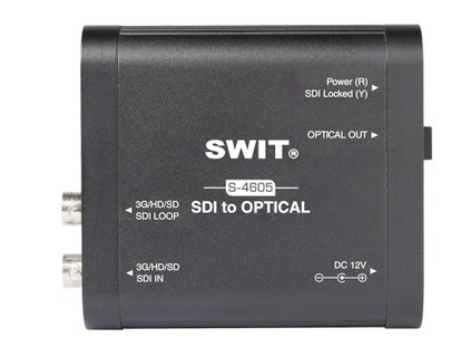

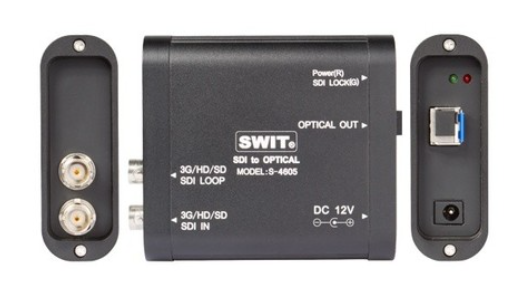

• 1× SDI input, 1× SDI loop output, 1× fiber output

• Hot-swappable optical module

• Power and SDI signal status indicators

• 6–18V DC pole-tap power input

• Heavy-duty aluminum housing

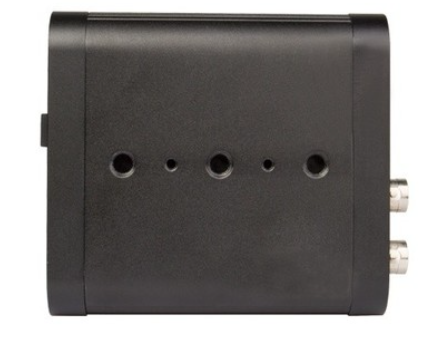

• Bottom screw threads for mounting
